Online Auction | WÄRTSILÄ | Closure of manufacturing plant for very large 4-stroke engines

Started: 19 June 2024 at 08:00 BST

Ended: 03 July 2024 at 08:00 BST

Maynards, in order of WÄRTSILÄ Italia S.p.A, is offering the Machinery and Equipment previously used for the manufacturing of very large power plant and ship 4-Stroke Engines. Highlight is a WALDRICH SIEGEN CNC Portal Milling Machine PMC 4500 AT RQ2 from 1994 which was fully retrofitted and modernized in 2019. This Machine will be offered by Private Treaty. An Auction Sale will be conducted by Beginning of July and features Production-, Process,- Workshop, Test&Measuring Equipment and much more!

LISTING 2480014

CNC Portal Milling Machine WALDRICH SIEGEN PMC 4500 AT RQ2 | 1994/2019

This Machine is offered by Private Treaty Sale only. To get further information about the Offer Submitting Process, please contact us at inquiry@maynards.com.

Manufacturer: Waldrich Siegen
Model: PMC 4500 AT RQ2 ( 100Kw )
Year of Construction: May 1994; Total Mechanical/Electrical and Electronical revision in February 2019
Numeric Control: Siemens 840D sl

Span between colum: 4500mm
Bridge height: min 1250mm/ max 5000mm
Z axle stroke: 1500mm
Z1 axle stroke: 500mm
Y axle stroke: 7175mm
Table wide: 4000mm
Table 1 - wide: 9000mm
Table 2 - wide: 11000mm
Total stroke with jointed table: 45500mm
Stroke table 1: 18800mm
Stroke table 2: 23350mm

Speed at spindle range change 1: 10-380rpm
Speed at spindle range change 2: 10-2000rpm
Torque: 9600Nm
Quill size (octagonal shape): 600x600mm
Taper: ISO50 DIN 69871

Speed axle:
X 0-20000mm/min
Y 0-20000mm/min
Z 0-15000mm/min
Z1 0-2700mm/min
W 0-3000mm/min

Type of Milling heads: Vertical, horizontal, universal
N. of Milling heads: 12
Extension: 500mm, ISO50/ ISO50

Adapter
Step-up gear: ISO50 / ISO50, rate 1:3
Automatic tool changer features: Kuka anthropomorphic robot
N. of tool locations: 405
Max. Tool length: 120mm
Max weight [kg]: 150kg

Sale has ended

Online Auction | WÄRTSILÄ | Closure of manufacturing plant for very large 4-stroke engines

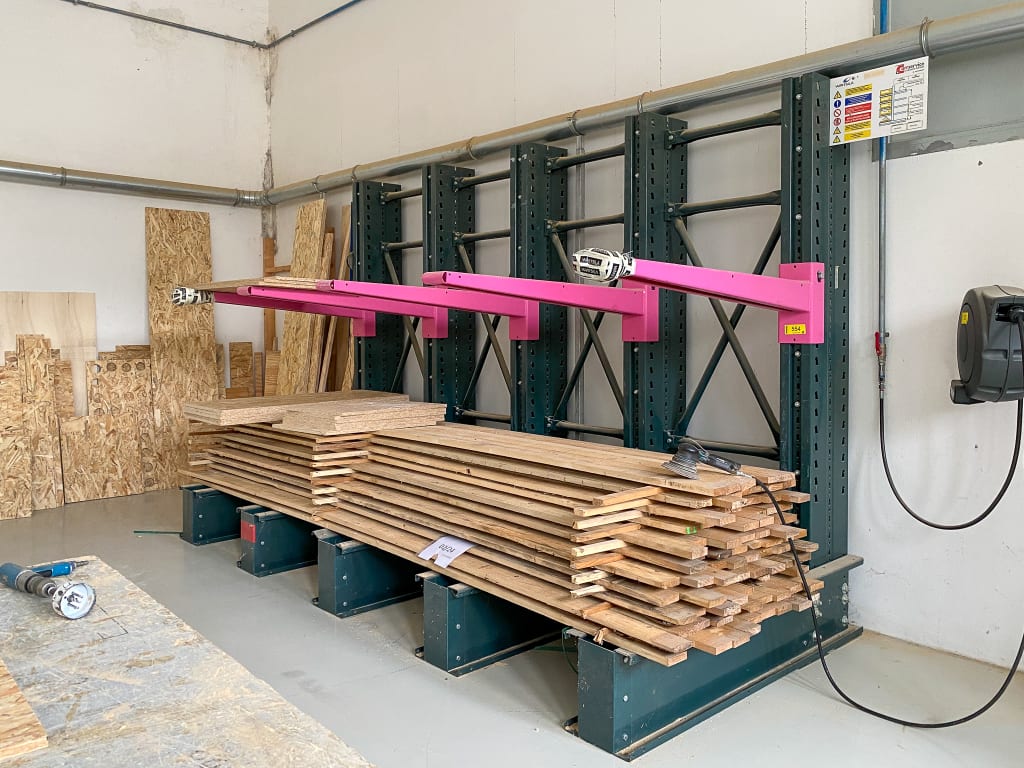

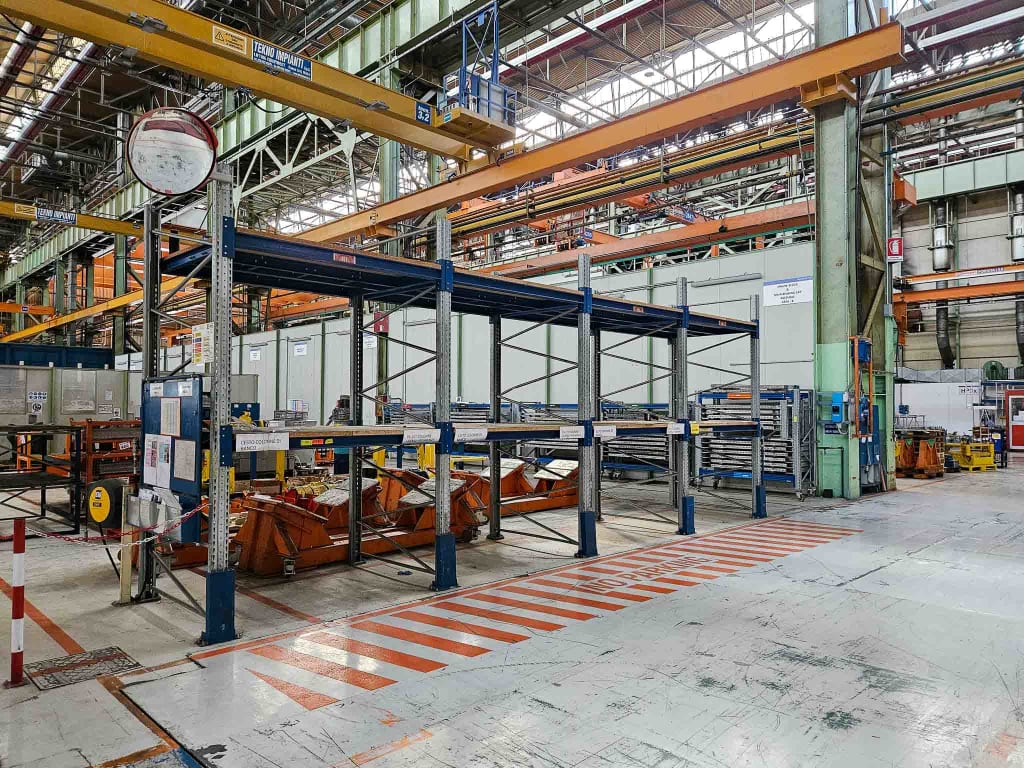

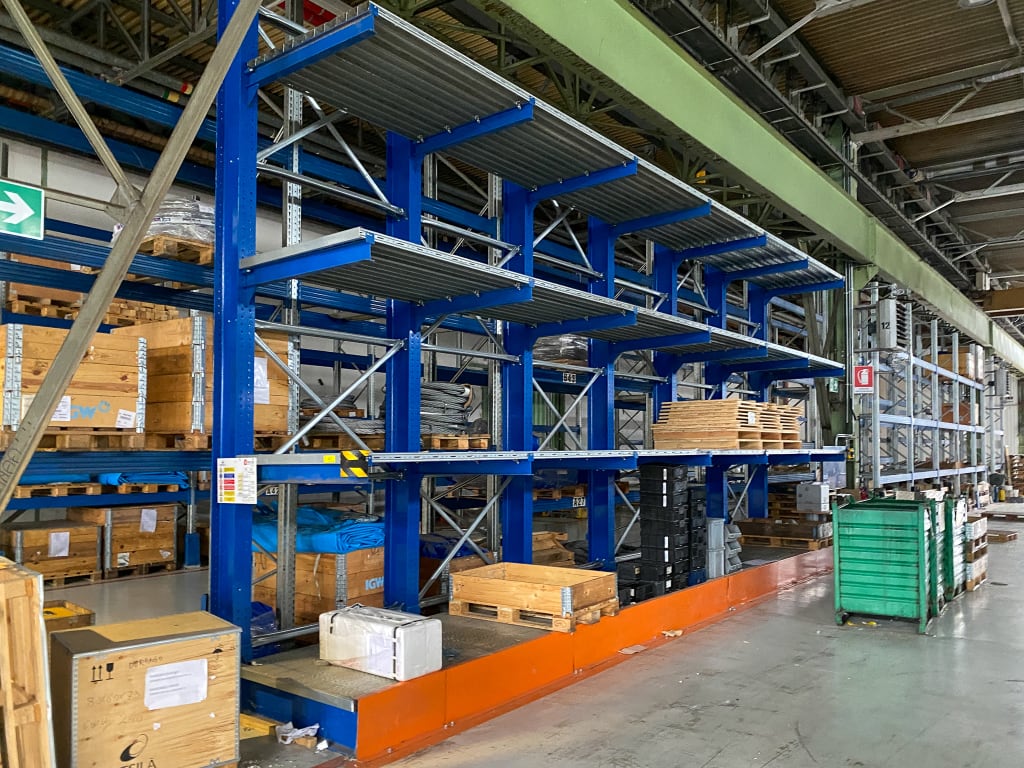

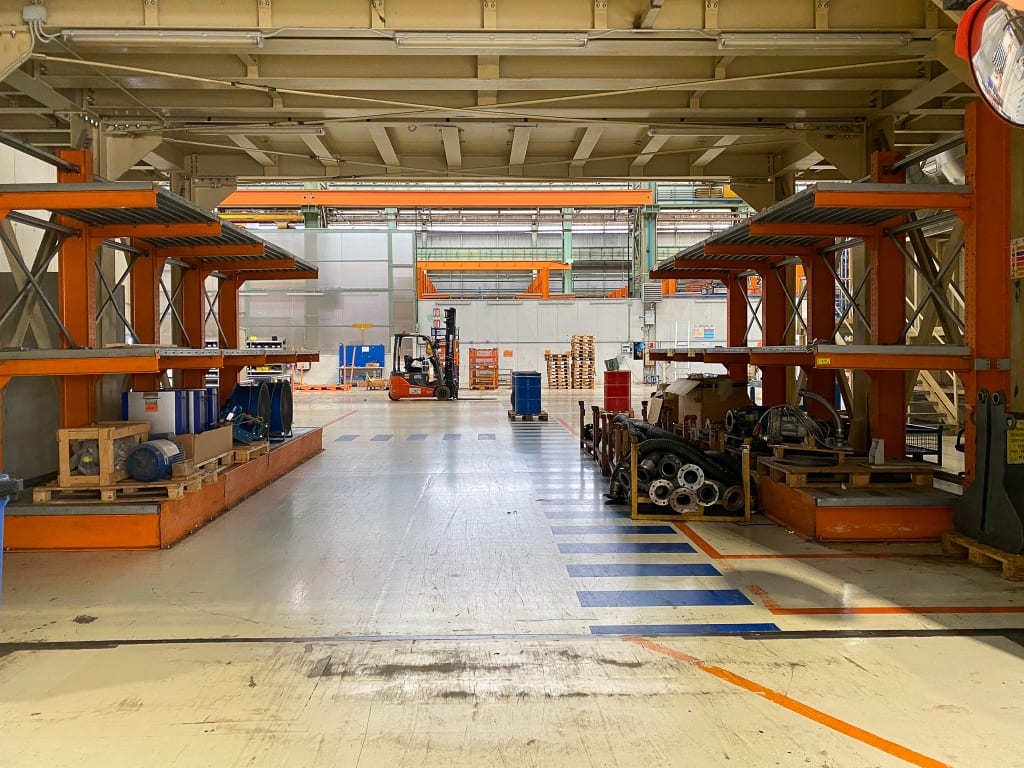

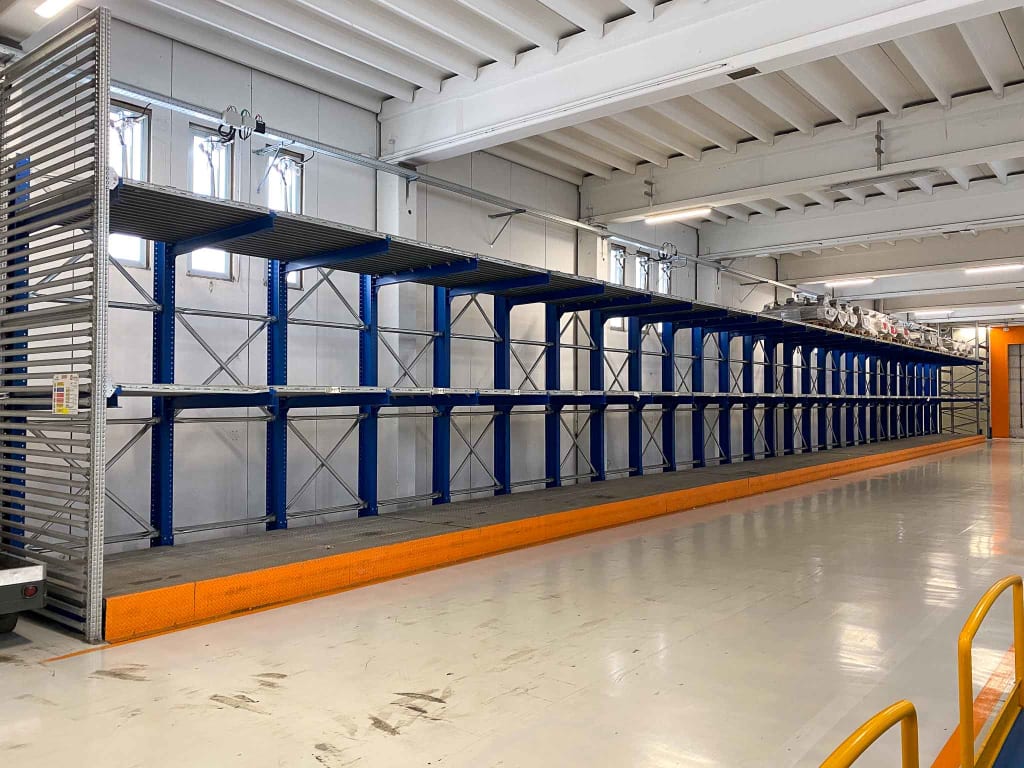

Cantilever storage rack, onesided METALSISTEM, year 2004

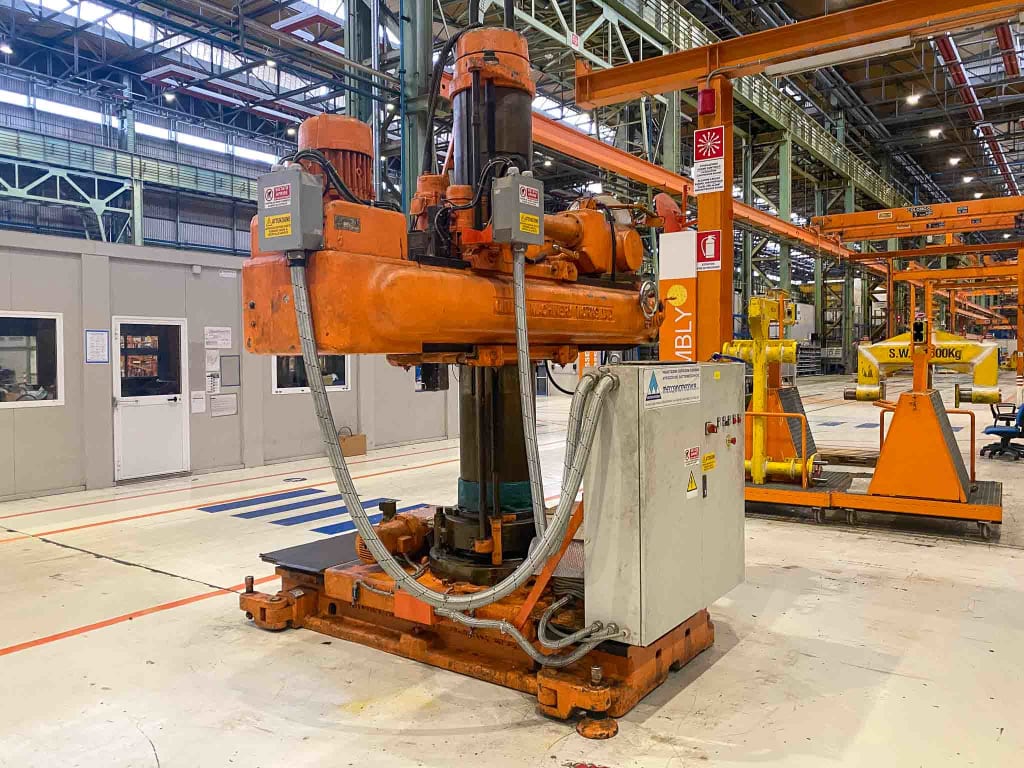

Radial drilling machine OKUMA, DPU, year 1963/2017

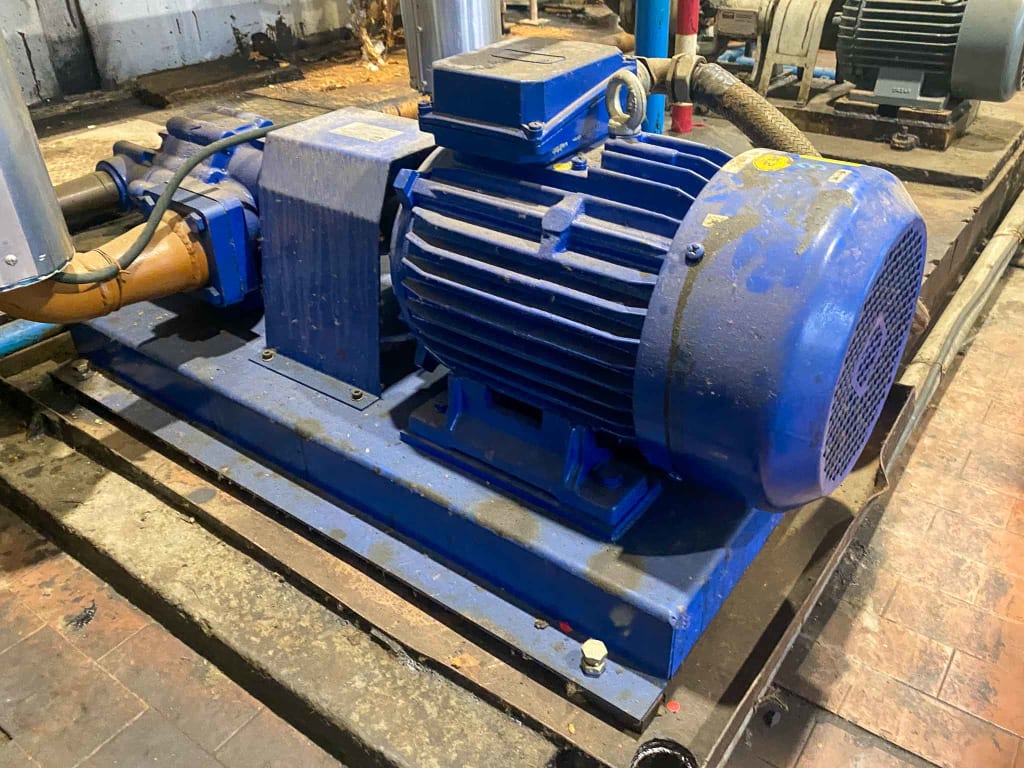

Volumetric pump, 65kW HOUTTUIN B.V., 211150, year 1999

Flow Meter ABB, FEP311-200ADD1D2BOA1AOA1A1C1

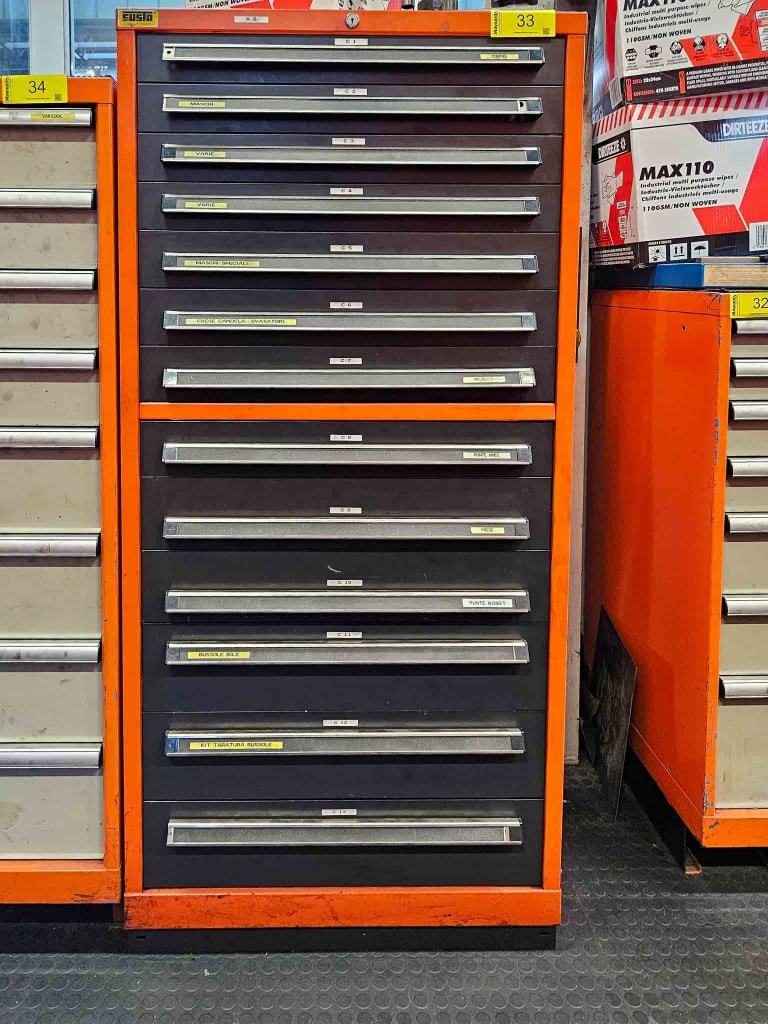

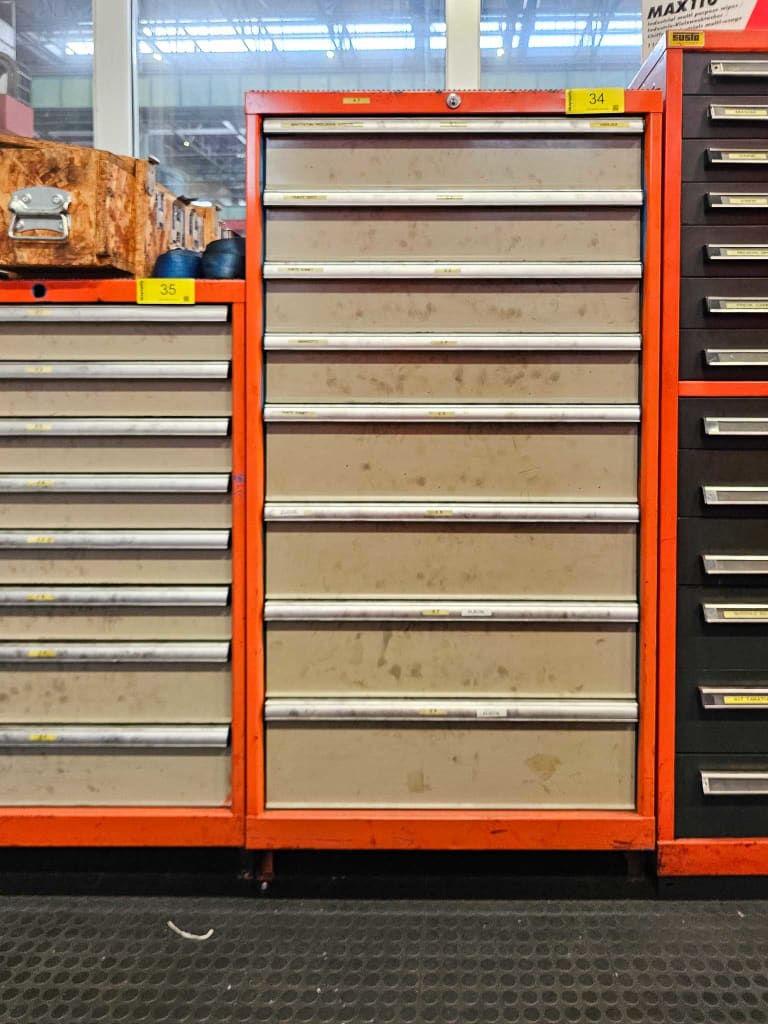

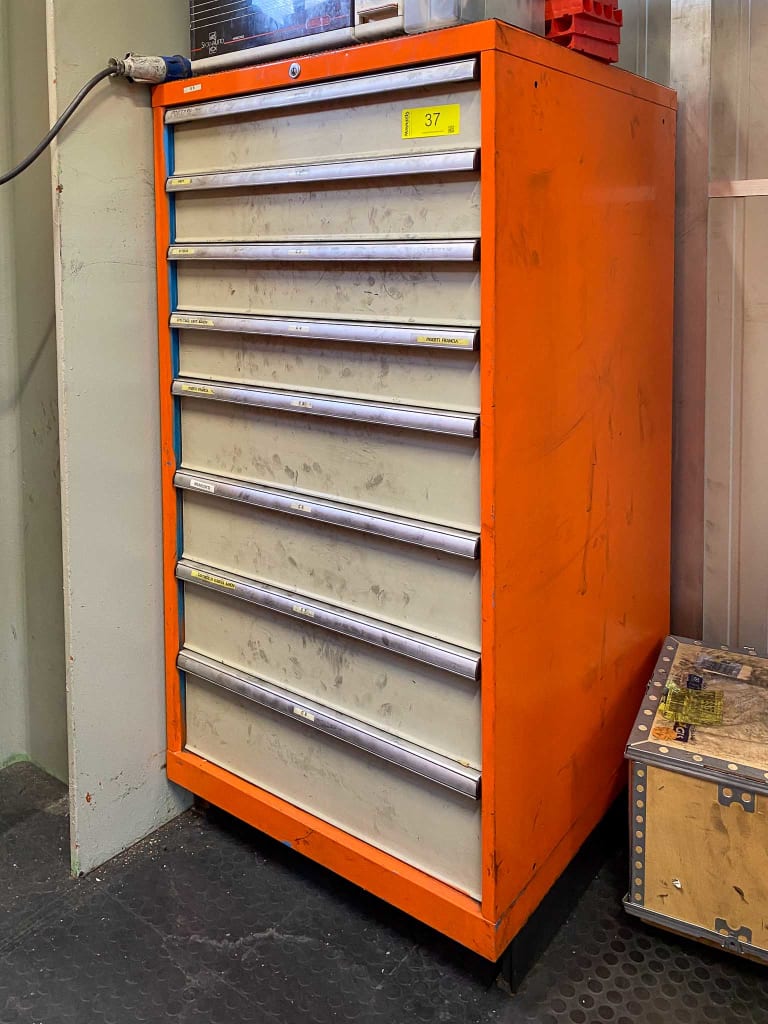

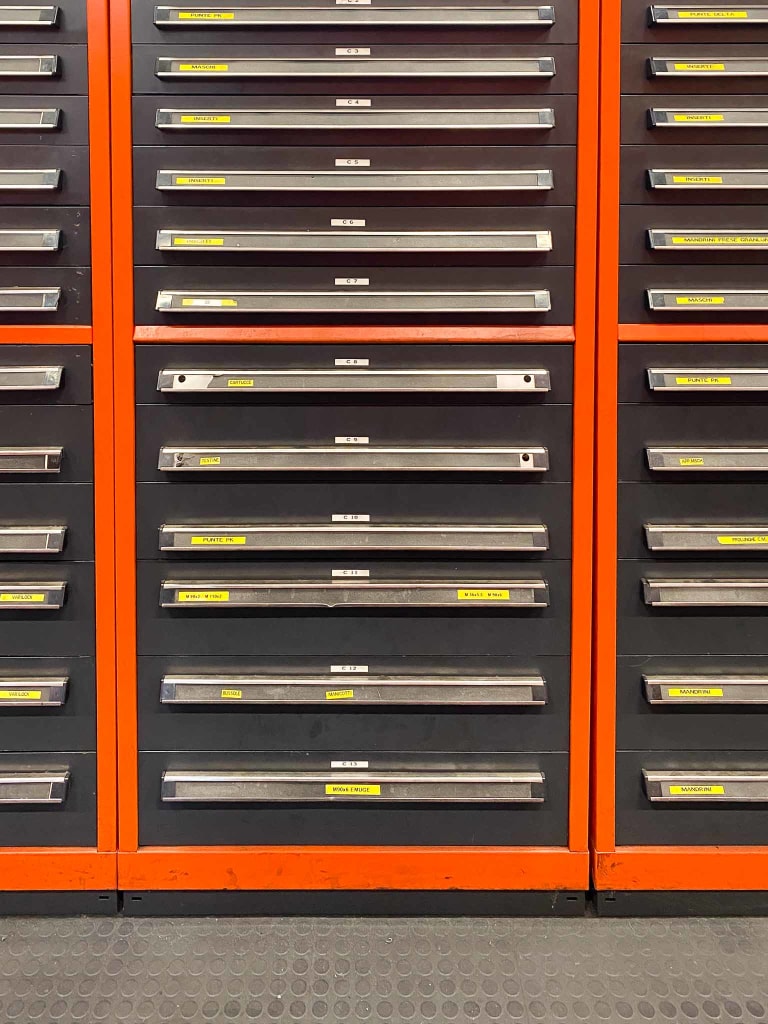

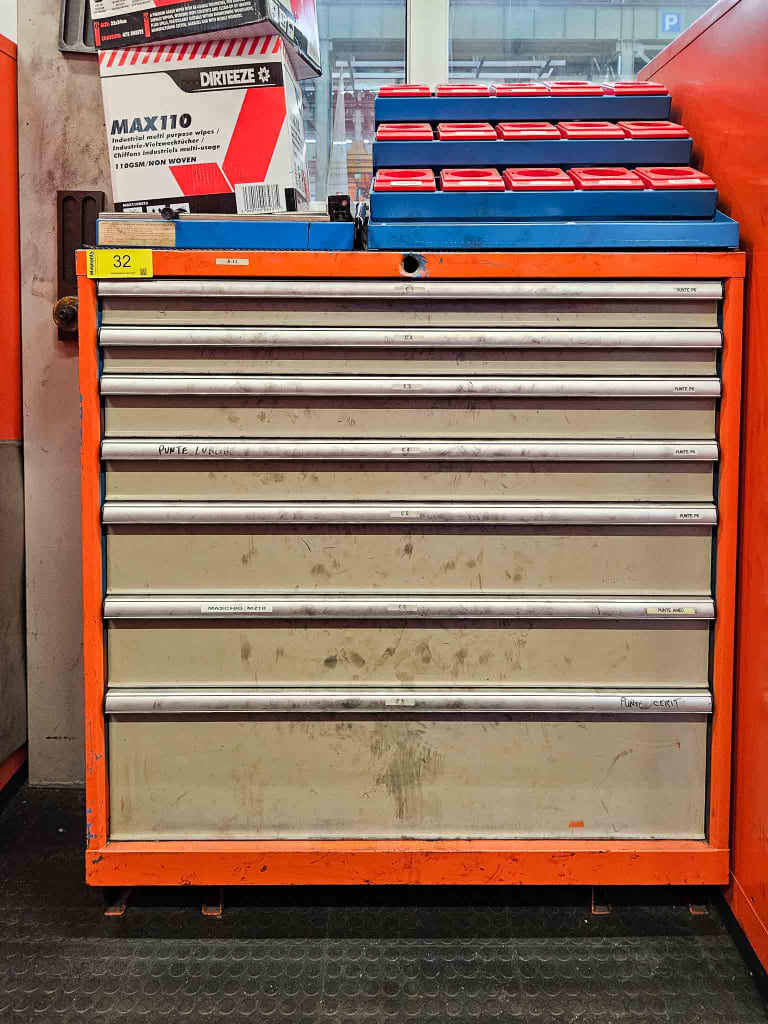

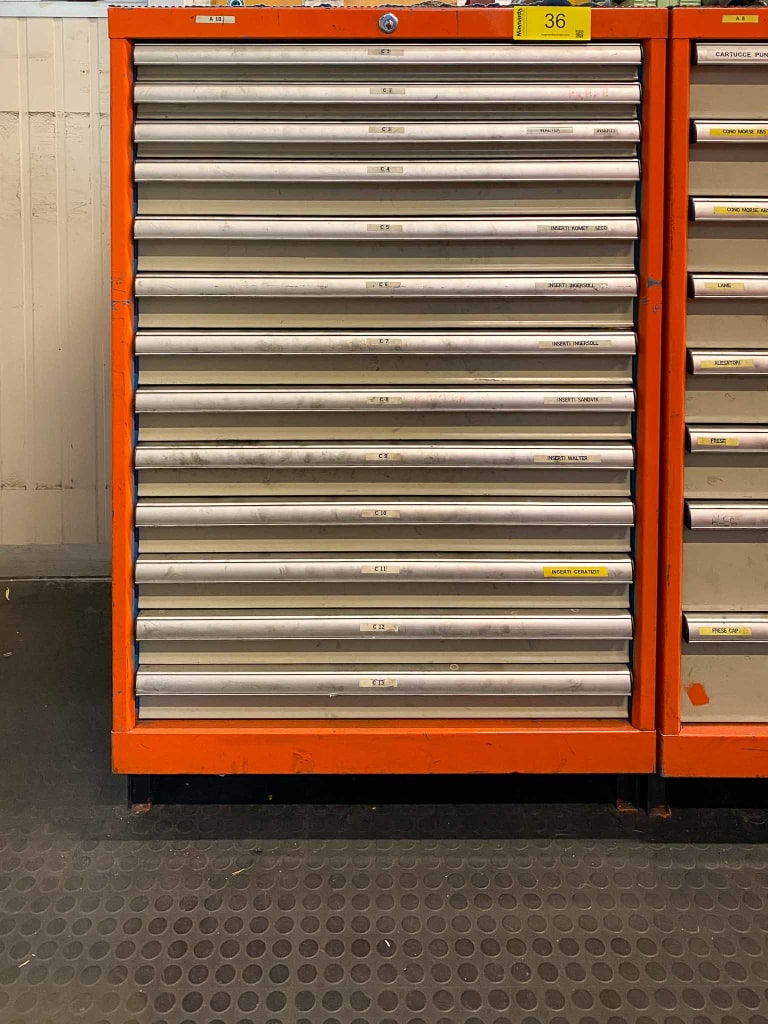

Drawer cabinet, 12 full extensions, sheet steel SUSTA

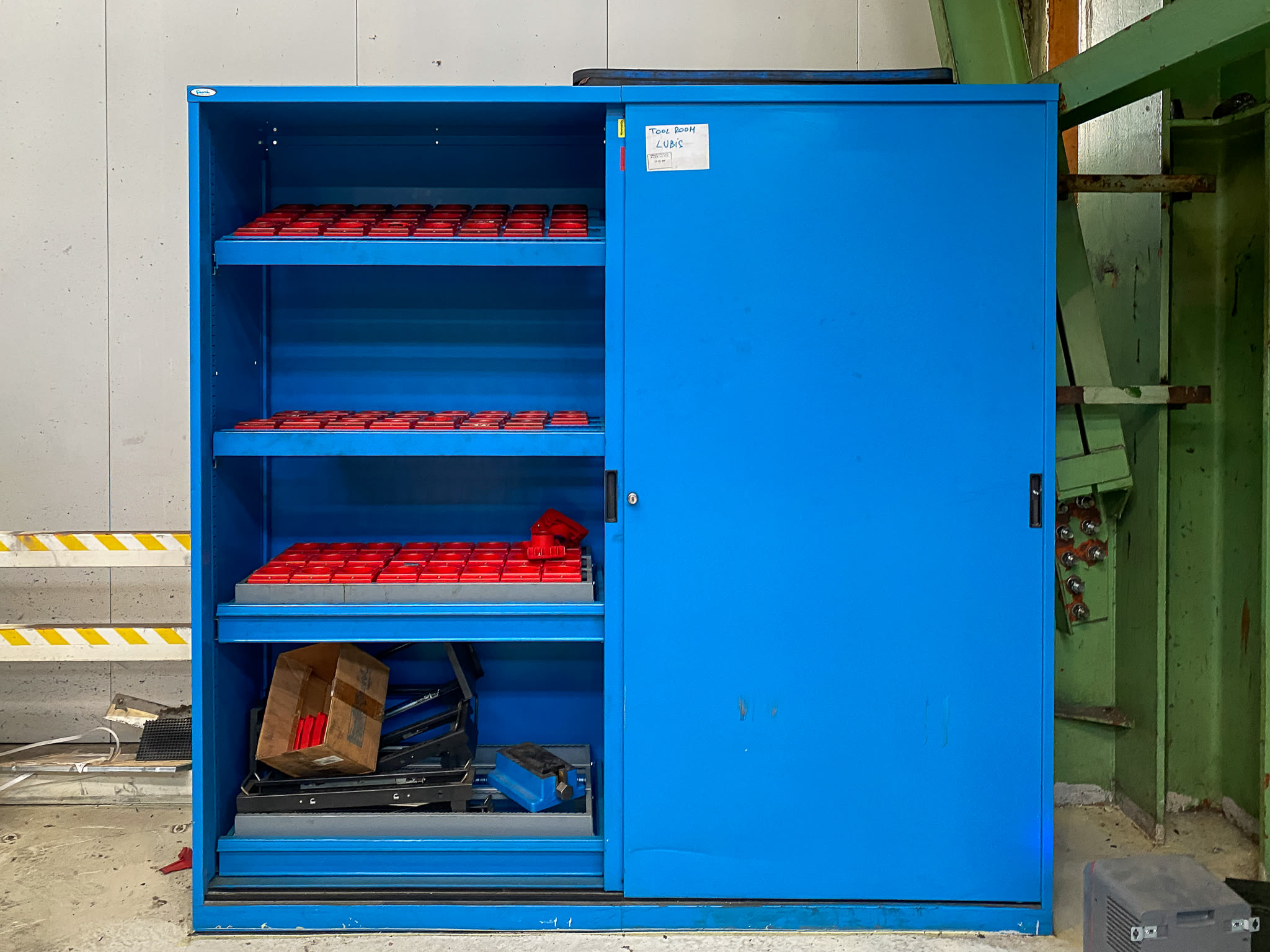

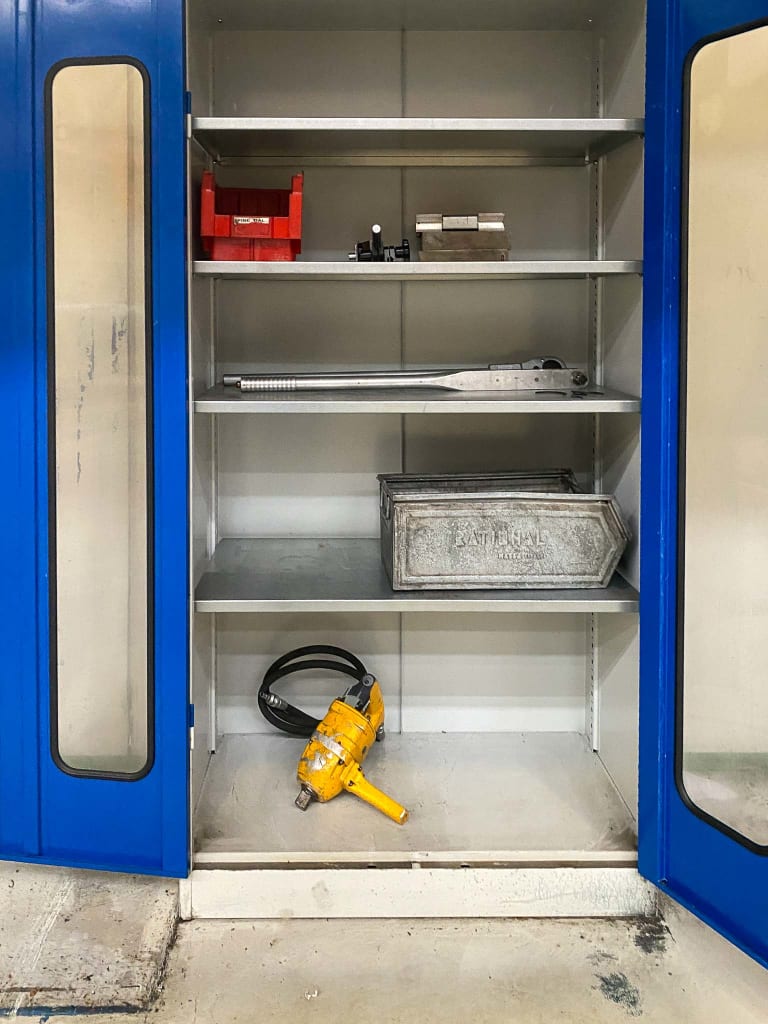

Metal Cabinet GARANT, 420713/5005/7036, year 2016

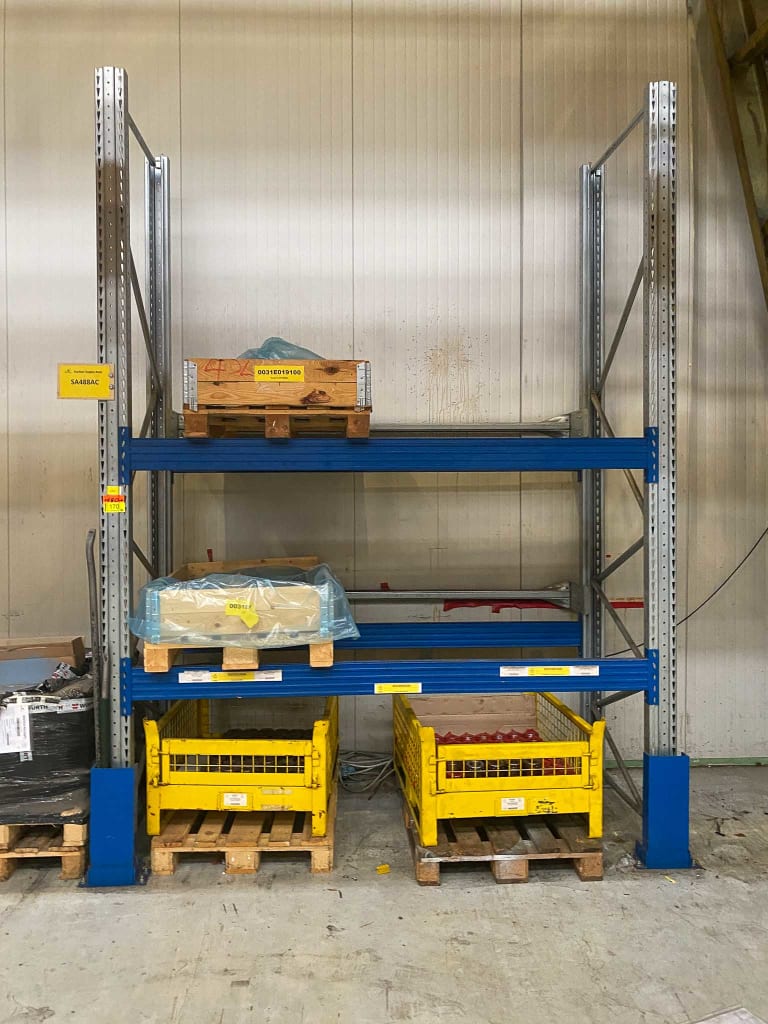

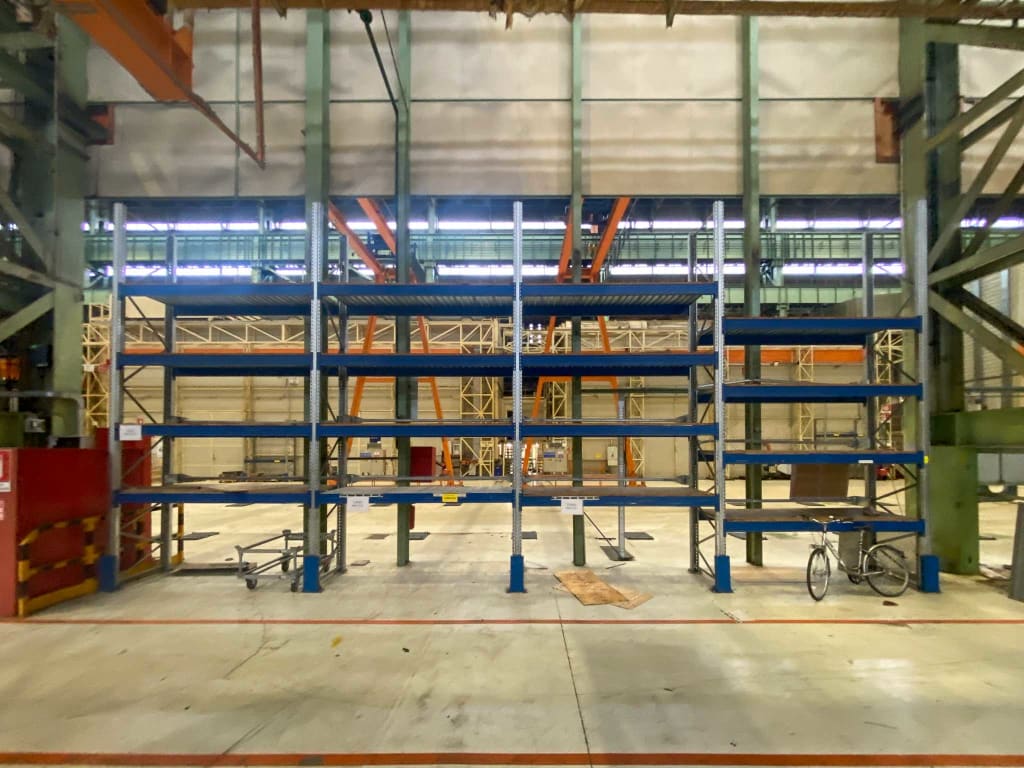

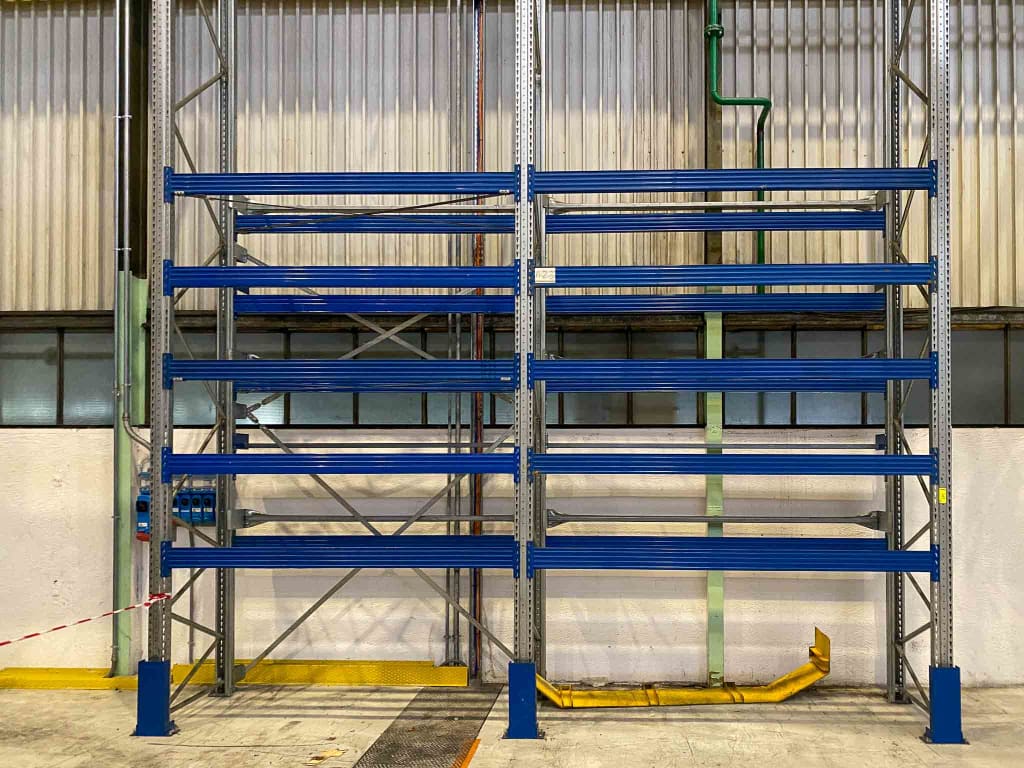

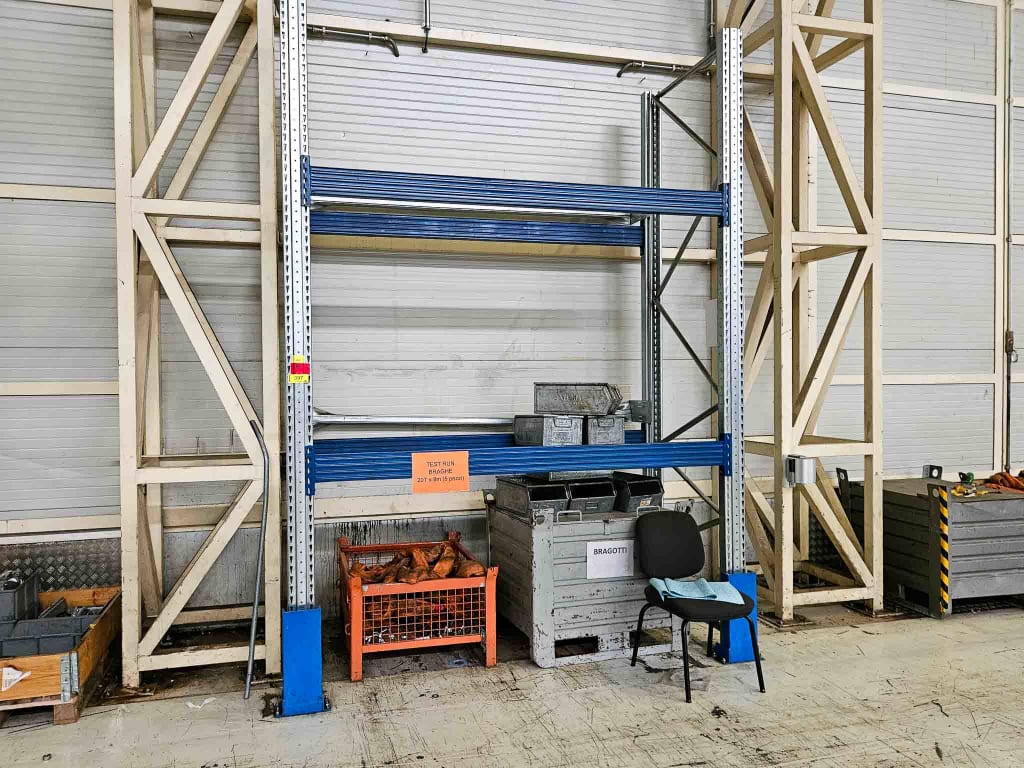

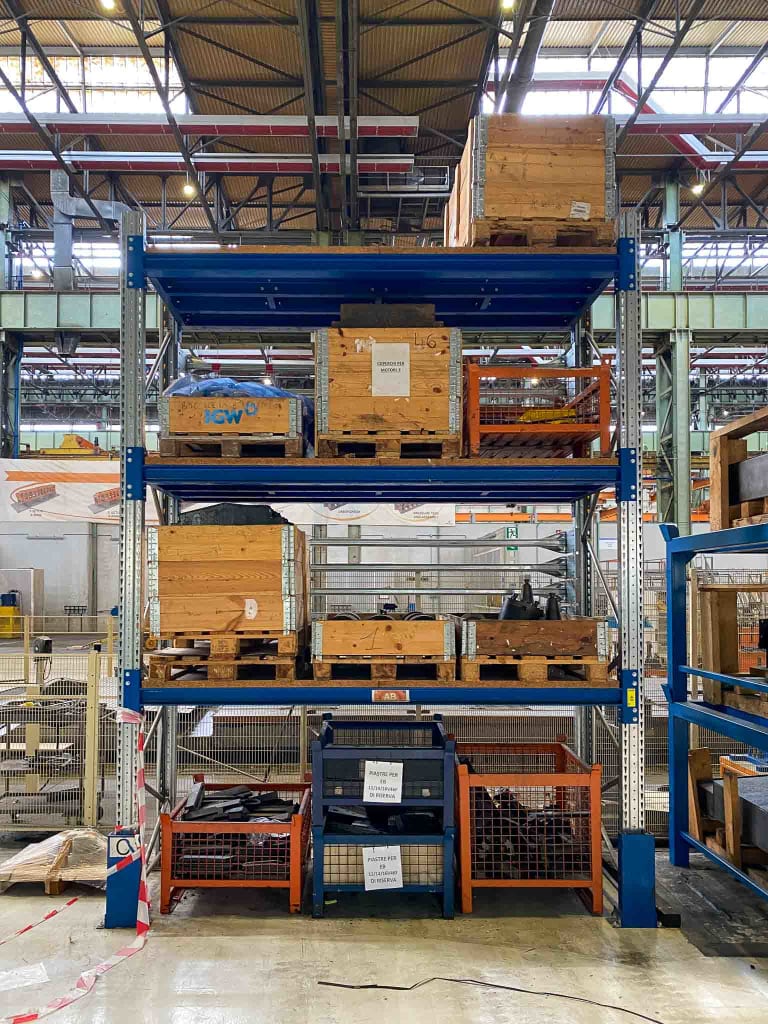

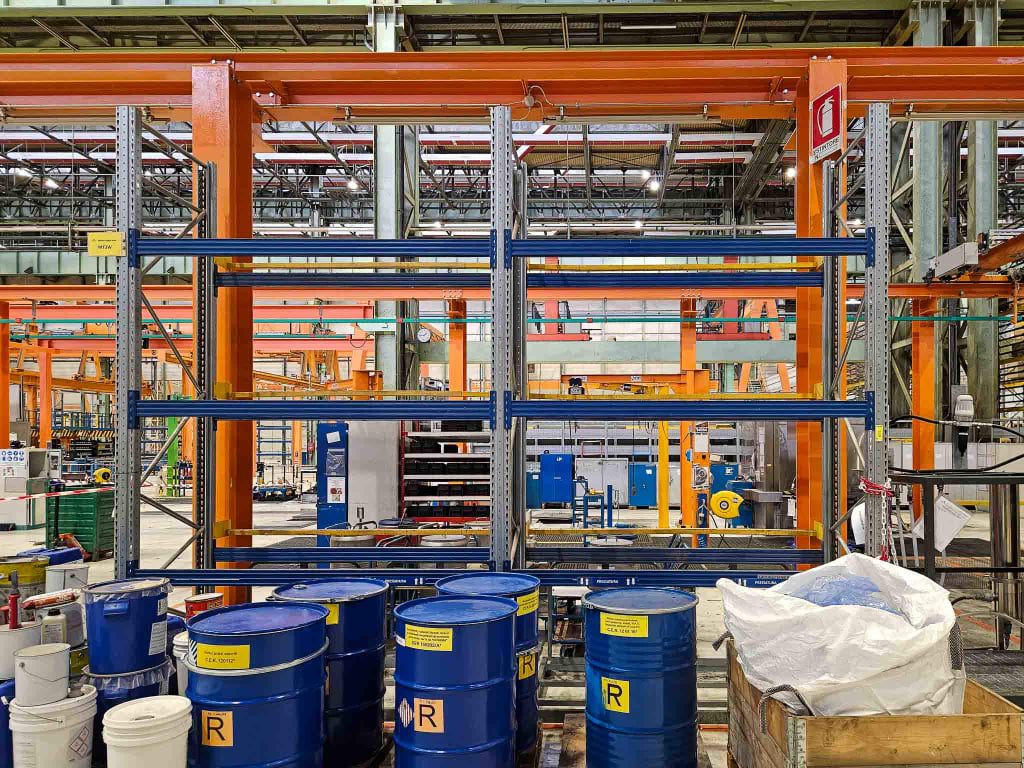

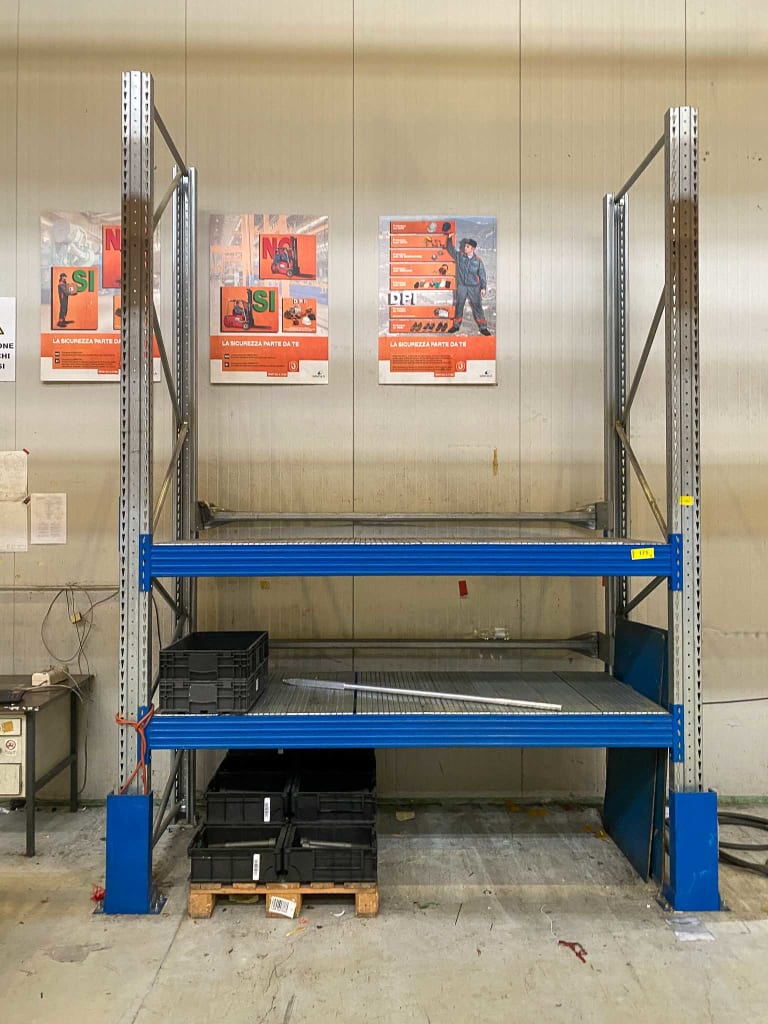

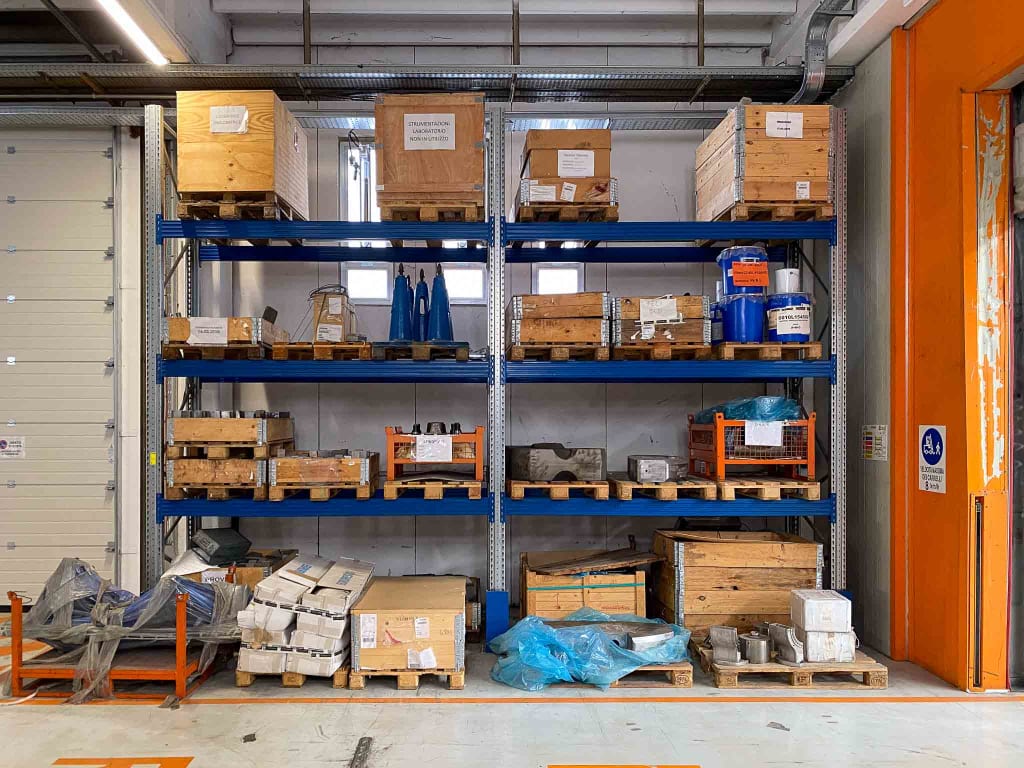

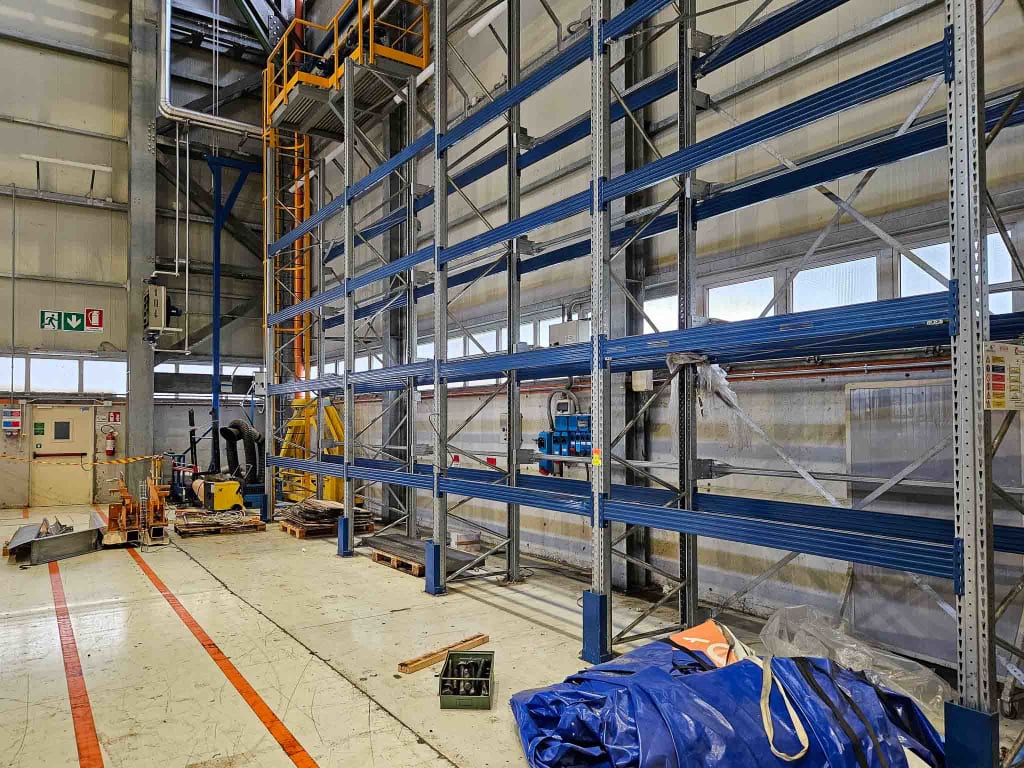

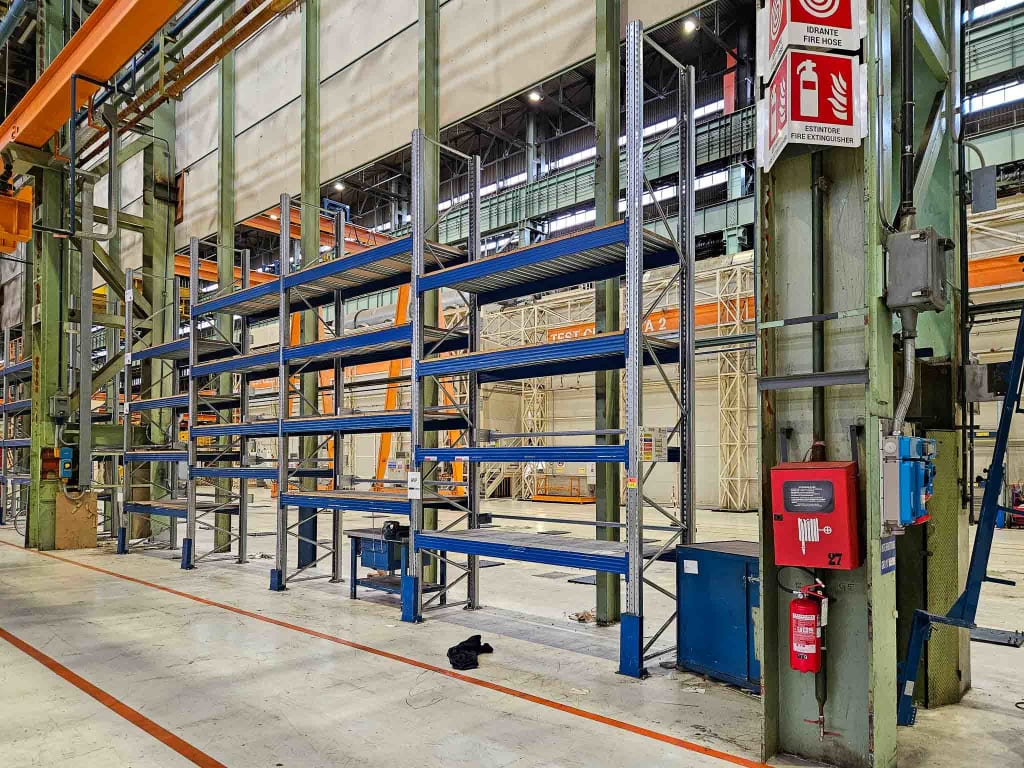

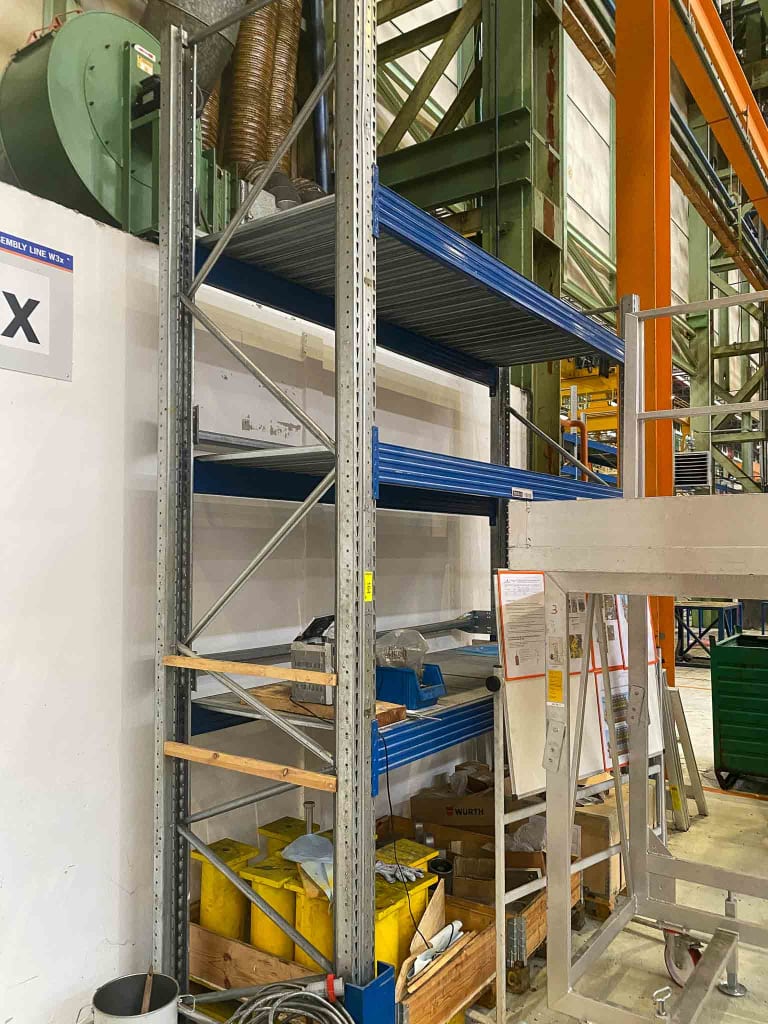

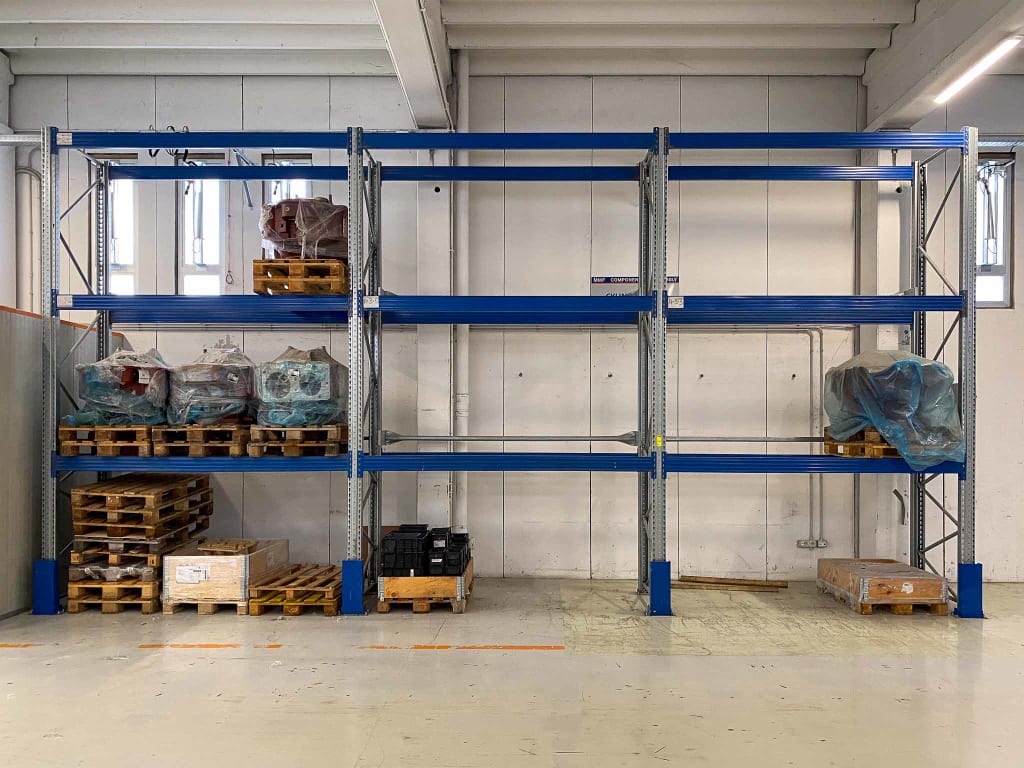

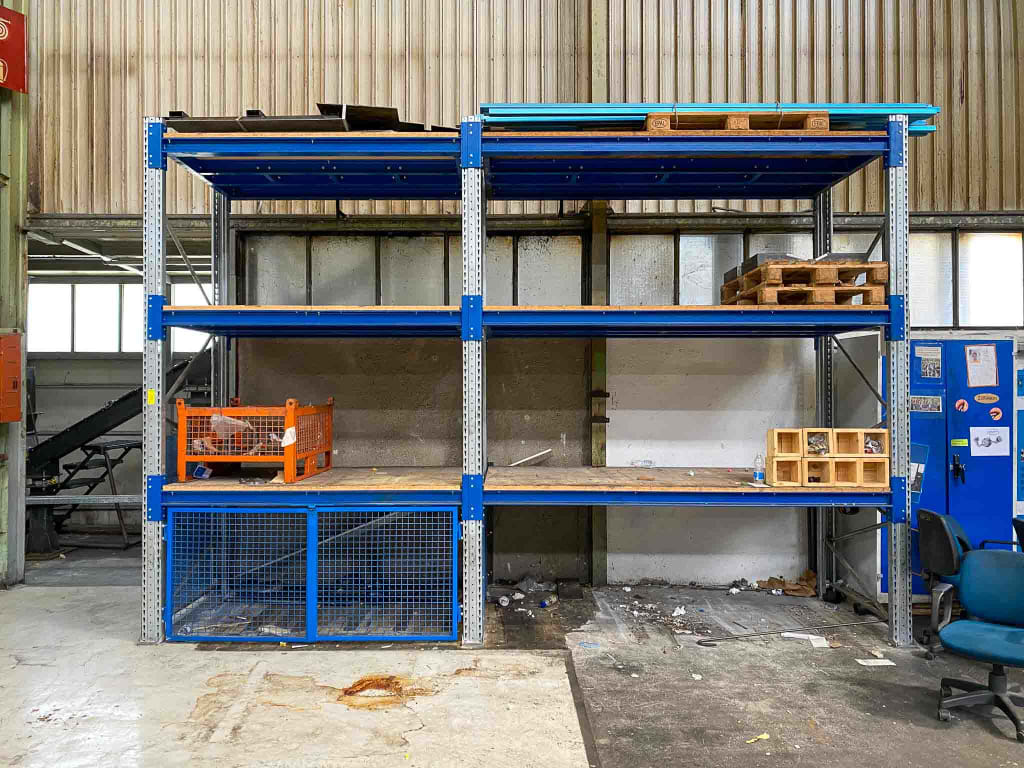

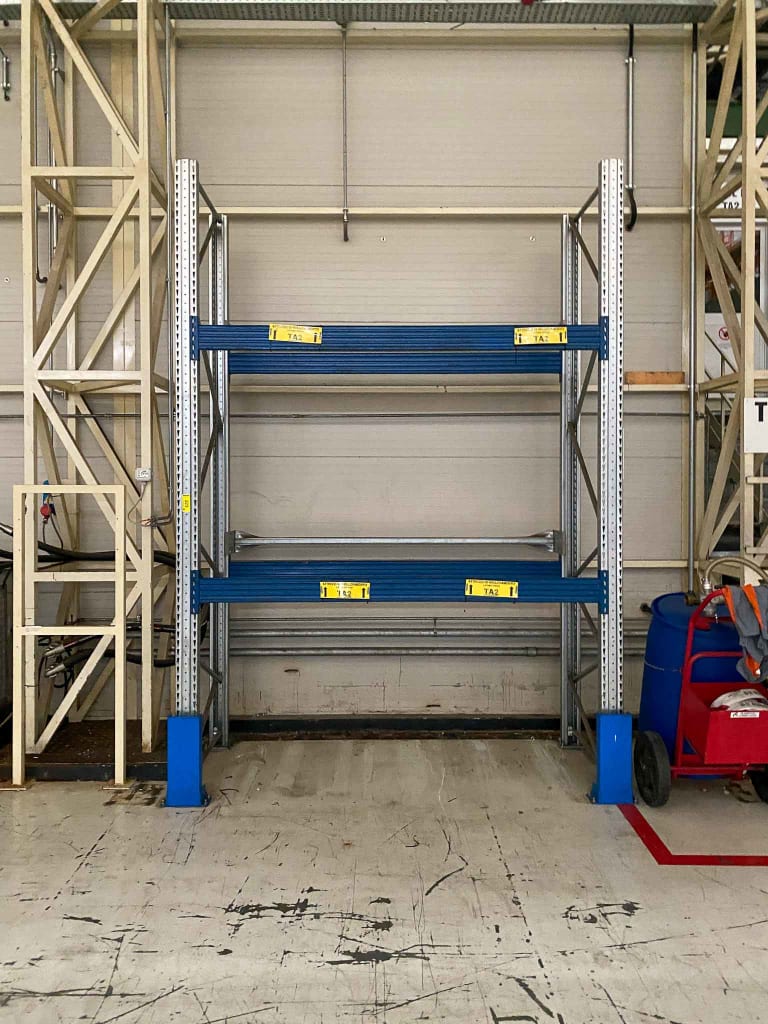

Pallet rack METALSISTEM, year 2007

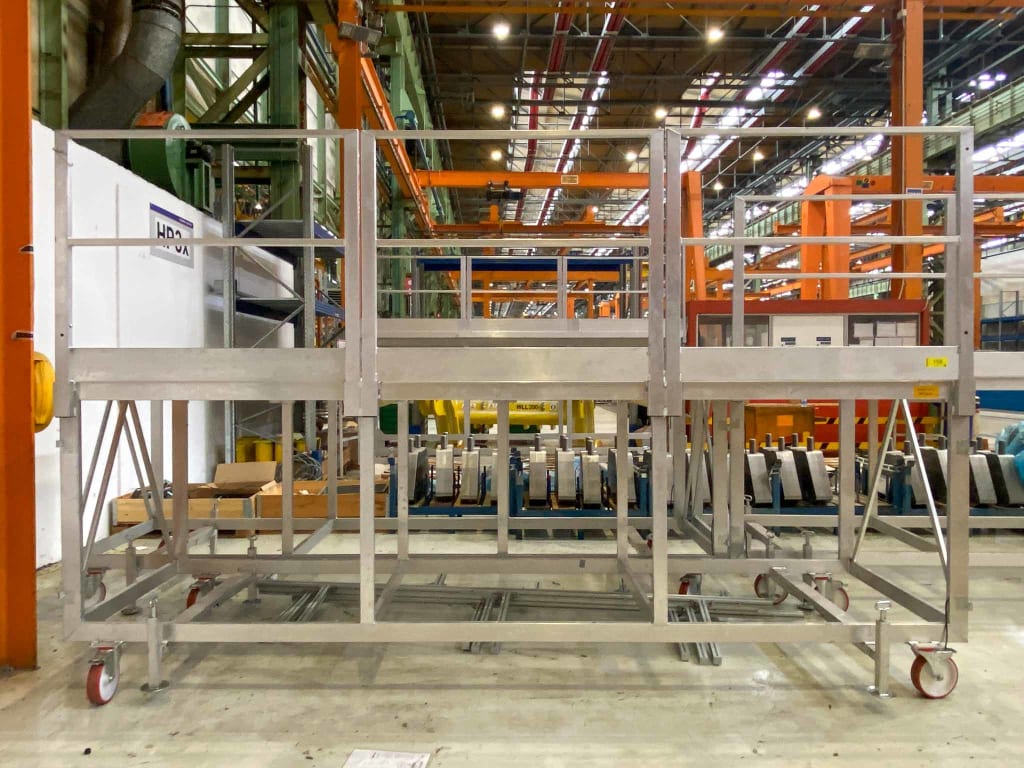

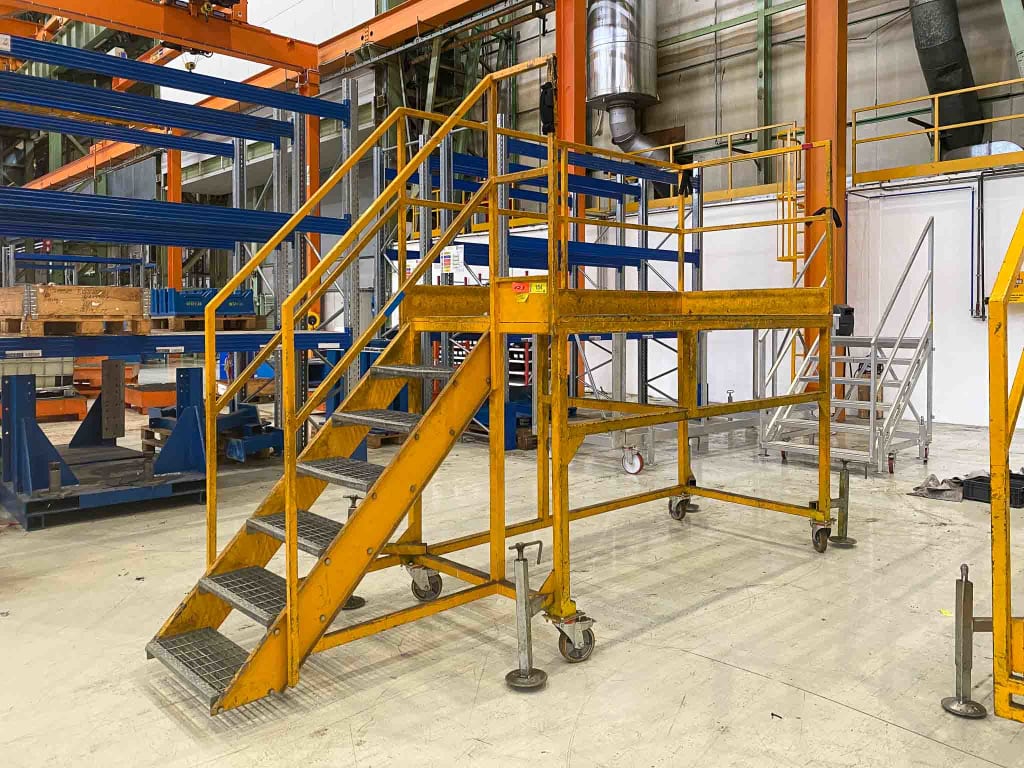

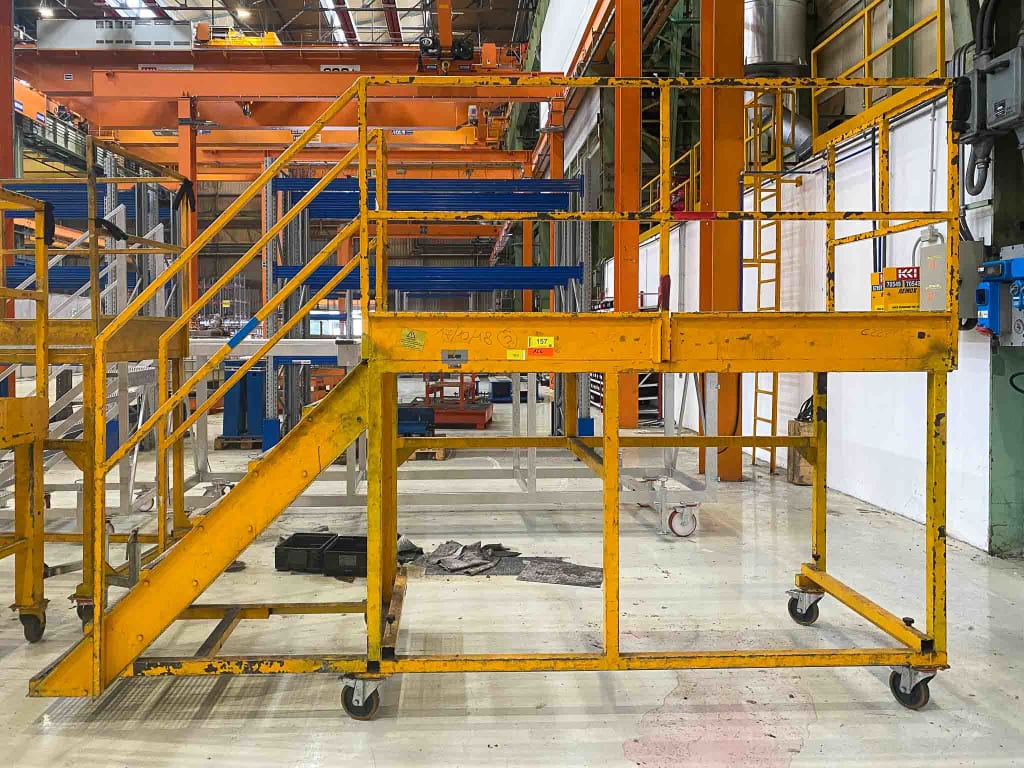

Work platform, aluminum, mobile SCALE DC, VAR00020, year 2021

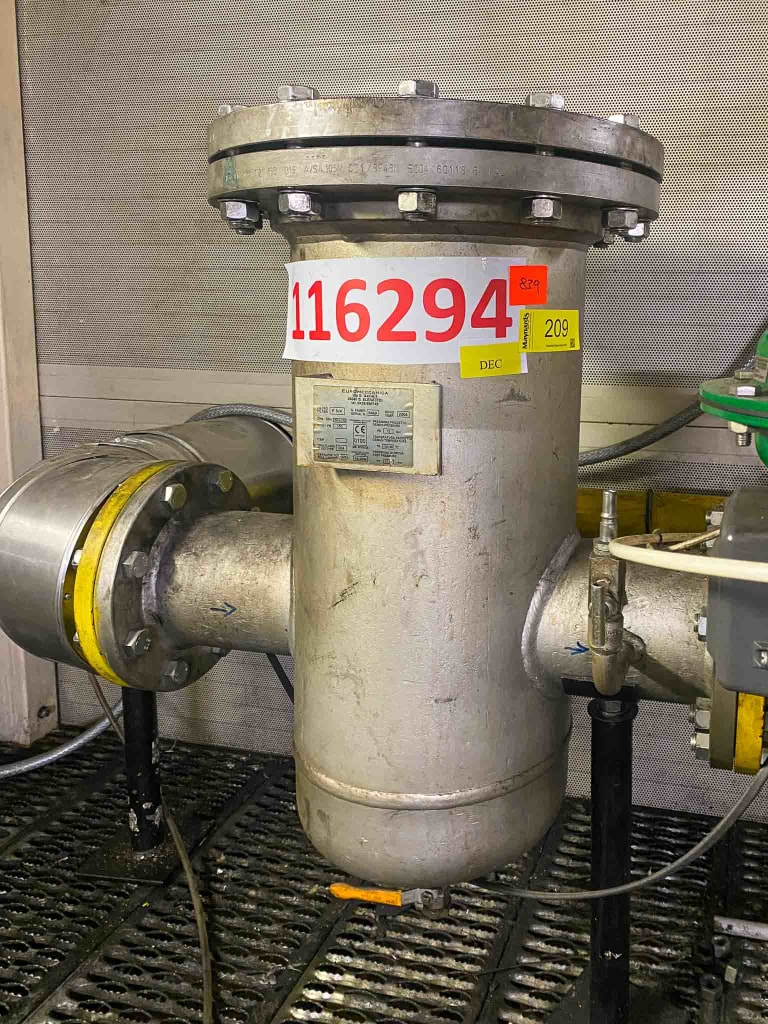

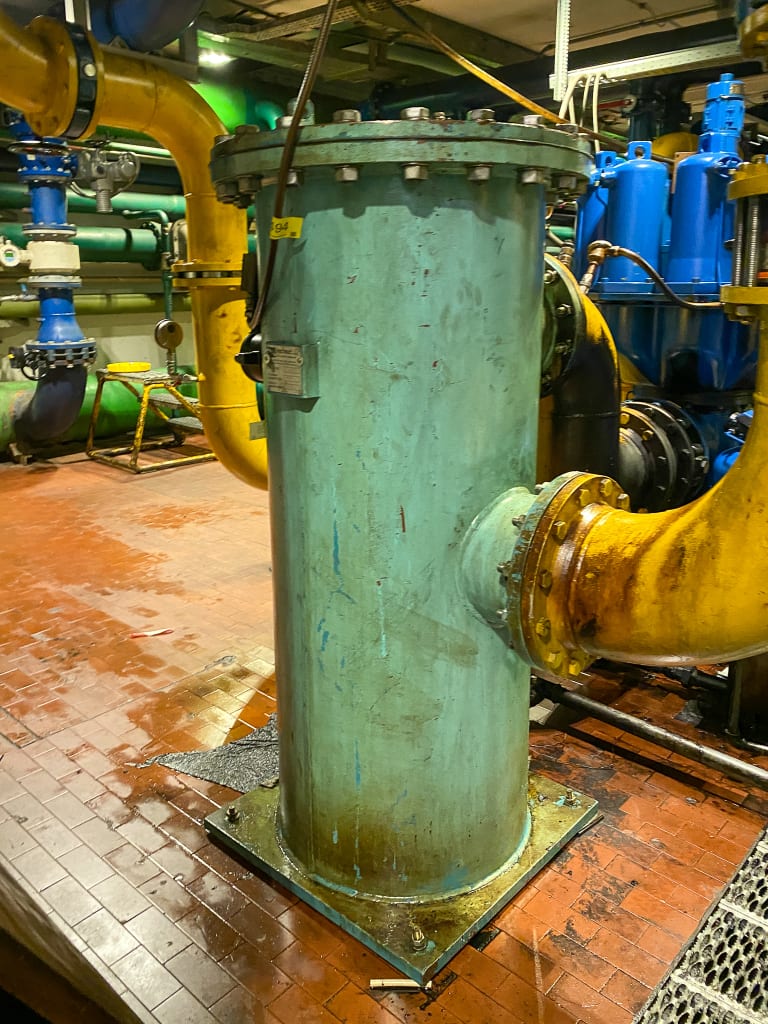

Water filter

Pallet rack METALSISTEM, year 2007

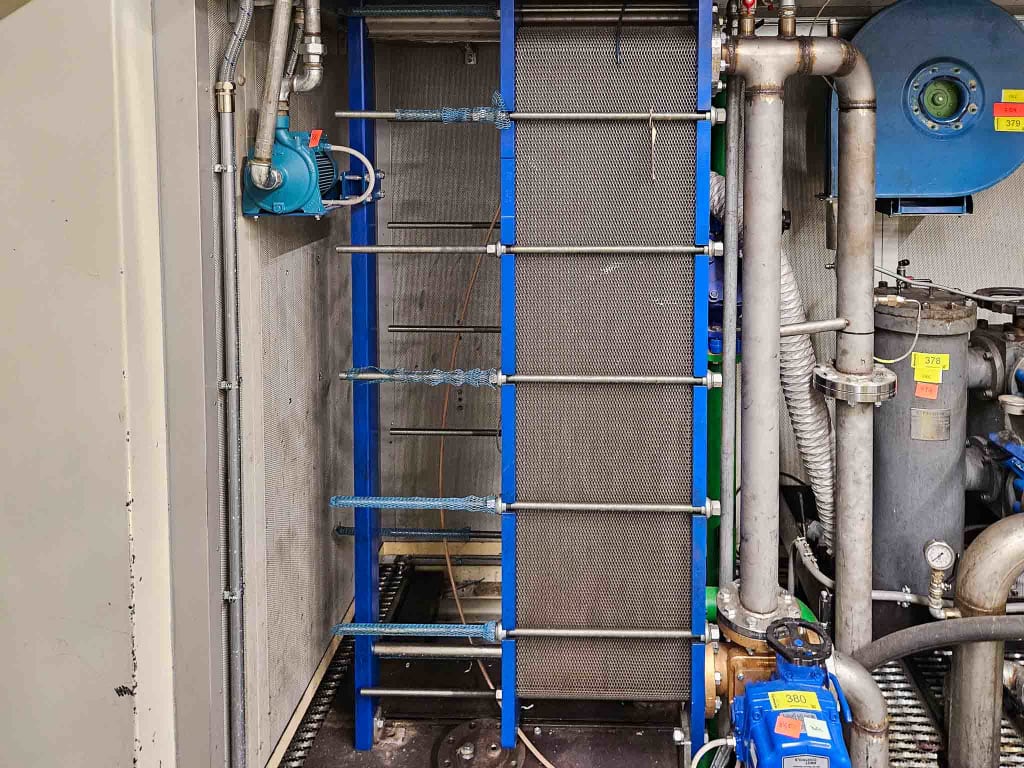

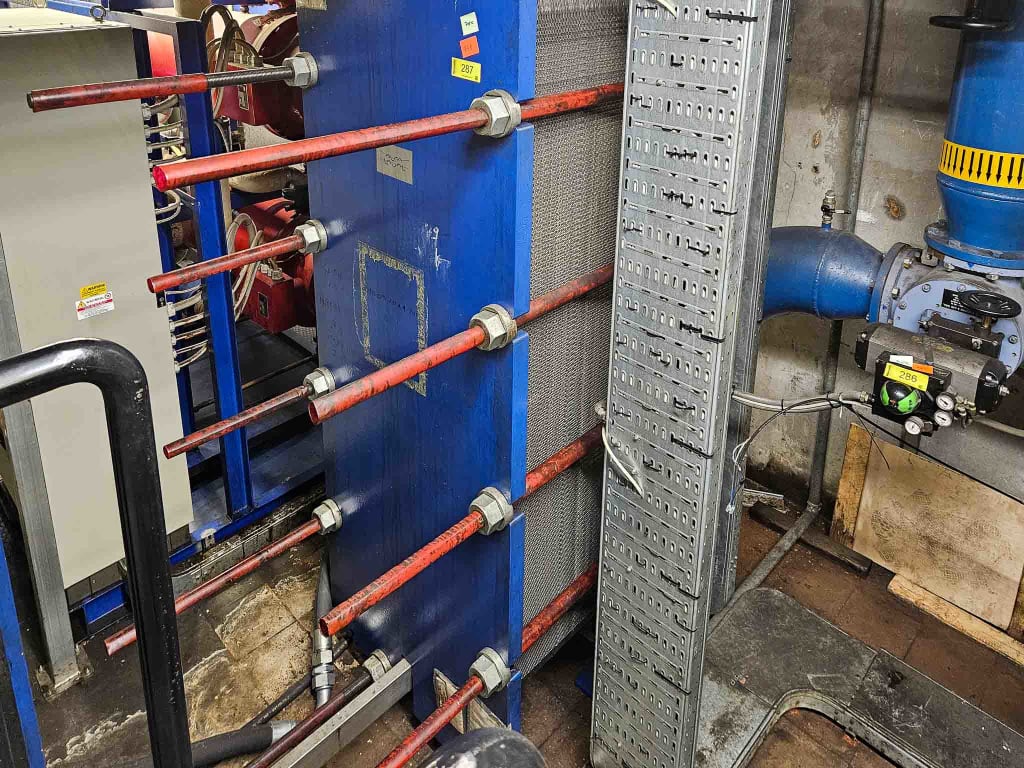

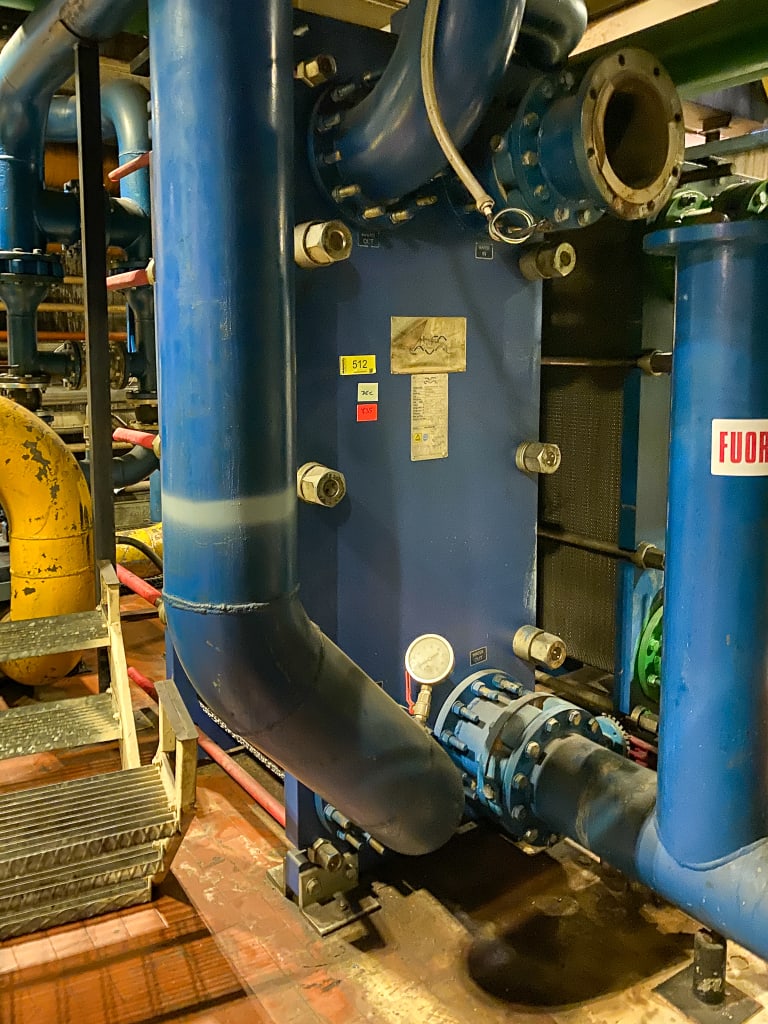

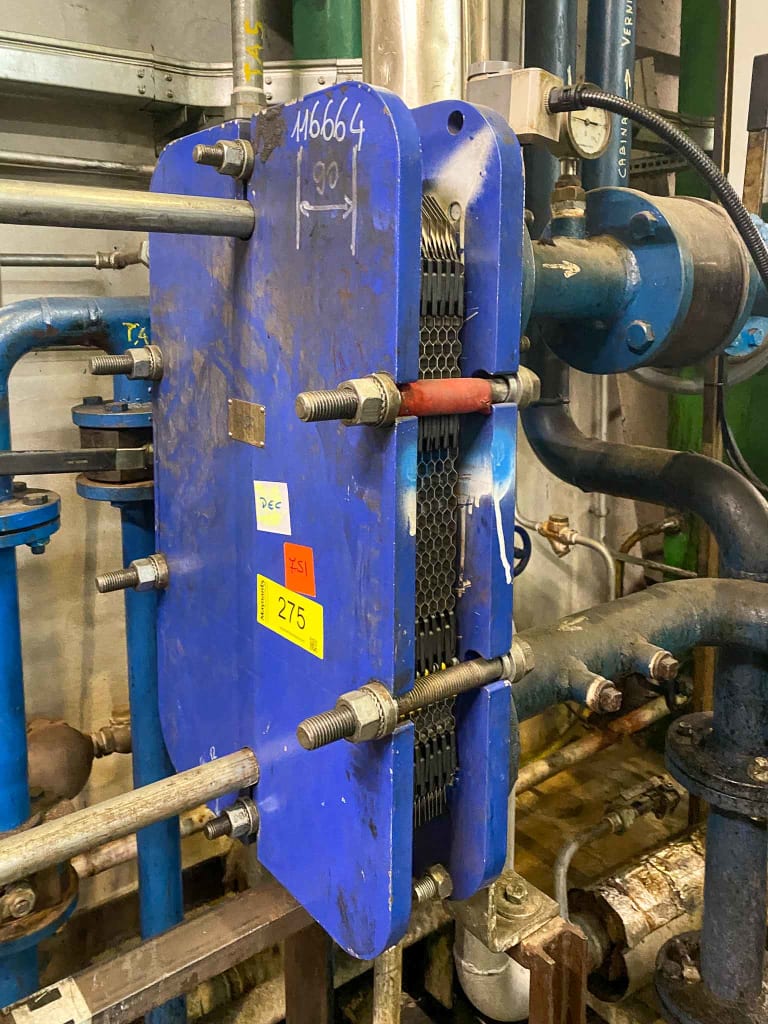

Sealed plate and frame heat exchanger ALFA LAVAL

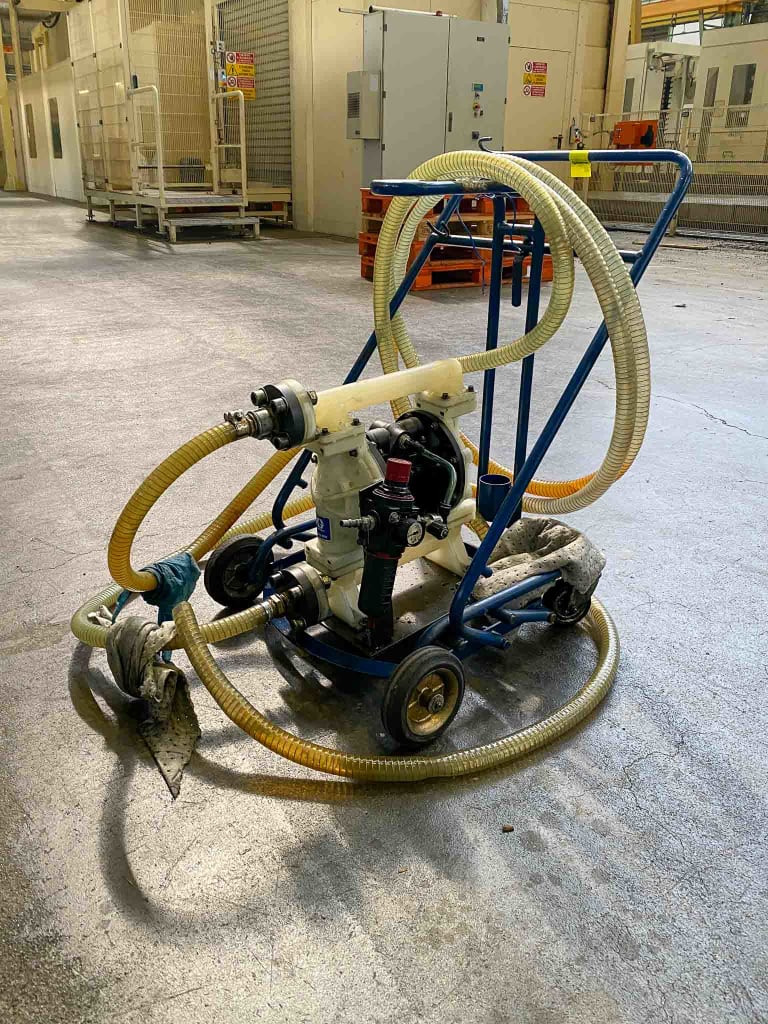

Double diaphragm pump, mobile (EX) GRACO, Husky 1050

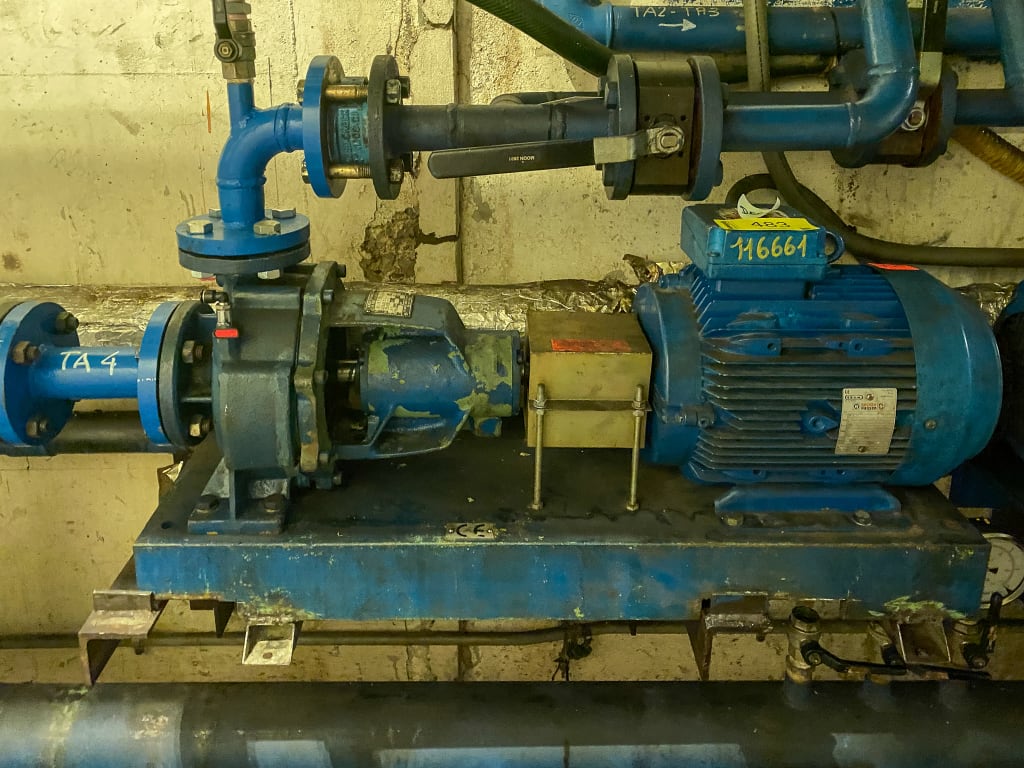

Centrifugal pump with electric motor, 0.37kW CALPEDA, NM 1/AE

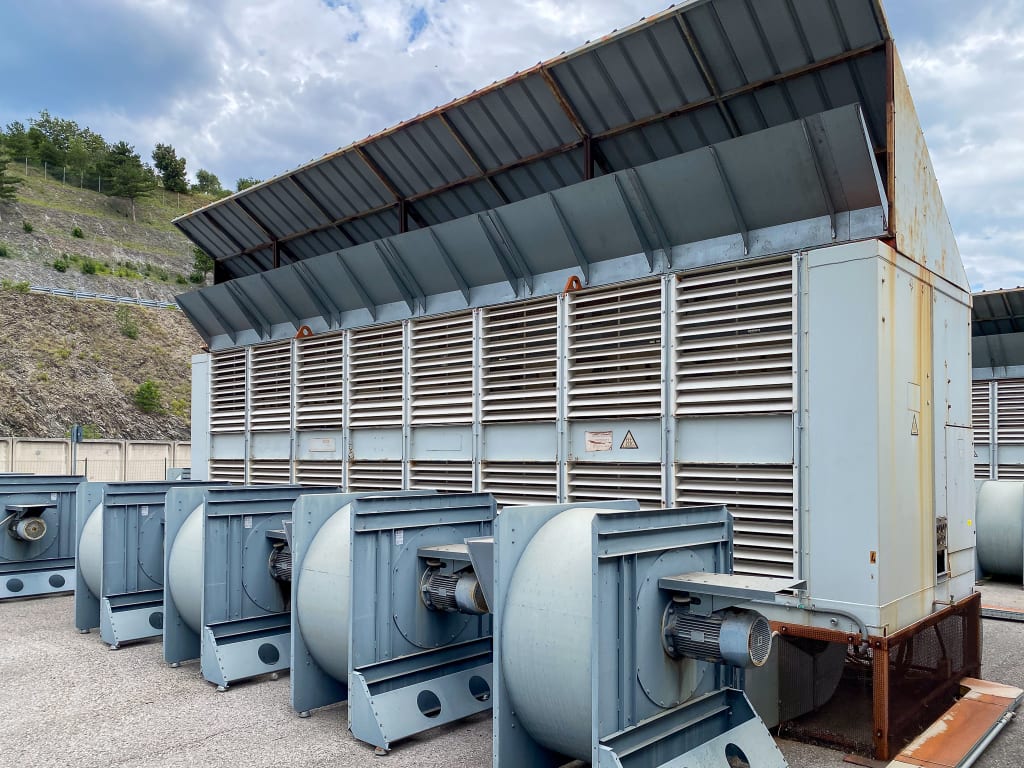

14 pcs. of Load resistance with forced ventilation TELEMA S.P.A., Various - see Pictures, year 1999-2021

Pump ALLWEILER HOUTTUIN, 211.180/112.100.10-1BB, year 1987

Oil tank plate

Water Softener CULLIGAN

Welding machine SELCO, UNISTEP 320

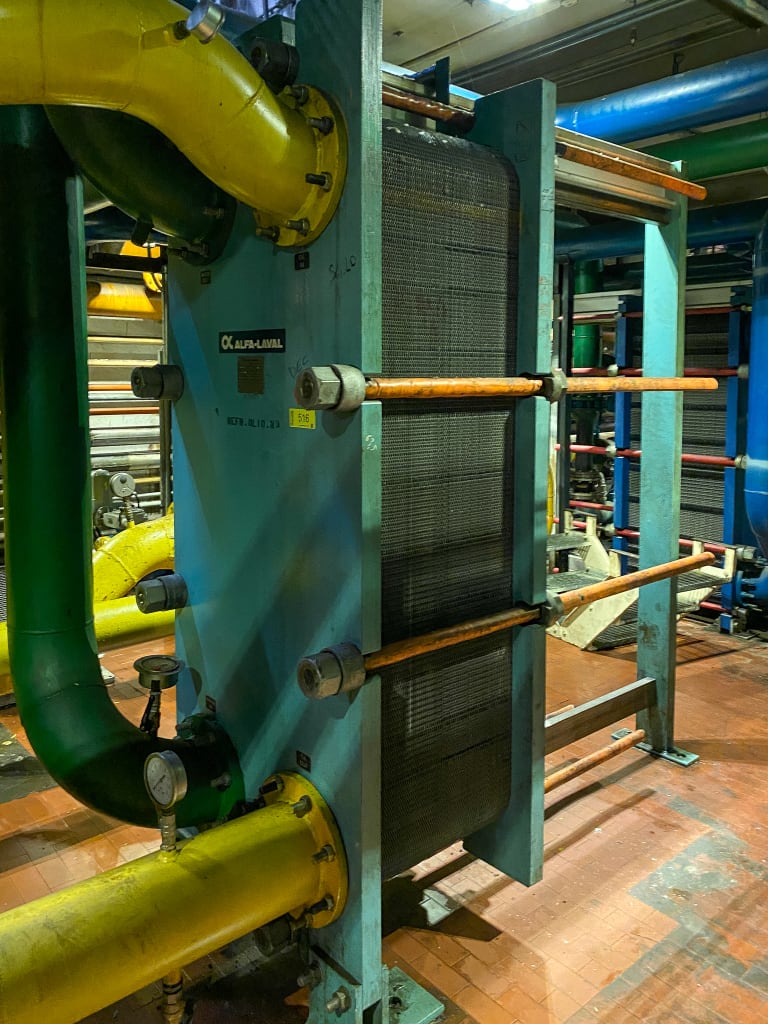

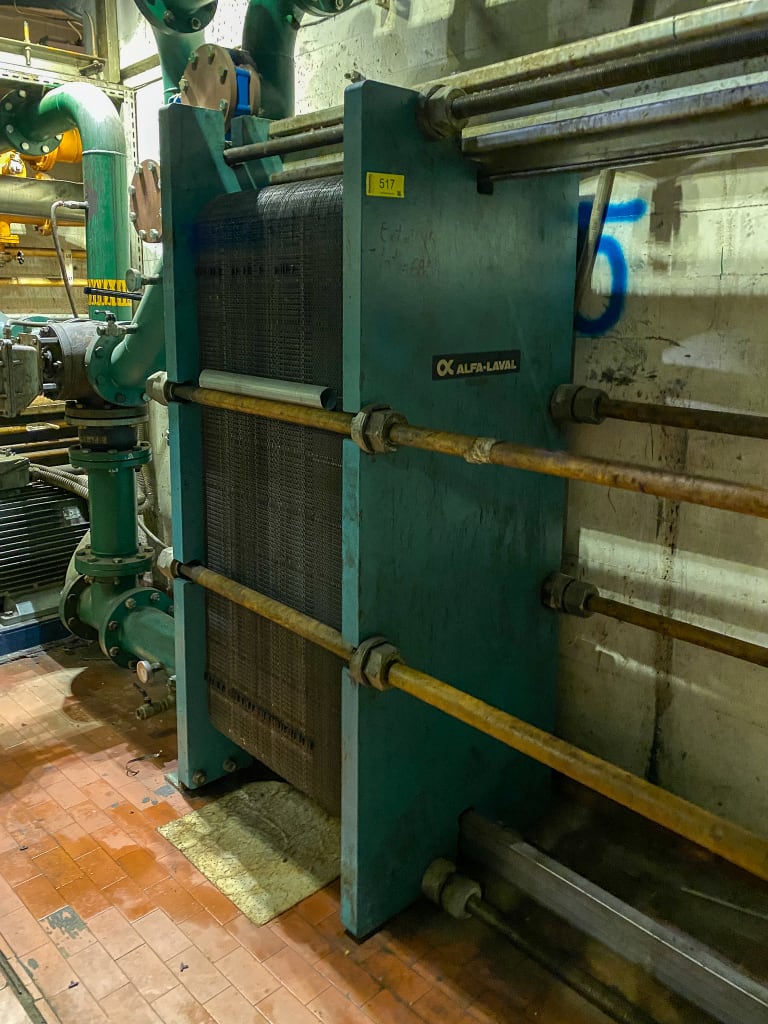

Sealed plate and Frame heat exchanger ALFA LAVAL

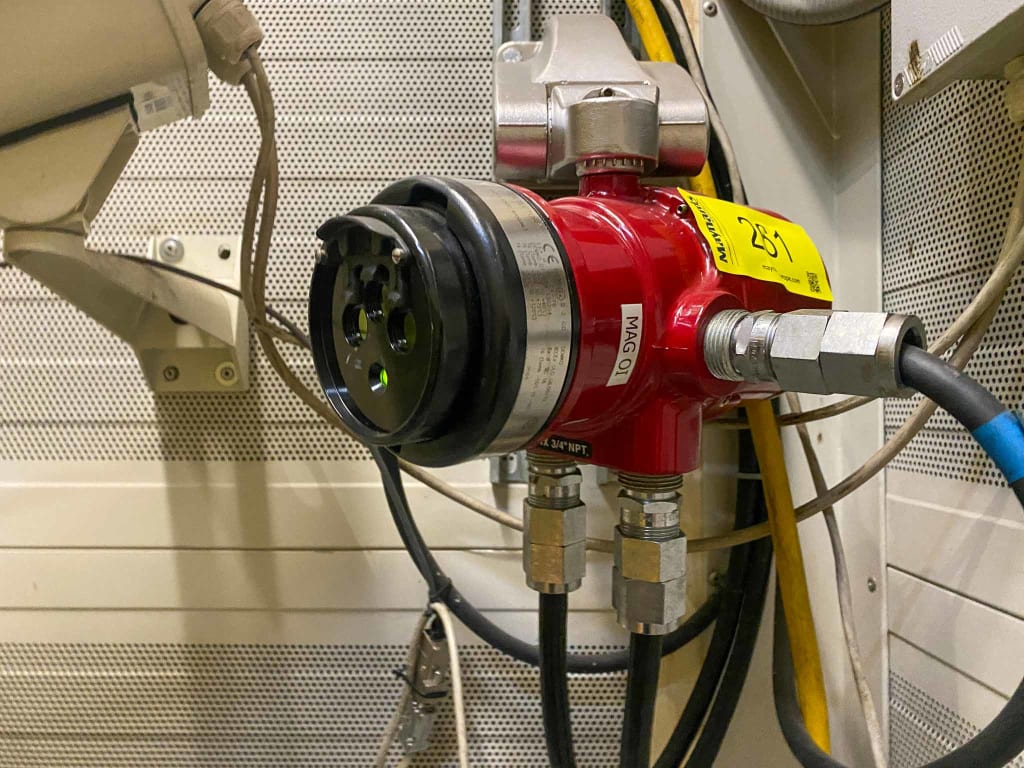

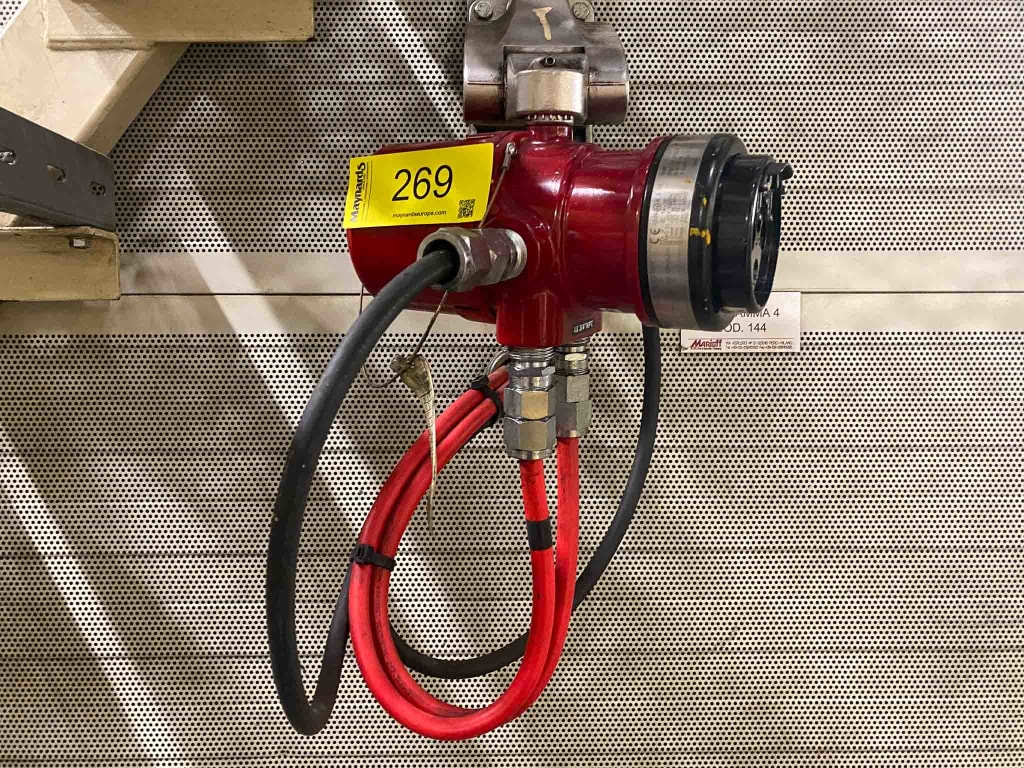

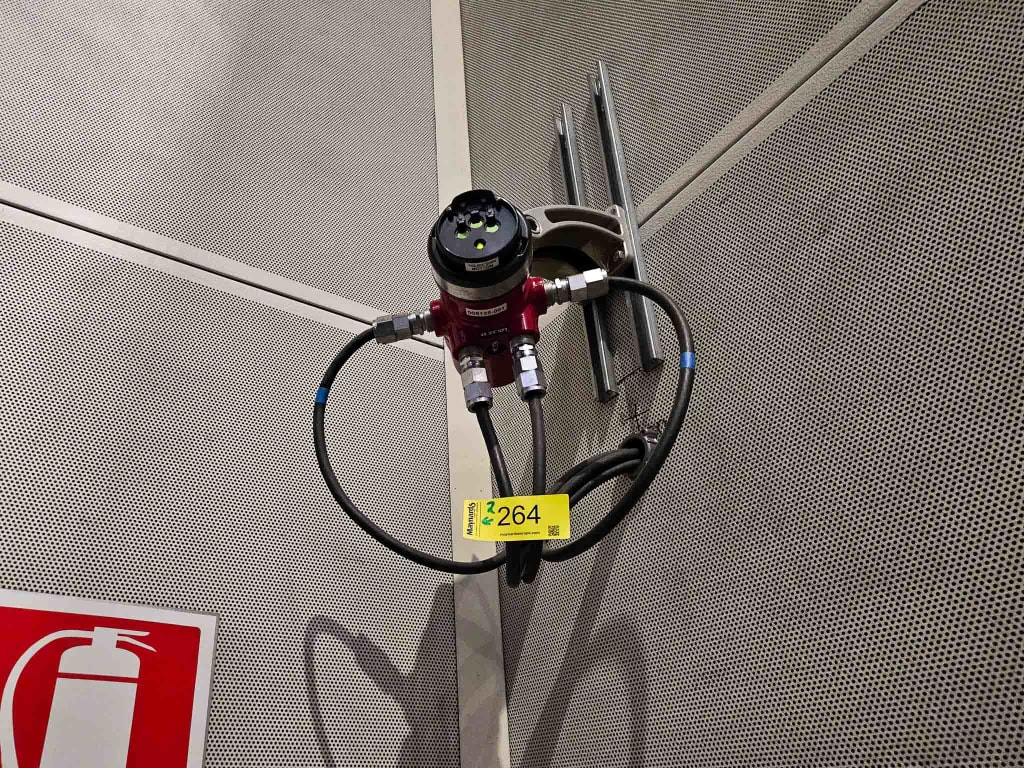

Multi-spectrum IR flame detector DET-TRONICS, x3301 A

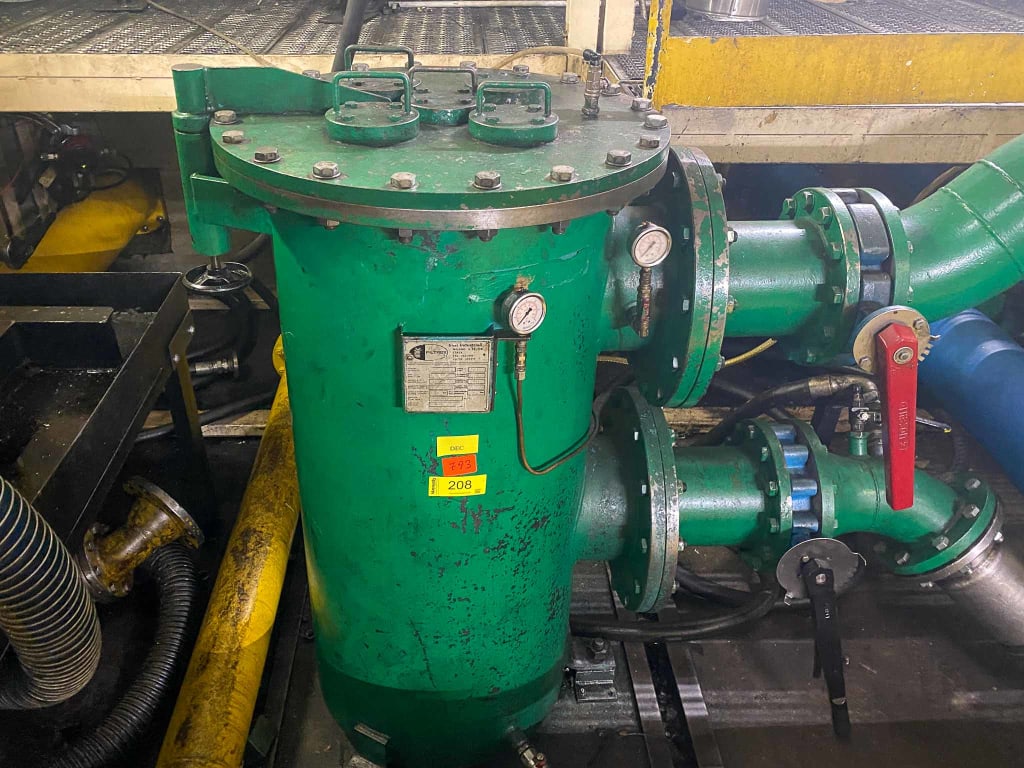

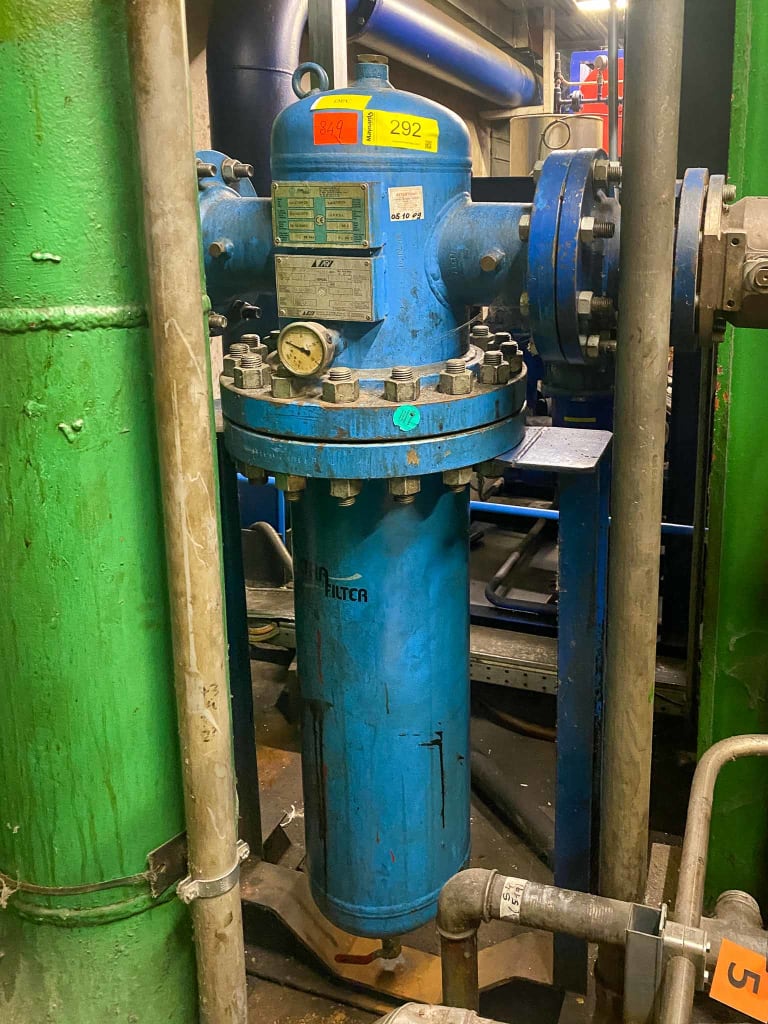

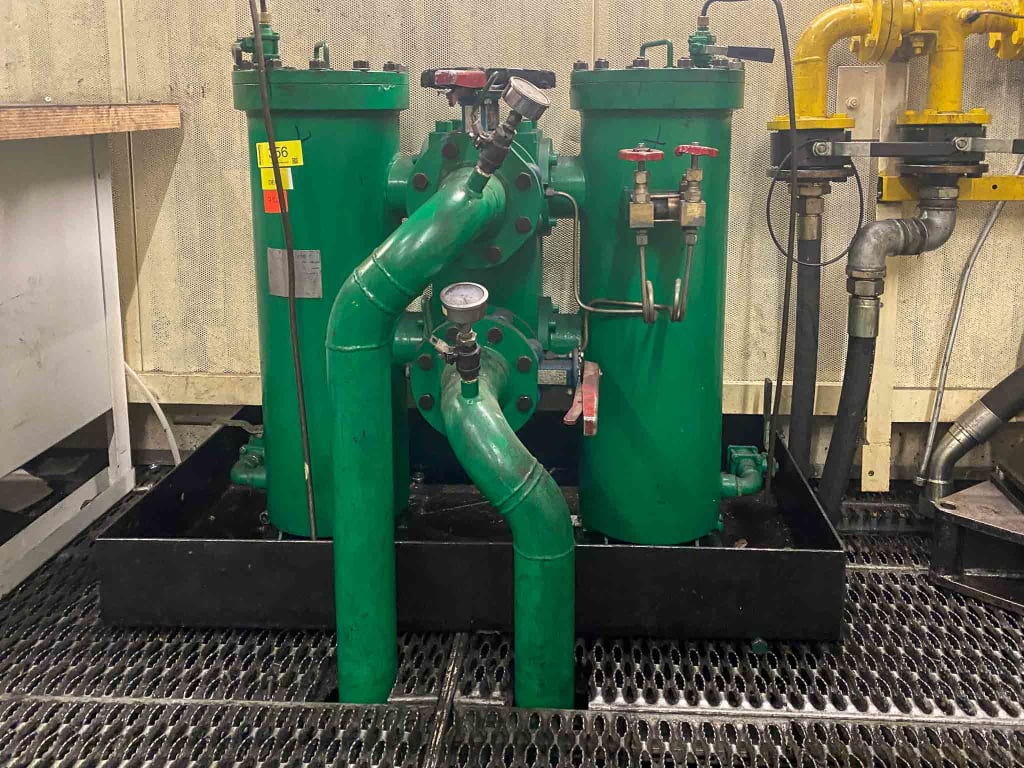

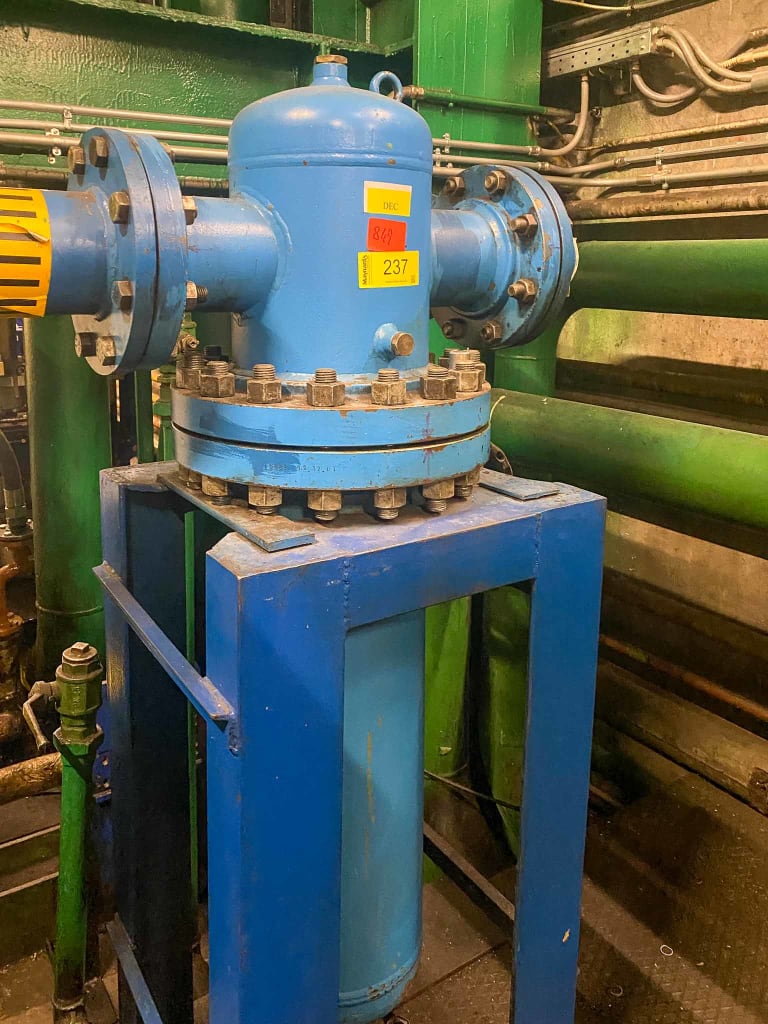

Static high pressure filter, 30 bar ETHAFILTER, EA373VF25HP, year 2001

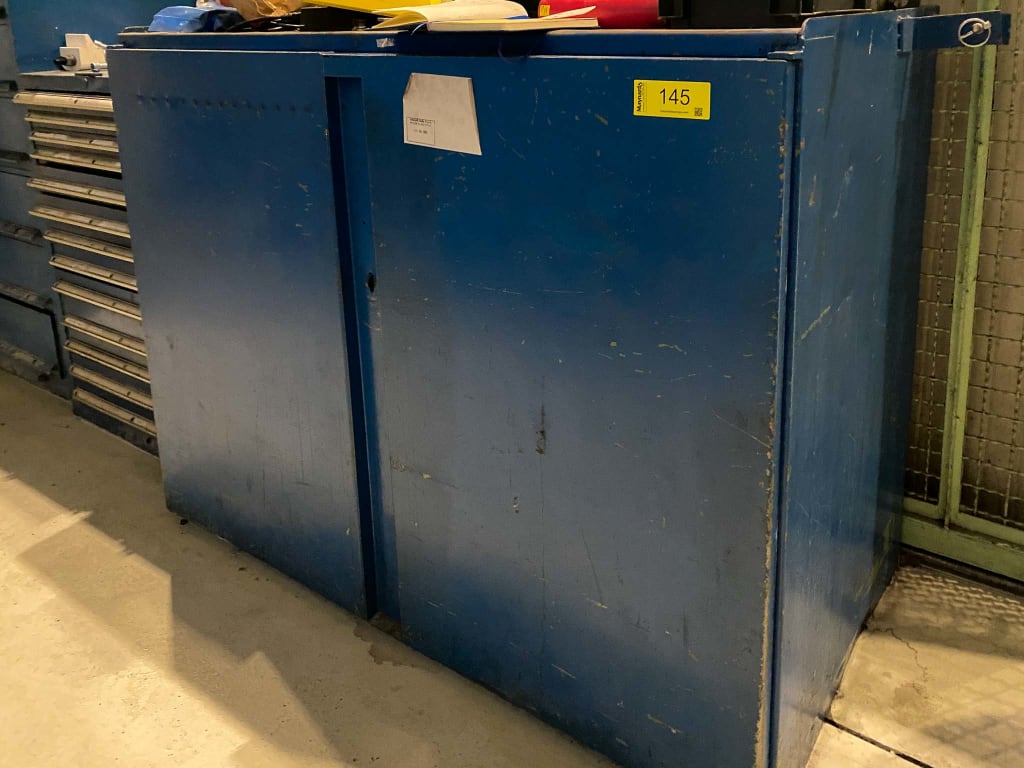

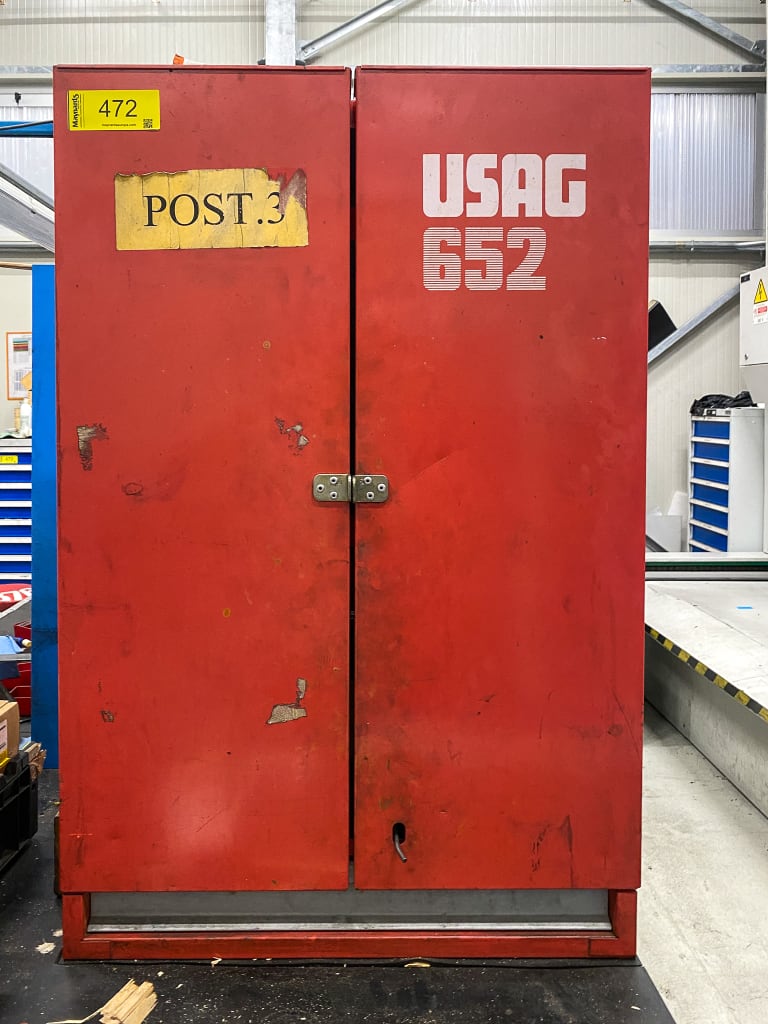

Workshop cabinet, 2 doors, metal

2 pcs. of Tool supply pallet

Cantilever storage rack, onesided CARRSERVICE

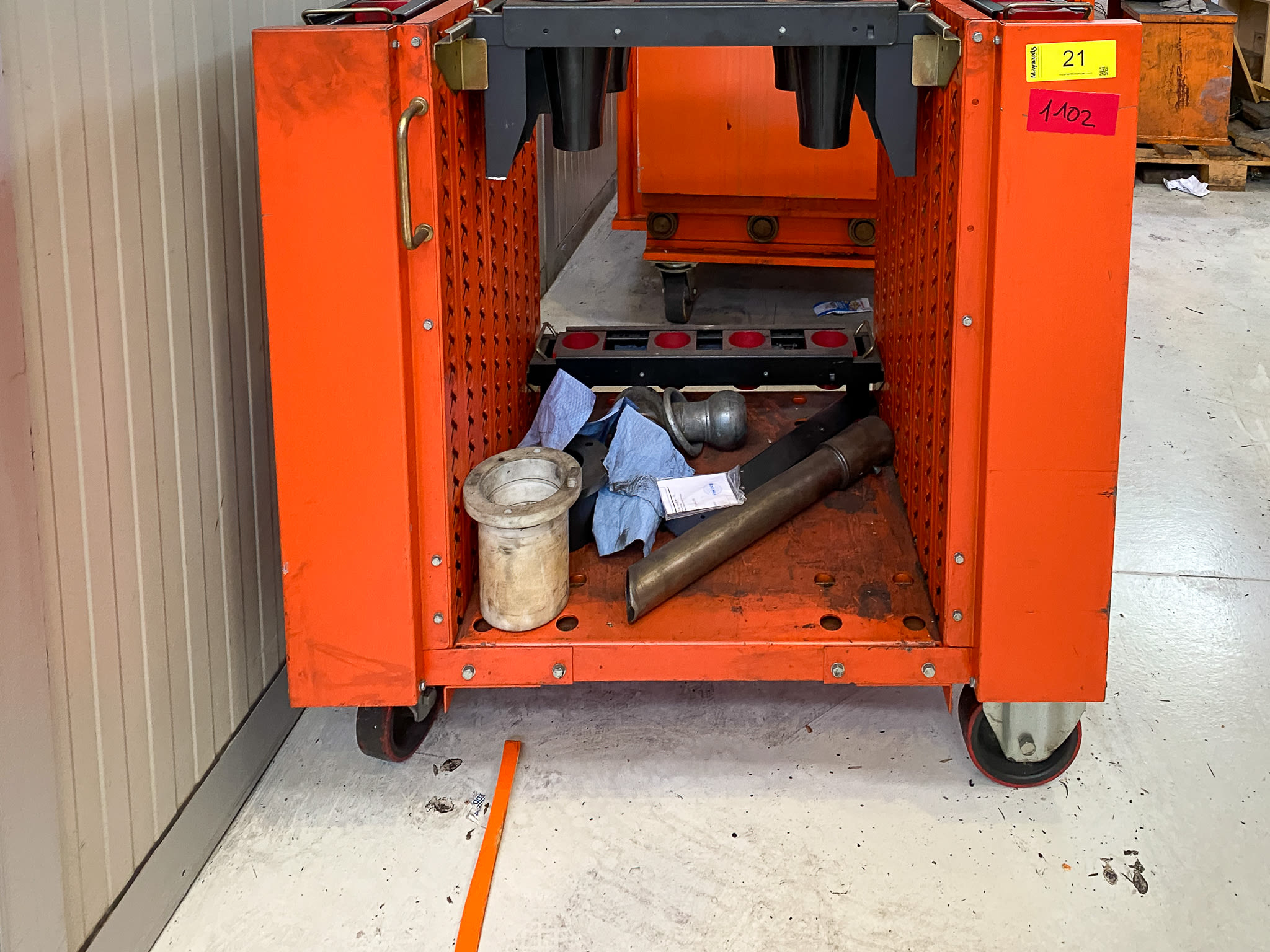

Tool trolley with 20 places for inserts SK 50 / BT 50

Work platform, aluminum, mobile SCALE DC, VAR00020, year 2021

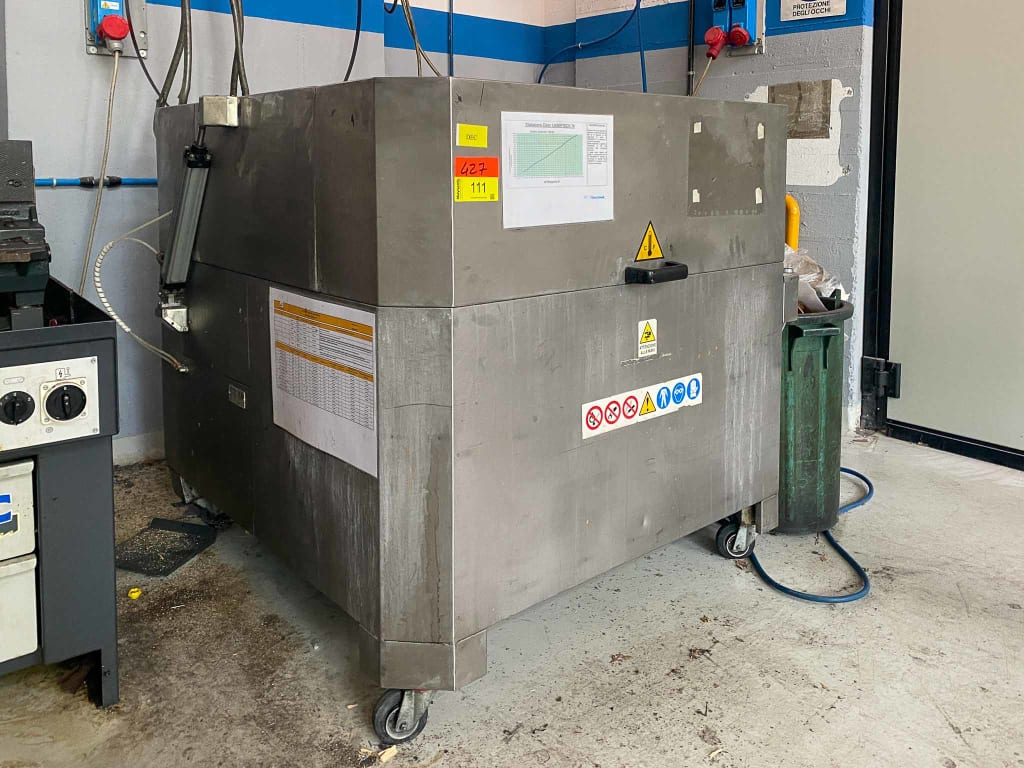

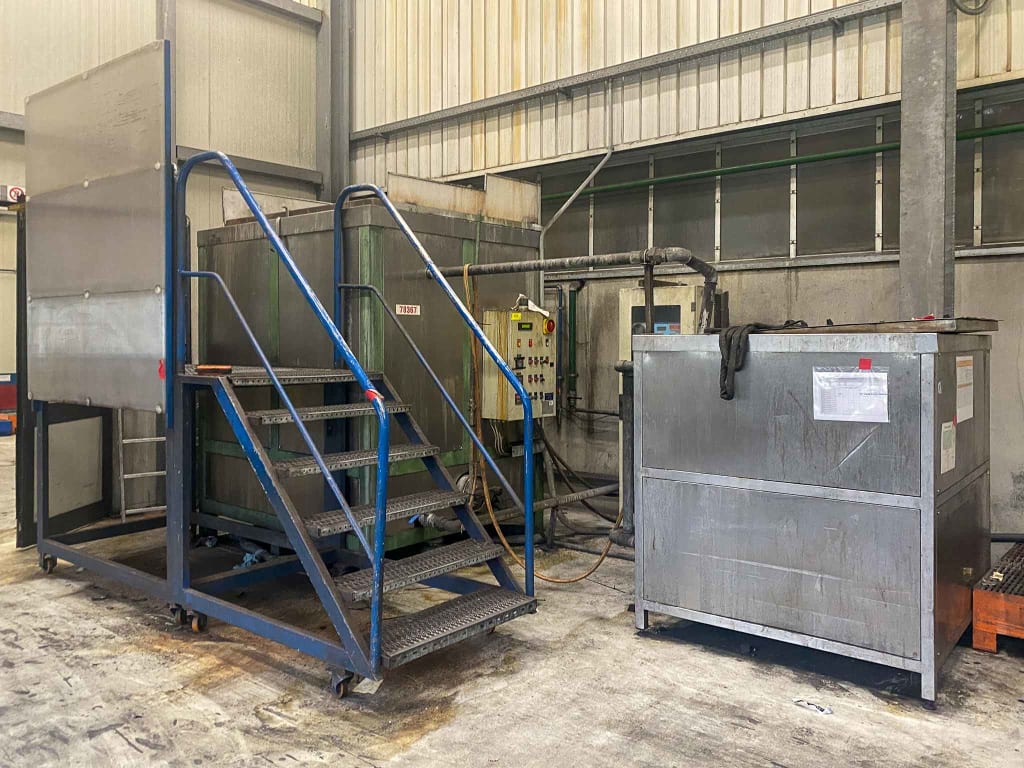

Partwashingmachine ARTEMA

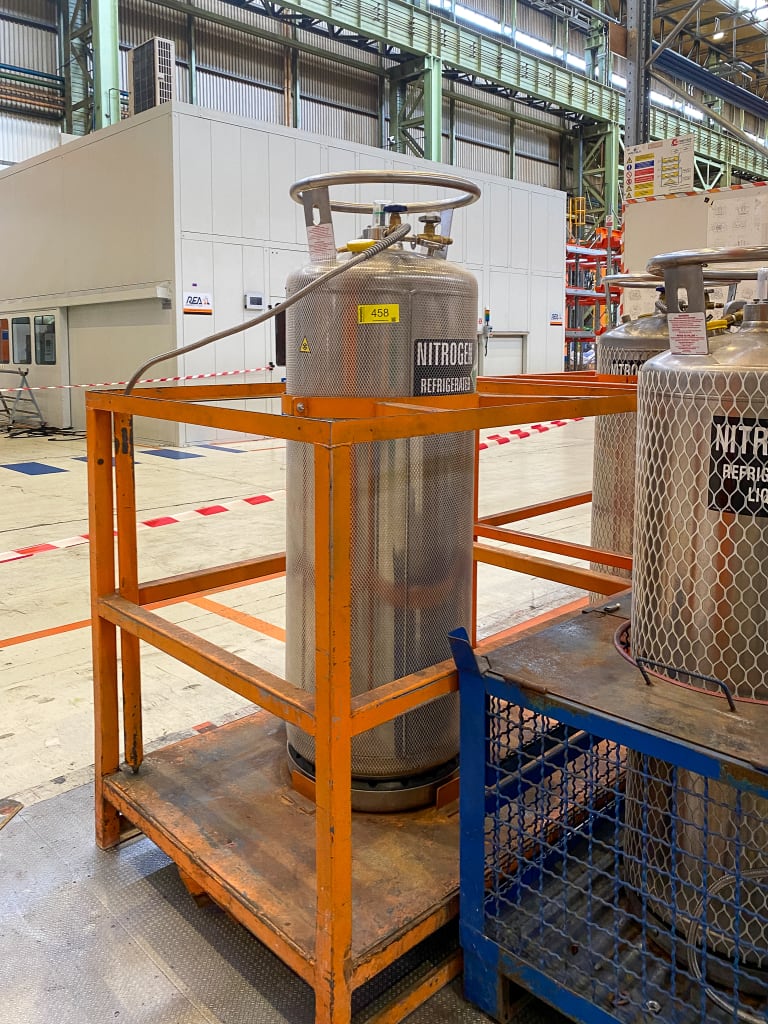

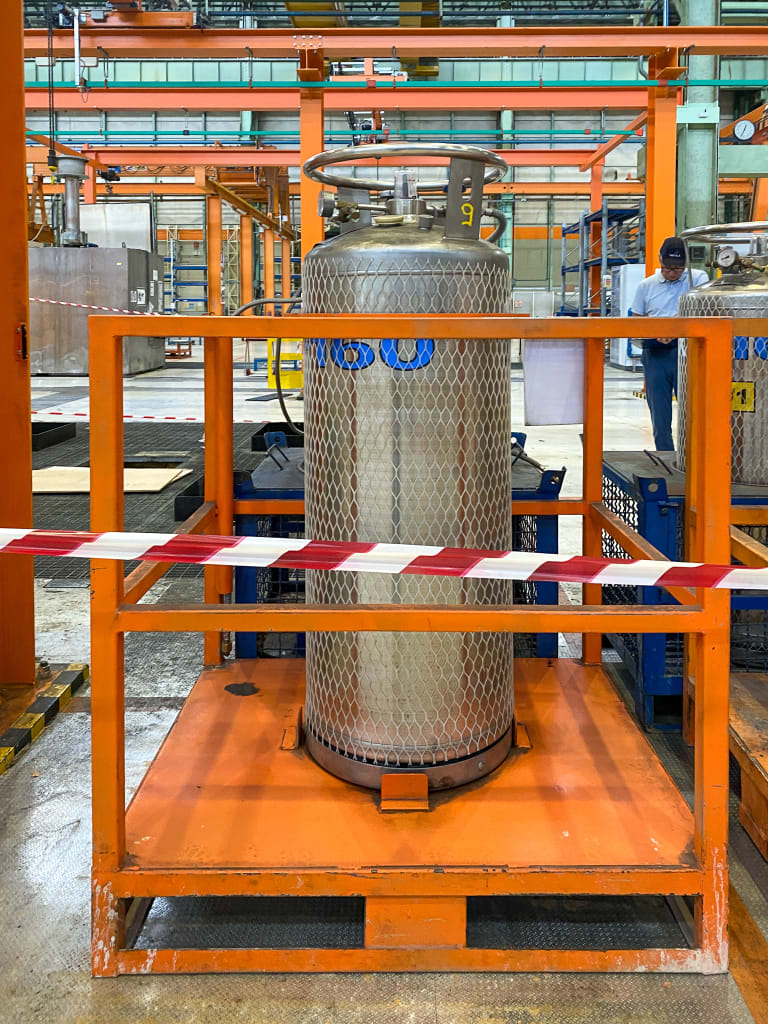

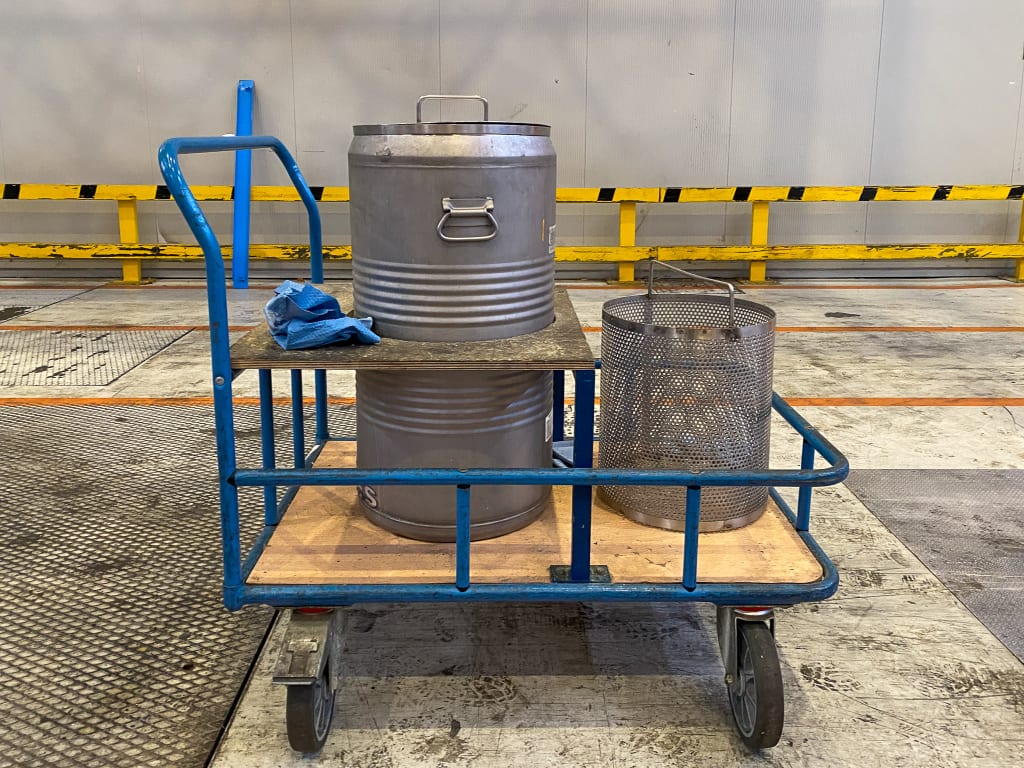

Tank for Liquid Nitrogen on a trolley

Pallet rack METALSISTEM, year 2007

High-performance industrial vacuum cleaner, mobile RIBO, VS 12, year 2004

Automatic. Compressed air hose reel, 16m ZECA, 806/13

Pallet rack METALSISTEM, year 2007

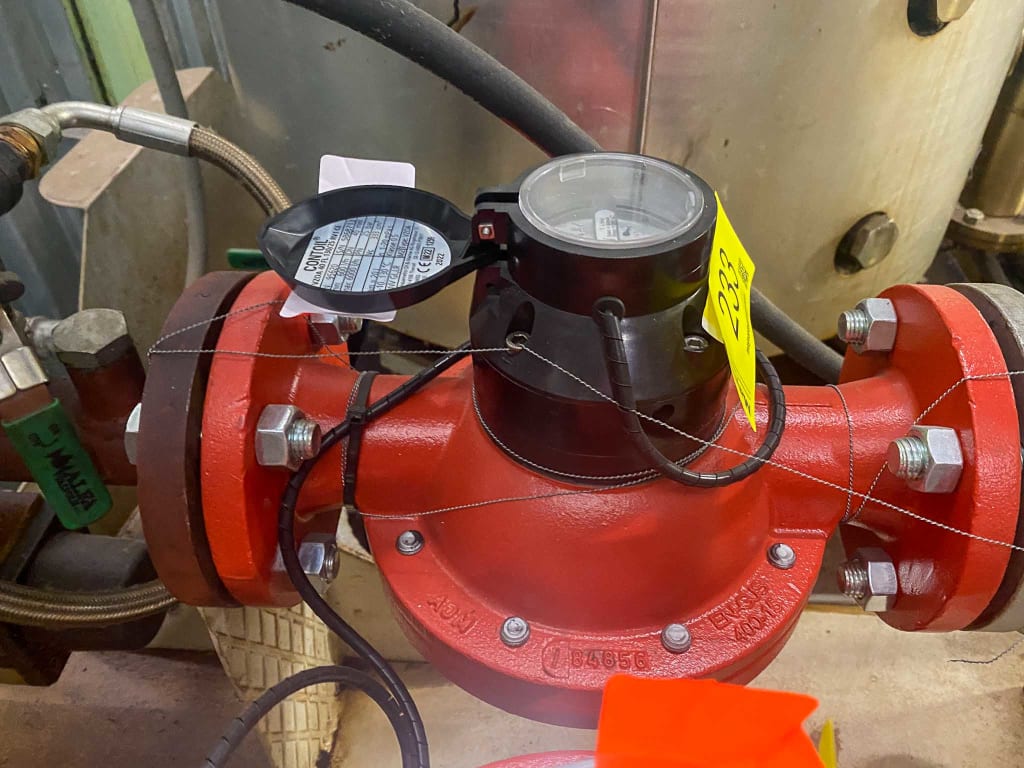

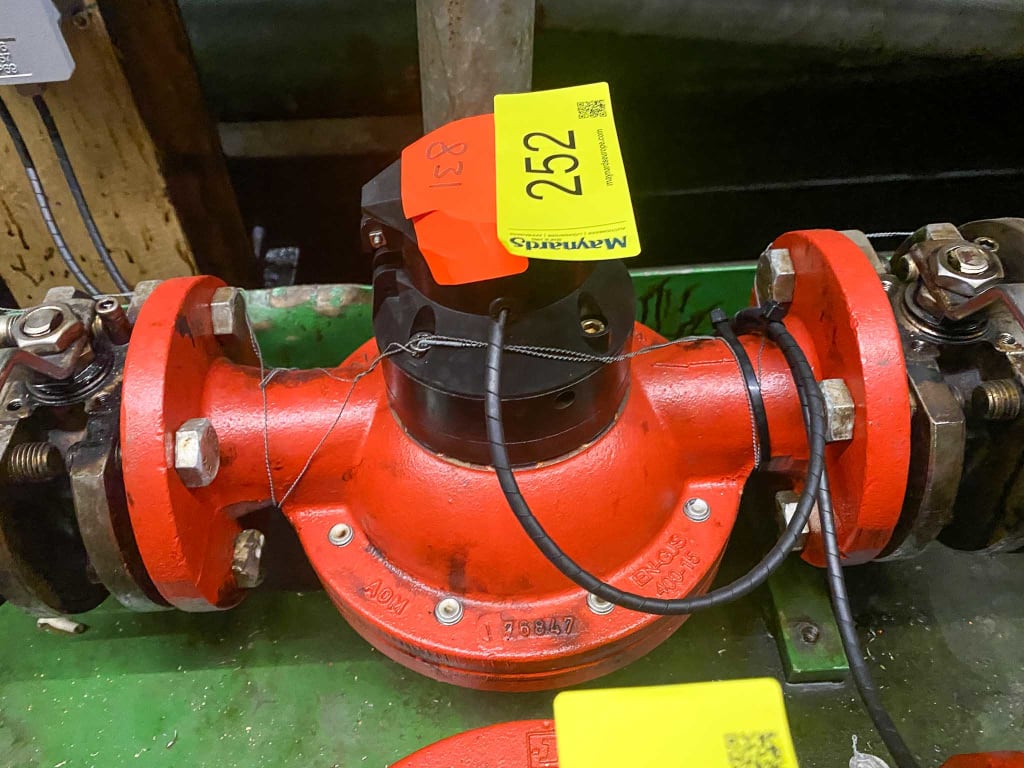

Mech. oil flow meter, DN40 AQUAMETRO, VZOA 40 FL 130/25 RV1 CE

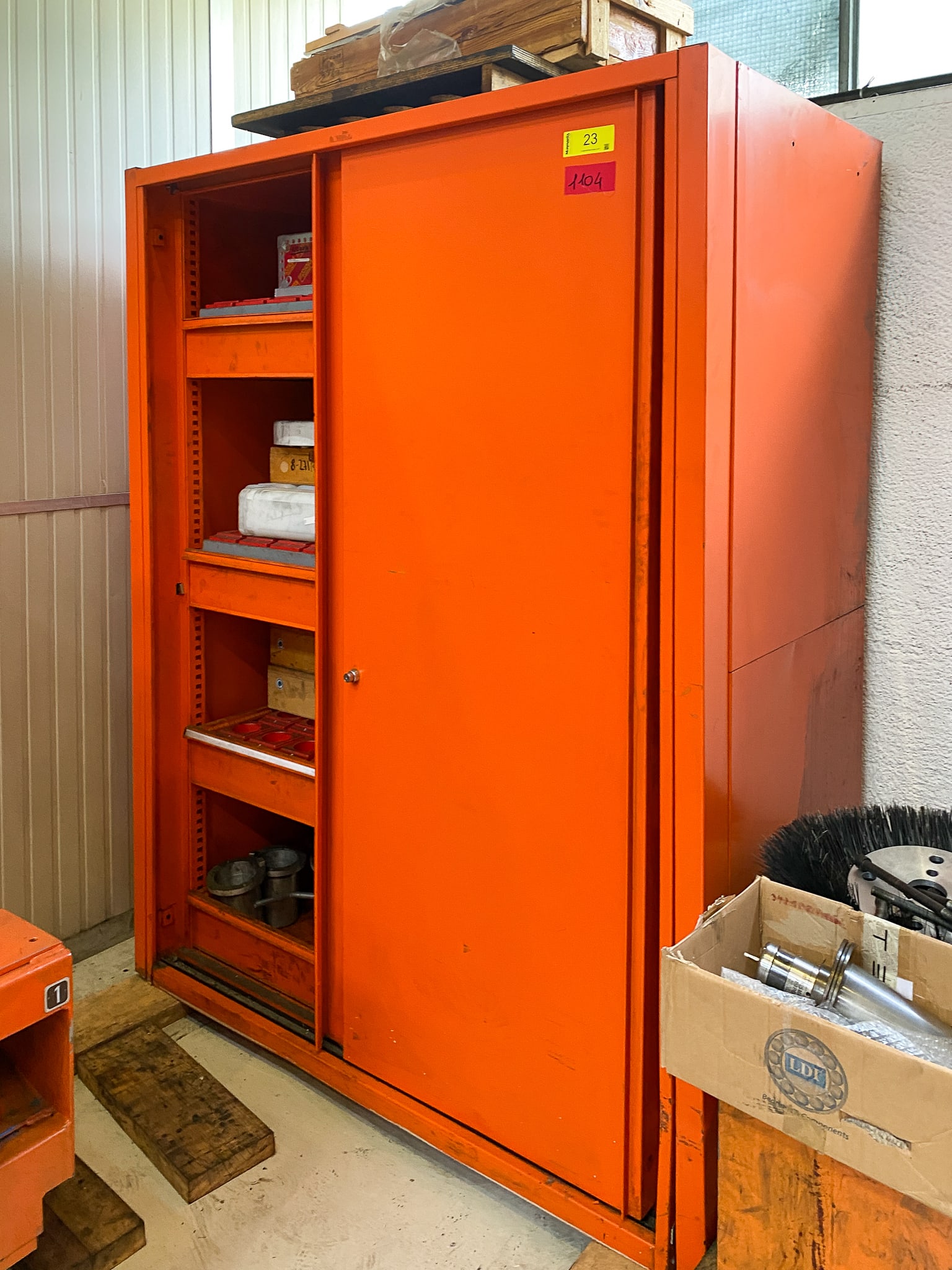

Metal Cupboard FAMI STORAGE SYSTEMS

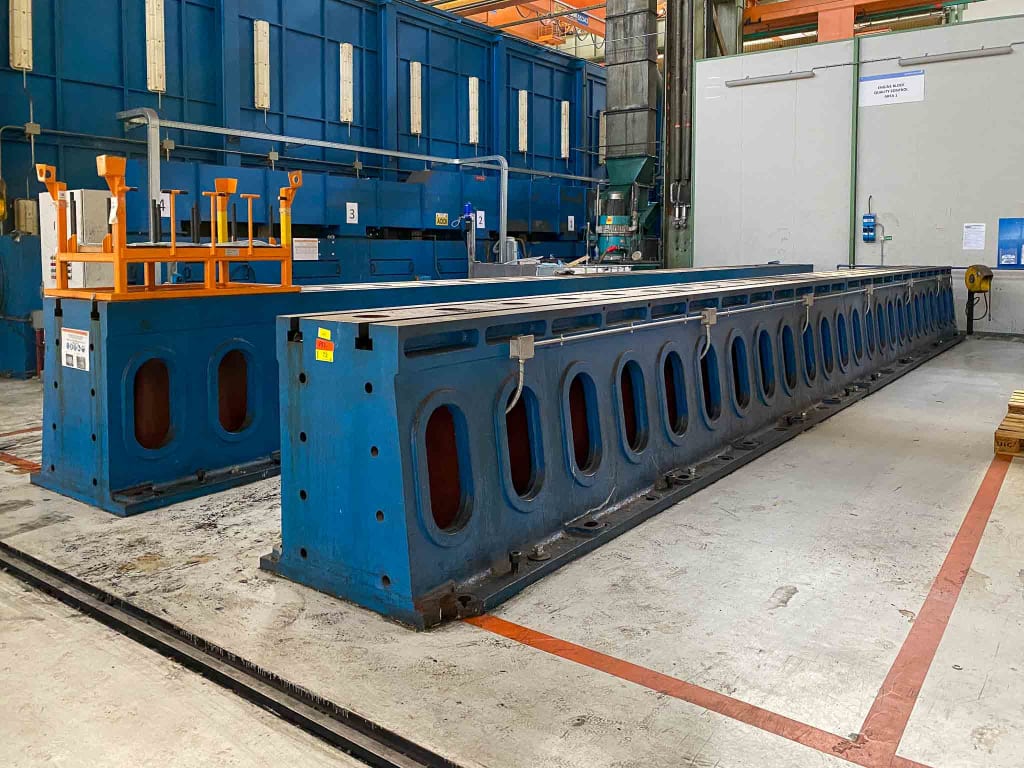

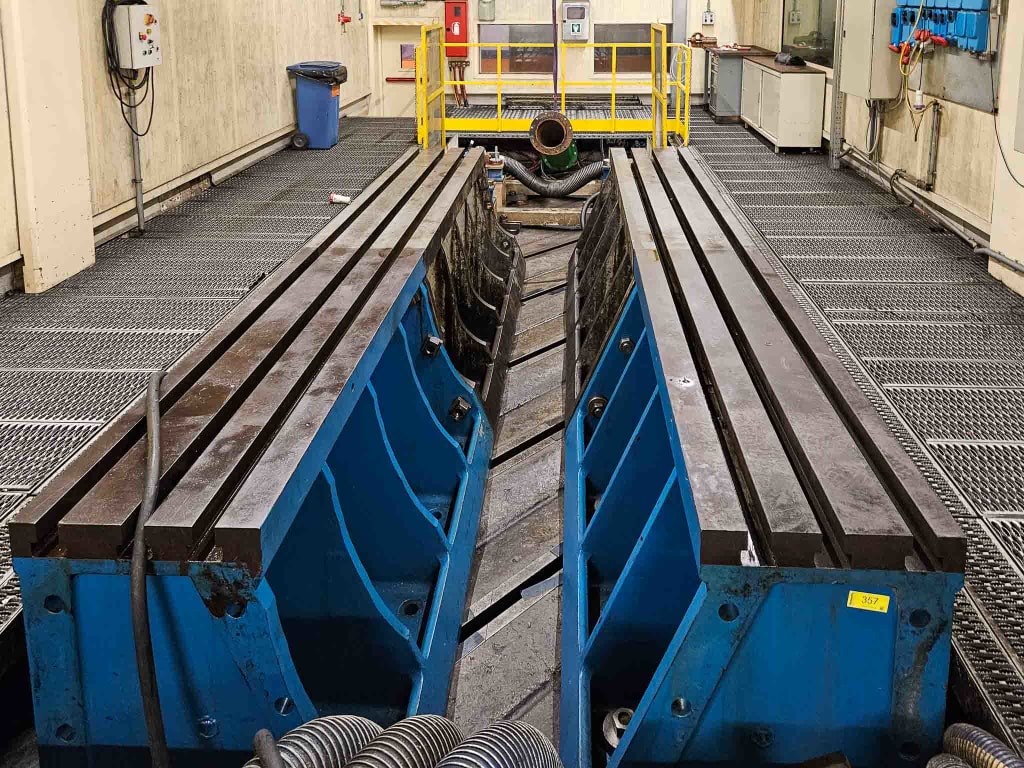

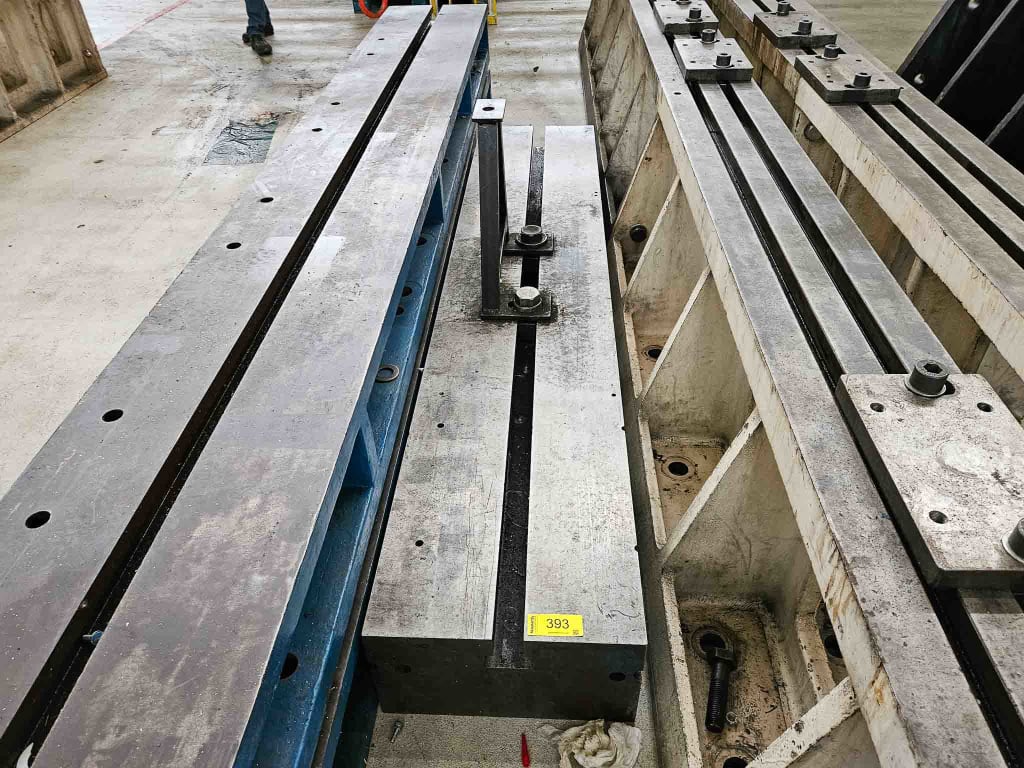

2 pcs. of T-Slot Support Rails, steel

Multi-spectrum IR flame detector DET-TRONICS, x3301 A

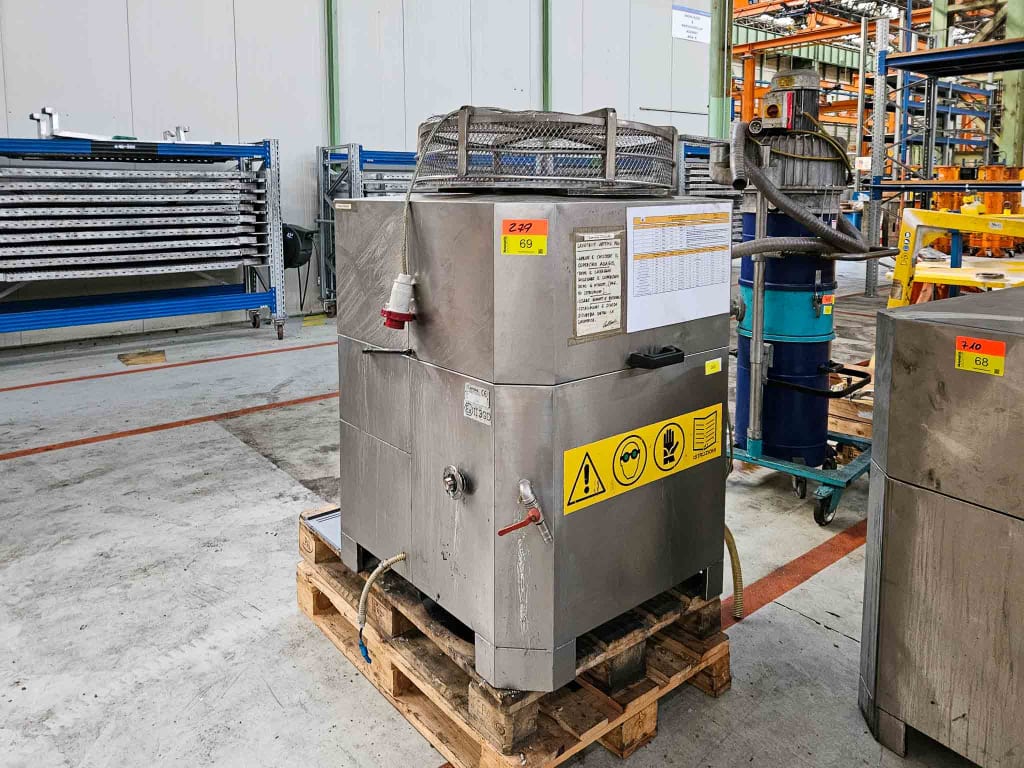

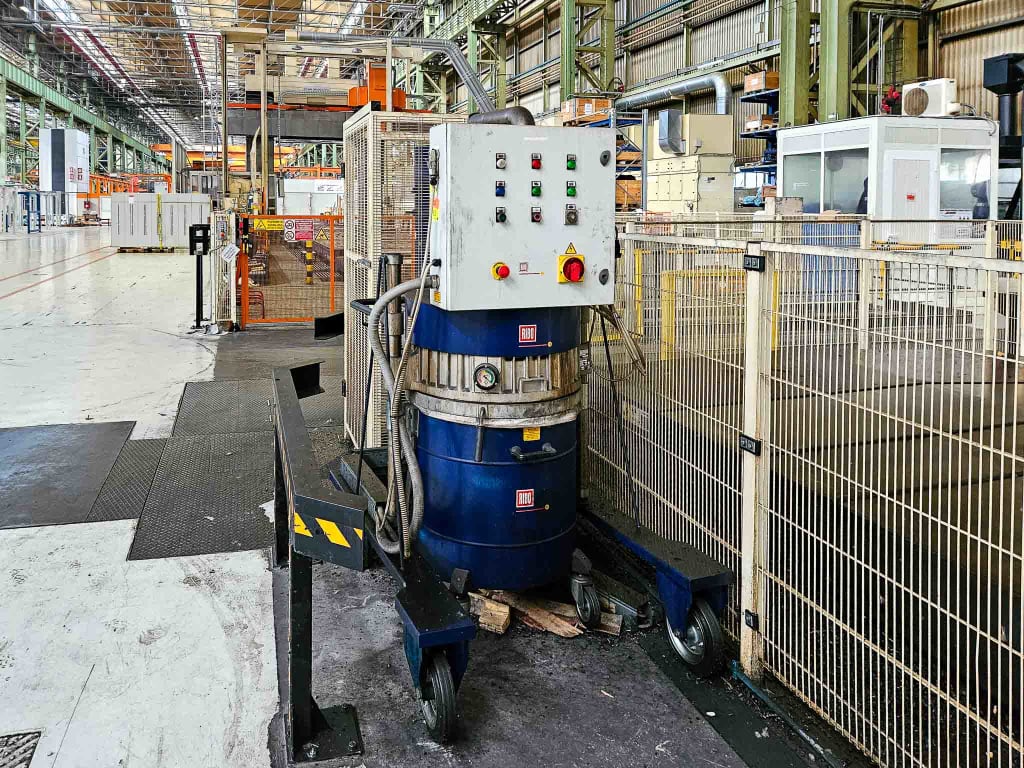

Suction cart, 500L TECCHIO ALDO , AL 500, year 1998

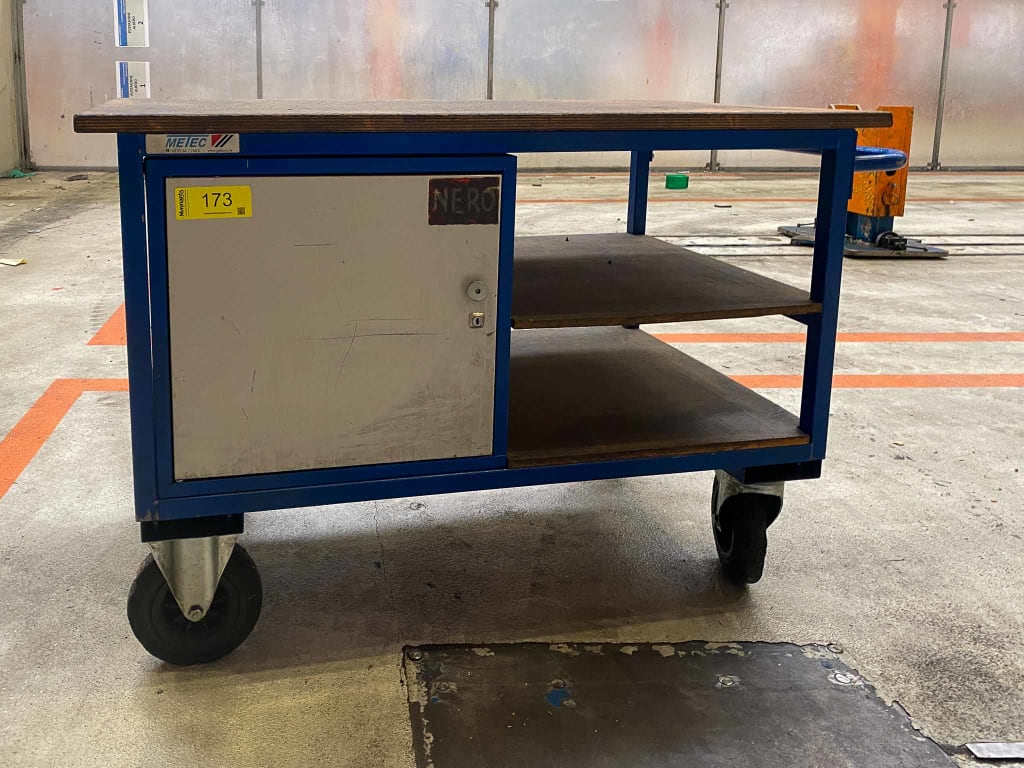

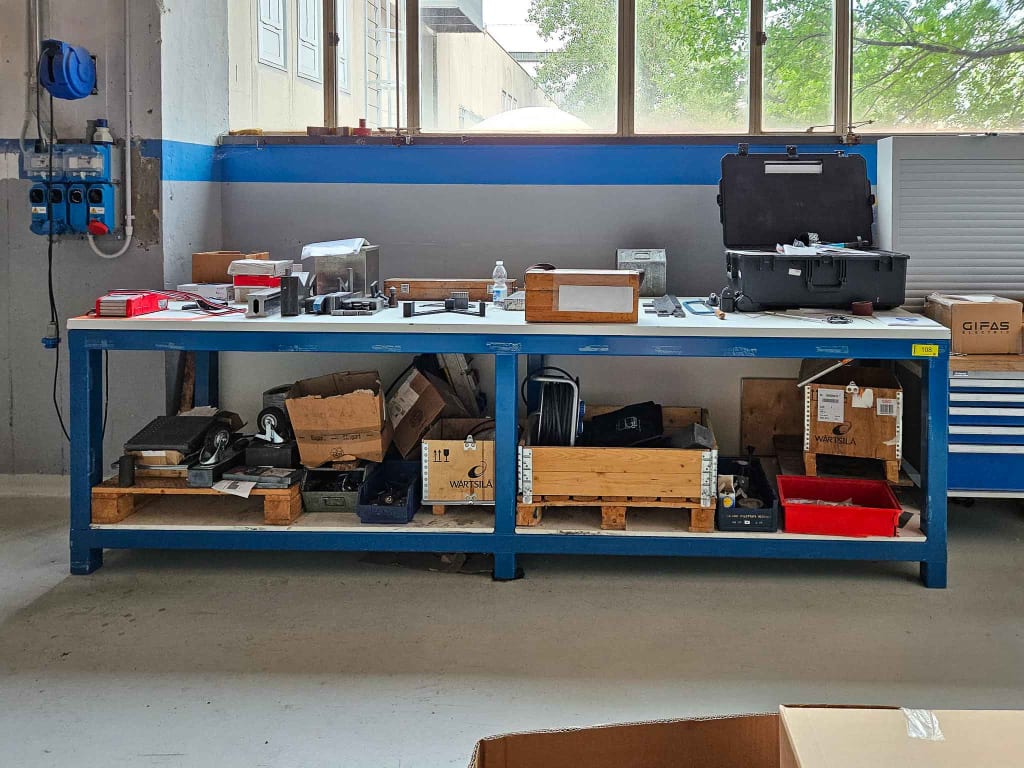

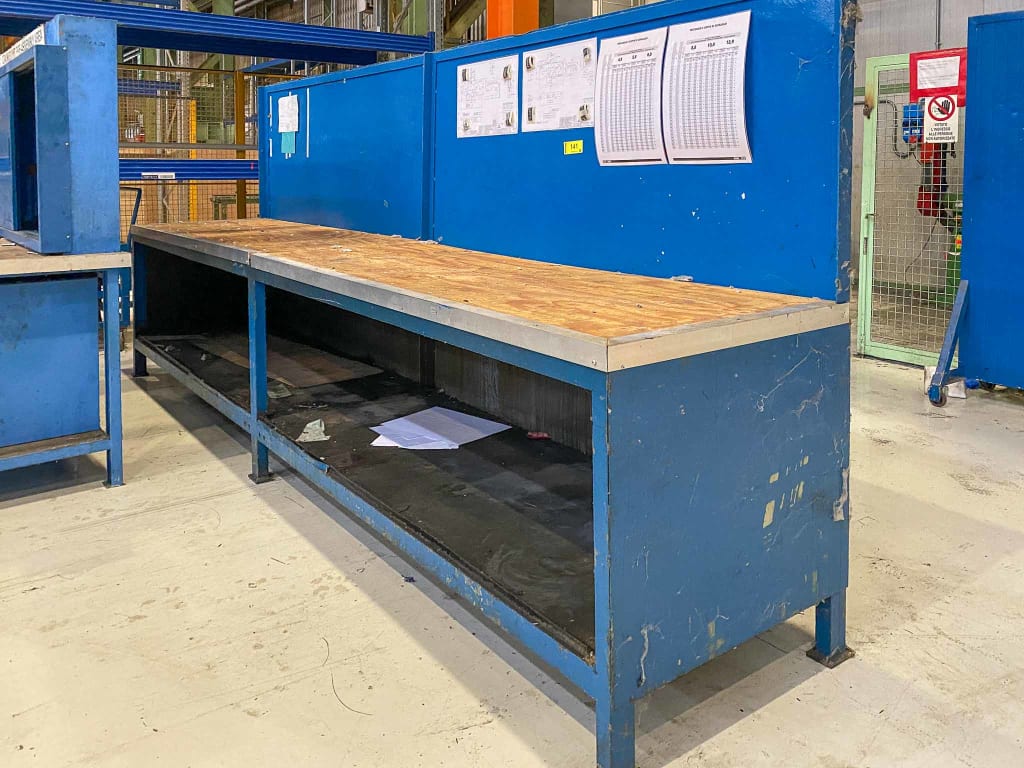

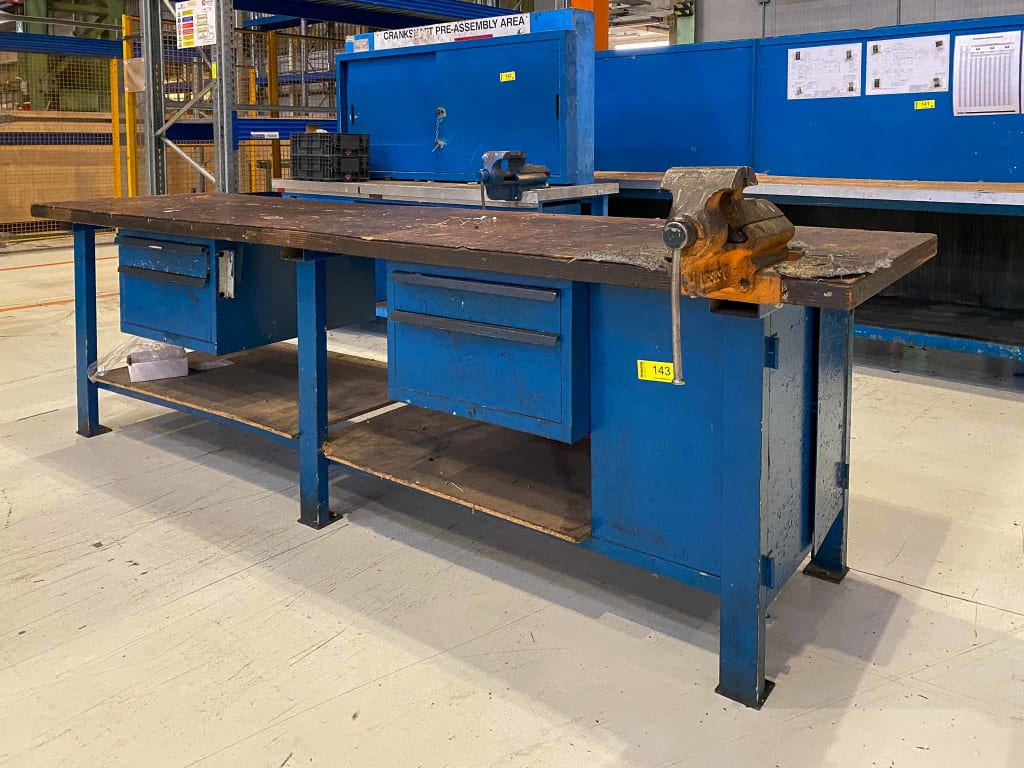

Workbench, metal frame

Inverter control DANFOSS, VLT

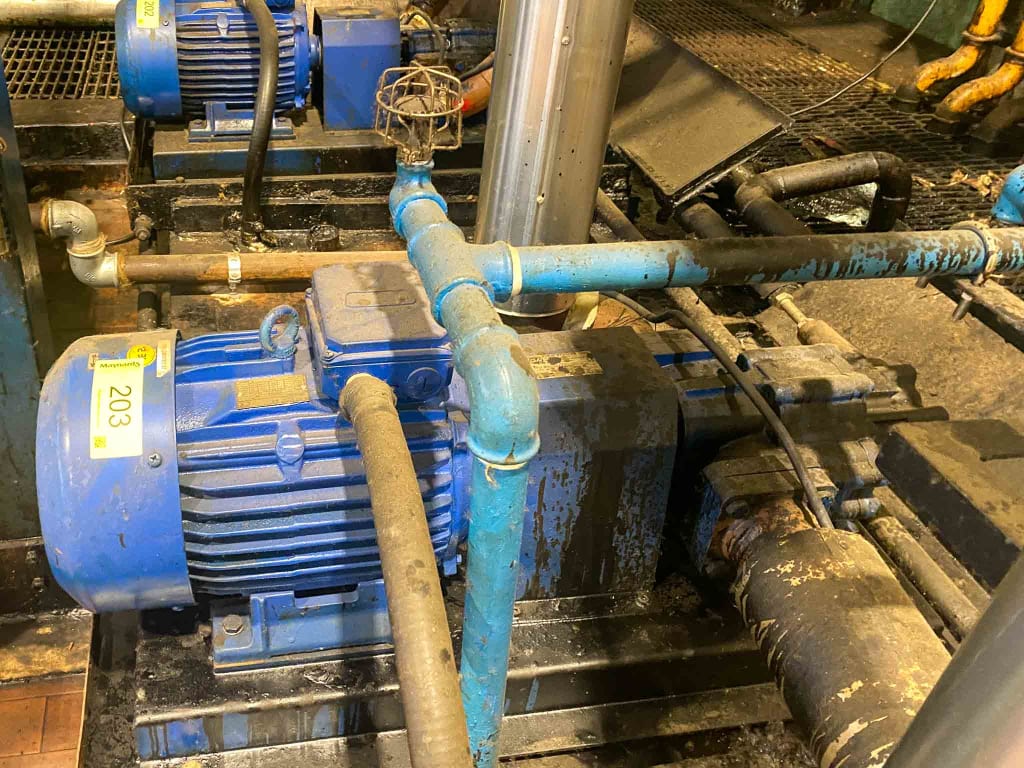

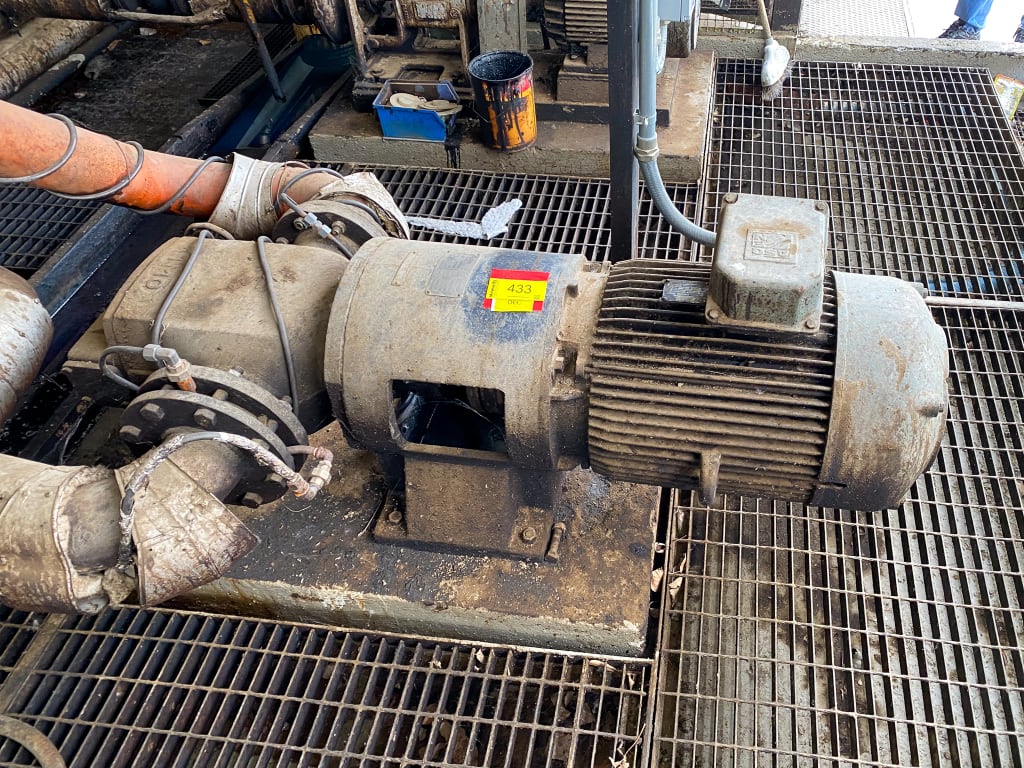

Centrifugal pump with electric motor

Pillar drill BIANCHINI, 35 au/m, year 2013

2 pcs. of T-Slot Support Rails, steel

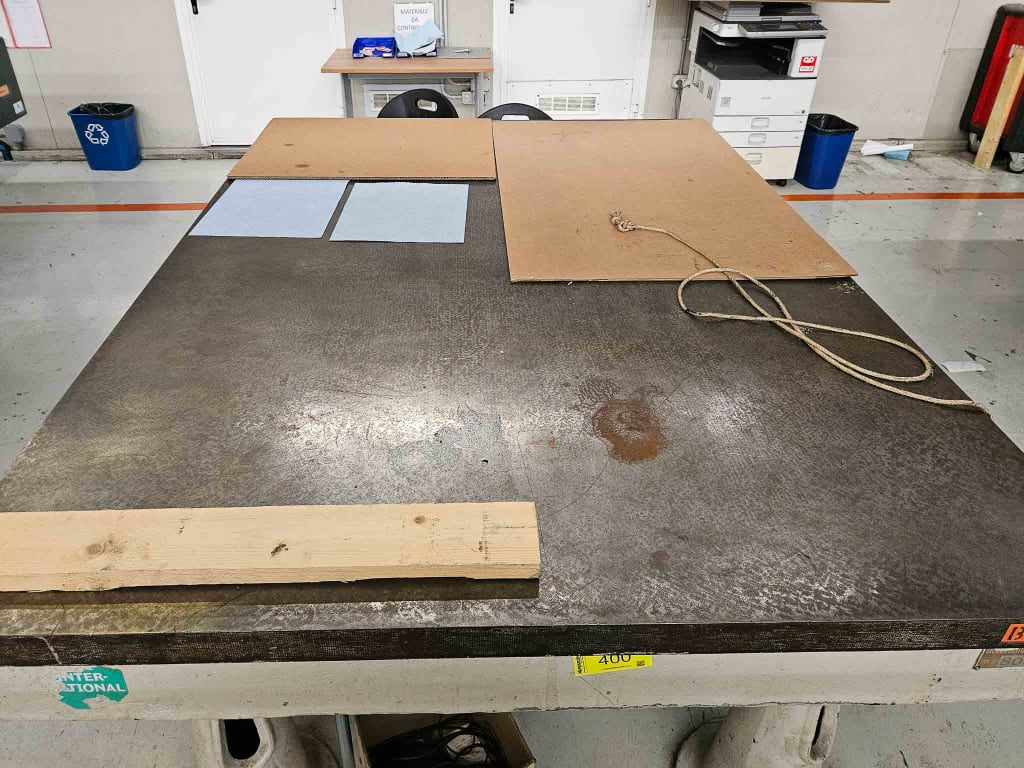

Scribing plate, metal

2 pcs. of T-Slot Support Rails, steel

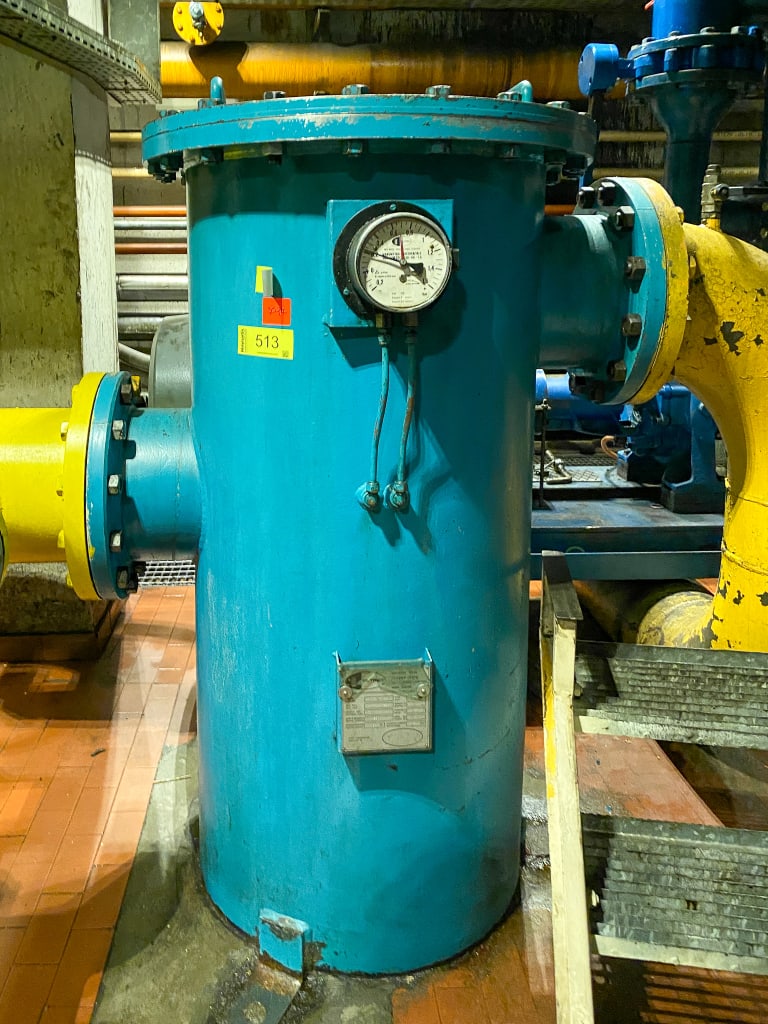

Filter FILTRI, Filtrex DFCU-764-230, year 1987

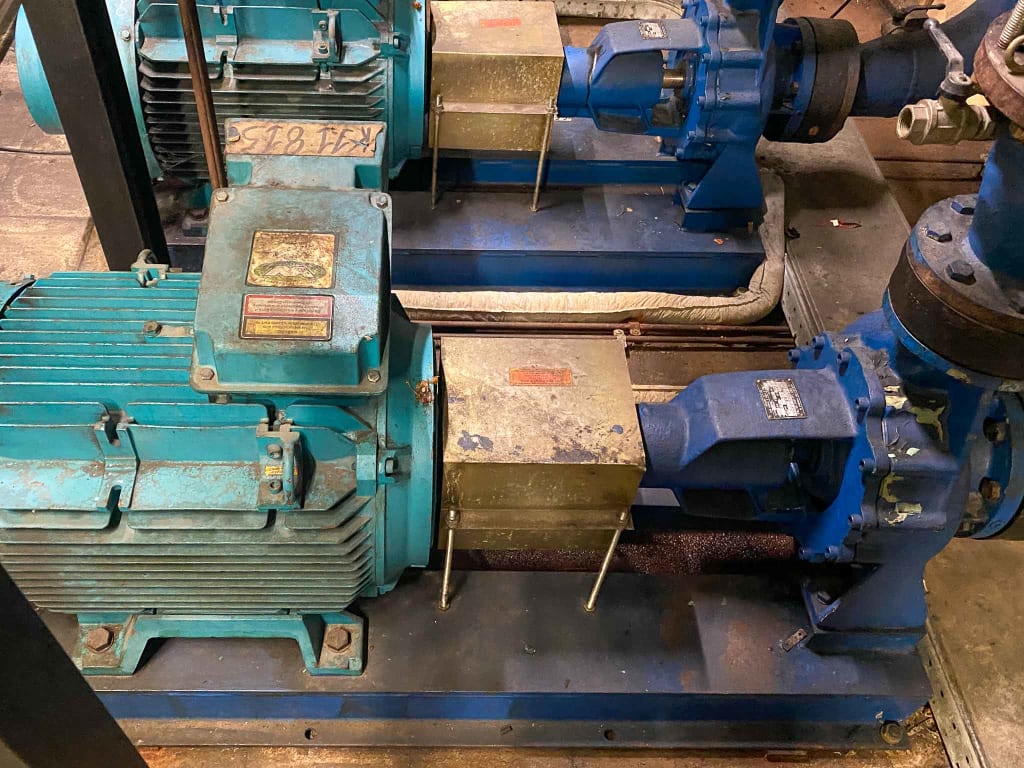

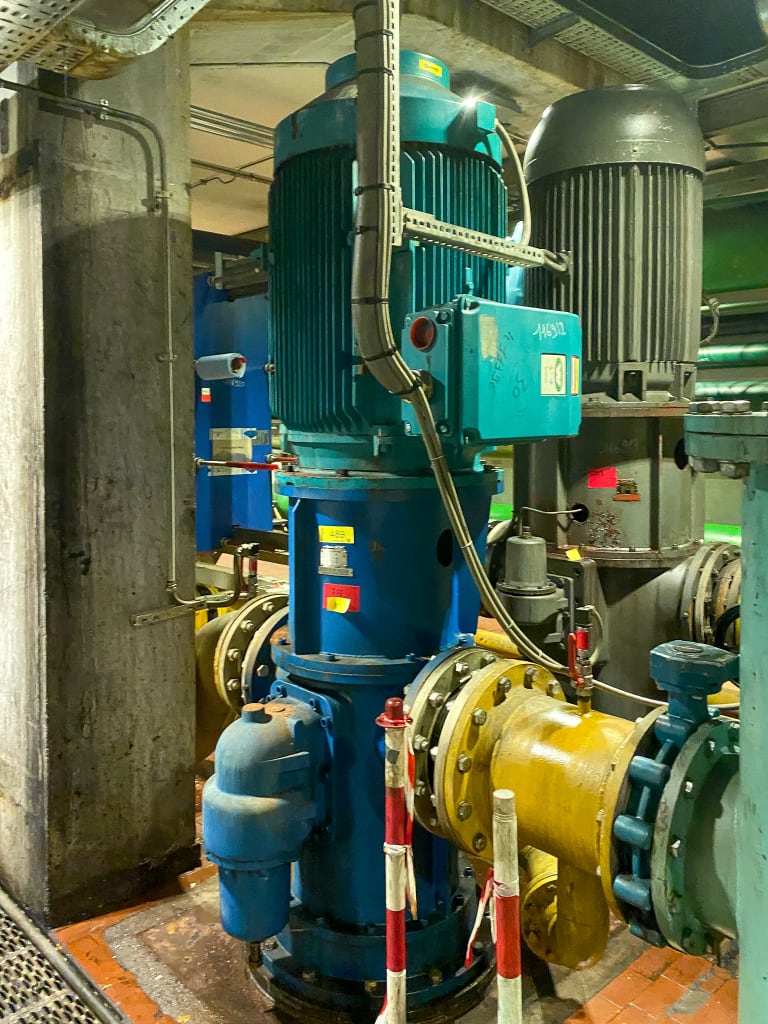

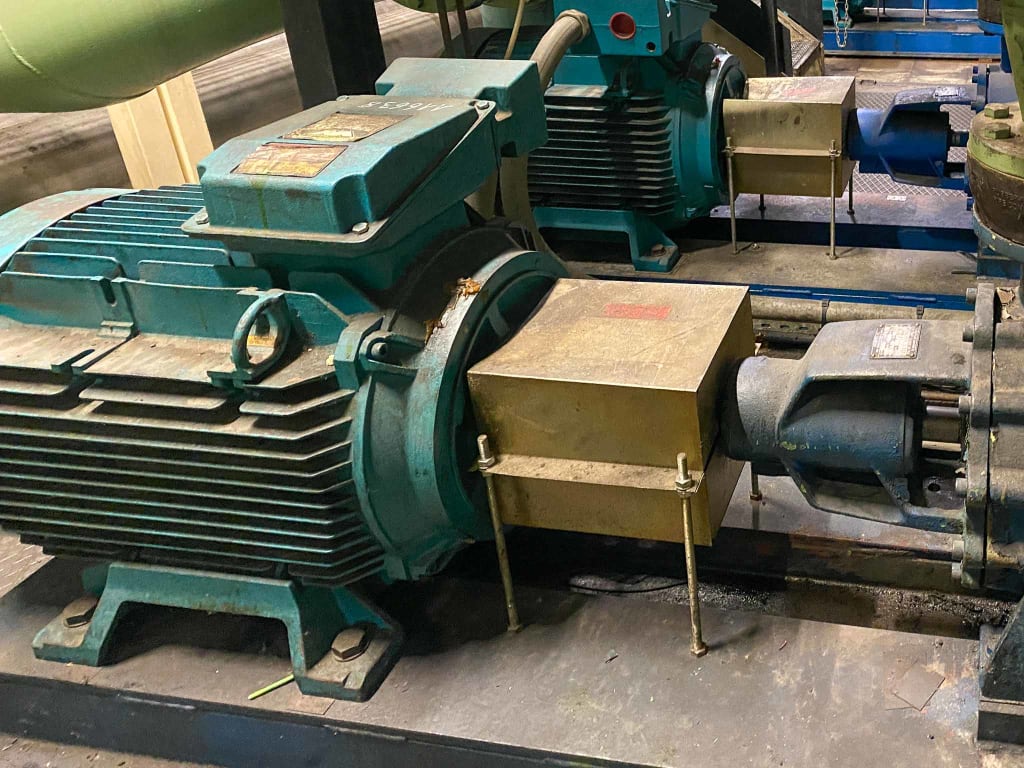

Centrifugal pump with electric motor, 40kW ALLWEILER, SNH 2200 ER42 U12 1-W1, year 1991

Flow meter ENDRESS+HAUSER, Promass 83F40-TJ12/0

4 pcs. of pallet chassis GARANT, 919908 1200x800, year 2020

Needle Valve PAM, Type 508

Pallet rack METALSISTEM, year 2007

Drying cabinet MEMMERT, ULM 500

Mech. oil flow meter, DN40 AQUAMETRO, VZOA 40 FL 130/25 RV1 CE

Tank for Liquid Nitrogen on a trolley

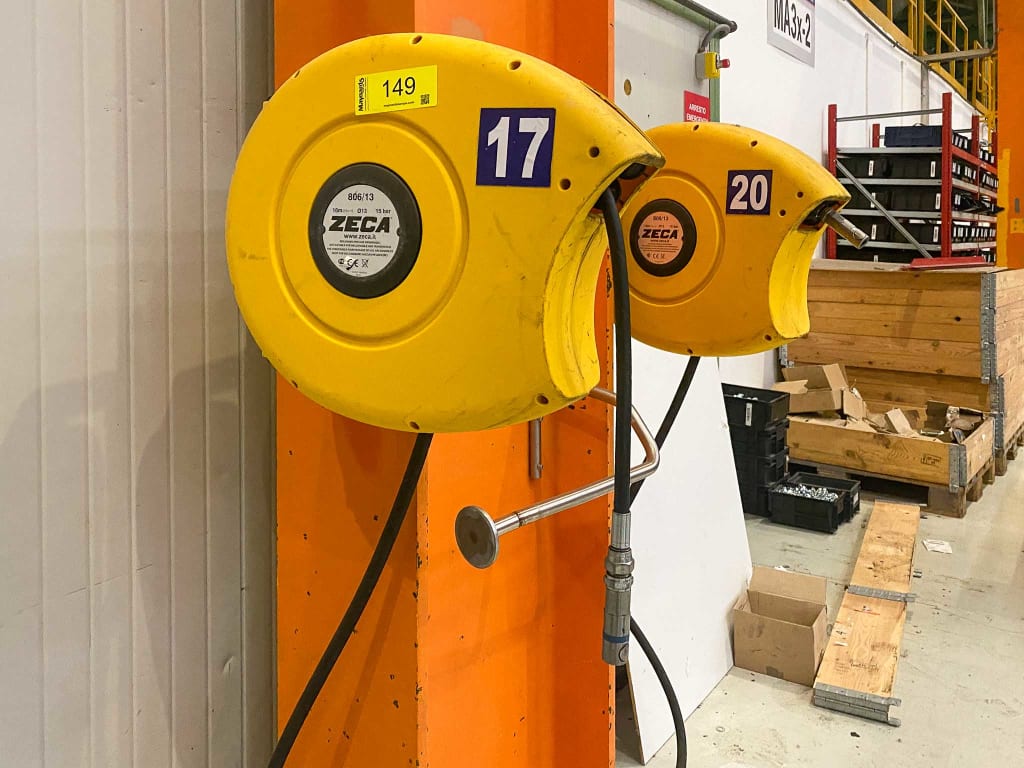

Hose Reel ZECA

Inverter control DANFOSS, VLT

Lead and pull spindle lathes FIMAP, TP 22, year mod. 2013

2 pcs. of Multi-spectrum IR flame detector DET-TRONICS, x3301 A

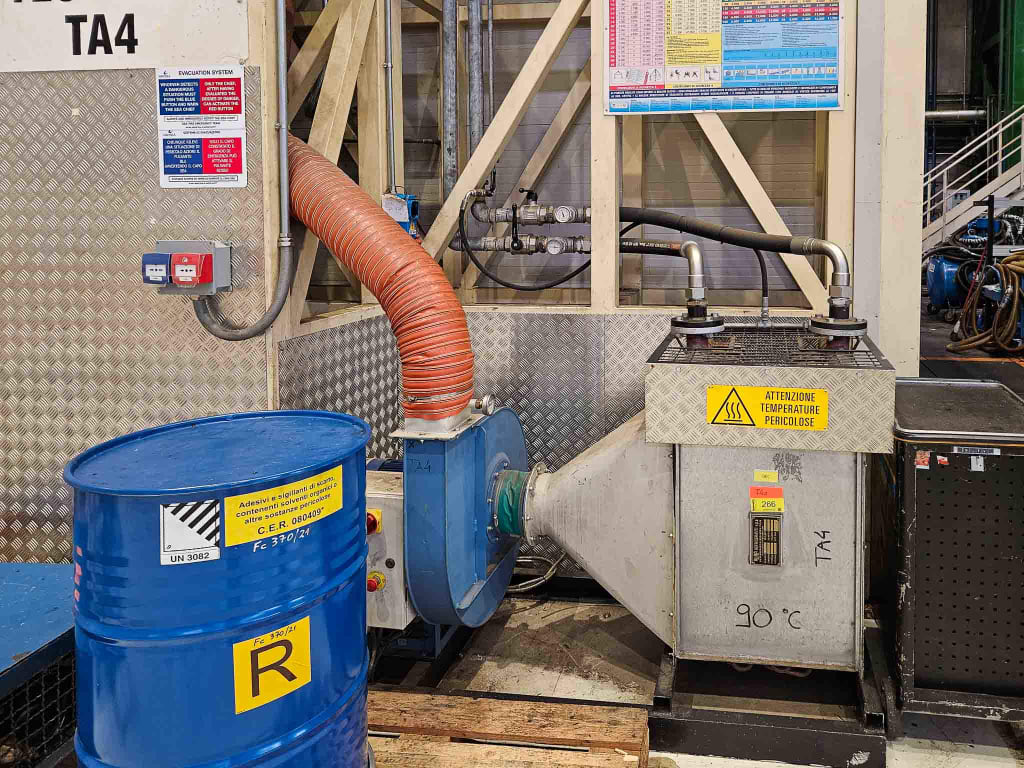

Radial fan SAVIO, SPE 631/A

8 pcs. of Support post, mobile

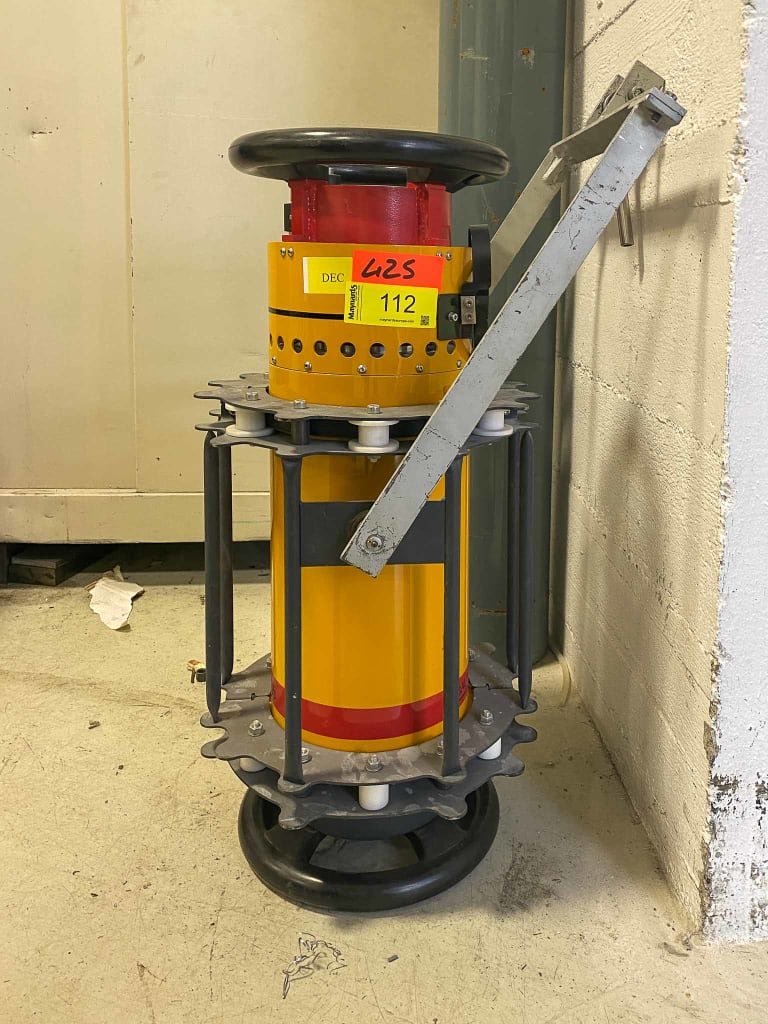

Portable X-ray generator BALTEAU, RX BALTOSPOT 35-CF2000

Radial drilling machine BERGONZI

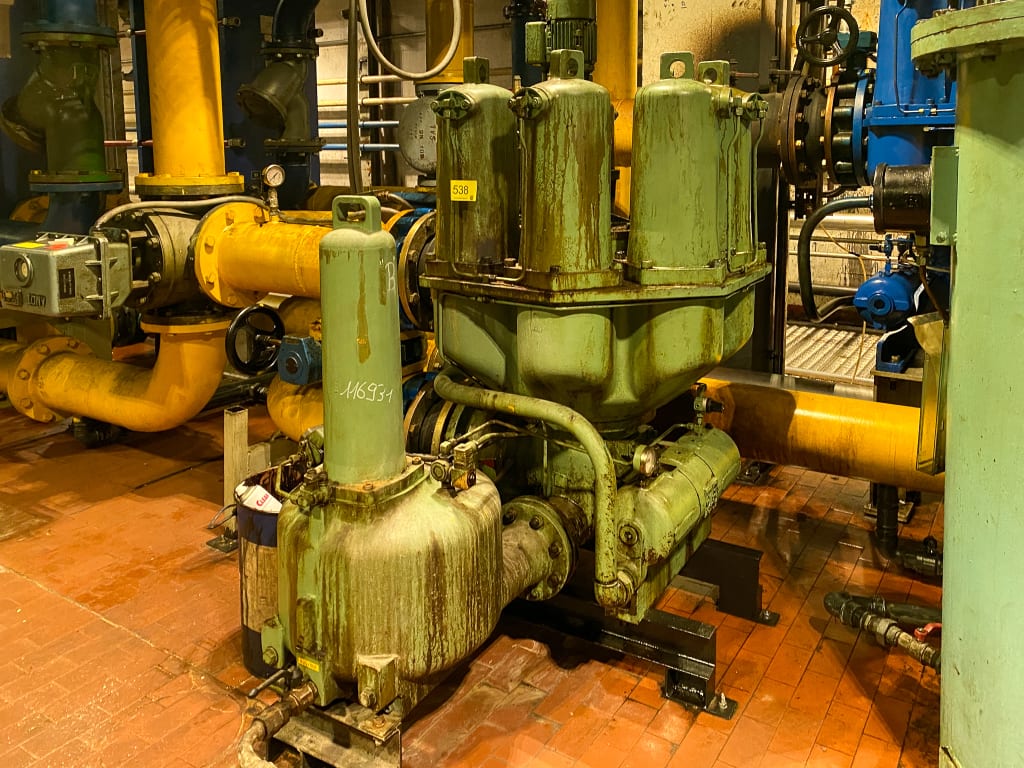

Volumetric pump 22 kW TERMOMECCANICA ITALIANA, ACF 100/3, year 1973

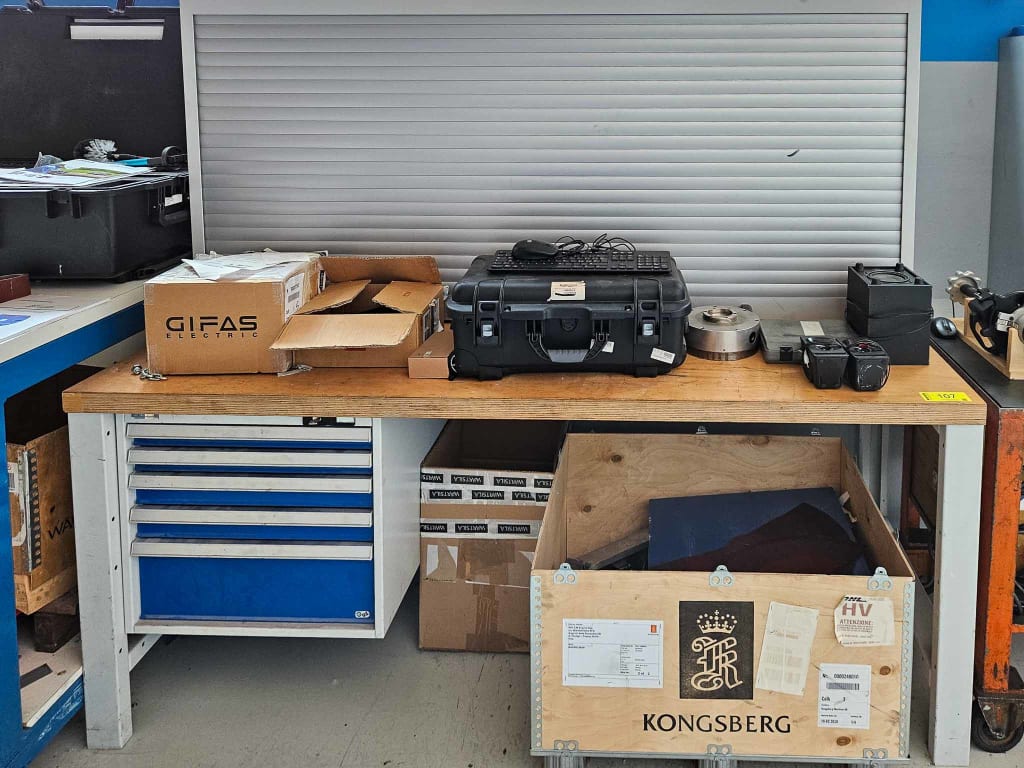

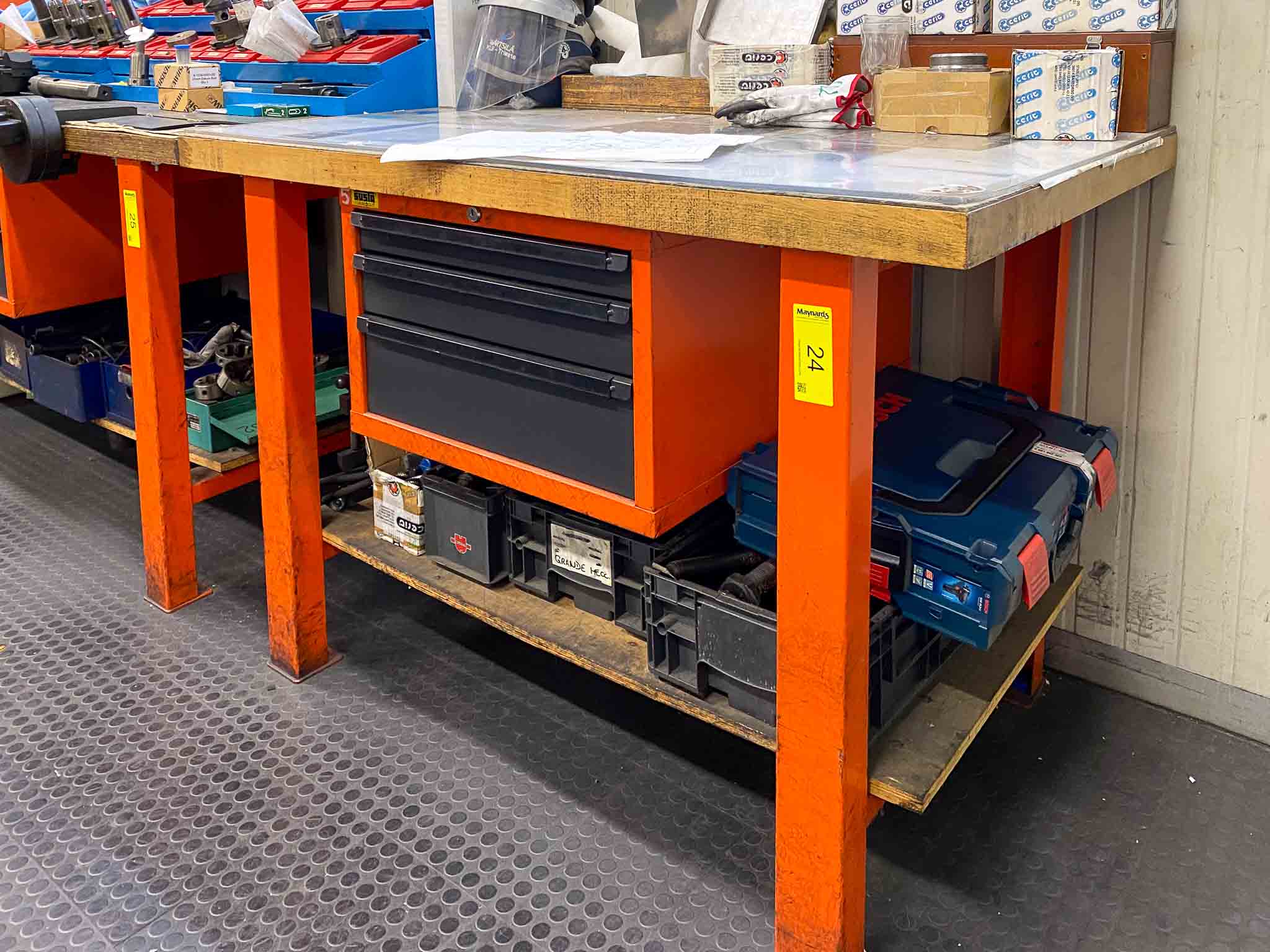

Workbench, metal frame SUSTA

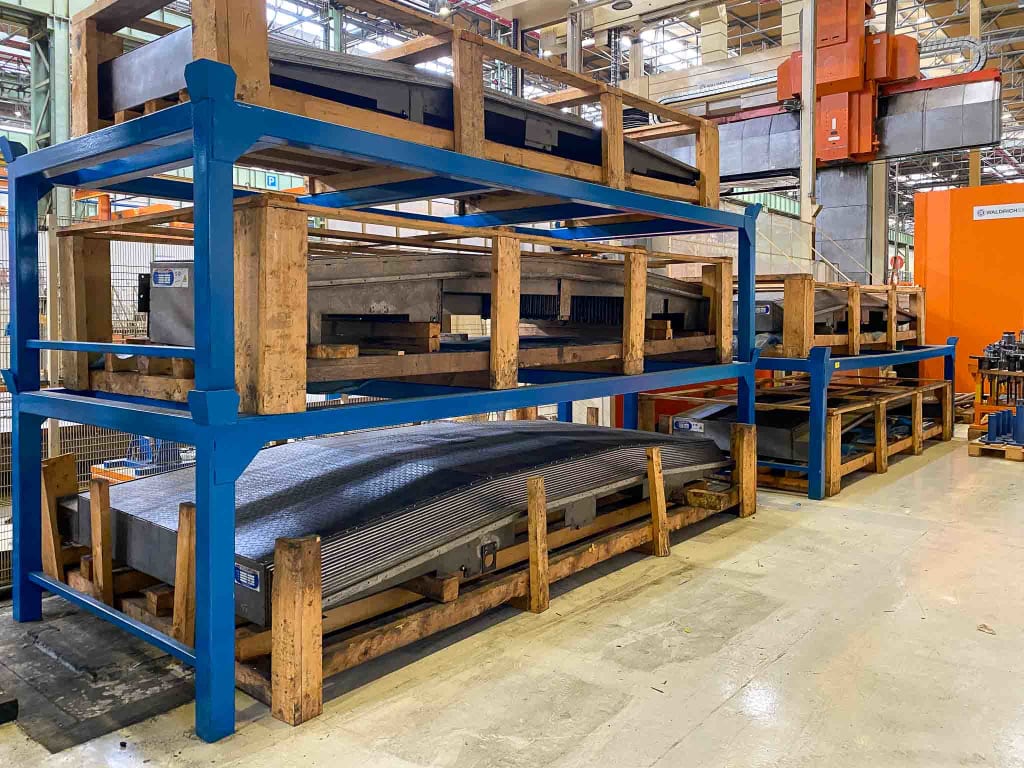

5 pcs. of transport and storage frames

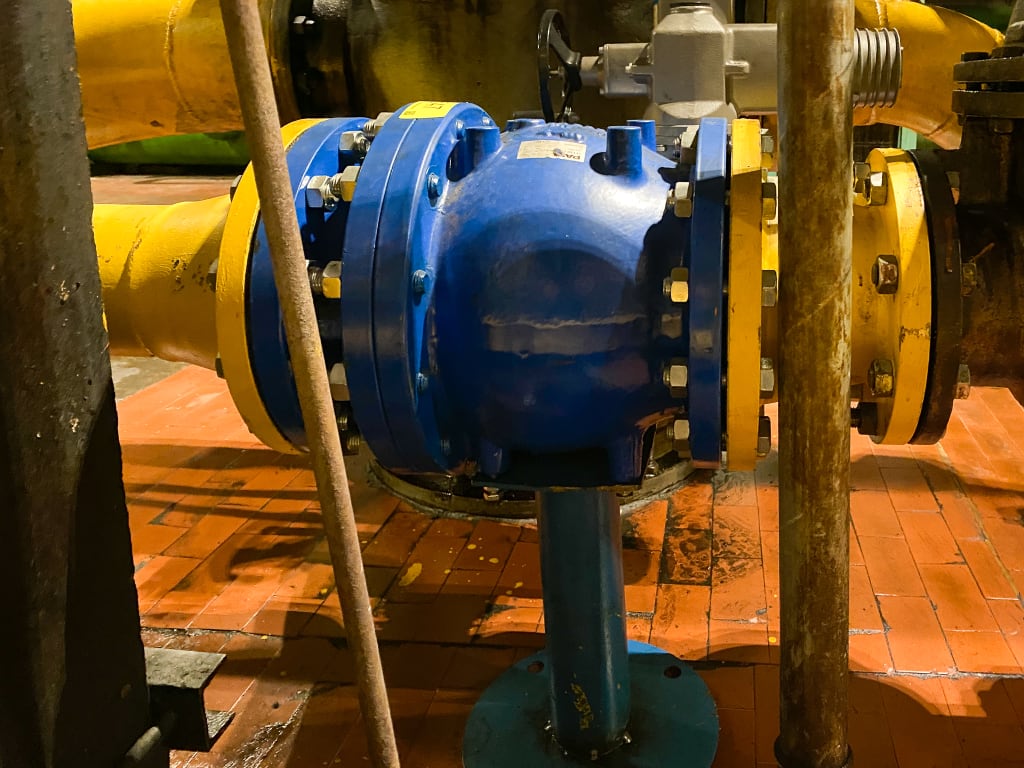

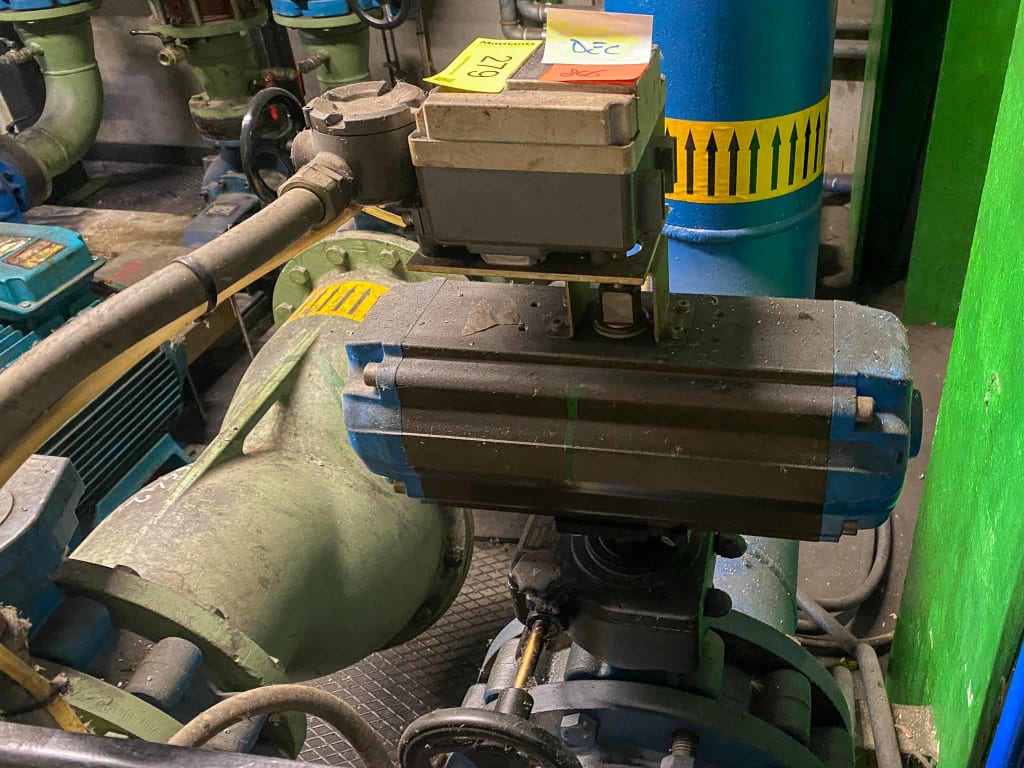

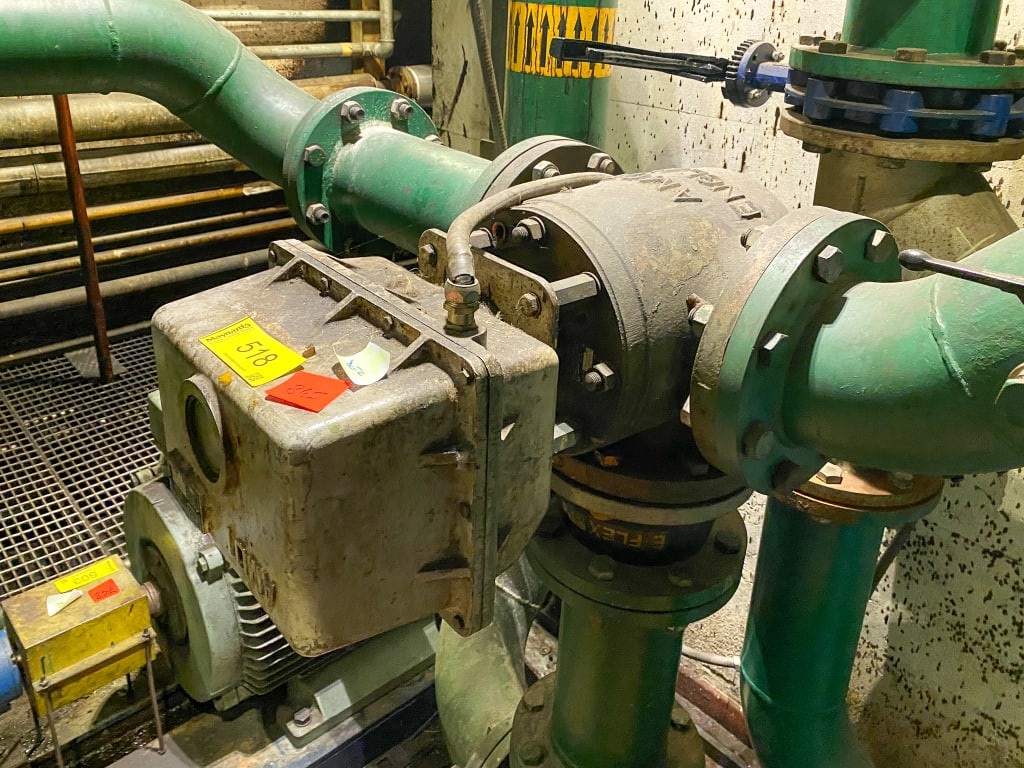

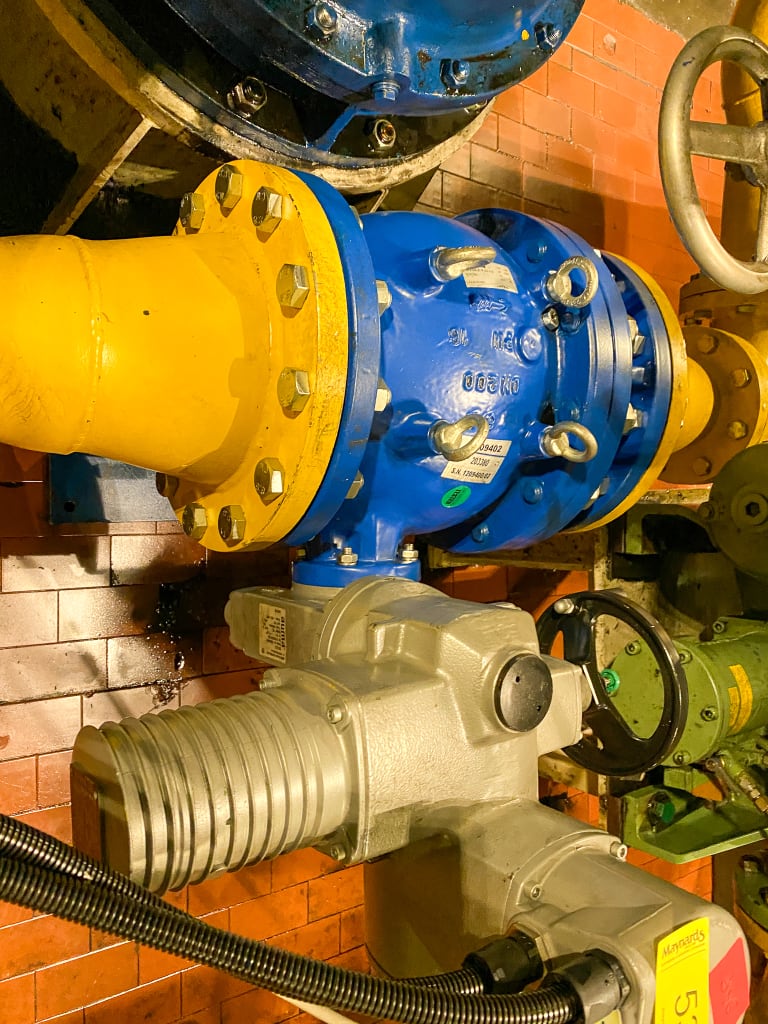

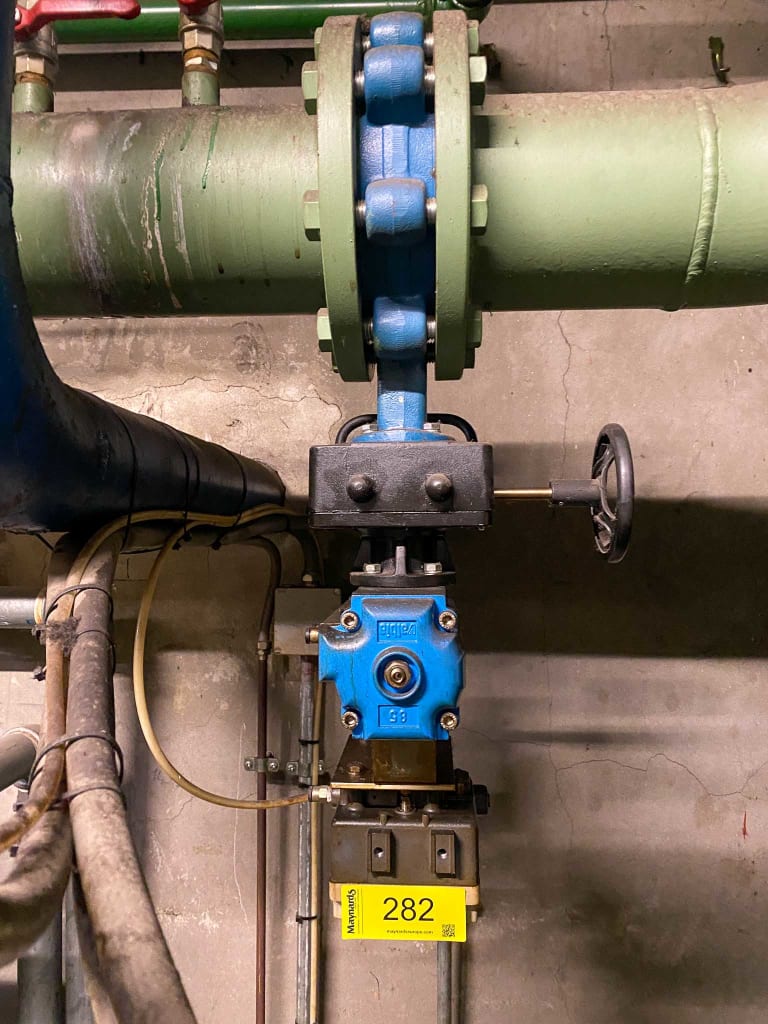

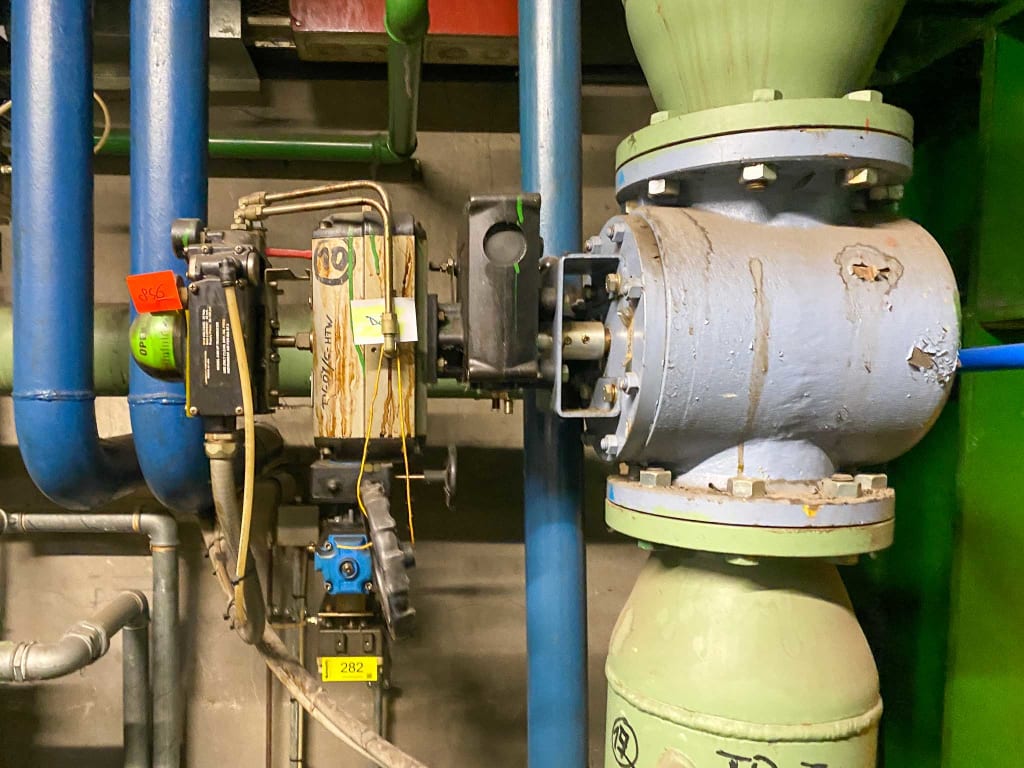

3 way control valve DN 200/100 with neumatic actuator

2 pcs. of T-Slot Support Rails, steel

Drawer cabinet, 6 drawers, sheet steel

Pallet rack METALSISTEM, year 2007

Metal Cupboard FAMI STORAGE SYSTEMS

Pallet rack METALSISTEM, year 2007

Mech. oil flow meter, DN40 AQUAMETRO, VZOA 40 FL 130/25 RV1 CE

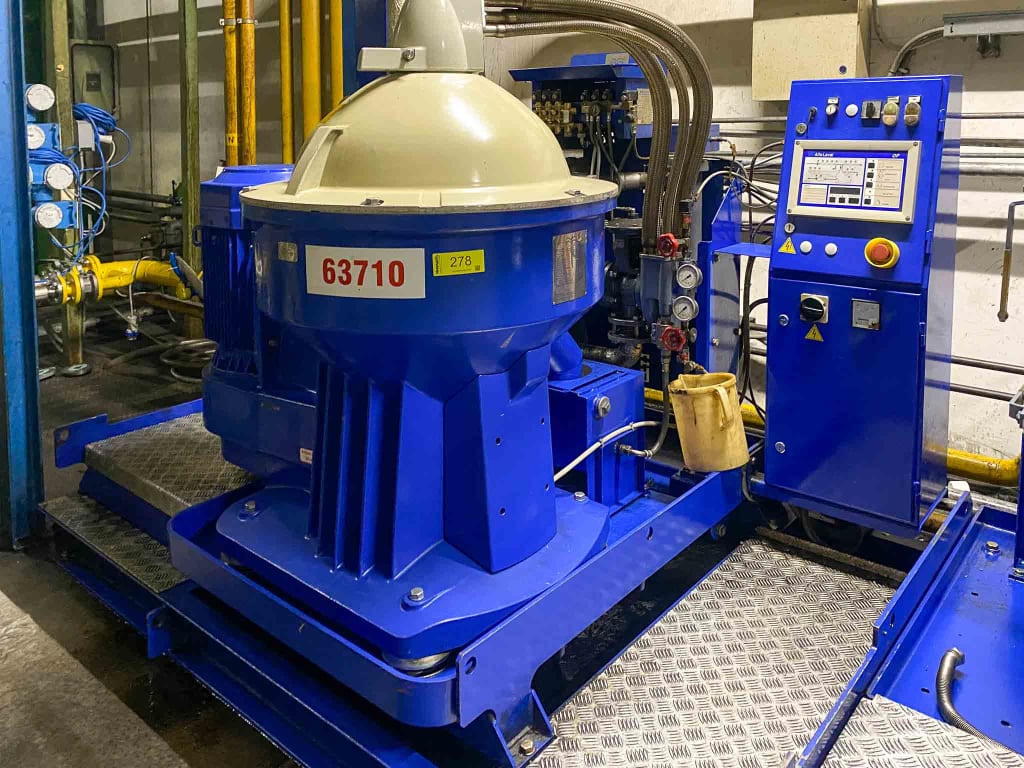

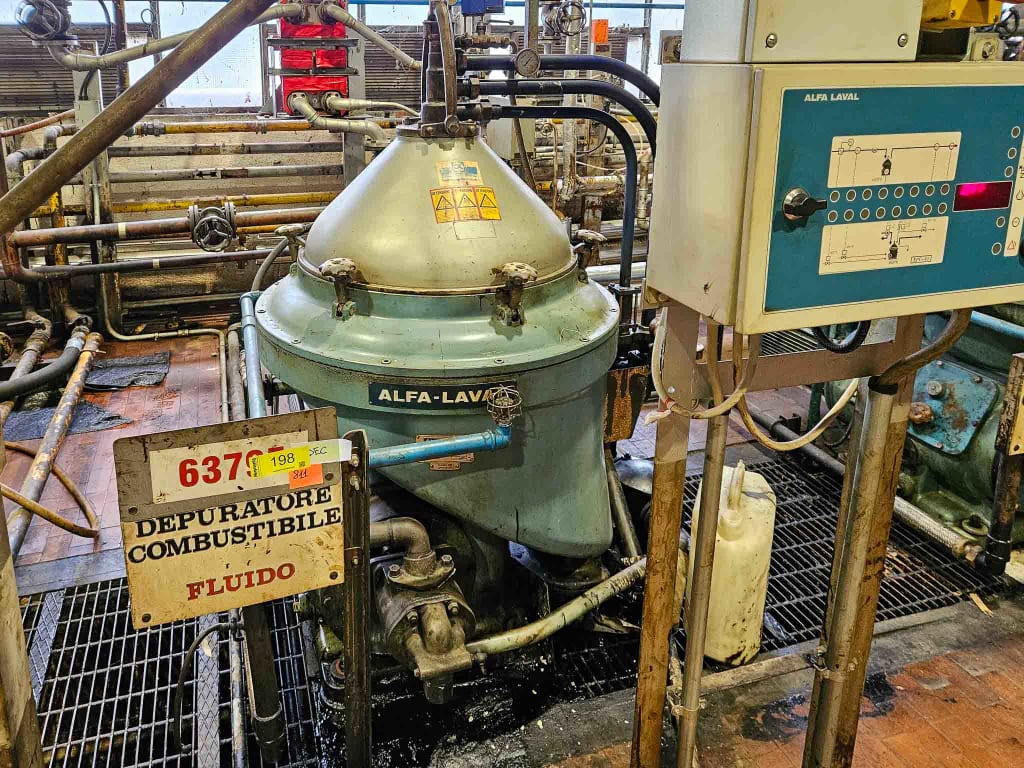

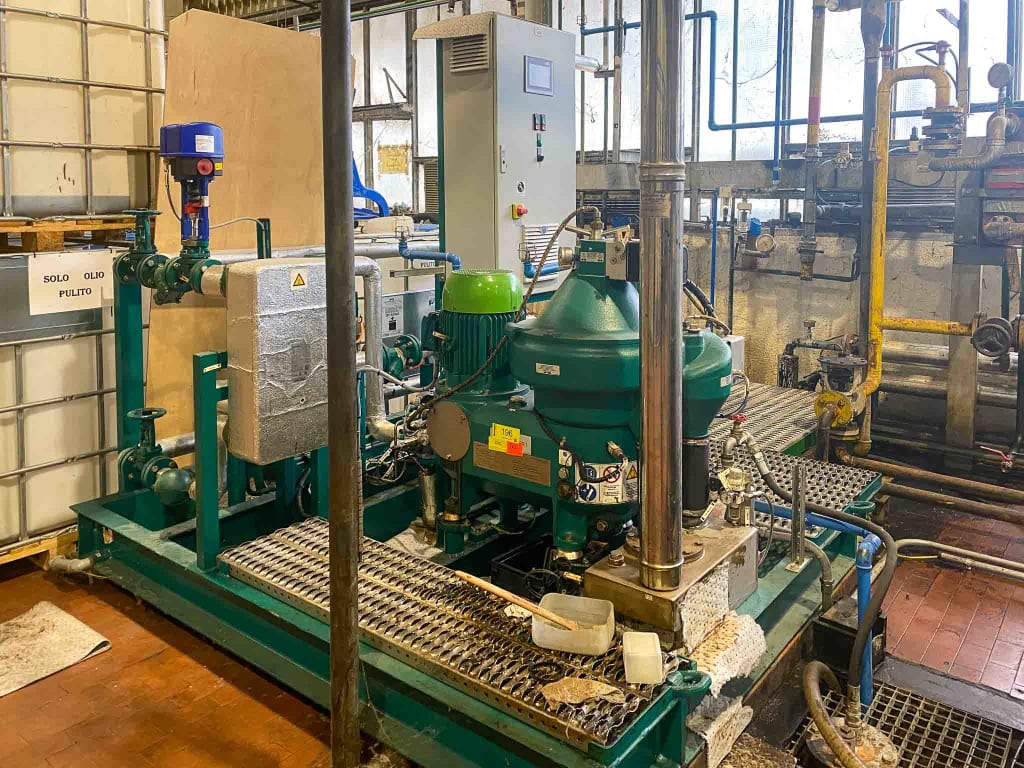

Modular disc stack centrifuge system ALFA LAVAL, S 700, year 2001

Centrifugal pump with electric motor, 4kW CALPEDA, NM40/16 A/B

Metal Cabinet GARANT, 420713/5005/7035, year 2016

brazed plate heat exchanger SWEP, B220Hx50/1P-SC-S 4xSAE 1 1/2" cs, year 2020

Horizontal metal band saw with pull-down mechanism BIANCO, SB 200 M1

High-performance industrial vacuum cleaner, mobile RIBO, VS 12 / 679 CR, year 2006

Volumetric pump 117 kW

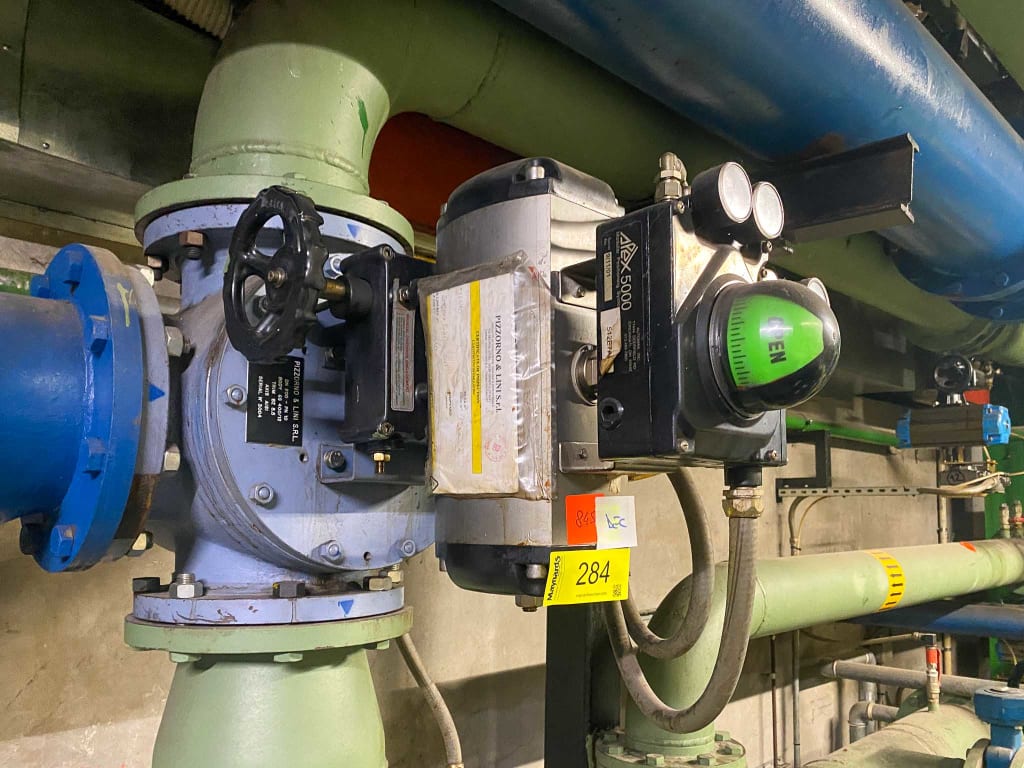

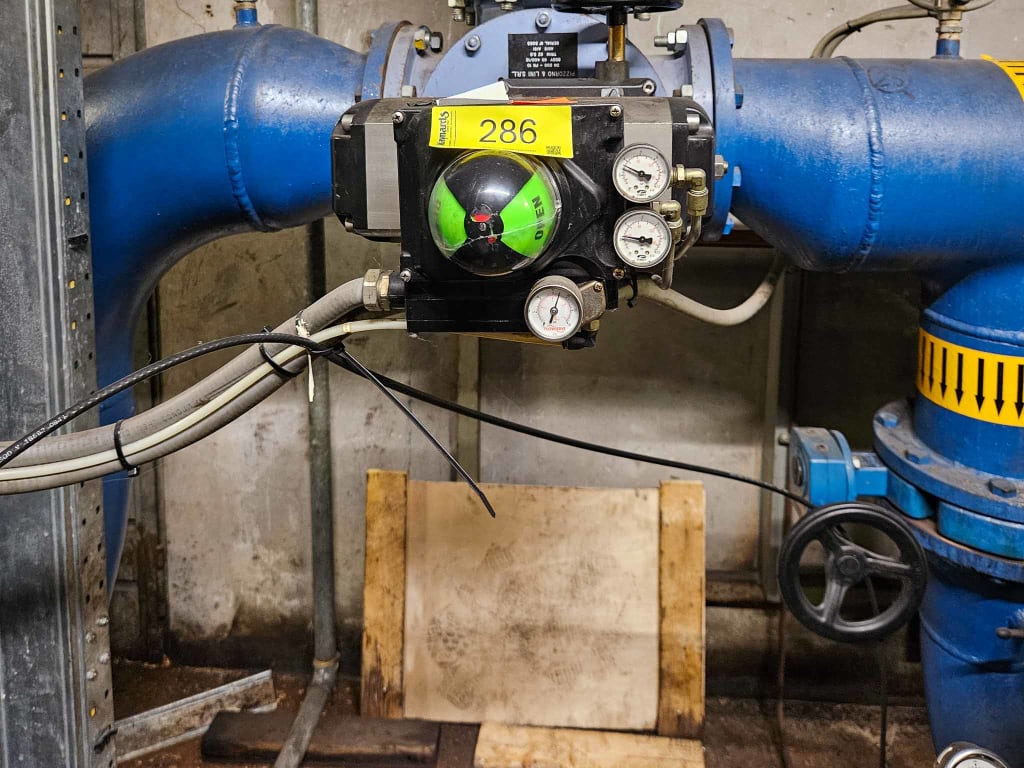

Pneumatic positioner and converter AUTOMAX, Apex 5000 - 512E7AFT, year 2001
