Started: 04 June 2023 at 23:00 BST
Ended: 26 July 2023 at 08:00 BST
At the centre of the swiss watch valley, offering high end machining center and swiss lathe from a renowned medical equipment manufacturer following the decision to complete close this 80.000m² production site. Sale in conjunction with PRODEQ
Share:
LOT 2120016![]()

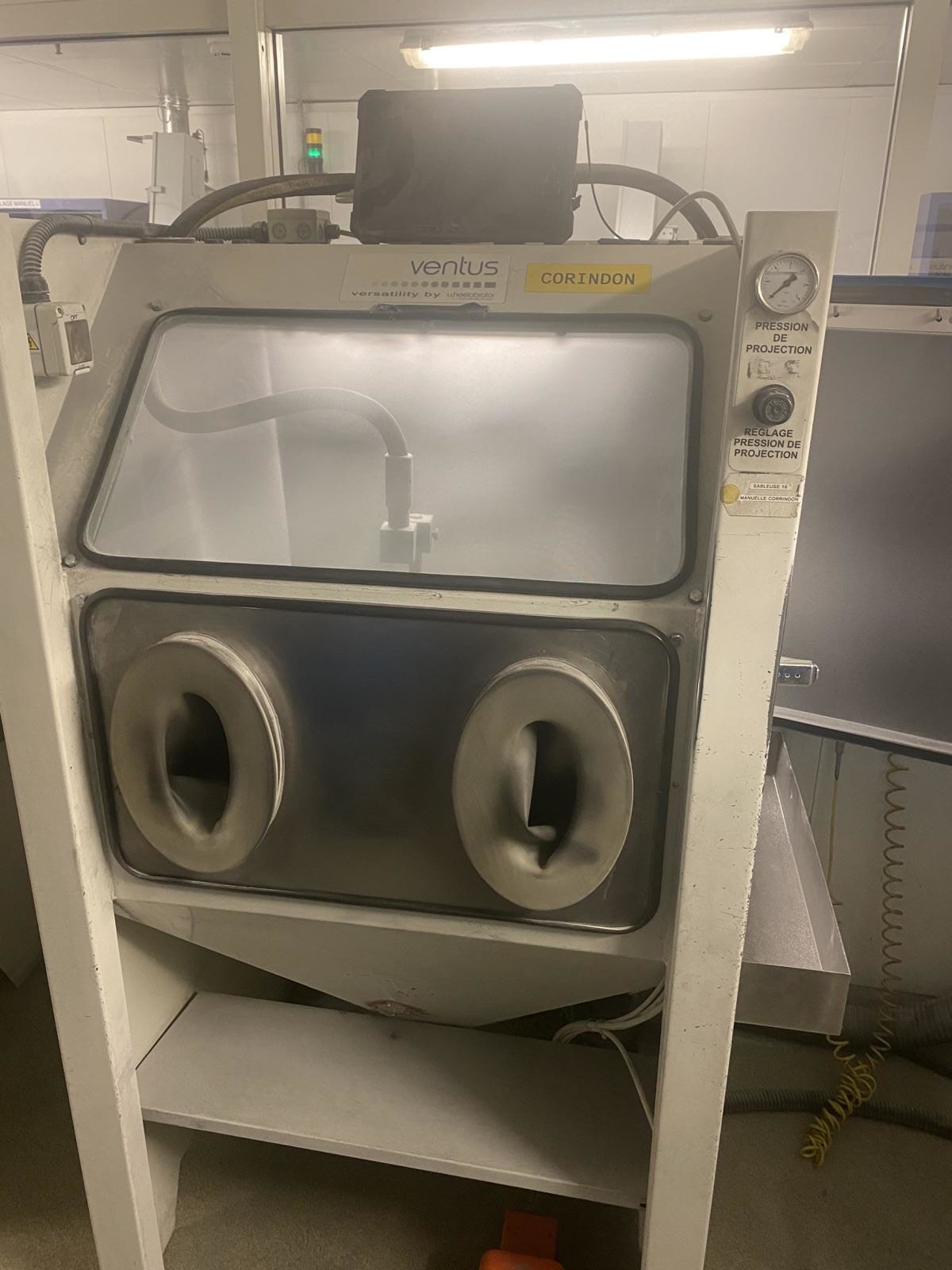

Sandblasting Machine, Year: 2005
Binding Dismantling & Loading Fee:
375 CHF (Swiss Franc)
Technical data
working room: length: 896 mm
working room: width: 796 mm
working room: height: 800 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 0.75 kW
mains voltage: 380 V
mains frequency: 15 HzSale has ended
LOT 2120077![]()

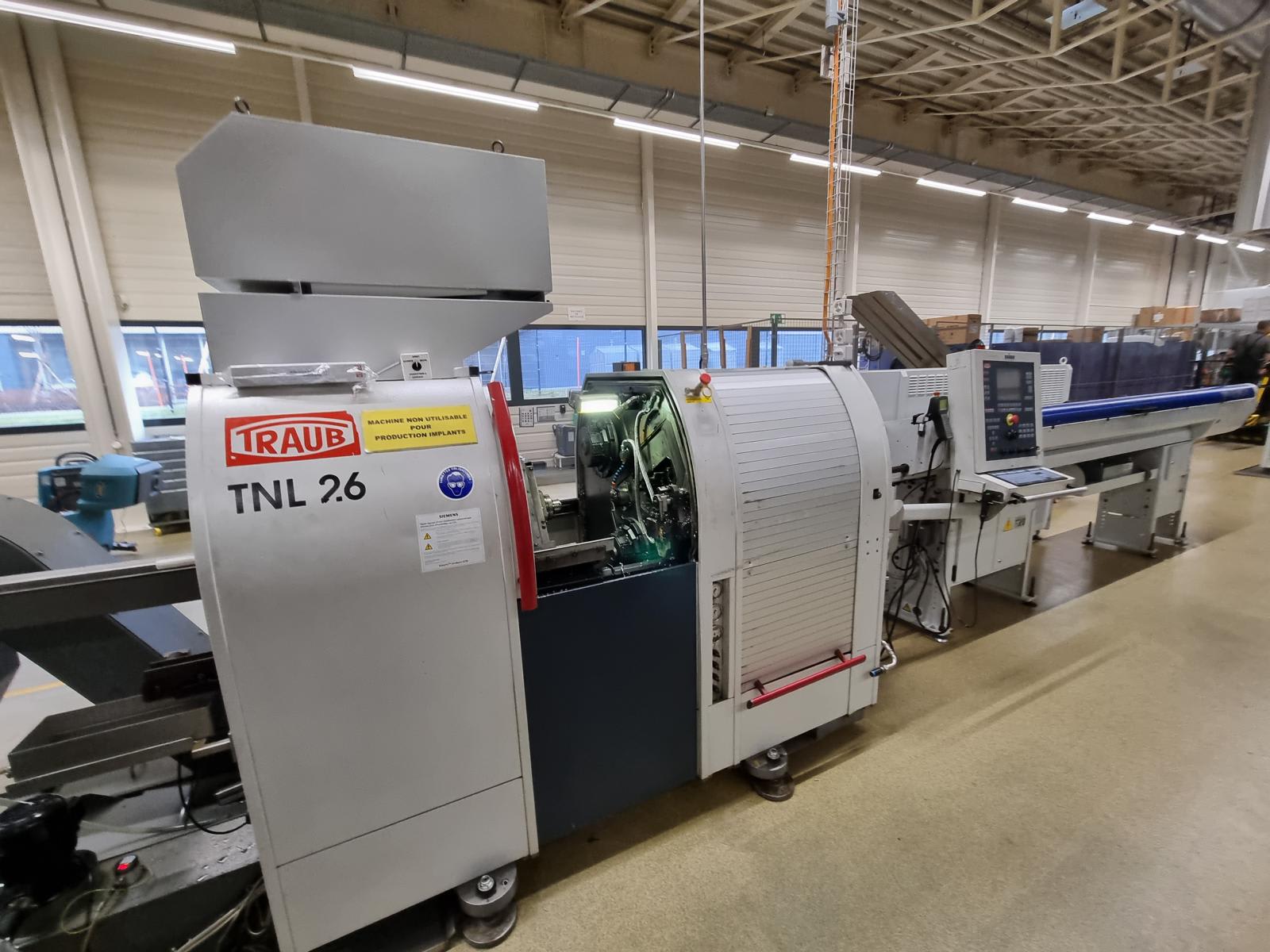

CNC Swiss Type Lathe TRAUB TNL 16/26, Year: 2000
Binding Dismantling & Loading Fee:
2750 CHF (Swiss Franc)
Used To Cut Titanium Raw Bar. Working hours 54000 (circa)
CONTROLS
CNC controls TRAUB TX 8I
BASIC FUNCTIONS
number of spindles: 2
number of turrets: 2
number of c-axes: 2
WORKING RANGE TURNING
turning diameter (max): 26 mm
bar diameter (max): 26 mm
worpiece length max.: 250 mm
MAIN SPINDLE
spindle revolutions (max): 8000 /min
COUNTER SPINDLE
spindle revolutions (max): 8000 /min
ELECTRICAL SPECIFICATIONS
total power consumption: 33 kW
DIMENSIONS / WEIGHTS
space requirements -left/right-: 3706 mm
space requirements -front/back-: 1292 mm
total height: 1630 mm
MAIN SPINDLE
- max. bar diameter: 26 mm
- max. speed: 8.000 rpm
- C-axis indexing: 0.1 degree
- stroke Z1: 250 mm
- stroke Z1 with rotating guide bush: 225 mm
- max. feed rate: 30 m/min
COUNTER SPINDLE
- max. bar diameter: 26 mm
- max. speed: 8.000 rpm
- C-axis indexing: 0.1 degree
- travel Z4: 250 mm
- travel X3: 370 mm
- max. feed Z4: 30 m/min
- max. feed X3: 60 m/min
TOOL REVOLVER 1 (bottom)
- Travel X1: 35 mm
- travel Y1: +/- 20 mm
- Rapid traverse X1/Y1: 15 m/min
- Tool positions: 12
- of which driven tools: 12
- max. speed: 6.000 rpm
TOOL REVOLVER 2 (top)
- Traverse path X2: 50 mm
- travel Z2: 100 mm
- Travel Y2: +/- 20 mm
- Rapid traverse X1/Y1: 15 m/min
- Tool positions: 12
- of which driven tools: 12
- max. speed: 6.000 rpm
FRONTAPPARAT
- tool positions: 5
- max. speed: 6.000 rpm
- Clamping diameter: 40 mm
- Distance between sleeves: 54 mm
- Travel X3: 370 mm
- Traverse path Z3: 250 mm
- Rapid traverse X3: 60 m/min
- Rapid traverse Z3: 30 m/min
RECAPPARAT
- Tool positions: 5
- max. speed: 6.000 rpm
- Clamping diameter: 40 mm
- Distance between sleeves: 54 mm
- Travel X4: 73 mm
- Traverse path Y4: +/- 50 mm
- Rapid traverse X4/Y4: 15 m/min
incl. IMECA bar feederSale has ended
LOT 2120037![]()

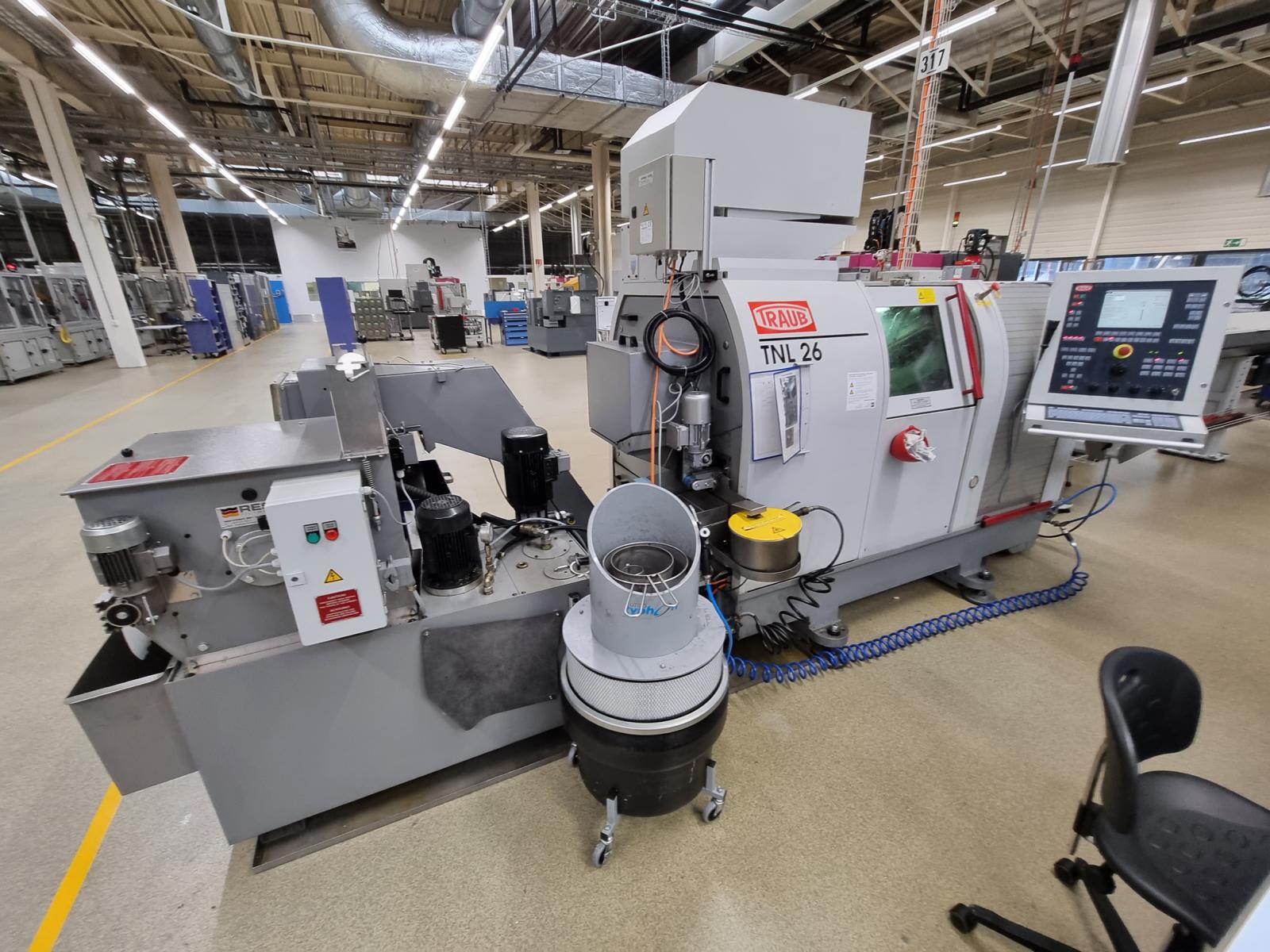

CNC Swiss Type Lathe TRAUB TNL 26, Year: 2006
Binding Dismantling & Loading Fee:
2750 CHF (Swiss Franc)
CONTROLS
CNC controls TRAUB TX 8I
BASIC FUNCTIONS
number of spindles: 2
number of turrets: 2
number of c-axes: 2
WORKING RANGE TURNING
bar diameter (max): 26 mm
worpiece length max.: 225 mm
MAIN SPINDLE
spindle revolutions (max): 8000 /min
COUNTER SPINDLE
spindle revolutions (max): 8000 /min
Z-axis travel: 250 mm
X/Z SLIDE
tool fixture: Turret
number of tool positions (total): 12
number of live positions: 12
- rotation speeds (min): 0 /min
- rotation speeds (max): 6000 /min
MAIN SPINDLE
- max. bar diameter: 26 mm
- max. speed: 8.000 rpm
- C-axis indexing: 0.1 degree
- stroke Z1: 250 mm
- stroke Z1 with rotating guide bush: 225 mm
- max. feed rate: 30 m/min
COUNTER SPINDLE
- max. bar diameter: 26 mm
- max. speed: 8.000 rpm
- C-axis indexing: 0.1 degree
- travel Z4: 250 mm
- travel X3: 370 mm
- max. feed Z4: 30 m/min
- max. feed X3: 60 m/min
TOOL REVOLVER 1 (bottom)
- Travel X1: 35 mm
- travel Y1: +/- 20 mm
- Rapid traverse X1/Y1: 15 m/min
- Tool positions: 12
- of which driven tools: 12
- max. speed: 6.000 rpm
TOOL REVOLVER 2 (top)
- Traverse path X2: 50 mm
- travel Z2: 100 mm
- Travel Y2: +/- 20 mm
- Rapid traverse X1/Y1: 15 m/min
- Tool positions: 12
- of which driven tools: 12
- max. speed: 6.000 rpm
FRONTAPPARAT
- tool positions: 5
- max. speed: 6.000 rpm
- Clamping diameter: 40 mm
- Distance between sleeves: 54 mm
- Travel X3: 370 mm
- Traverse path Z3: 250 mm
- Rapid traverse X3: 60 m/min
- Rapid traverse Z3: 30 m/min
RECAPPARAT
- Tool positions: 5
- max. speed: 6.000 rpm
- Clamping diameter: 40 mm
- Distance between sleeves: 54 mm
- Travel X4: 73 mm
- Traverse path Y4: +/- 50 mm
- Rapid traverse X4/Y4: 15 m/min
incl. LNS Hydrobar Express 332 bar feederSale has ended
LOT 2120078![]()

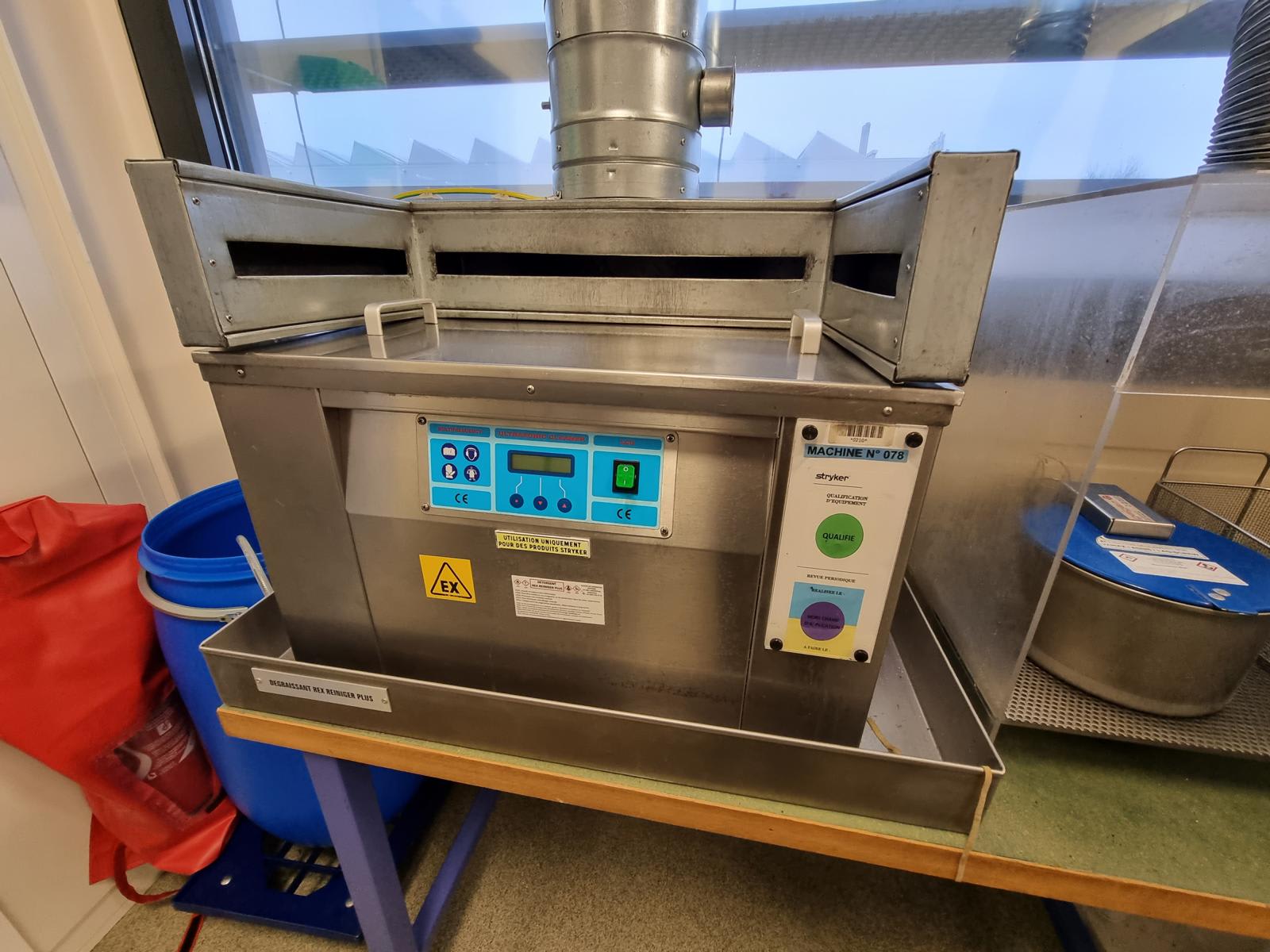

Ultrasonic Degreasing GLOGAR MU 45L, Year: 2009
Binding Dismantling & Loading Fee:
150 CHF (Swiss Franc)
ELECTRICAL SPECIFICATIONS
total power consumption: 1.9 kW
mains voltage: 230 V
max volume: 45 litersSale has ended
LOT 2120098![]()
Xmas Cell – Anodization, Year: 2012
Binding Dismantling & Loading Fee:
1650 CHF (Swiss Franc)
IMPORTANT NOTE following component are disfunct on this item : Staubli robot, control cabinet, electric and hydraulics systems.Sale has ended

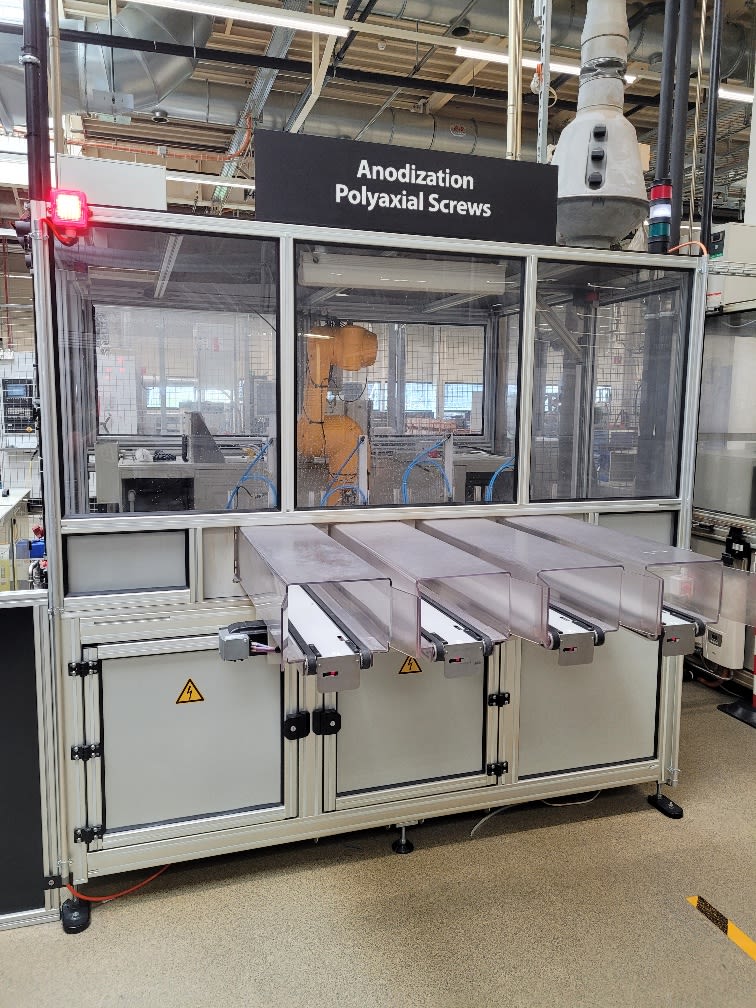

LOT 2120099![]()
Xmas Cell – Anodization, Year: 2012
Binding Dismantling & Loading Fee:
1650 CHF (Swiss Franc)Sale has ended
LOT 2120092![]()

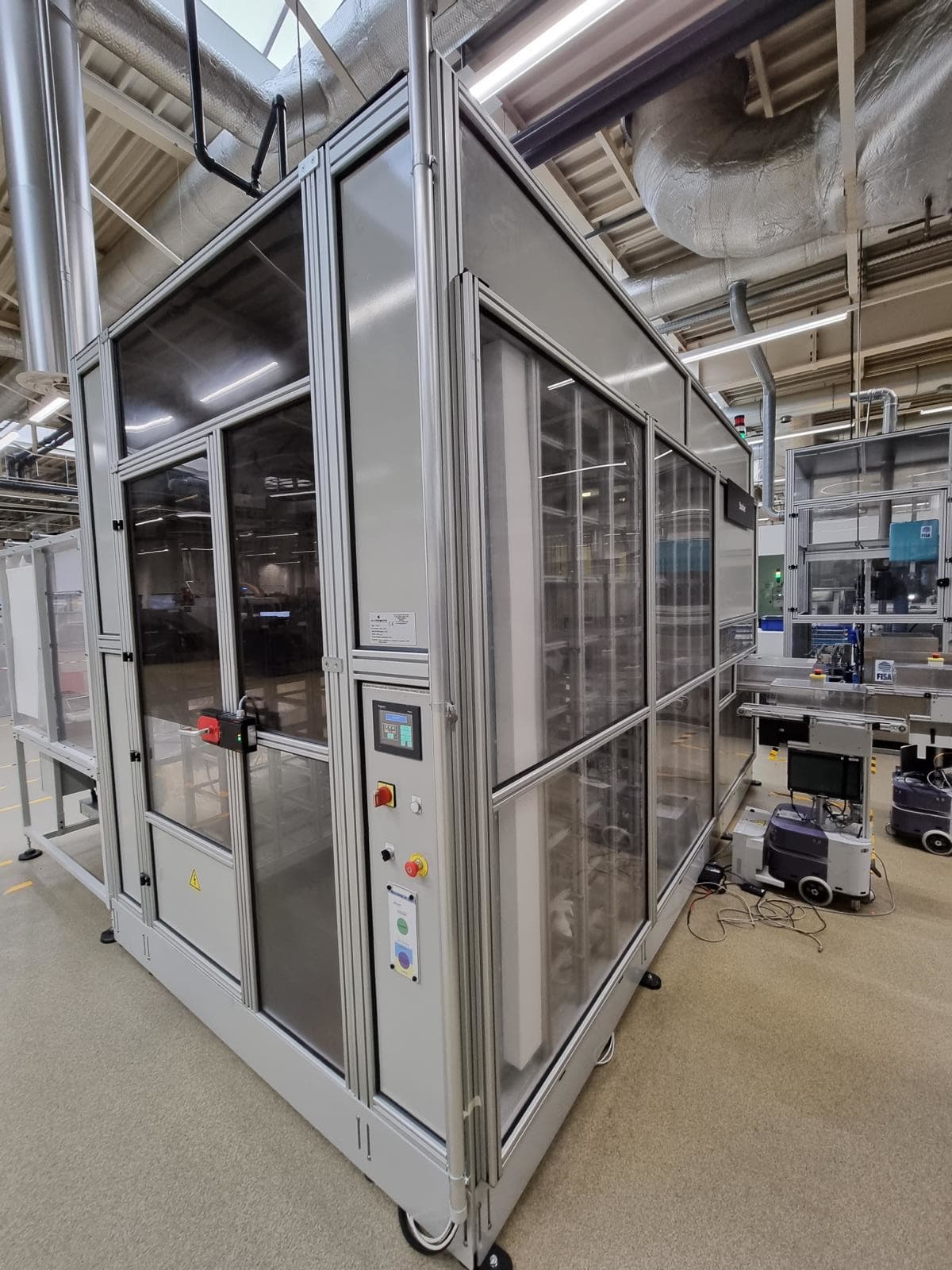

Storage automat ALPROBOTIC TS200, Year: 2012
Binding Dismantling & Loading Fee:
3500 CHF (Swiss Franc)Sale has ended
LOT 2120142![]()
Plasma Polishing Machine STS INDUSTRIE , Year: 2021
Binding Dismantling & Loading Fee:
on demandSale has ended
LOT 2120091![]()

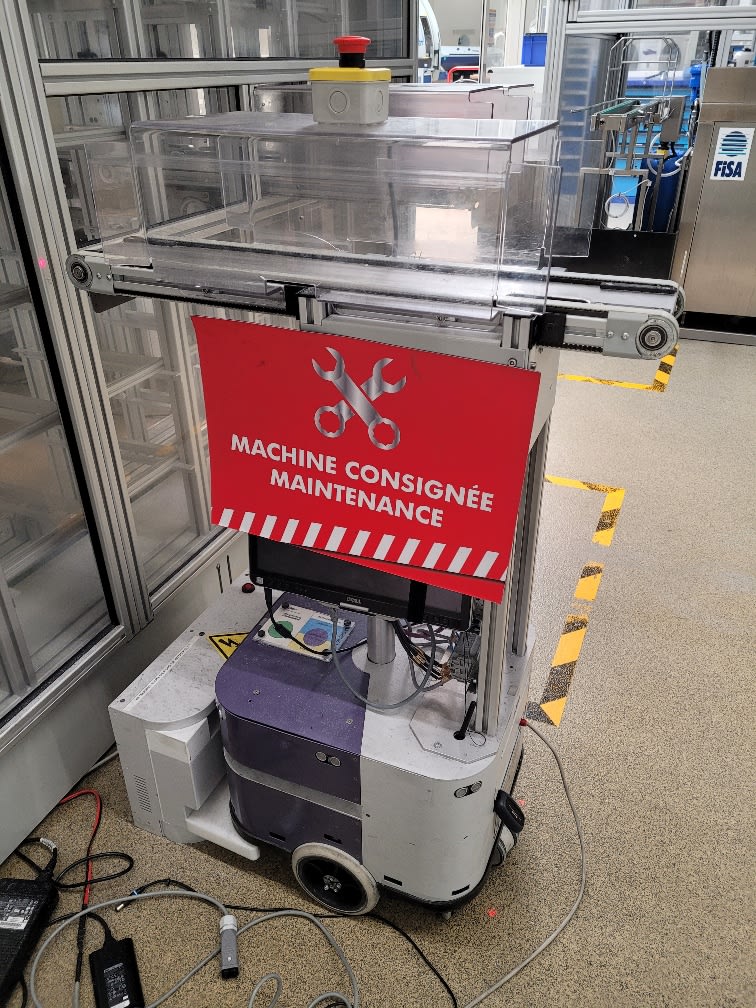

Xmas Cell, Year: 2012
Binding Dismantling & Loading Fee:
25 CHF (Swiss Franc)
IMPORTANT NOTE following component are disfunct on this item : PC, automation, electrics.Sale has ended
LOT 2120006![]()

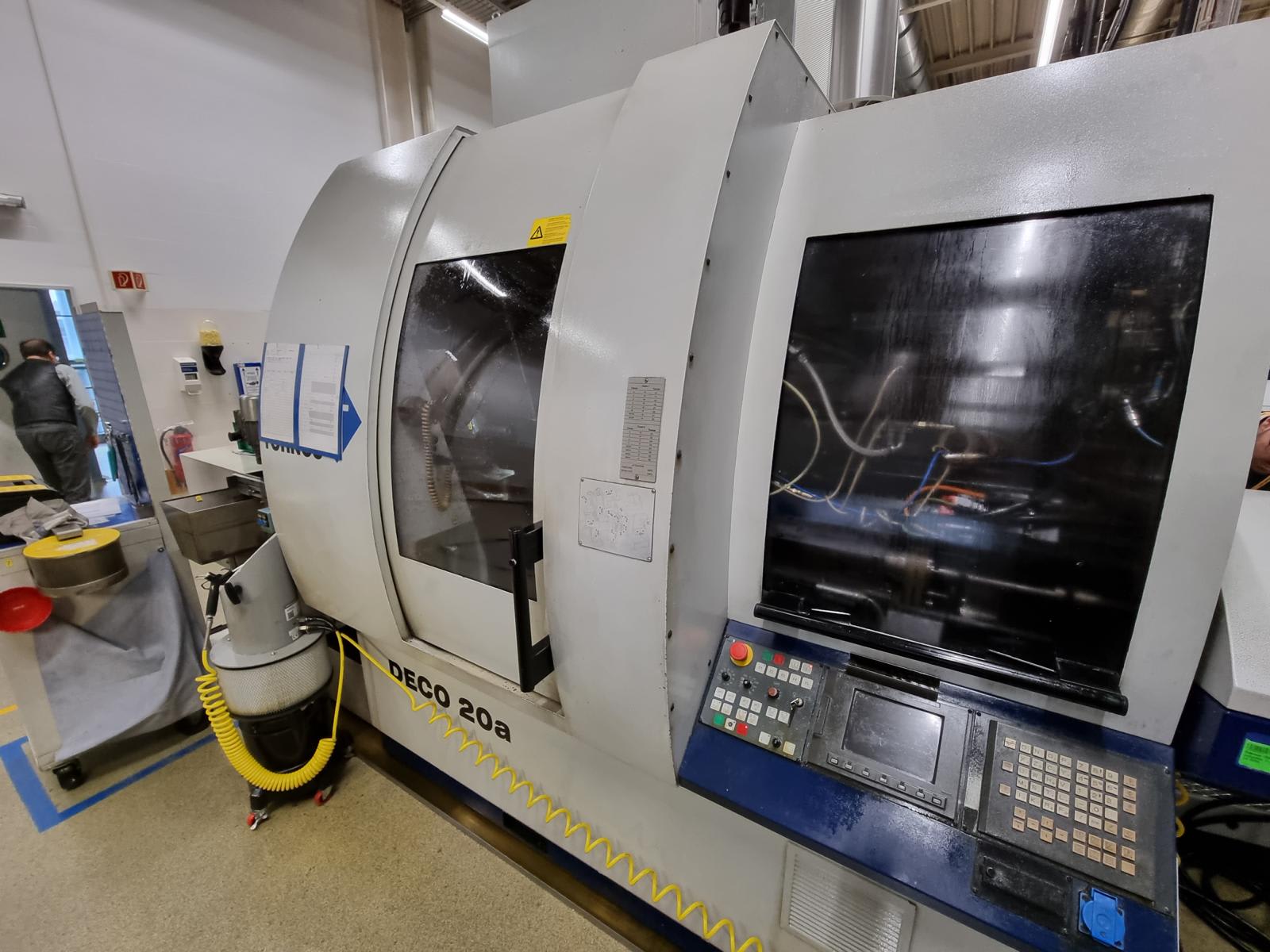

CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2005
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended
LOT 2120095![]()

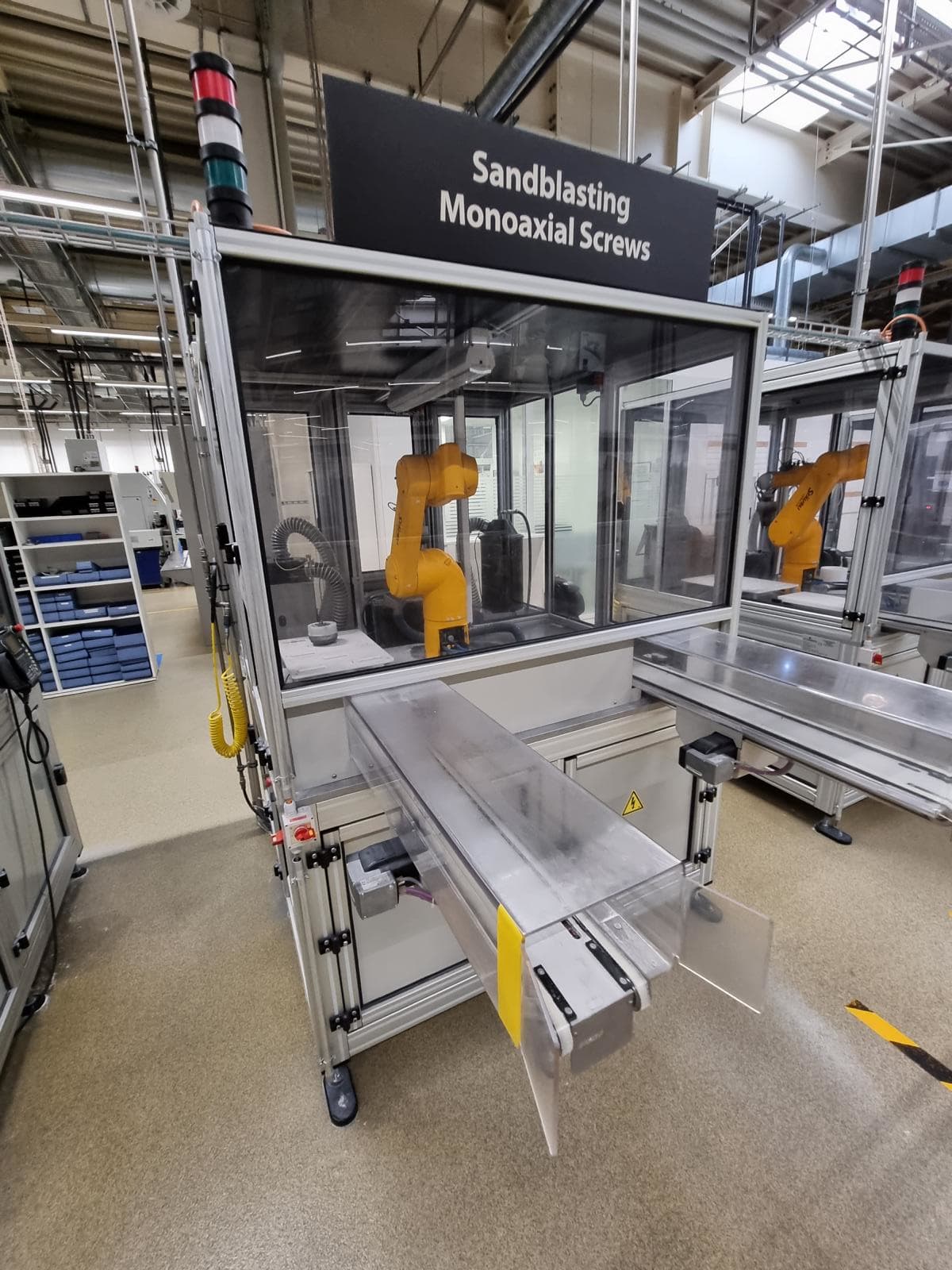

Sandblasting Machine ALPROBOTIC MB100, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
+ Stäubli robot arm
The cell was used for sandblasting medical parts.Sale has ended
LOT 2120048![]()

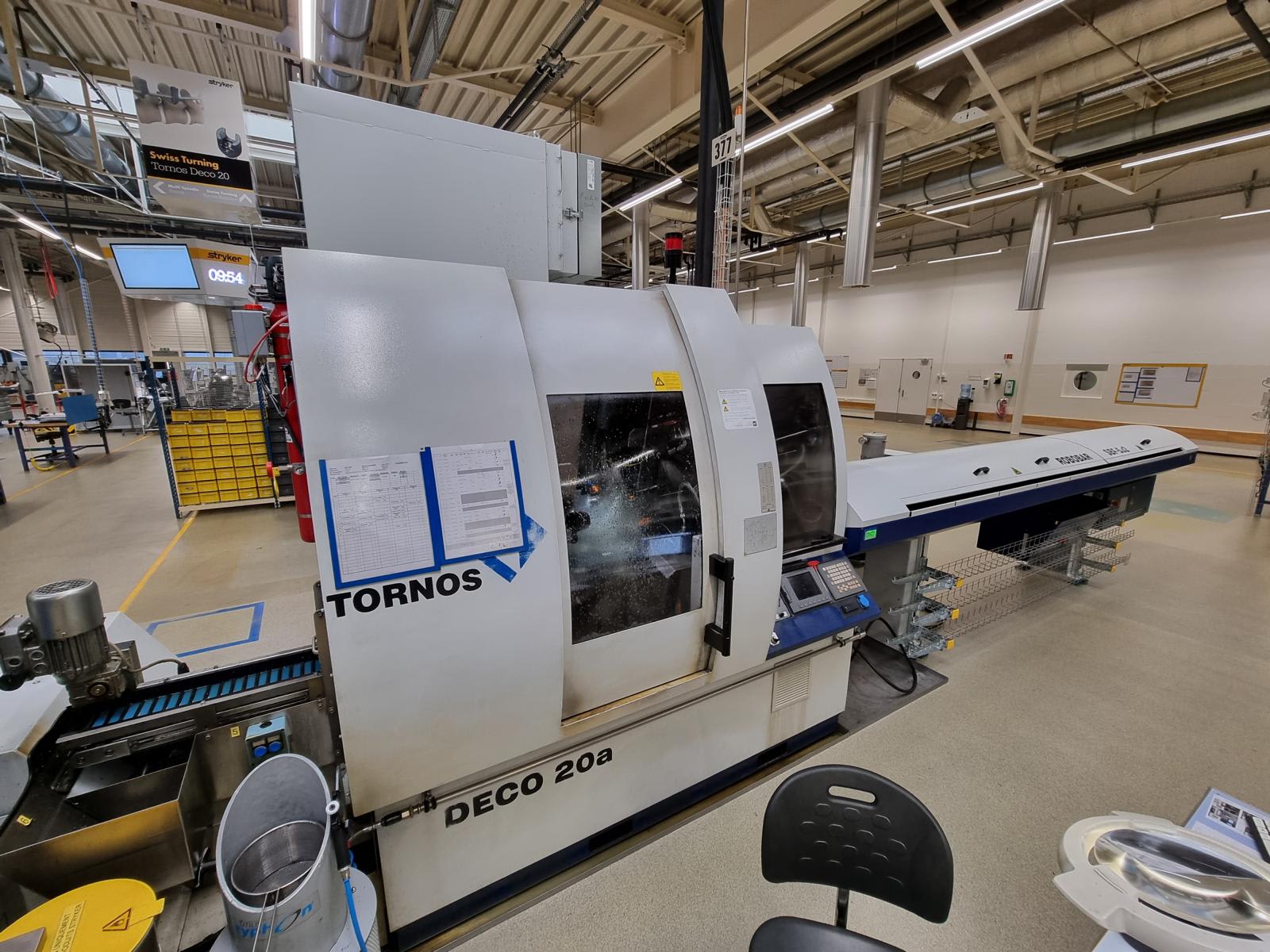

CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2007
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
number of c-axes: 2
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended

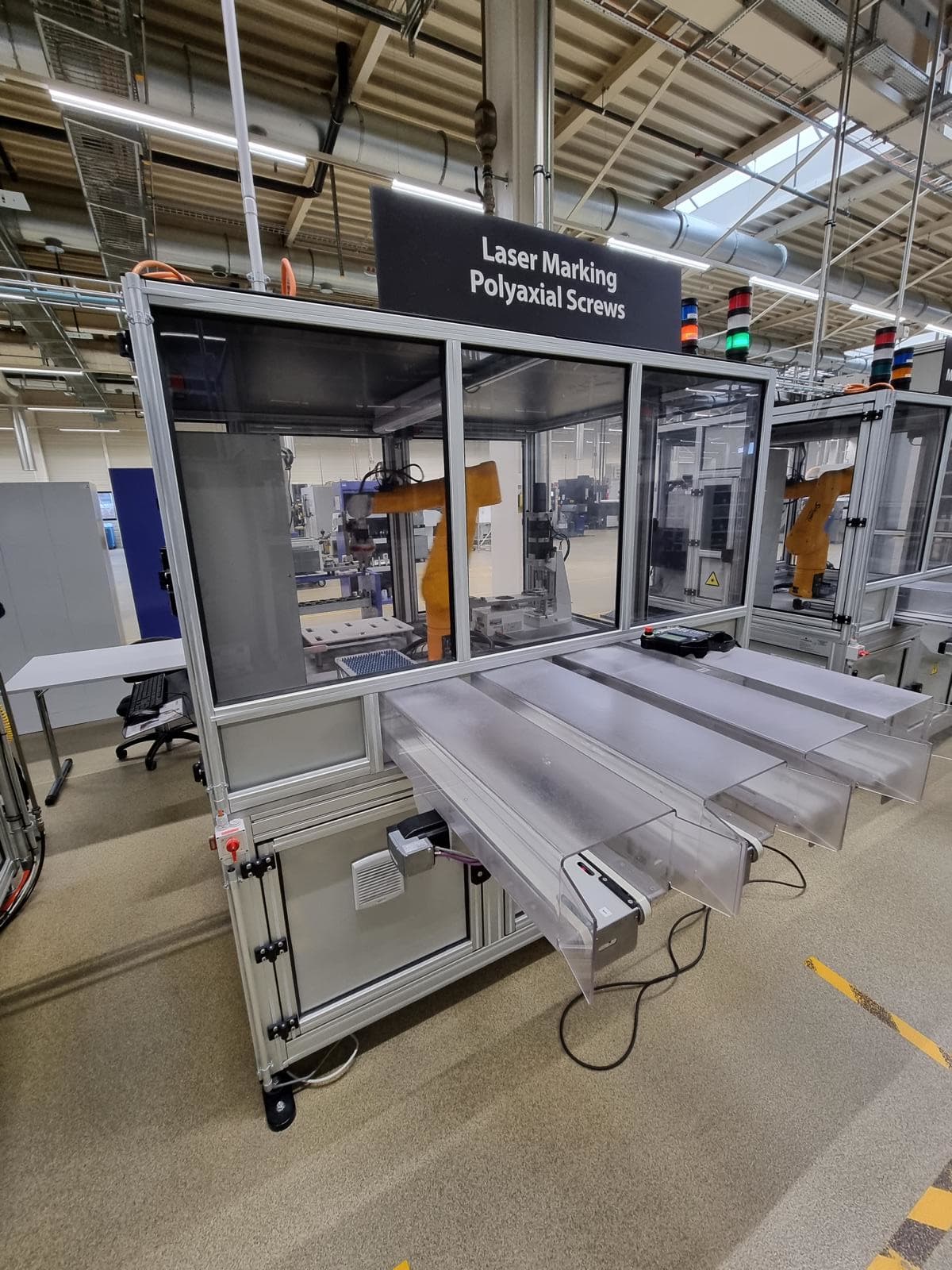

LOT 2120102![]()
Laser Marking and assembly ALPROBOTIC MLA100, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
+ 1x Stäubli robot arm / The cell was used for laser marking of medical parts.Sale has ended
LOT 2120143![]()

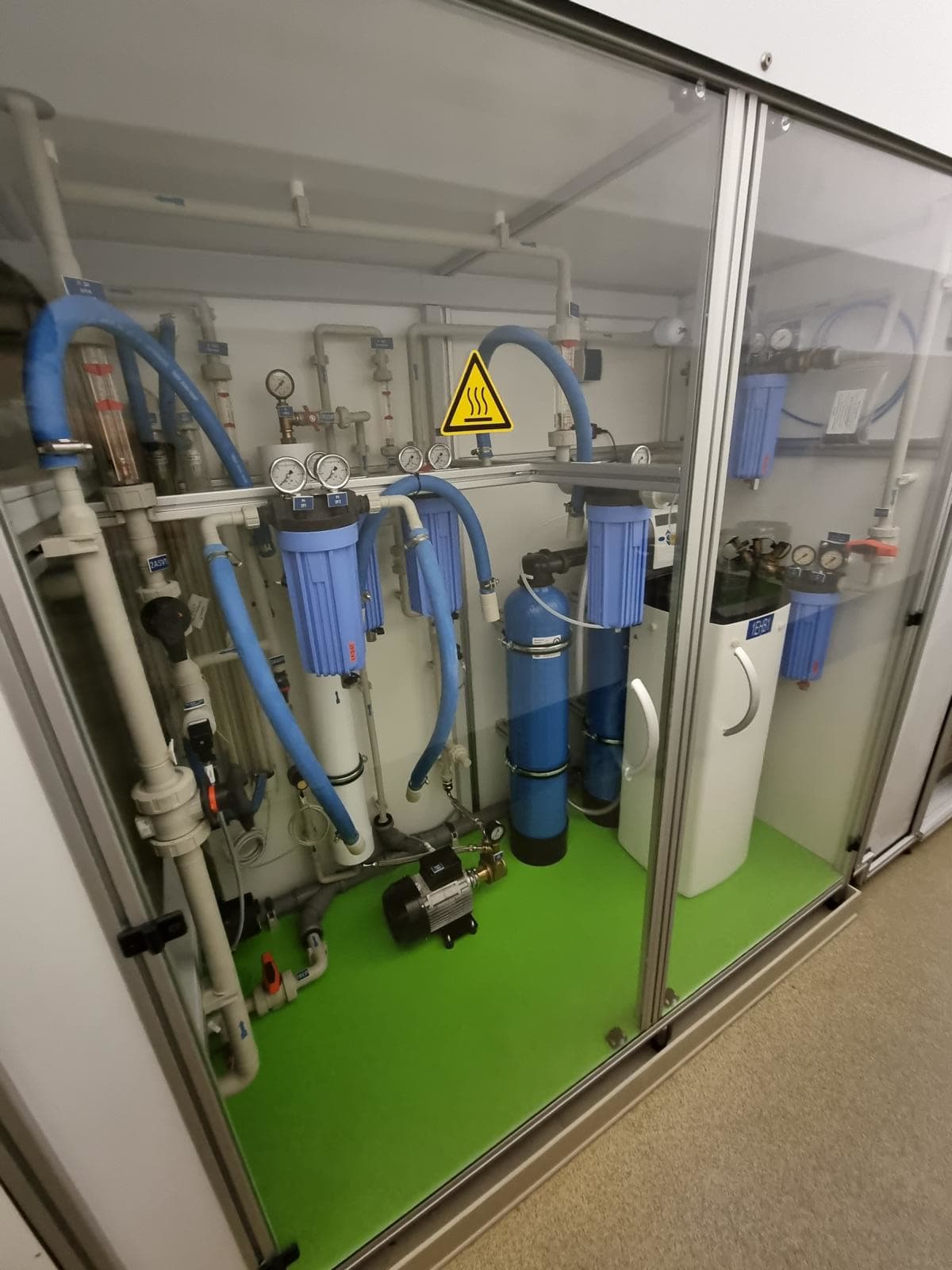

Pure Water Circulation System ENVIROFALK RKA 1200, Year: 2021*
Binding Dismantling & Loading Fee:
on demand
max 1200L/h, < 0,1 μS/cm, softening equipment MC-N 100, reverse osmosis 500l/hSale has ended

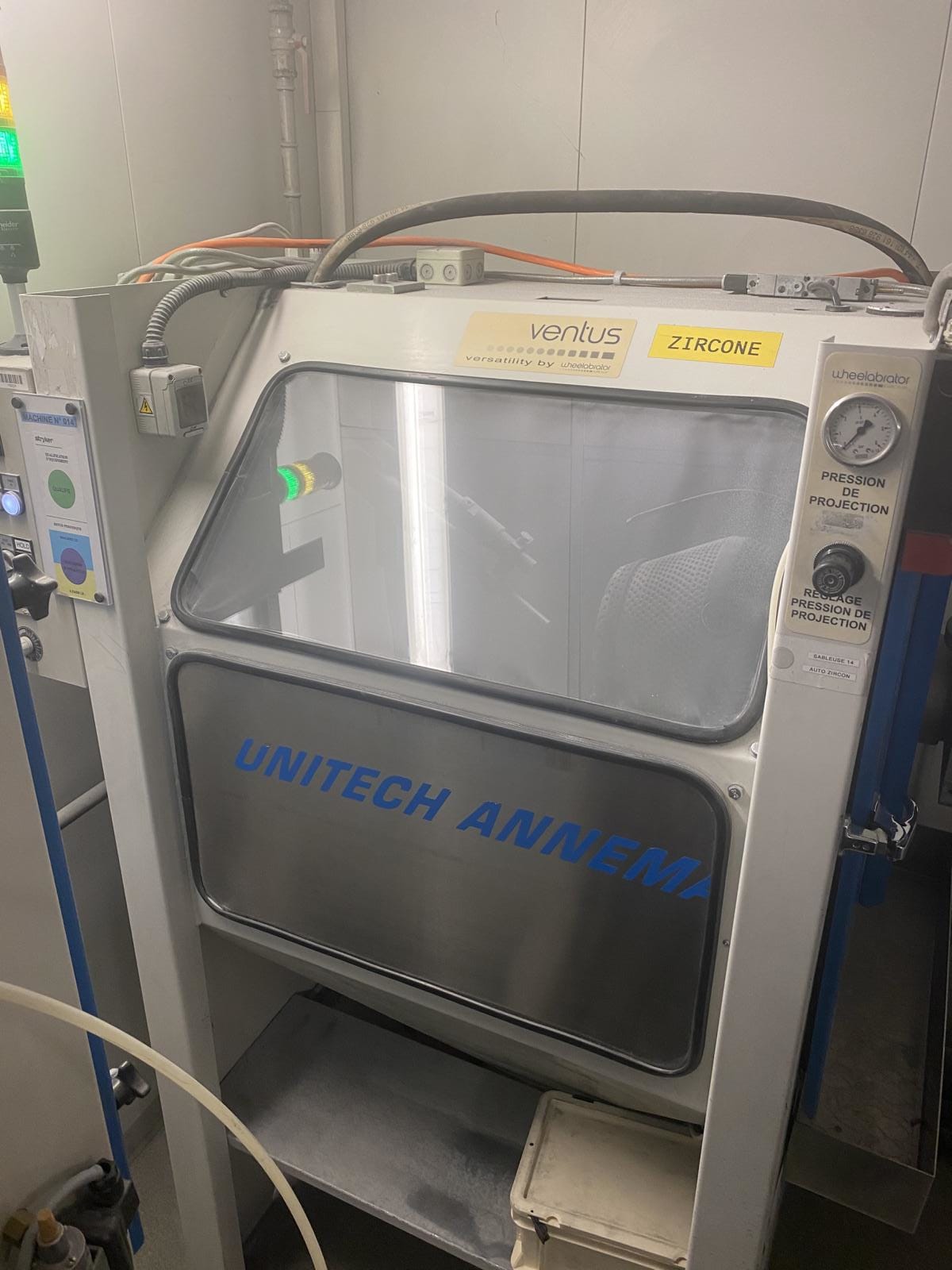

LOT 2120014![]()
Sandblasting Machine, Year: 2005
Binding Dismantling & Loading Fee:
375 CHF (Swiss Franc)
Technical data
working room: length: 896 mm
working room: width: 796 mm
working room: height: 800 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 1.12 kW
mains voltage: 380 V
mains frequency: 50 HzSale has ended

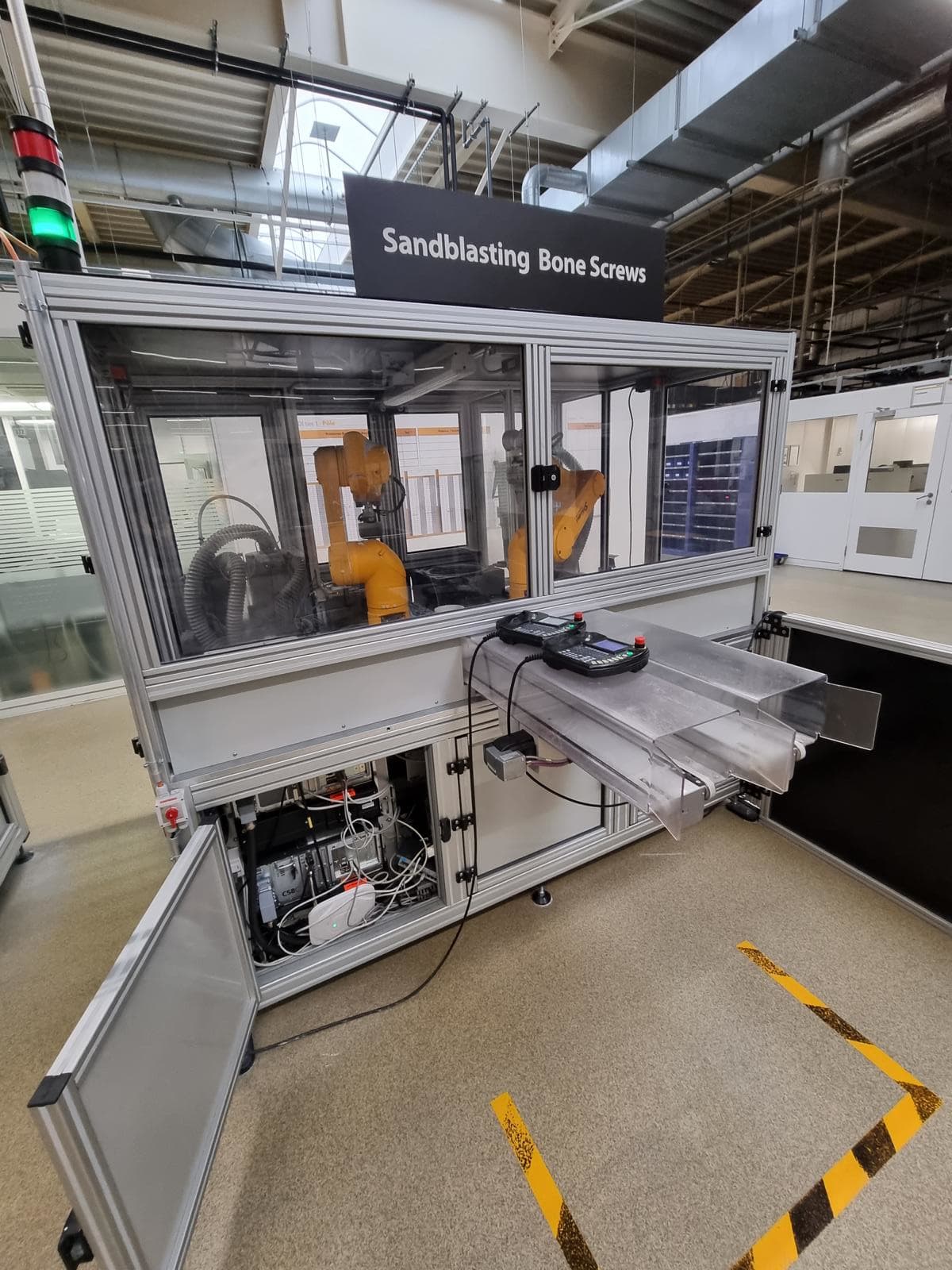

LOT 2120097![]()
Sandblasting Machine ALPROBOTIC MB200, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)Sale has ended

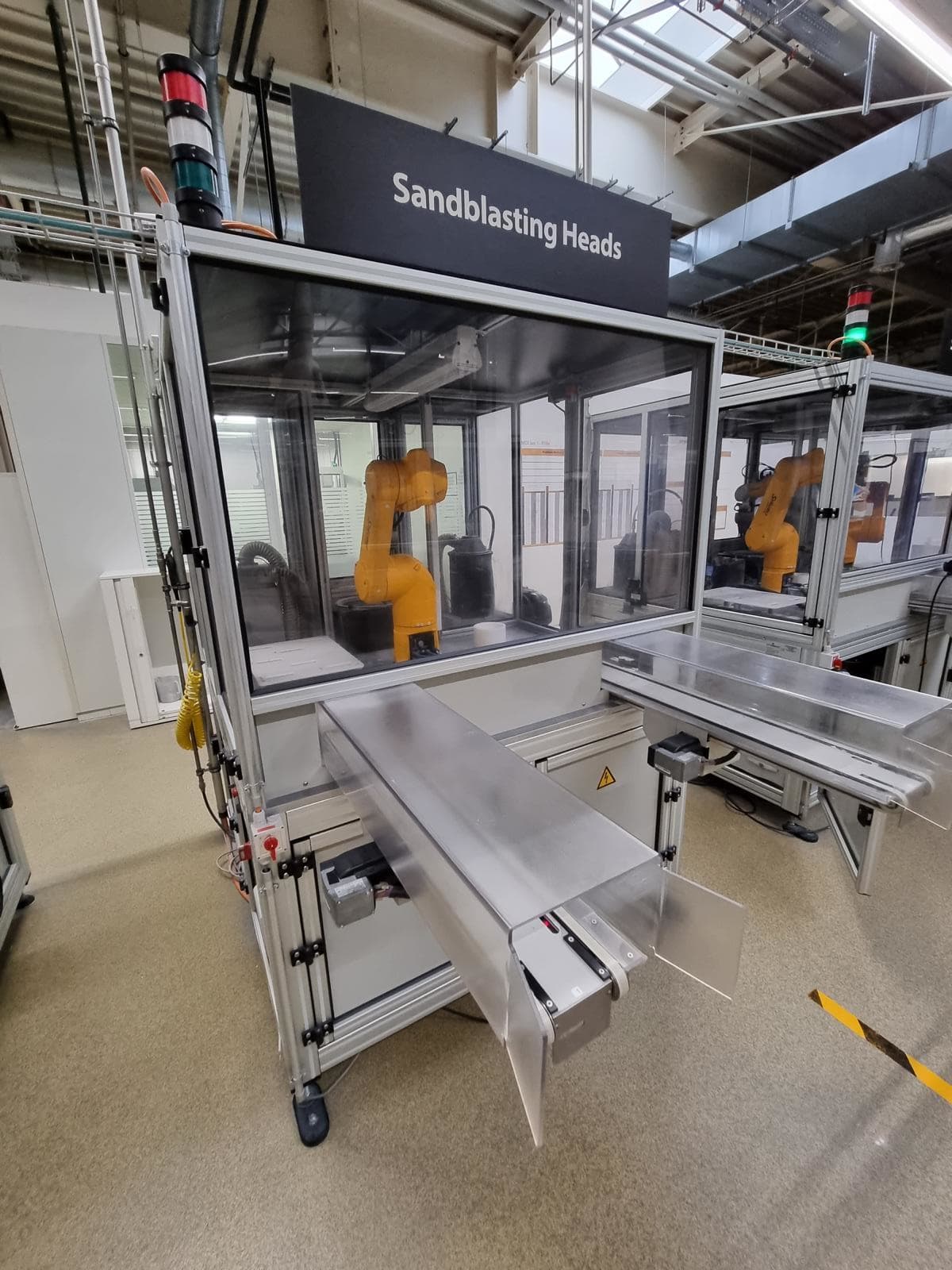

LOT 2120096![]()
Sandblasting Machine ALPROBOTIC MB100, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
+ Stäubli robot arm The cell was used for sandblasting medical parts.Sale has ended

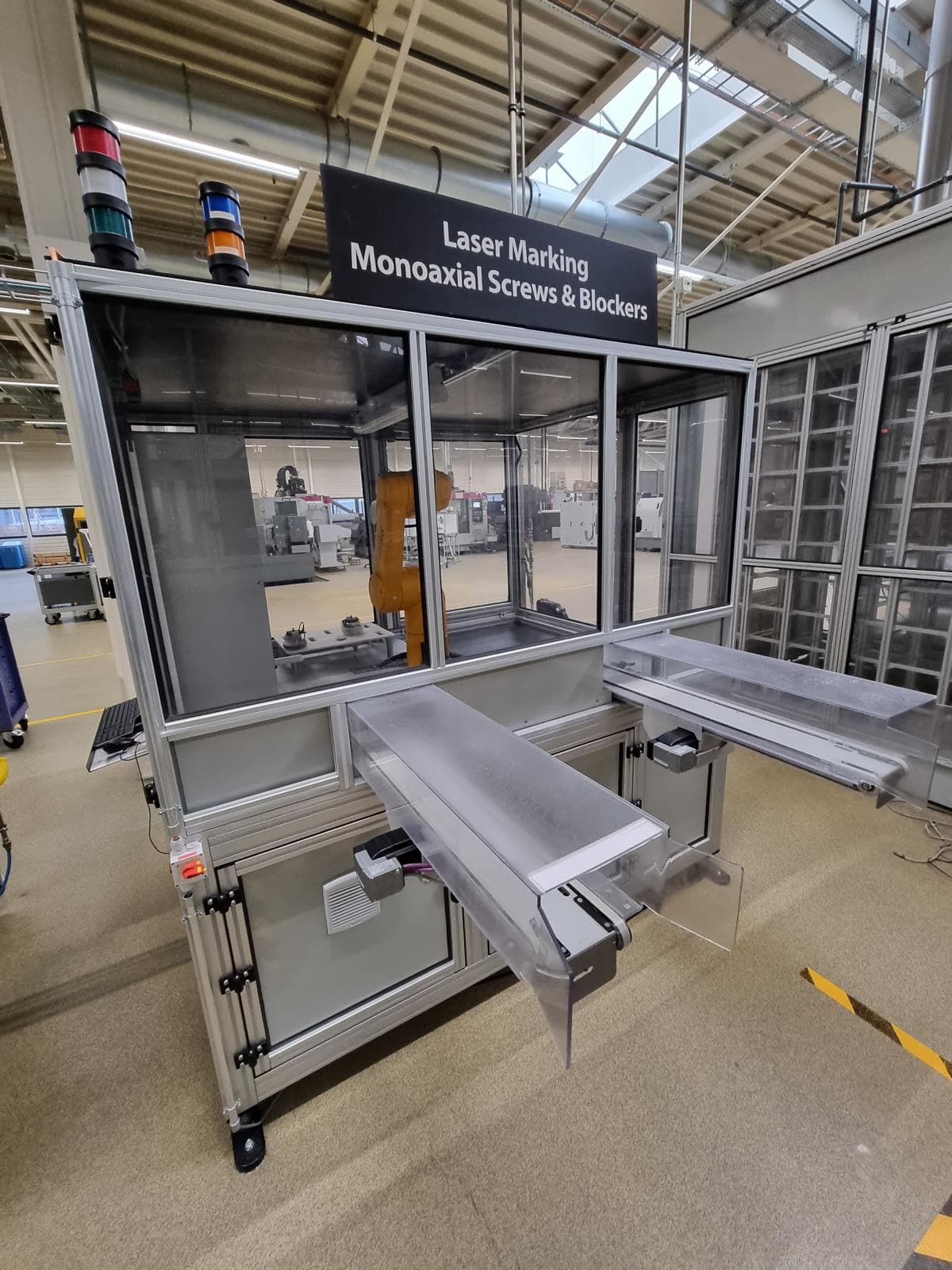

LOT 2120101![]()
Laser Marking ALPROBOTIC ML100, Year: 2012
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
LOT 2120101
+ 1x Stäubli robot arm
The cell was used for laser marking of medical parts.
The complete system is currently not functional and needs to be repaired.Sale has ended

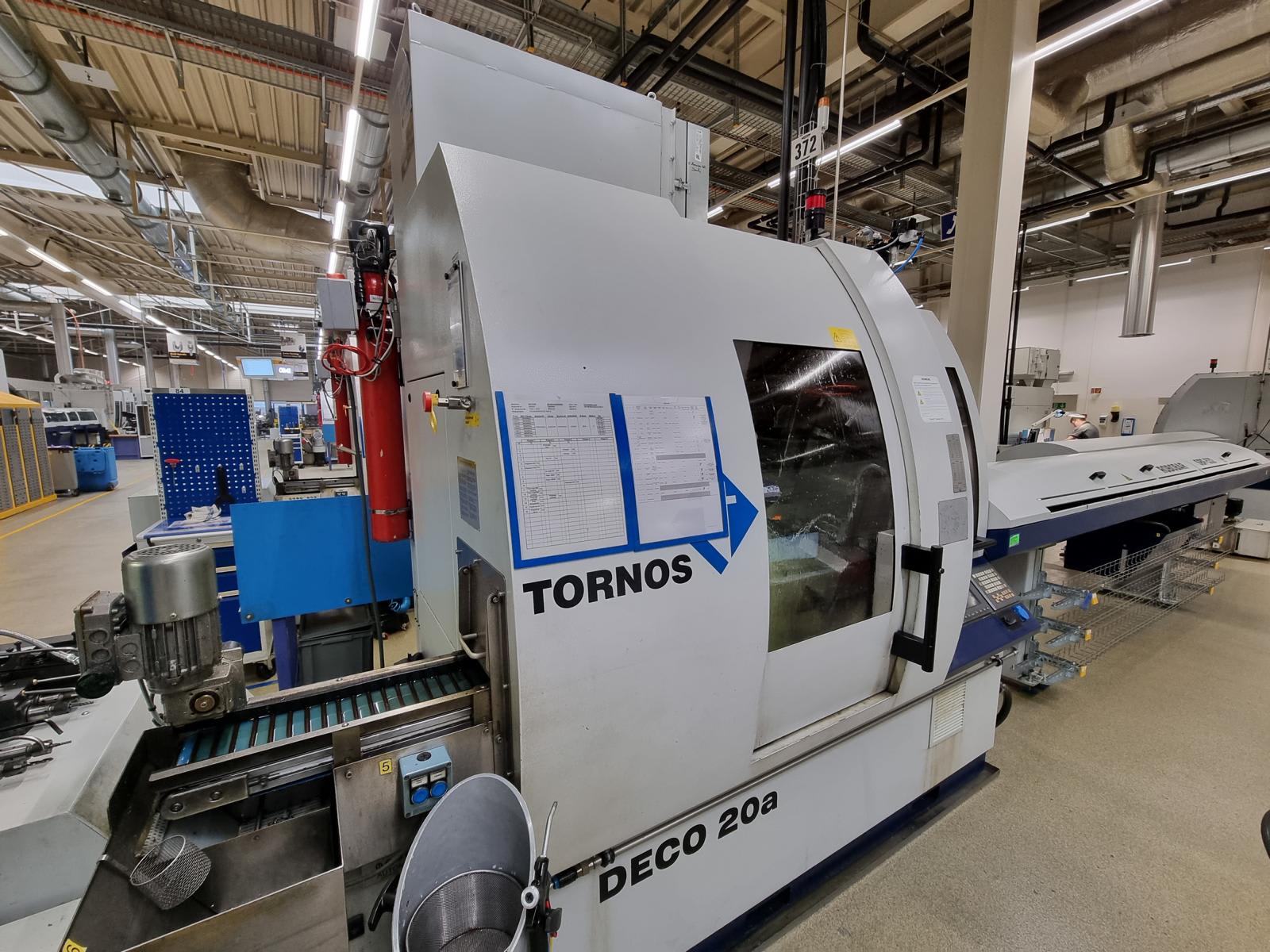

LOT 2120085![]()
CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2010
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
number of c-axes: 2
Machine with 10 axis and 6 spindles!
Movable headstock (Z1)
- Speed S1: 10.000 rpm
- C-axis spindle: yes
- Indexing spindle: 0.1 degrees
- spindle passage: 20 mm
- max. workpiece length: 220 mm
Slide 1 (X1-Y1)
- tool holder: 2x5 pcs.
- Speed S6: 8.000 rpm
Slide 2 (X2-Y2)
- Tool holder: 2x5 pcs.
- Speed S2: 6.000 rpm
- 4 driven tools
Front attachment (X3-Z3)
- Tool holder: 4 pcs.
- Speed S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Speed S4: 10.000 rpm
- C-axis spindle: yes
- Indexing spindle: 0.1 degrees
- spindle passage: 20 mm
- max. workpiece length 220 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- Bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended

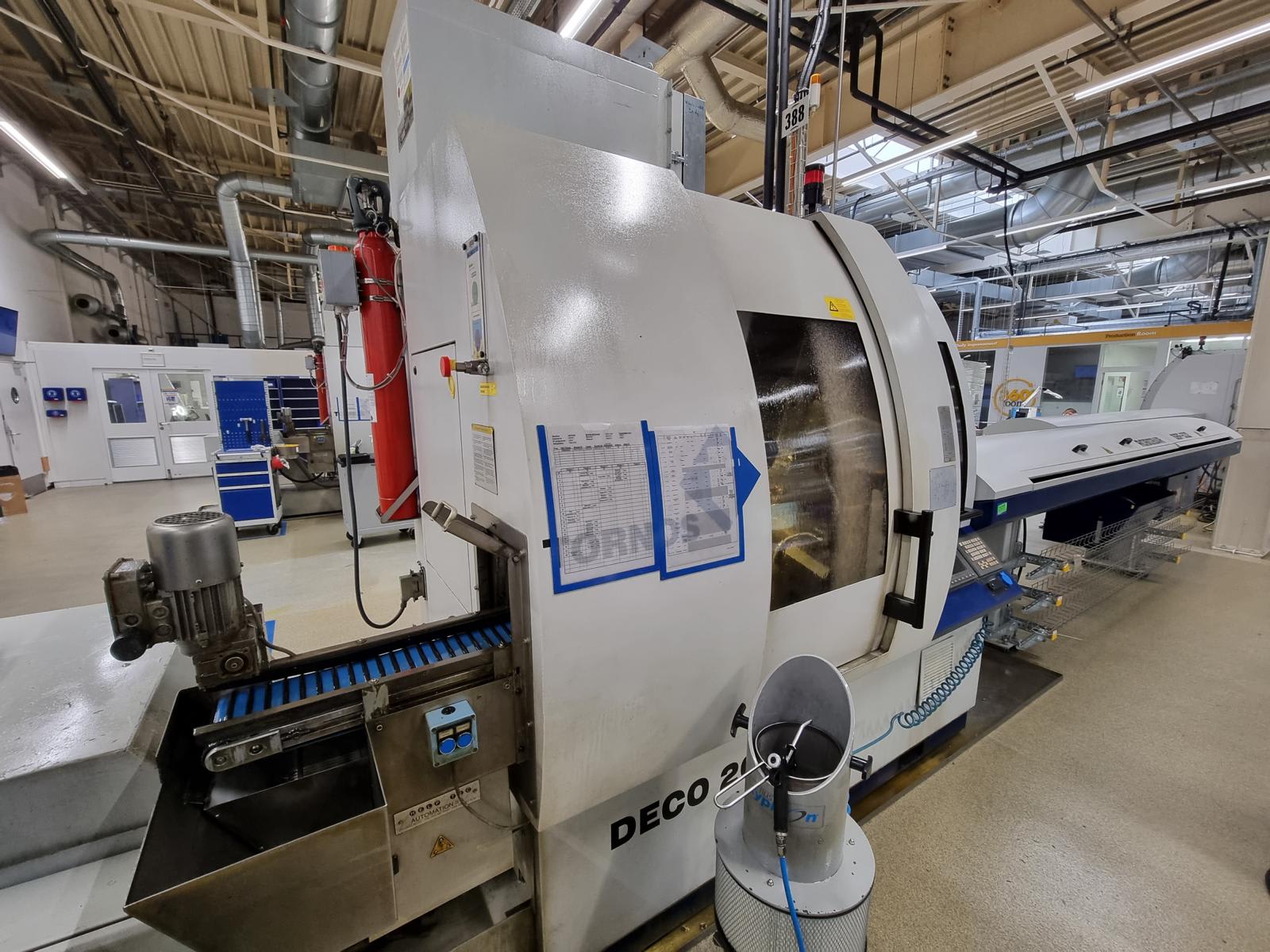

LOT 2120007![]()
CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2005
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended

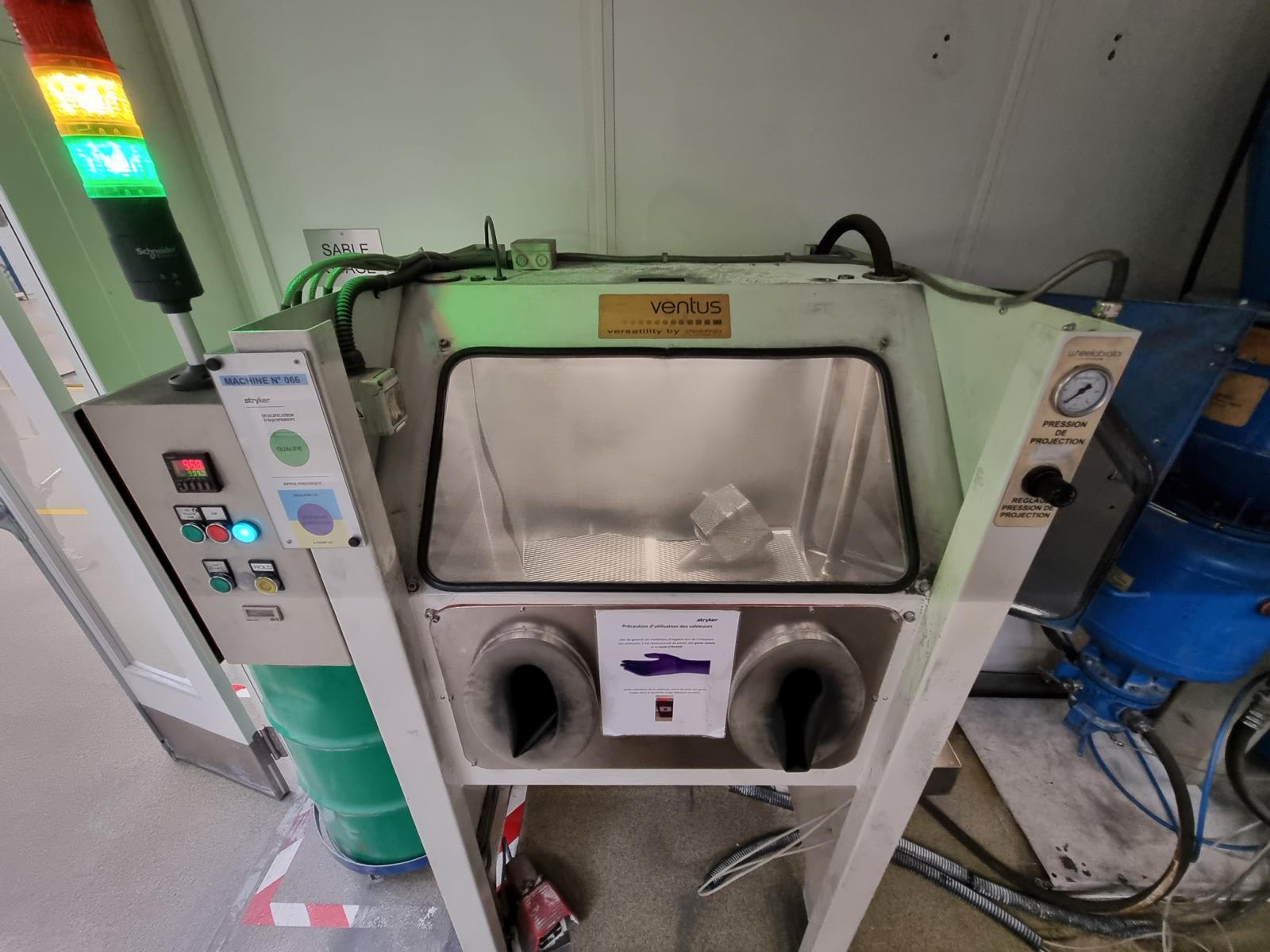

LOT 2120066![]()
Sandblasting Machine, Year: 2005
Binding Dismantling & Loading Fee:
450 CHF (Swiss Franc)
Technical data
working room: length: 896 mm
working room: width: 796 mm
working room: height: 800 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 1.12 kW
mains voltage: 400 V
mains frequency: 50 HzSale has ended
LOT 2120124![]()

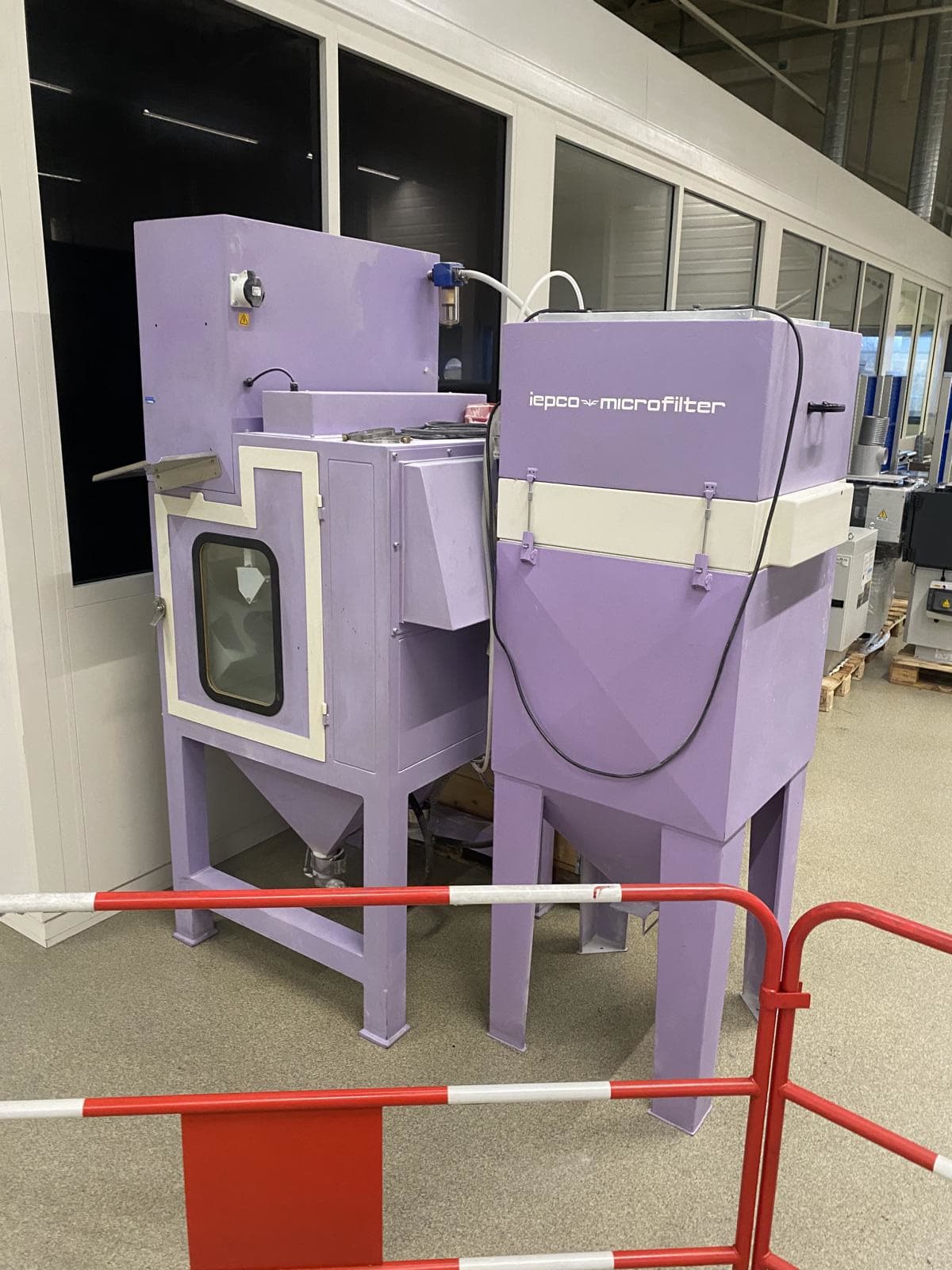

Sandblasting Machine IEPCO I 15/20
Binding Dismantling & Loading Fee:
75 CHF (Swiss Franc)
Technical data
working room: length: 375 mm
working room: width: 600 mm
working room: height: 760 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 1.5 kW
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 850 mm
space requirements -front/back-: 1020 mm
total height: 2000 mm
total weight approx.: 420 kg
- Peenmatic 850 GSD-2
- Machine already dismantledSale has ended
LOT 2120034![]()

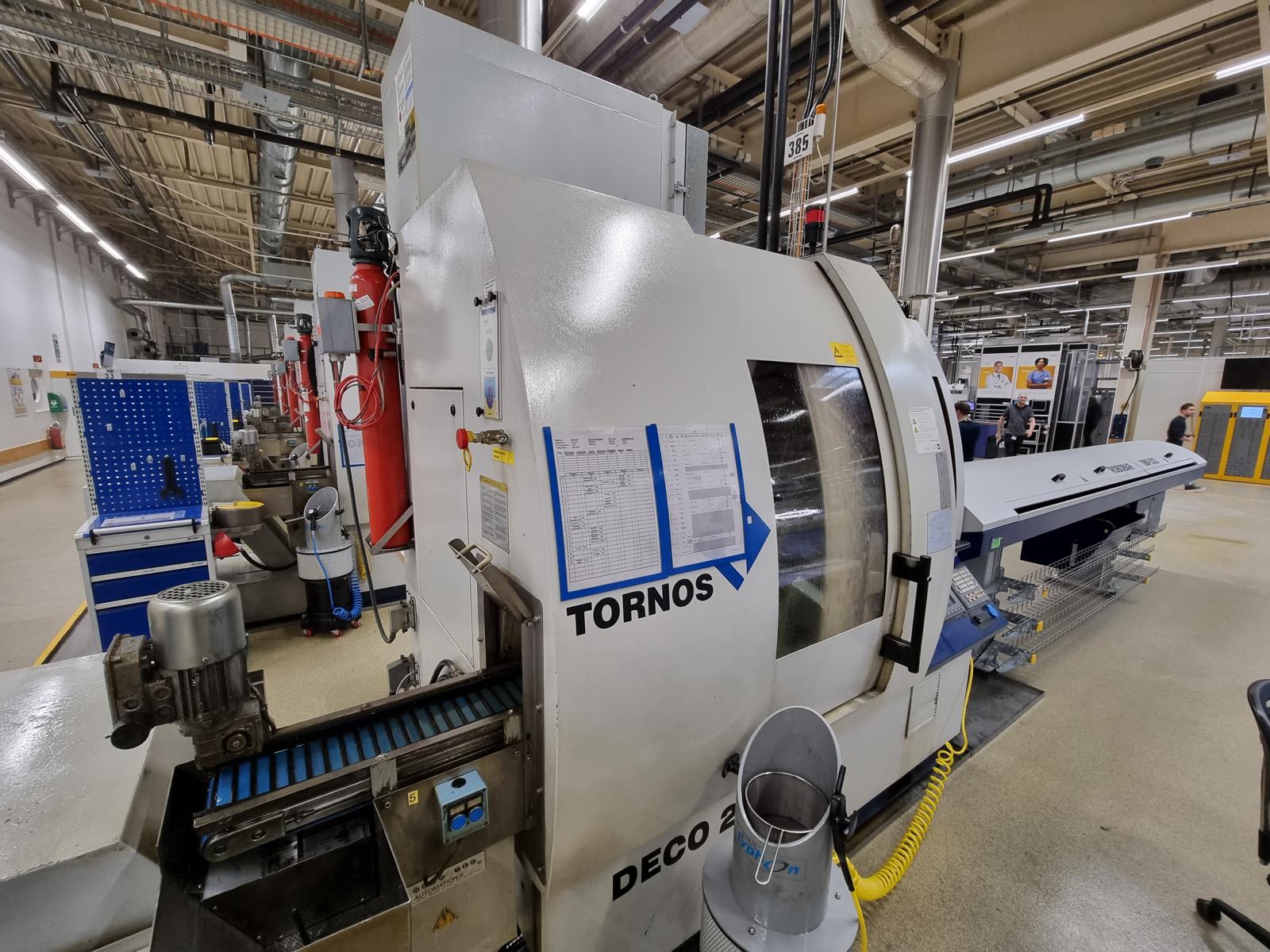

CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2006
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended
LOT 2120107![]()

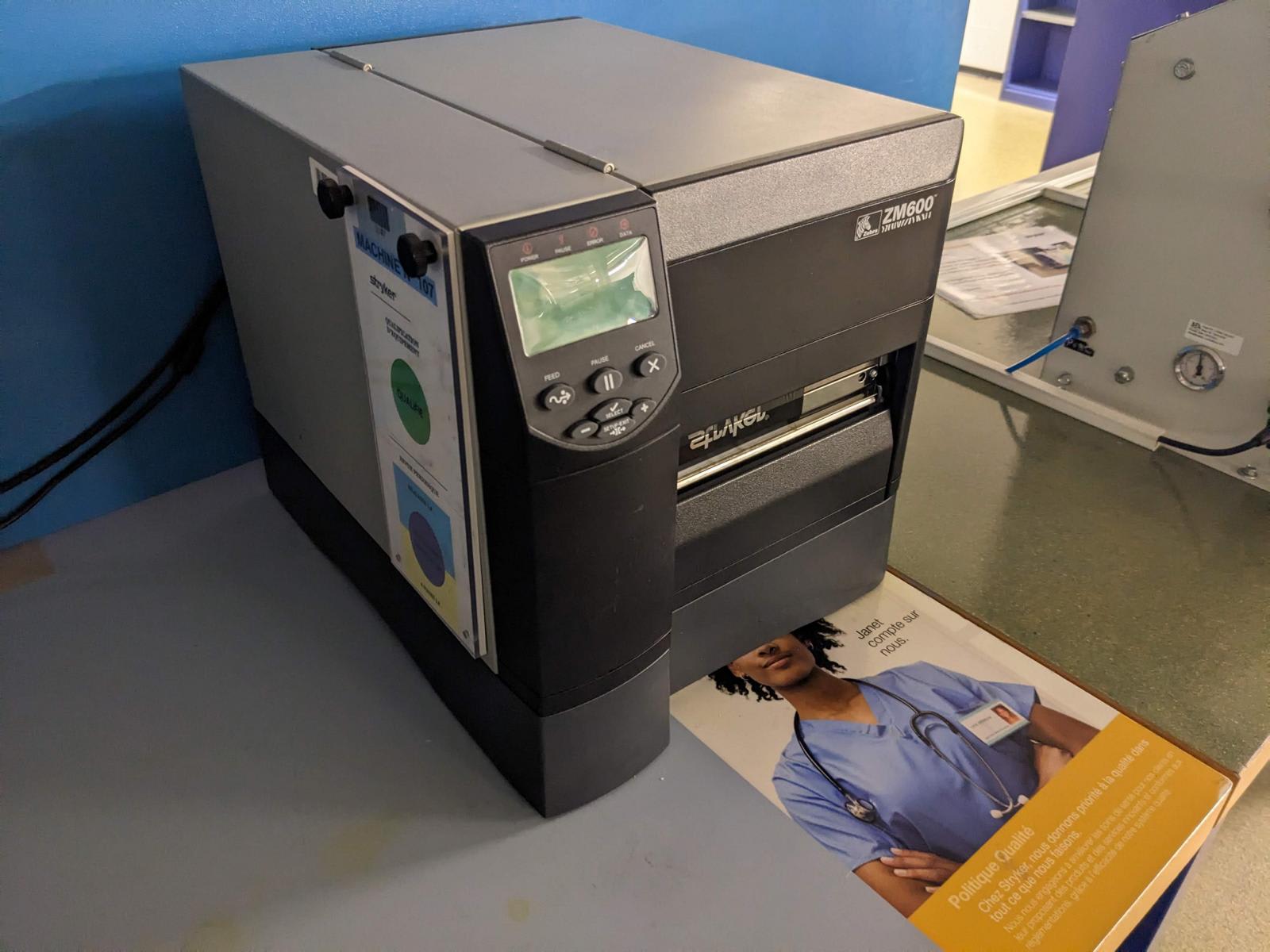

Label Printer ZEBRA ZM600
Binding Dismantling & Loading Fee:
50 CHF (Swiss Franc)Sale has ended
LOT 2120126![]()

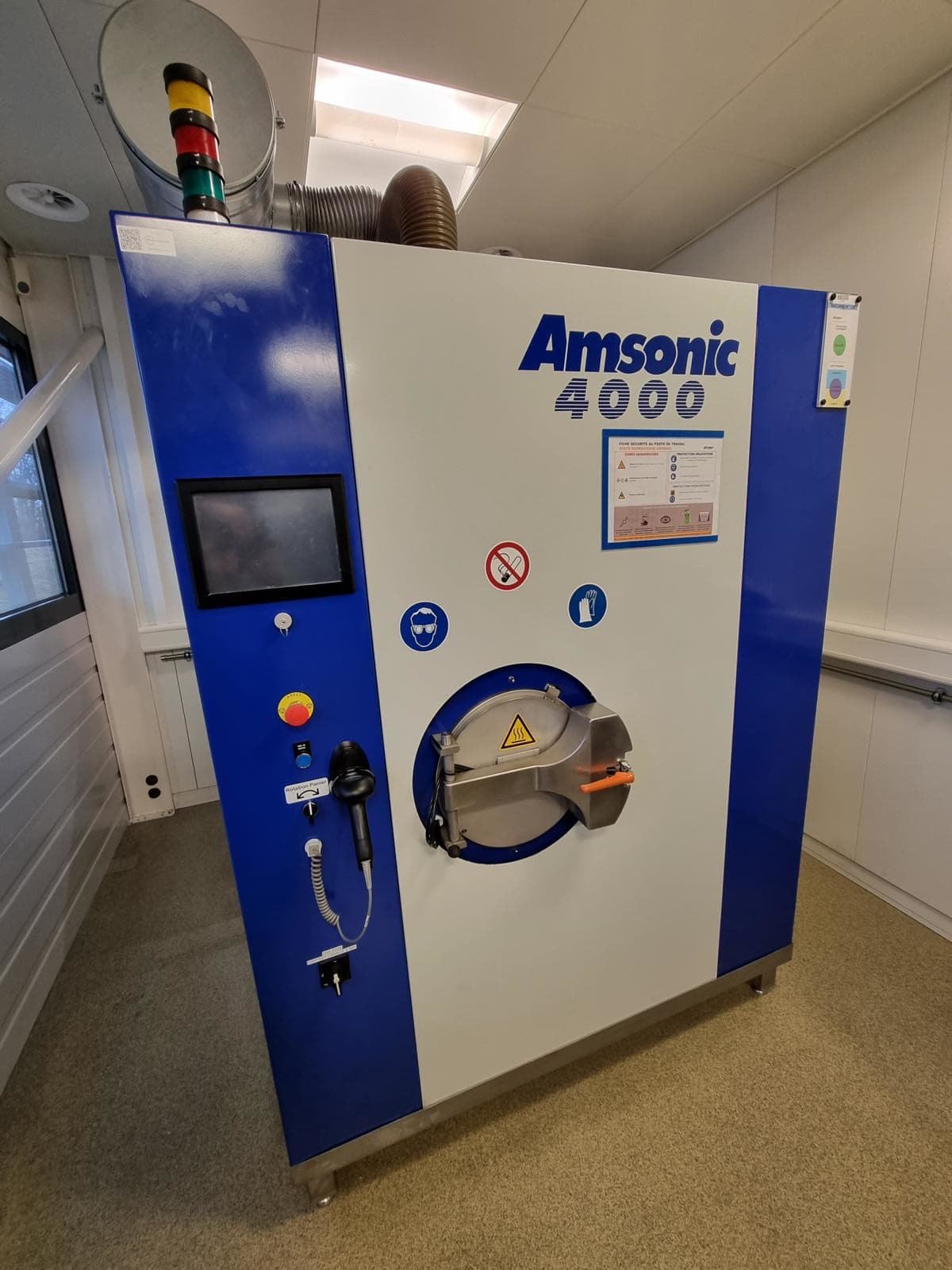

Degreasing Machine AMSONIC A-4000, Year: 2015
Binding Dismantling & Loading Fee:
1450 CHF (Swiss Franc)
DIMENSIONS / WEIGHTS
space requirements -left/right-: 1500 mm
space requirements -front/back-: 1500 mm
total height: 2400 mm
Solvent parts cleaning system with ZESTRON VD
(Class A3 hydrocarbons)
Basket dimensions
- approx. 300x200x150 mm
- approx. 420x220x170 mm
max. weight per batch: 25 kg
Hourly output: 3-6 batches/hourSale has ended
LOT 2120088![]()

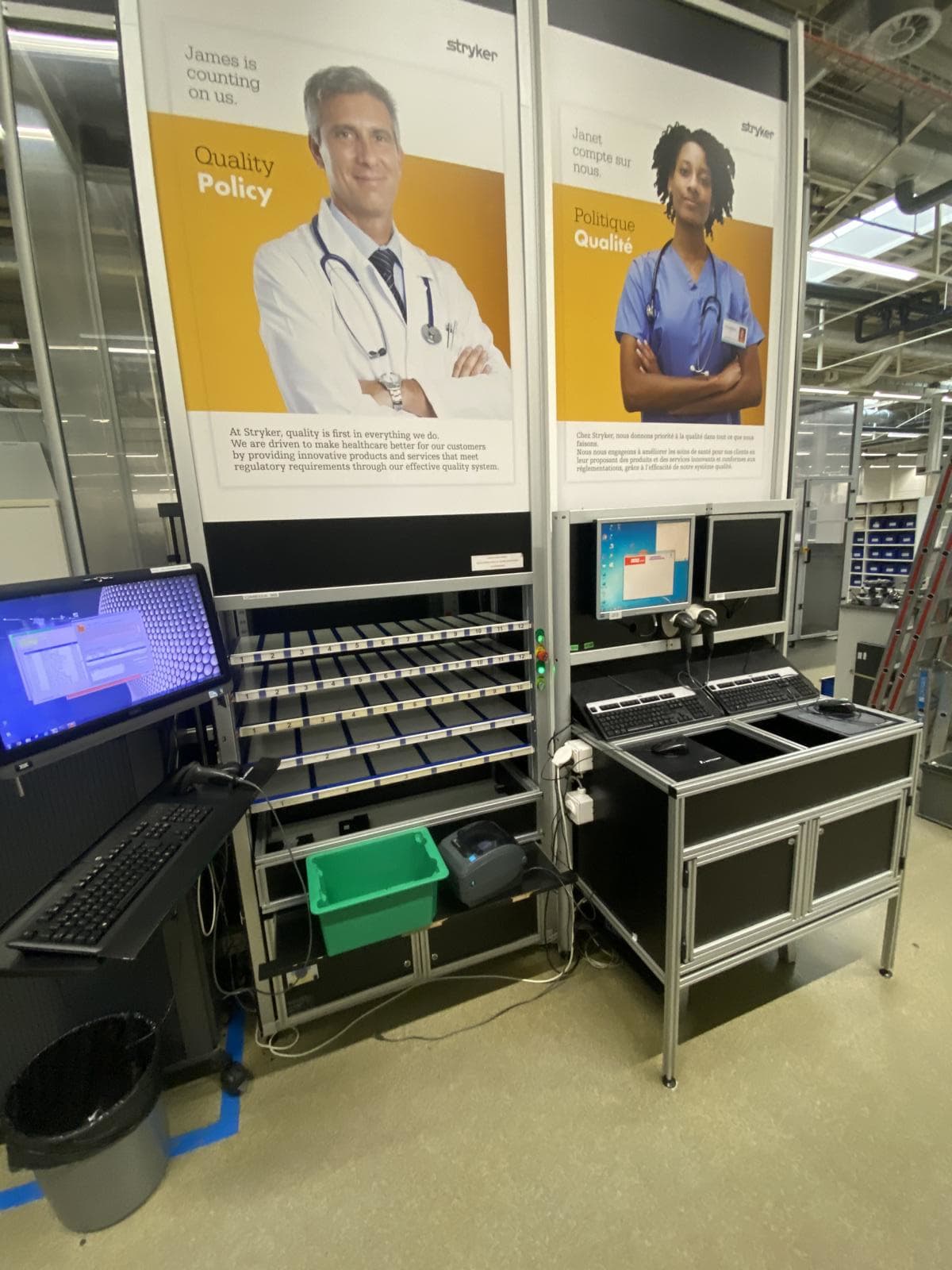

Stacker MÉKAPHARM Apoteka, Year: 2010
Binding Dismantling & Loading Fee:
450 CHF (Swiss Franc)Sale has ended
LOT 2120015![]()

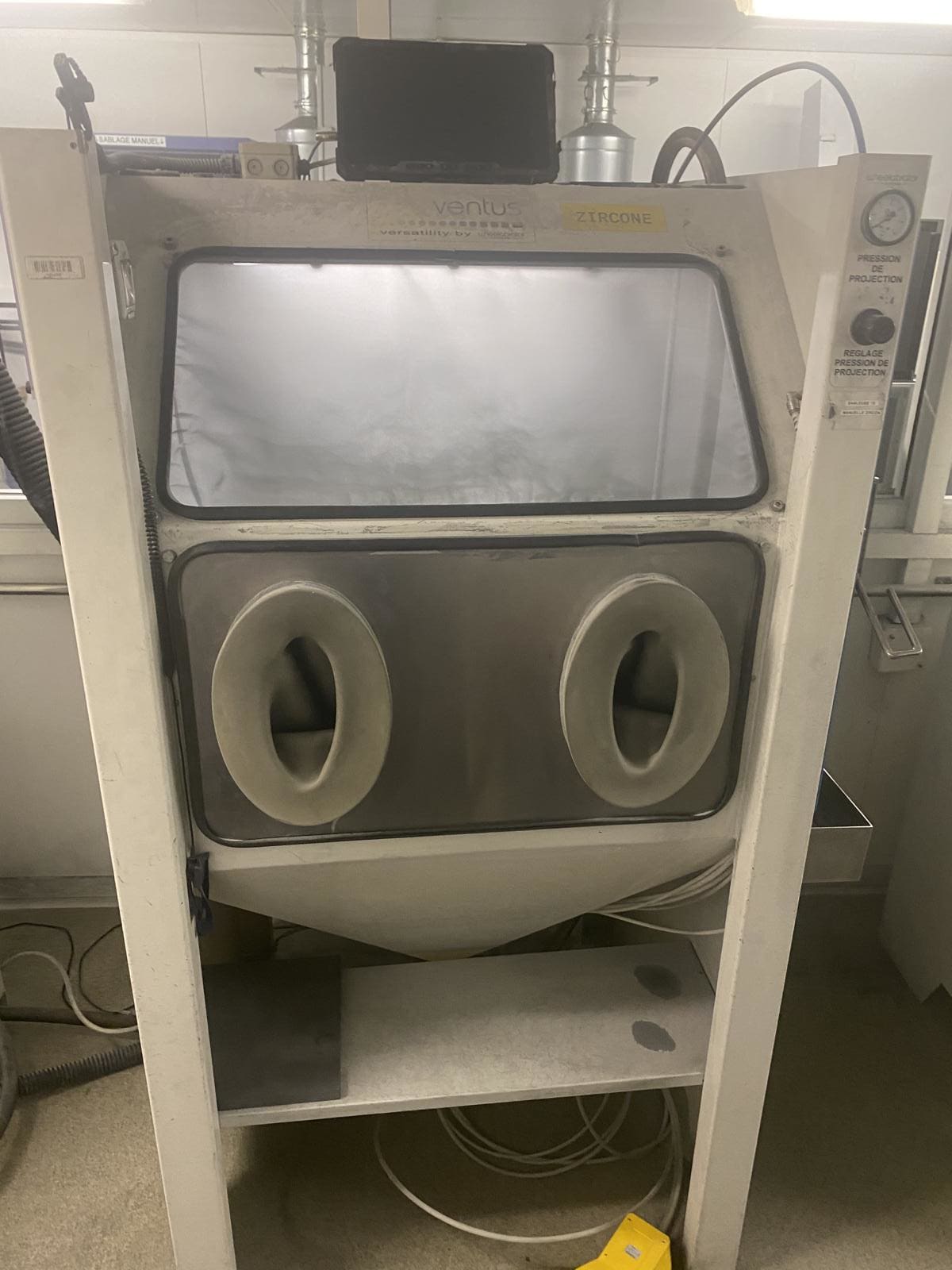

Sandblasting Machine, Year: 2005
Binding Dismantling & Loading Fee:
375 CHF (Swiss Franc)
Technical data
working room: length: 896 mm
working room: width: 796 mm
working room: height: 800 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 0.75 kW
mains voltage: 380 V
mains frequency: 50 HzSale has ended
LOT 2120052![]()

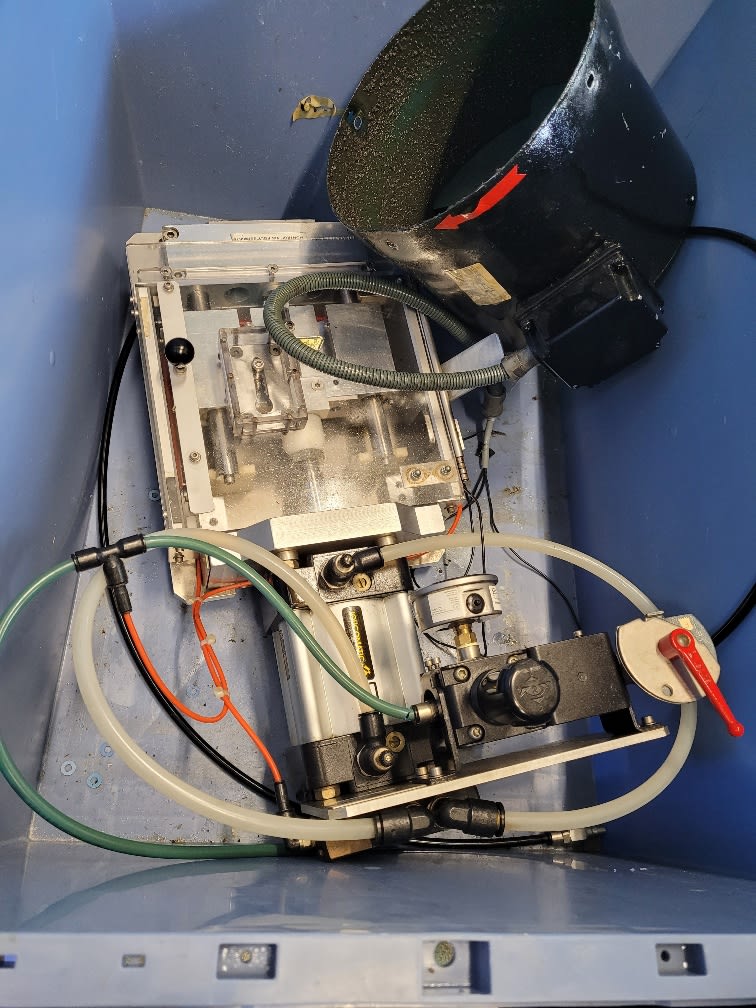

Press, Year: 2007*
Binding Dismantling & Loading Fee:
150 CHF (Swiss Franc)Sale has ended
LOT 2120144![]()

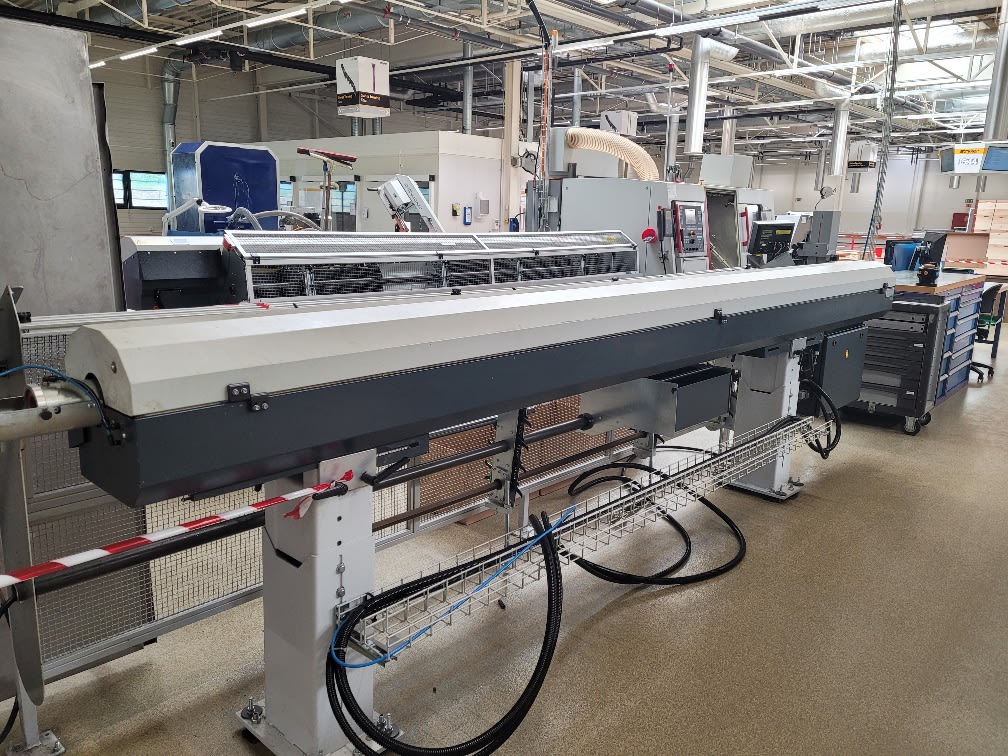

Bar feeder LNS HYDROBAR SPRINT 555, Year: 2006
Binding Dismantling & Loading Fee:
on demand
Bar diameter 5-55mm, with Loading system Side chain lift. Bar length 3200mmSale has ended
LOT 2120004![]()

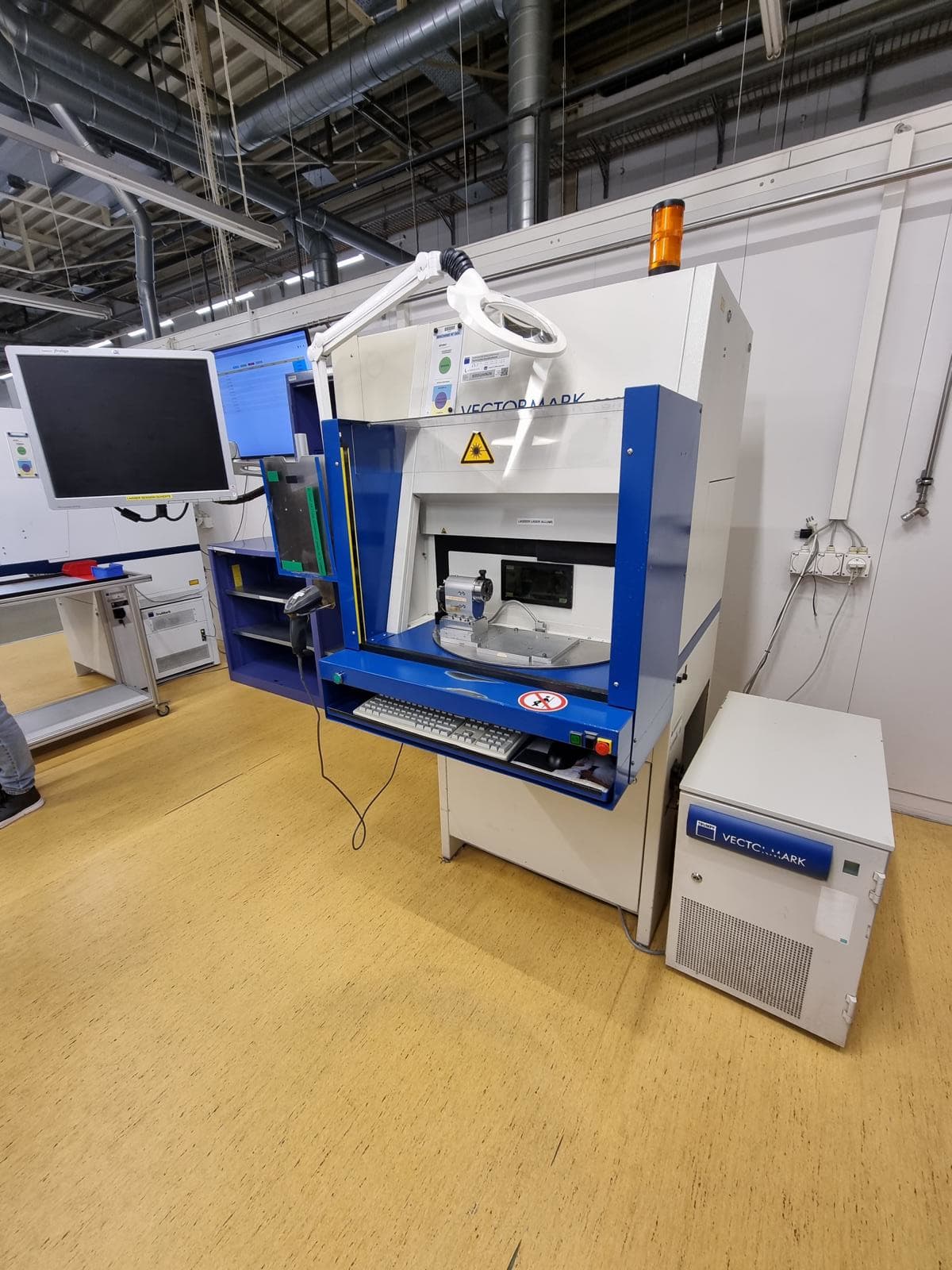

Laser Marking TRUMPF VWS 800 RS, Year: 2005
Binding Dismantling & Loading Fee:
650 CHF (Swiss Franc)
CONTROLS
PC controller
DIMENSIONS / WEIGHTS
laser capacity: 2000 WSale has ended
LOT 2120084![]()

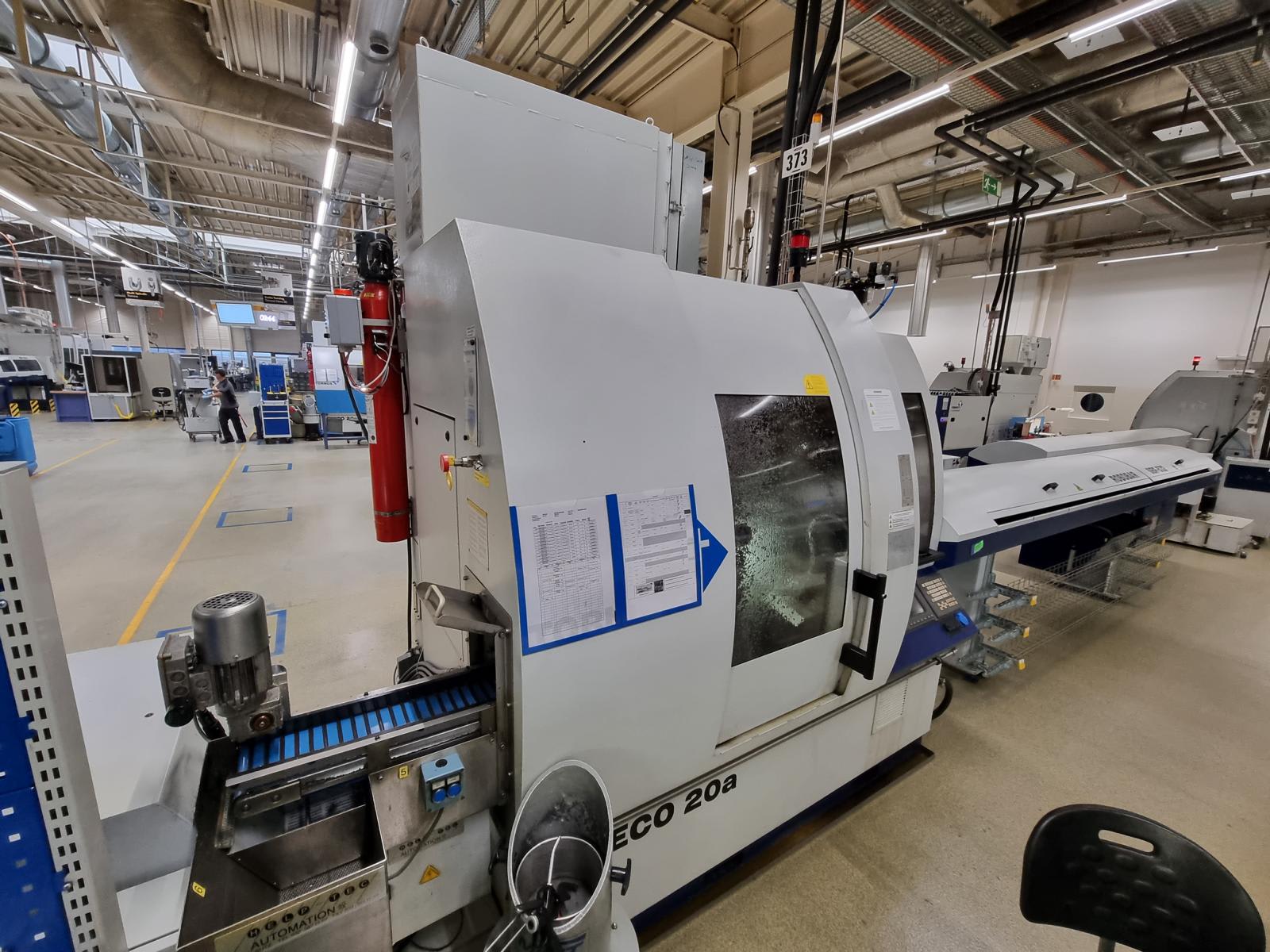

CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2010
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
number of c-axes: 2
Machine with 10 axis and 10 spindles!
Movable headstock (Z1)
- Speed S1: 10.000 rpm
- C-axis spindle: yes
- Indexing spindle: 0.1 degrees
- spindle passage: 20 mm
- max. workpiece length: 220 mm
Slide 1 (X1-Y1)
- tool holder: 2x5 pcs.
- Speed S6: 8.000 rpm
Slide 2 (X2-Y2)
- Tool holder: 2x5 pcs.
- Speed S2: 6.000 rpm
- 4 driven tools
Front attachment (X3-Z3)
- Tool holder: 4 pcs.
- Speed S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Speed S4: 10.000 rpm
- C-axis spindle: yes
- Indexing spindle: 0.1 degrees
- spindle passage: 20 mm
- max. workpiece length 220 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- Bar diameter: 5-32 mm
- mx. bar length: 4200 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended
LOT 2120081![]()

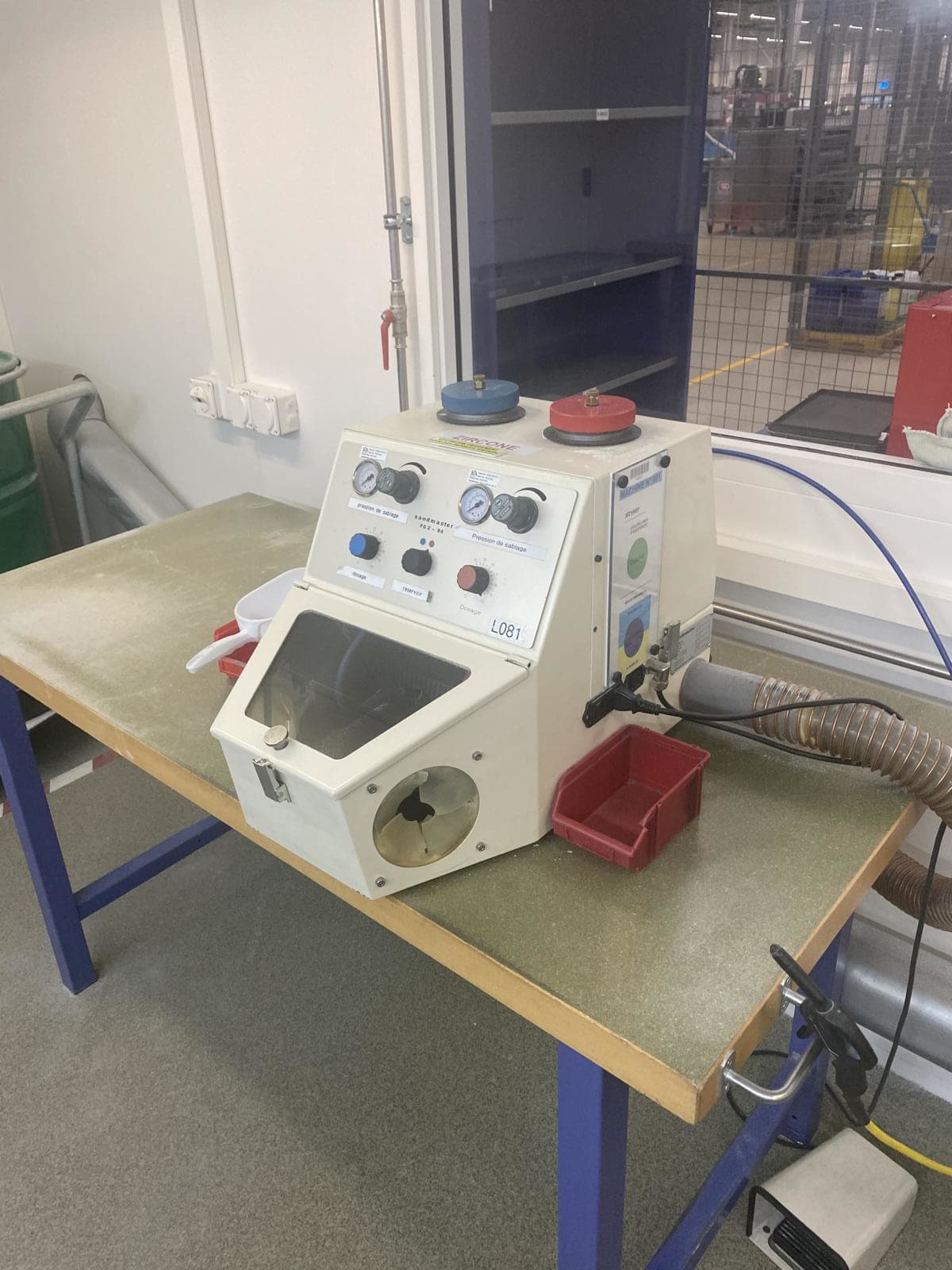

Sandblasting Machine SANDMASTER FG2, Year: 2010*
Binding Dismantling & Loading Fee:
450 CHF (Swiss Franc)
ELECTRICAL SPECIFICATIONS
total power consumption: 0.2 kW
mains voltage: 230 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 570 mm
space requirements -front/back-: 350 mm
total height: 430 mm
Tool size up to approx. 80x80x50 mm
Industry: Medical Technology, Restoration, PalaeontologySale has ended
LOT 2120100![]()

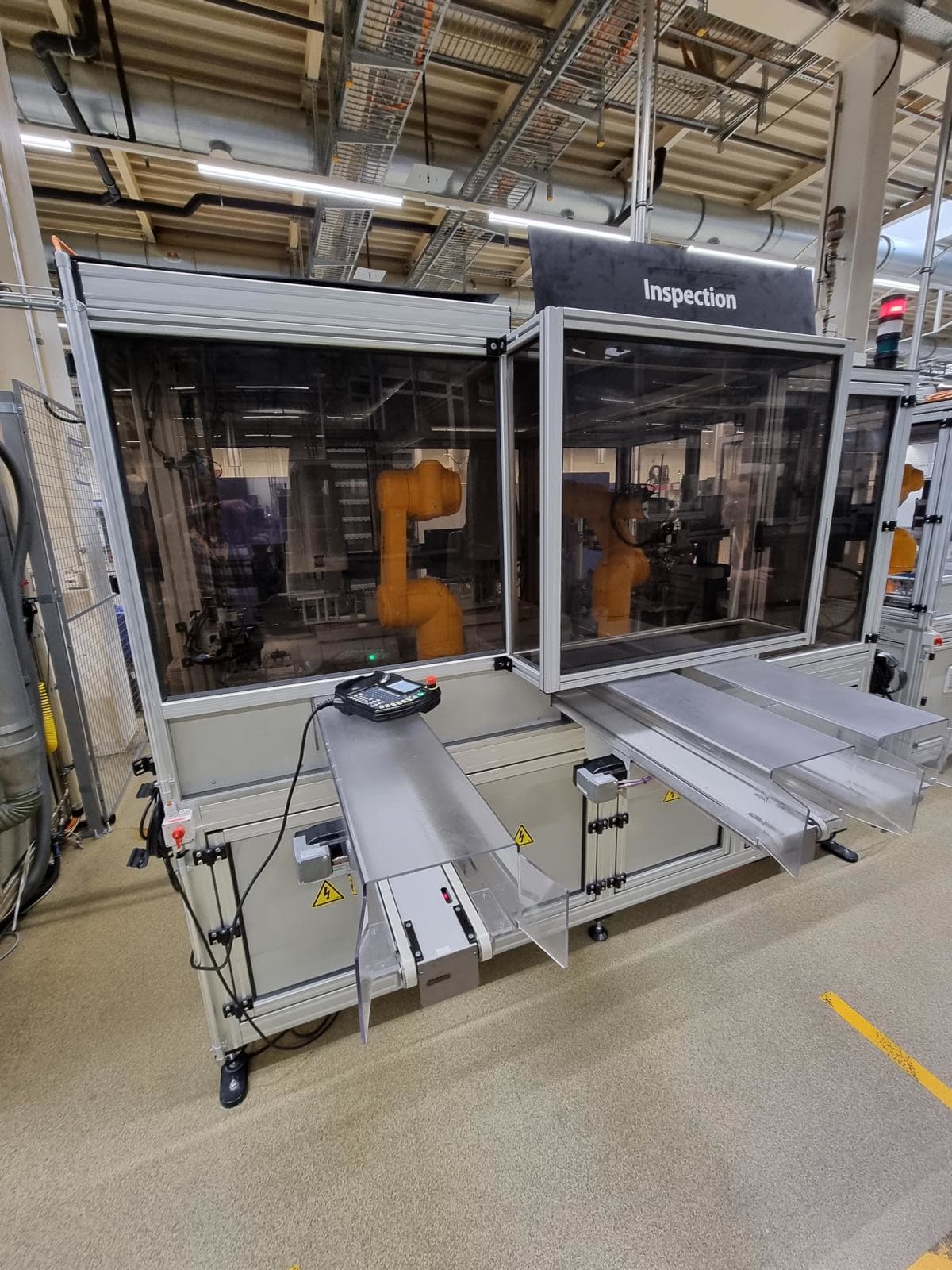

Inspection Machine ALPROBOTIC CAD200, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
+ 2x Stäubli robot arm / The cell was used to inspect medical parts.Sale has ended
LOT 2120147![]()
Industrial shelving units w/o contents
Binding Dismantling & Loading Fee:
on demand
1x shelving with 4 long shelves with a payload of 3500 kg each + 5 short shelves with a payload of 4500 kg each (according to the picture)
1x shelving with 6 long shelves with a payload of 3500 kg each + 4 short shelves with a payload of 4500 kg each (according to the picture)Sale has ended
LOT 2120005![]()

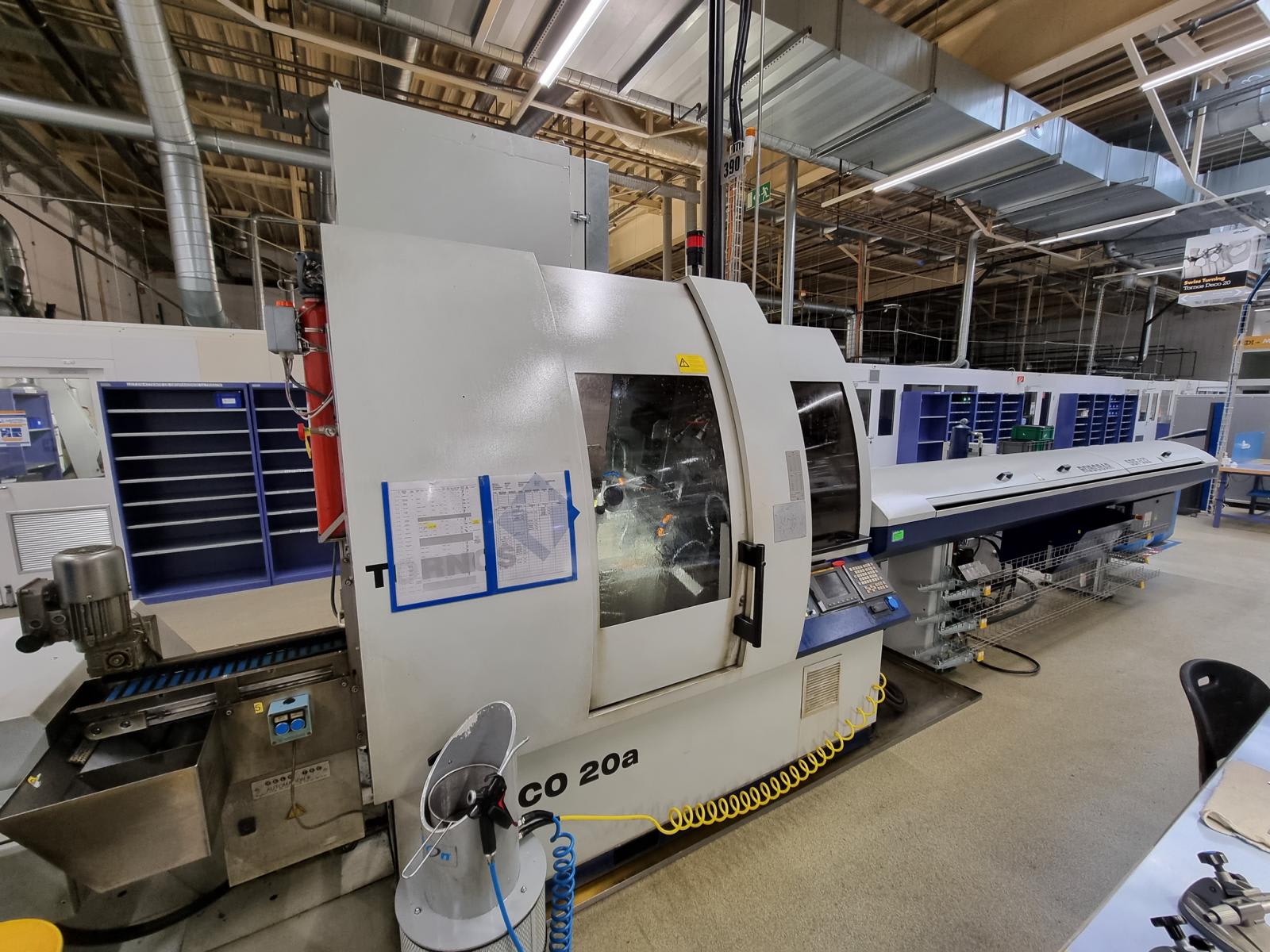

CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2005
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended
LOT 2120035![]()
CNC Swiss Type Lathe TORNOS Deco-20a/26a, Year: 2006
Binding Dismantling & Loading Fee:
2400 CHF (Swiss Franc)
CONTROLS
CNC controls FANUC 16 ITB
BASIC FUNCTIONS
number of spindles: 6
Machine with 10 axes and 6 spindles!
Movable headstock (Z1)
- Spindle S1: 10.000 rpm
- C-axis spindle: yes
- spindle passage: 20 mm
- max. workpiece length: 200 mm
Slide 1 (X1-Y1)
- spindle S6
Slide 2 (X2-Y2)
- spindle S2
Front attachment (X3-Z3)
- Spindle S3: 6.000 rpm
Counter spindle (X4-Z4-Y4)
- Spindle S4: 10.000 rpm
- spindle passage: 20 mm
- max. workpiece length 200 mm
- tool holders counter-operation: 7x
- speed counter-operation S5: 8.000 rpm
incl. bar feeder TORNOS SBF 532
- bar diameter: 5-32 mm
- Loading capacity: approx. 8x32 mm to 55x5 mmSale has ended
LOT 2120094![]()

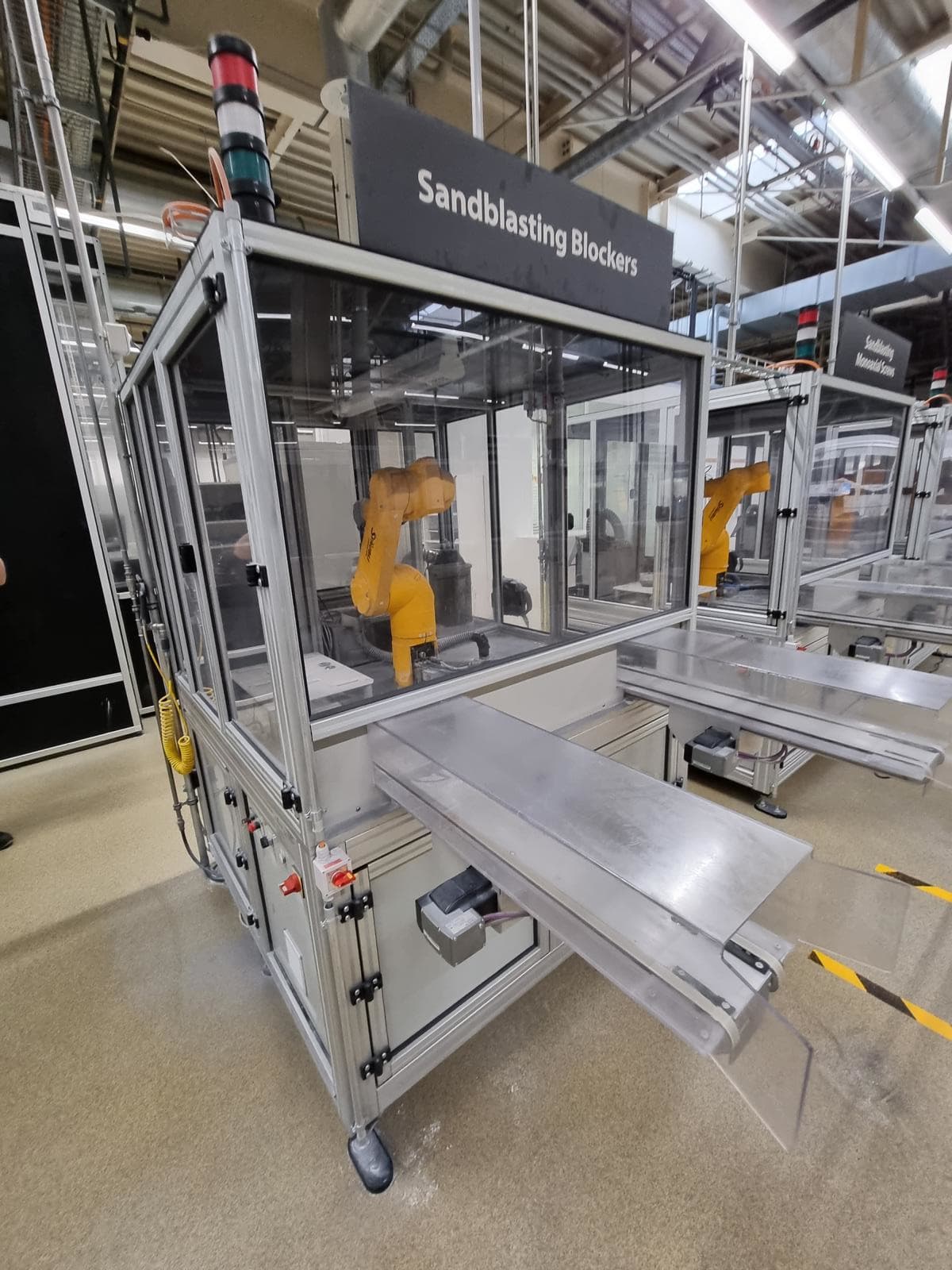

Sandblasting Machine ALPROBOTIC MB100, Year: 2013
Binding Dismantling & Loading Fee:
1150 CHF (Swiss Franc)
+ 1x Stäubli robot arm
The cell was used for sandblasting medical parts.Sale has ended
LOT 2120146![]()

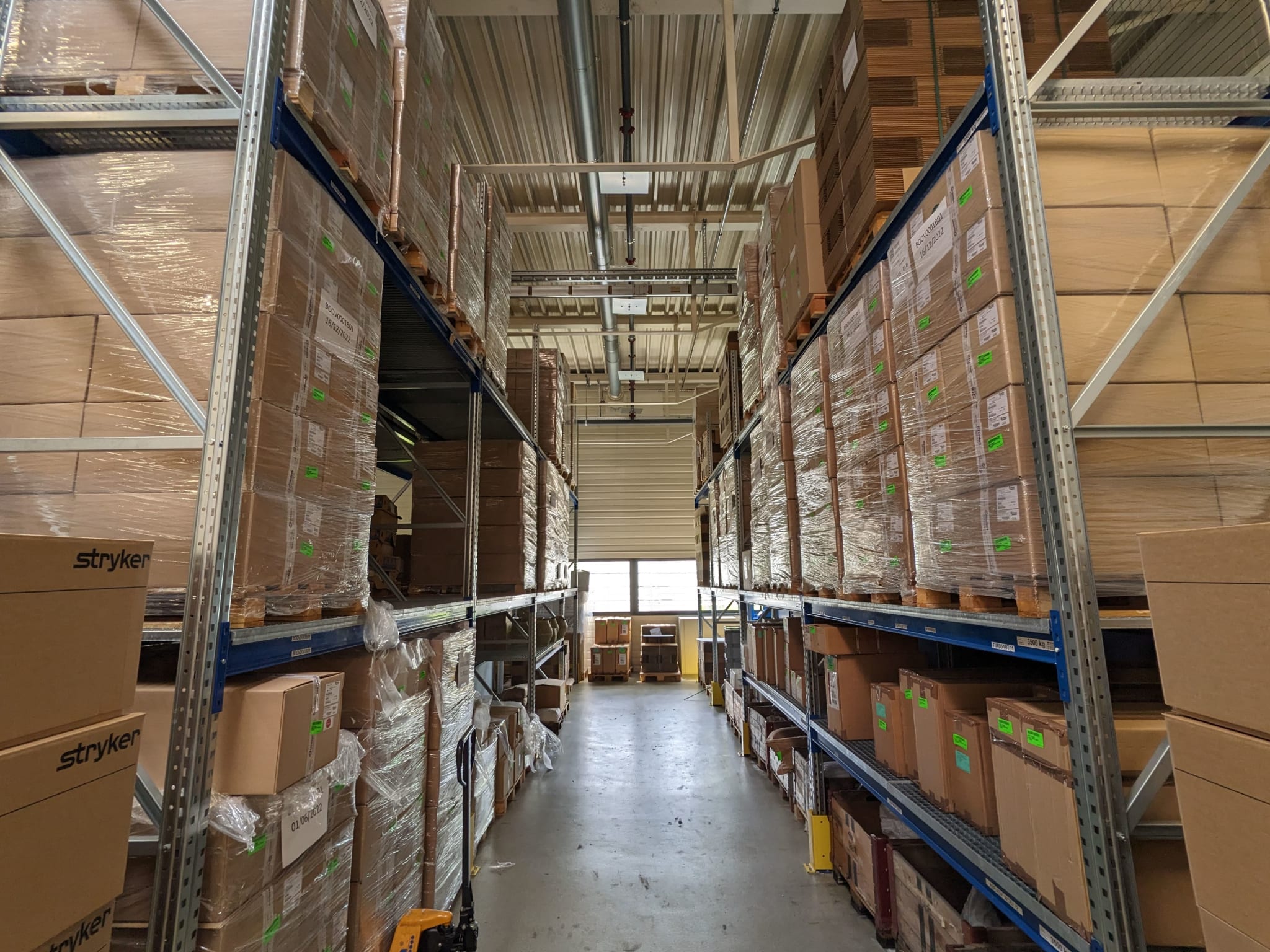

Industrial shelving units w/o contents
Binding Dismantling & Loading Fee:
on demand
1x shelving unit with 6 long shelves, each with a load capacity of 3500 kg (see picture)
1x shelving unit with 4 long shelves, each with a load capacity of 3500 kg + 4 short shelves, each with a load capacity of 4500 kg (see picture)Sale has ended
LOT 2120038![]()
CNC Swiss Type Lathe TRAUB TNC 42/65, Year: 2006
Binding Dismantling & Loading Fee:
2750 CHF (Swiss Franc)
CONTROLS
CNC controls TRAUB TX 8I
BASIC FUNCTIONS
number of spindles: 2
number of turrets: 2
number of c-axes: 2
number of y-axes: 1
WORKING RANGE TURNING
turning diameter (max): 65 mm
bar diameter (max): 65 mm
worpiece length max.: 450 mm
MAIN SPINDLE
spindle revolutions (max): 4000 /min
spindle bore diameter: 65 mm
COUNTER SPINDLE
spindle revolutions (max): 4000 /min
c-axis: yes
Z-axis travel: 520 mm
ELECTRICAL SPECIFICATIONS
total power consumption: 49 kW
mains power supply: 39 kVA
mains voltage: 400 V
mains frequency: 50 Hz
DIMENSIONS / WEIGHTS
space requirements -left/right-: 4354 mm
space requirements -front/back-: 2076 mm
total height: 1917 mm
total weight approx.: 5200 kg
ATTACHMENTS (TURNING)
bar feeder: yes
bar magazine: no
- bar length (max): 4200 mm
- bar diameter (max): 65 mm
chip conveyor: yes
coolant unit: yes
European CE standards: yes
MAIN SPINDLE
- max. turning diameter: 65mm
- max. turning length: 450 mm
- speed: 4000 rpm
- power: 18.5 kW
- torque: 230 Nm
- C-axis: yes
X AXIS (slide S1 + S2)
- travel: 140 mm
- feed rate: 15 m/min
Z AXIS (slide S1 + S2)
- travel: 450 mm
- feed rate: 30 m/min
Z ACHSE (slide S1)
- travel: +/- 35 mm
- feed rate: 6 m/min
TOOL TURRET TOP(W1)
- number of positions: 10
- of which driven positions: 10
- Y-axis: yes
TOOL TURRET BOTTOM(W2)
- number of positions: 10
- of which driven positions: 10
- Y-axis: no
COUNTER SPINDLE
- max. turning diameter: 65mm
- speed: 4000 rpm
- power: 11 kW
- torque: 210 Nm
- C-axis: yes
- traverse path: 520 mm
- feed rate: 30 m/min
incl. LNS HYDROBAR SPRINT 555 bar feederSale has ended
LOT 2120065![]()

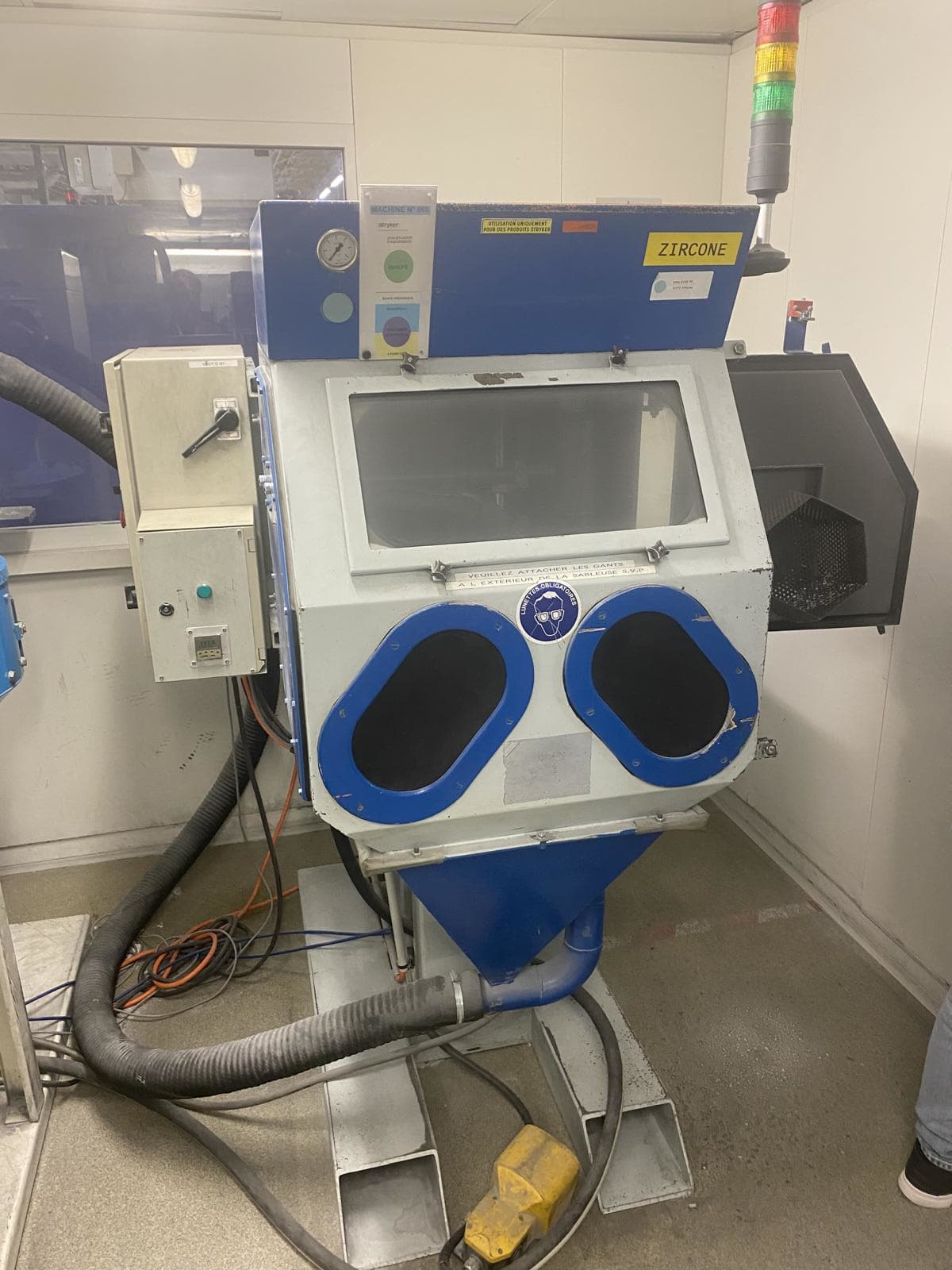

Sandblasting Machine, Year: 2008*
Binding Dismantling & Loading Fee:
450 CHF (Swiss Franc)Sale has ended
