Binding Handling & Loading Fee:
495 € (EURO)


IMPORTANT: The sale and delivery of this machine are strictly limited to customers whose registered office and delivery address are located within the European Union (EU). Delivery to recipients outside the European Union is excluded.

Binding Handling & Loading Fee:
75 € (EURO)

Binding Handling & Loading Fee:
55 € (EURO)

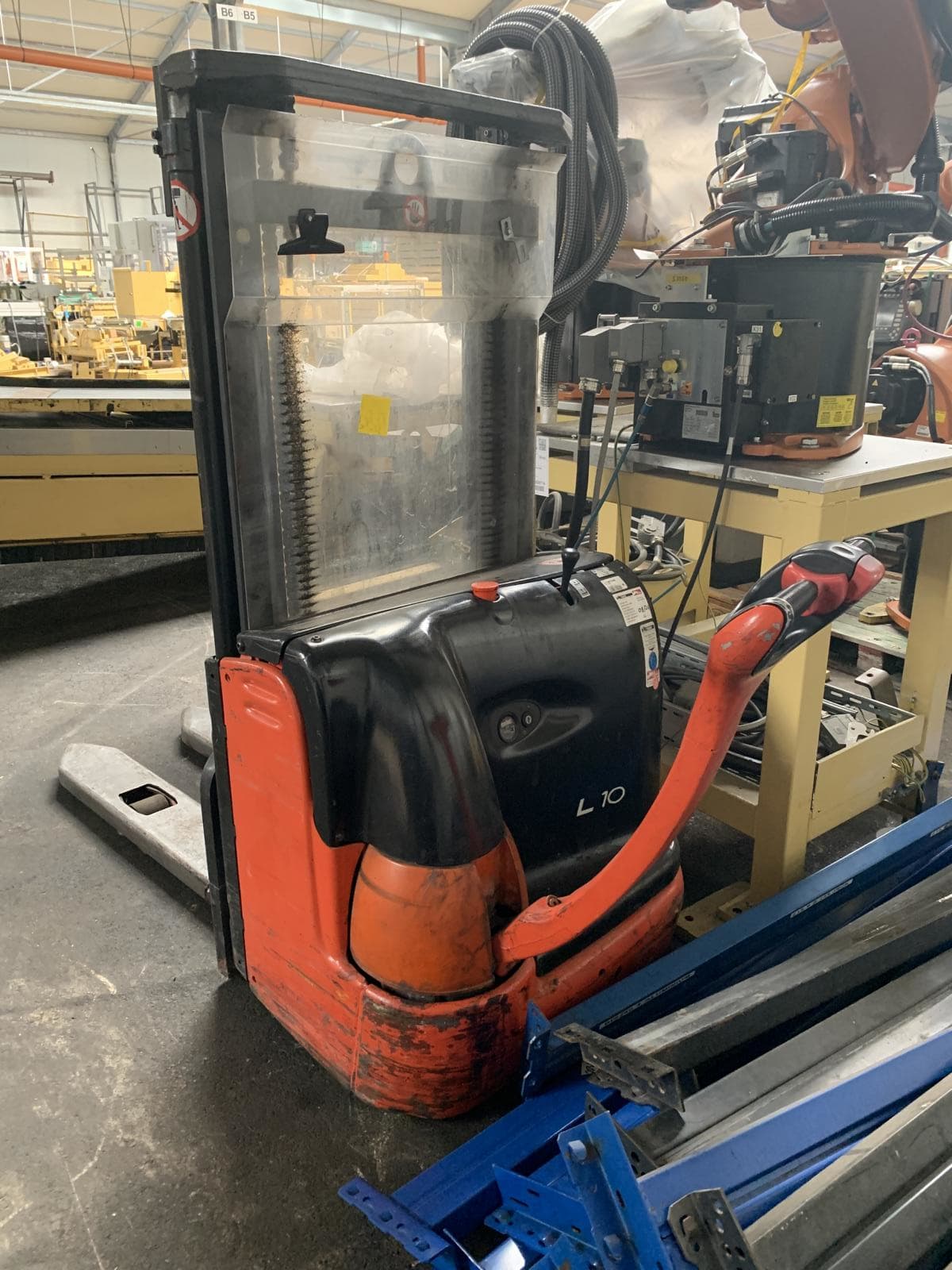

• Manufacturer: Linde AG, Aschaffenburg • Model: L 10 • Year of Manufacture: 2002 • Serial Number: W4X379N01319 • Load Capacity: 1,000 kg • Unladen Weight: 655 kg • Battery Voltage: 24 V • Max. Weight incl. Battery: 1,470 kg

Binding Handling & Loading Fee:
125 € (EURO)


was used for the Processing of Outer Rings

Binding Handling & Loading Fee:
55 € (EURO)

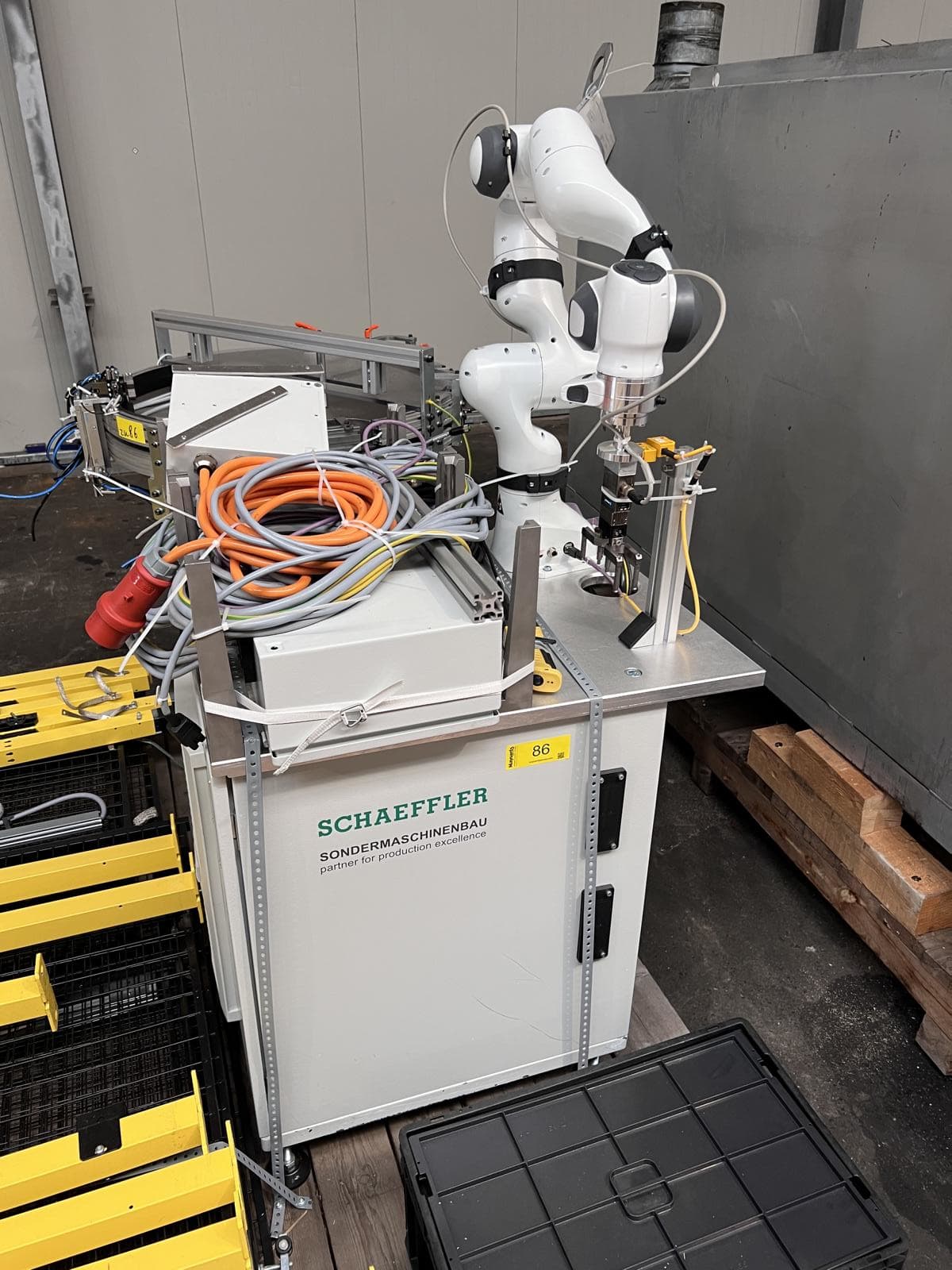

All Data without Guarantee (drawn from Manual of the OEM): Release Version: April 2020 Degrees of freedom: 7 Payload: 3 kg Workspace: see page 36 Maximum reach: 855 mm Force/Torque sensing: link-side torque sensors in all 7 axes Expected nominal lifetime: 20,000 h Joint position limits: A1, A3, A5, A7: -166°/166°, A2: -101°/101°, A4: -176°/-4°, A6: -1°/215° Mounting flange: DIN ISO 9409-1-A50 Installation position: upright Weight: ~ 17.8 kg Moving mass: ~ 12.8 kg Protection rating: IP30 Ambient temperature: 15 – 25 °C (typical), 5 – 45 °C (extended) Air humidity: 20 – 80 % non-condensing Power consumption: max. ~ 350 W, typical application ~ 60 W Interfaces: ethernet (TCP/IP) for visual intuitive programming with Desk, input for external enabling device, input for external activation device or safeguard, Control connector, Connector for end effector Controller size (19”): 355 x 483 x 89 mm (D x W x H) Supply voltage: 100 – 240 VAC Mains frequency: 47 – 63 Hz Power consumption: ~ 80 W Active power factor correction (PFC): yes Weight (control): ~ 7 kg Protection rating (control): IP20 Ambient temperature (control): 15 – 25 °C (typical), 5 – 45 °C (extended) Air humidity (control): 20 – 80 % non-condensing Interfaces (control): ethernet (TCP/IP) for internet and/or shop-floor connection, power connector IEC 60320-C14 (V-Lock), Arm connector Joint velocity limits: A1, A2, A3, A4: 150°/s, A5, A6, A7: 180°/s Cartesian velocity limits: up to 2 m/s end effector speed Pose repeatability: <+/- 0.1 mm (ISO 9283) Path deviation: <+/- 1.25 mm Force resolution: <0.05 N Relative force accuracy: 0.8 N Force repeatability: 0.15 N Force noise (RMS): 0.035 N Torque resolution: 0.02 Nm Relative torque accuracy: 0.15 Nm Torque repeatability: 0.05 Nm Torque noise (RMS): 0.005 Nm Minimum controllable force (Fz): 0.05 N Force controller bandwidth (-3 dB): 10 Hz Force range (N) - Nominal case: Fx: -125 – 95, Fy: -100 – 100, Fz: -50 – 150 Force range (N) - Local best case: Fx: -150 – 115, Fy: -275 – 275, Fz: -115 – 155 Torque range (Nm) - Nominal case: Mx: -10 – 10, My: -10 – 10, Mz: -10 – 10 Torque range (Nm) - Local best case: Mx: -70 – 70, My: -16 – 12, Mz: -12 – 12 Guiding force: ~ 2 N Collision detection time: <2 ms Nominal collision reaction time: <50 ms Worst case collision reaction time: <100 ms Adjustable translational stiffness: 0 – 3000 N/m Adjustable rotational stiffness: 0 – 300 Nm/rad Monitored signals: joint position, velocity, torque, cartesian position, velocity, force Safety retrofit option: PLd Cat. 3, Safe torque off (STO), Safe OSSD inputs Fully integrated end effectors: 2-finger gripper, Vacuum gripper Fast mounting: Clamping Adapter Demonstration: Pop-up Box Research interface: 1kHz Franka Control Interface (FCI) Fieldbuses: Modbus/TCP, OPC UA The Robot was used as part of a Cell for Research and Development Purposes, the System itself as a complete working Unit was developed by the Schaeffler special machine construction department, the Robot Arms are manufactured by FRANKA EMIKA Germany.

Binding Handling & Loading Fee:
35 € (EURO)

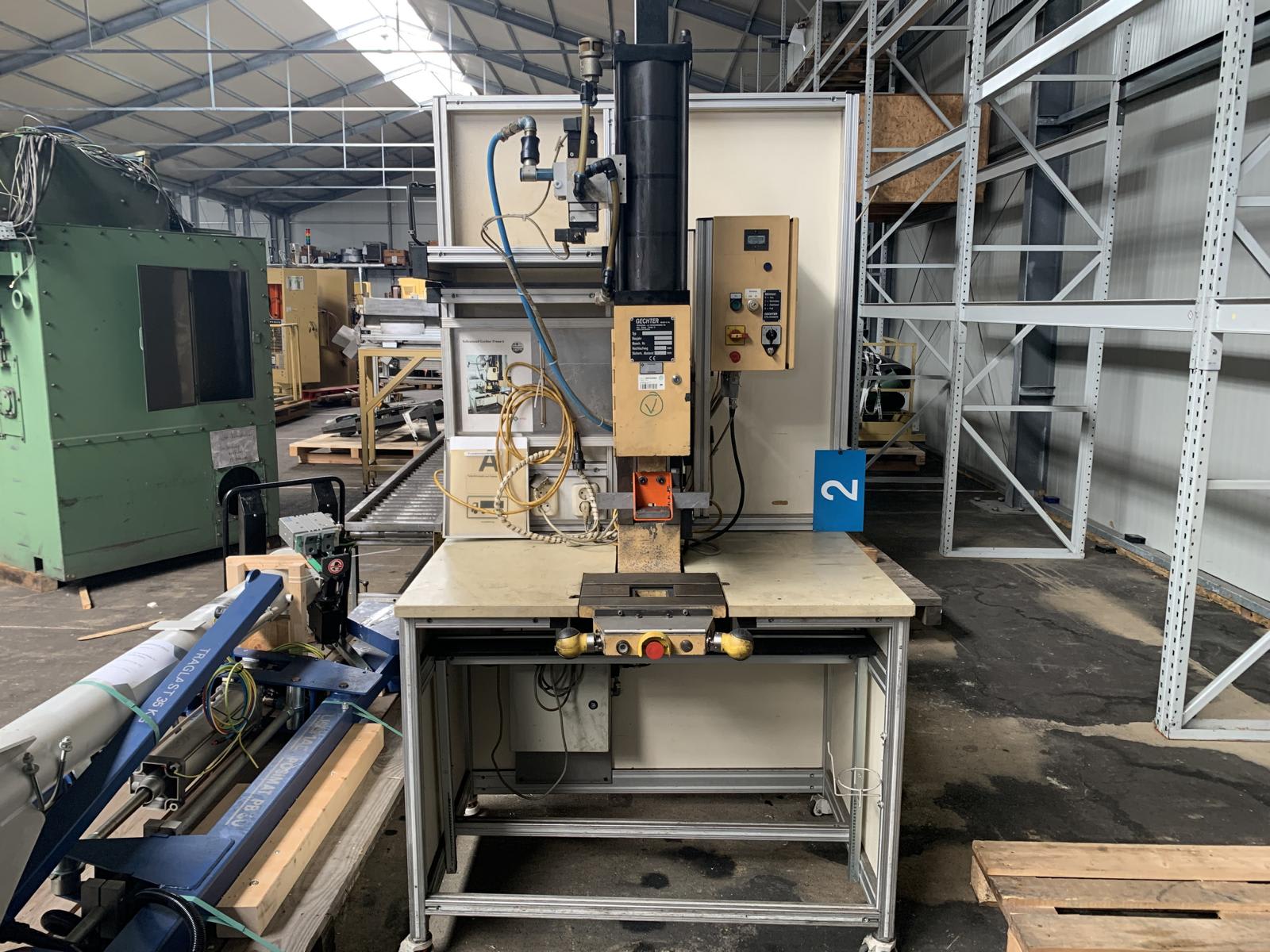

• Manufacturer: Gechter GmbH & Co. Werkzeug- und Maschinenbau KG • Location: Karl-Bröger-Straße 12, 91058 Erlangen, Germany • Type: LP-ZS 4 • Nominal Force: 45 kN • Year of Manufacture: 1999 • Machine No.: 80196 • Overrun Distance: 17 mm • Safety Distance: 160 mm • CE Certified: Yes

Binding Handling & Loading Fee:
35 € (EURO)

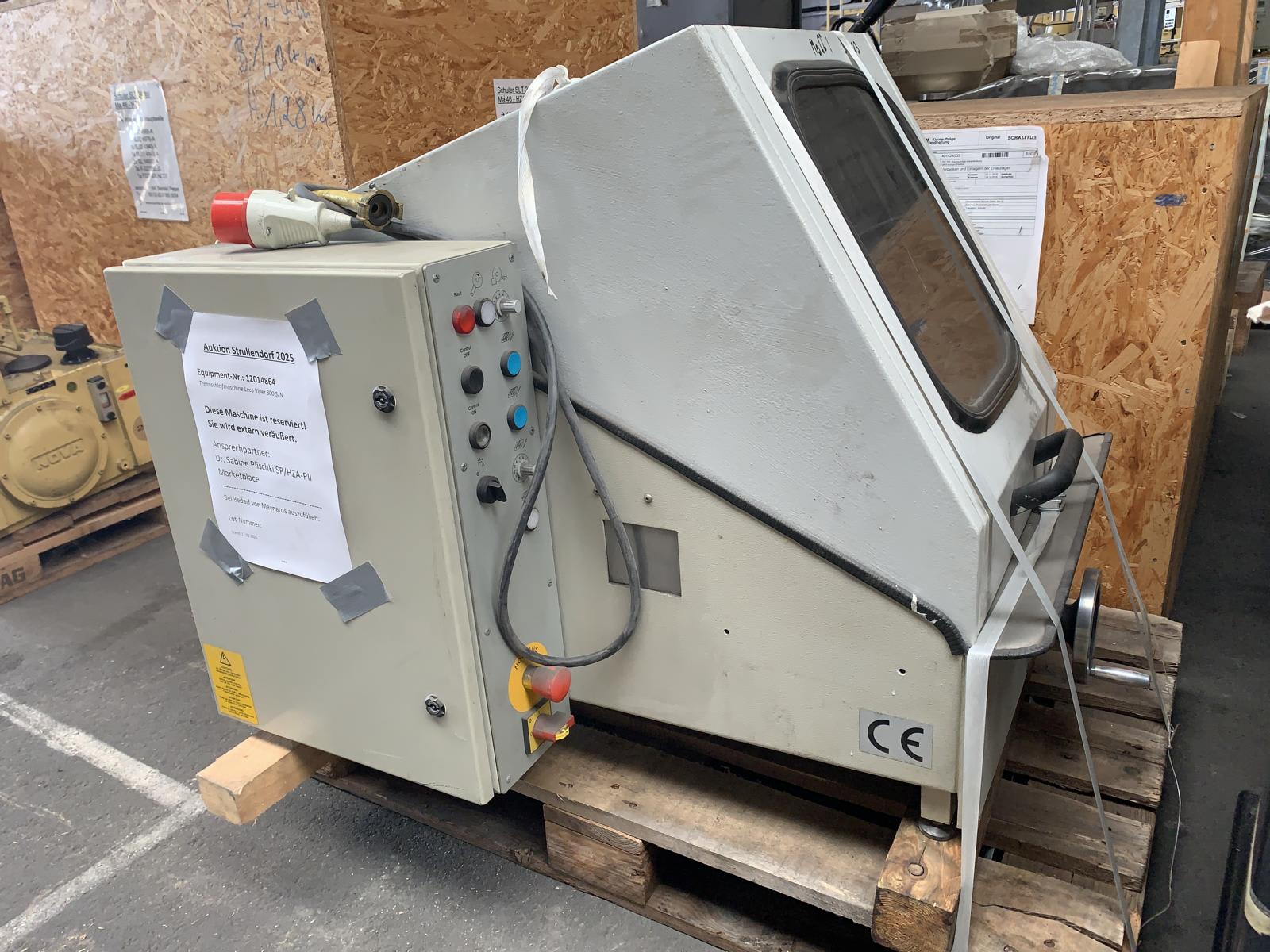

• Component: Precision Cut-off Grinding Machine • Manufacturer: Leco • Model: Viper 300 • Serial Number: 30087 • Year of Manufacture: 2003 • Voltage: 400 V • Frequency: 50 Hz • Apparent Power: 4.0 kVA • Current: 16 A

Binding Handling & Loading Fee:
75 € (EURO)

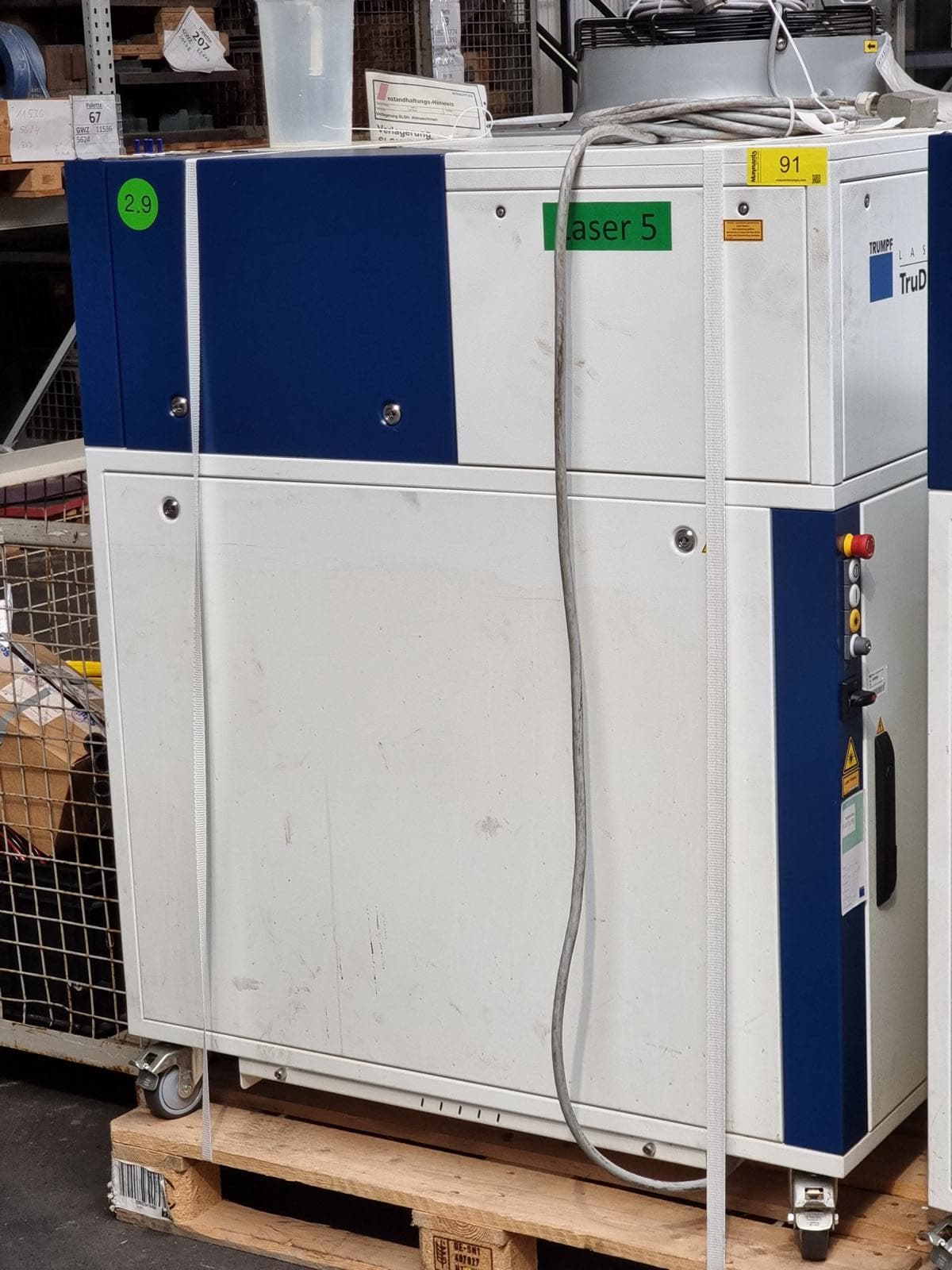

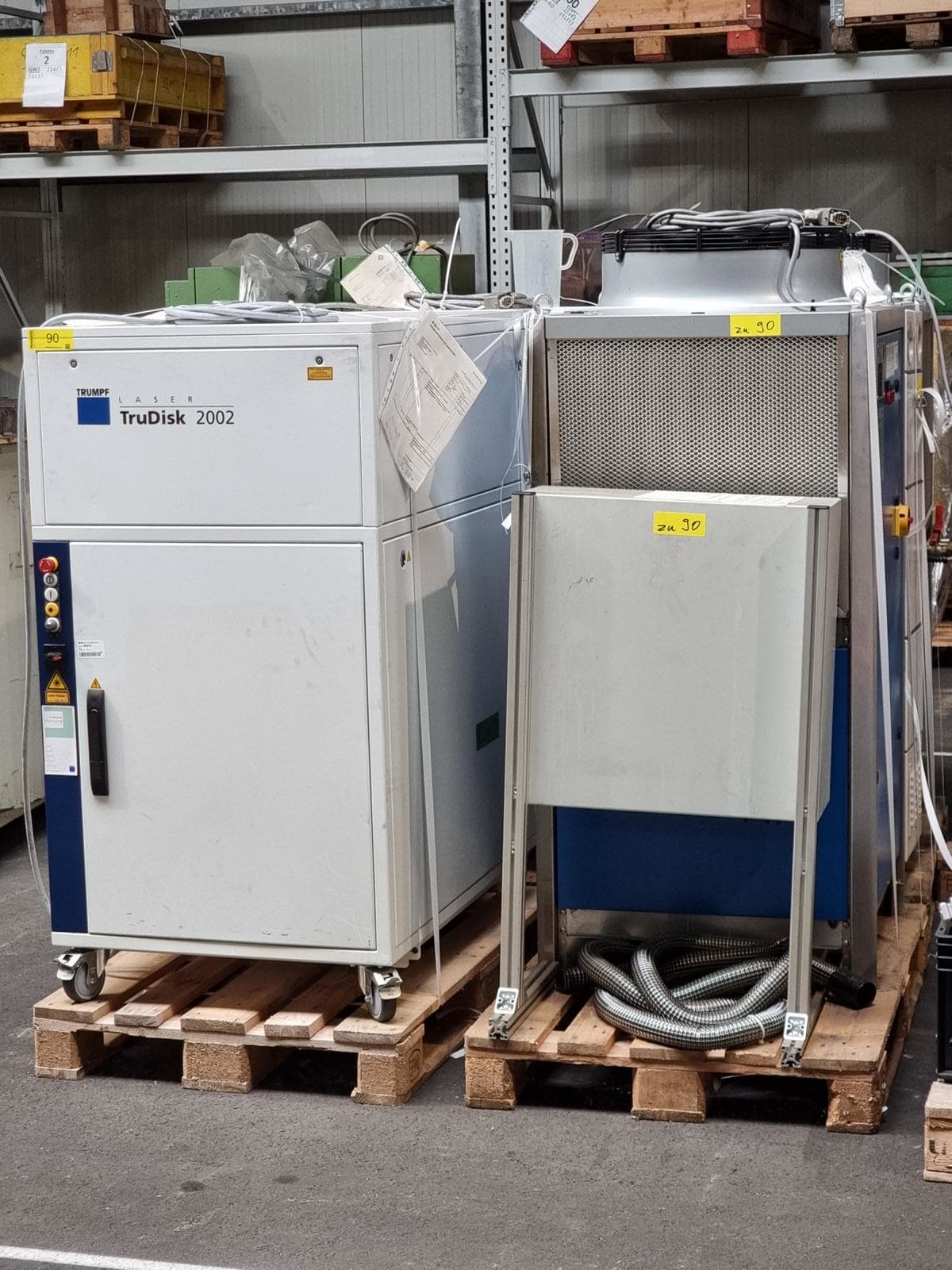

• Type: TruDisk 2002 (FD24) • Equipment No. (Equi.-No.): L4212M0904 • Date of Manufacture: December 2016 • Power: 11.8 kW / 12.6 kVA • Voltage Range: 380 V (–10 %) … 460 V (+10 %), 3AC + PE • Current: 18 A @ 400 V • Frequency: 50 … 60 Hz • Protection Class: IP54 • Weight: 550 / 470 kg • Fan Type: 4/2 LLK • Short Circuit Current Rating (SCCR): Icn 13 kA • Internal Reference: 20-10-03-A202 • Compliance: 21 CFR Chapter I, Subchapter J

Binding Handling & Loading Fee:
75 € (EURO)


• Order Number: 419-4100 • Job Number: 2212 • Wiring Diagram No.: 50025.1 • Weight: 1,200 kg • Power Connection: 220 / 380 V, 50 Hz • Operating Current: 2 A • Air Pressure: - • Air Consumption: - • Equipment No.: 10027925 (Schaeffler internal reference) • Inventory No.: 590764 • Description: Coil unwinding reel

Binding Handling & Loading Fee:
35 € (EURO)


• Manufacturer: Gechter GmbH & Co., Werkzeug- und Maschinenbau KG, Erlangen, Germany • Type: 45 kN LP ZS 4 • Year of Manufacture: 2001 • Machine No.: 80450 • Overrun Distance: 18 mm • Safety Distance: 176 mm • Inventory No.: 510319 (INA internal)

Binding Handling & Loading Fee:
35 € (EURO)


• Manufacturer: INA Werk Schaeffler KG • Location: D-91072 Herzogenaurach • Year of Manufacture: 2004 • Wiring Diagram No.: D-5072-01 • Operating Current: 2 A • Operating Pressure: 6 bar • Power Connection: Not specified • Weight: Not specified • Order No. / Job No.: Not specified • Compressed Air Consumption: Not specified

Binding Handling & Loading Fee:
35 € (EURO)


Package Size: 120x80x200cm

Binding Handling & Loading Fee:
375 € (EURO)


IMPORTANT: The sale and delivery of this machine are strictly limited to customers whose registered office and delivery address are located within the European Union (EU). Delivery to recipients outside the European Union is excluded.

The machine was used for Plunge Grinding

Binding Handling & Loading Fee:
75 € (EURO)

Binding Handling & Loading Fee:
35 € (EURO)


• Manufacturer: M.J. Maillis / Sander GmbH & Co. KG • Model: TP-702 • Year of Construction: 2018 • Aggregate No. (Agg.-Nr.): A72145

Binding Handling & Loading Fee:
650 € (EURO)


IMPORTANT: The sale and delivery of this machine are strictly limited to customers whose registered office and delivery address are located within the European Union (EU). Delivery to recipients outside the European Union is excluded.

Consisting of 4 Packages: Main Machine: 310 × 240 × 320 cm Bar Feeder: 470 × 240 × 230 cm Cooling Unit: 240 × 150 × 200 cm Chip Conveyor with High-Pressure Unit: 240 × 320 × 190 cm (Note: Oil Filtering Unit not included with this machine.) Technical Specifications (Data without guarantee): Spindles: 6 Maximum Spindle Speed: 5,000 rpm Bar Capacity: 18 mm Spindle Bore: 52 mm Travel (X / Y / Z): 35 mm / 20 mm / 85 mm Rapid Traverse Speed (X, Y, Z): 24 m/min Maximum Turning Diameter (over cross-slide): ≤ 18 mm Maximum Turning Length: 280 mm Total Installed Power: ~29 kW CNC Control: Siemens 840D

Binding Handling & Loading Fee:
75 € (EURO)

Binding Handling & Loading Fee:
125 € (EURO)


Main Information: • Model: Novomatic 2G • Type: P 10/90 CNC-D • Serial Number: 1972000905 • Year of Manufacture: 2008 • Order No.: 960/52954538 Electrical Data: • Total Installed Power: 46 kW • Mains Voltage: 400 V – 50 Hz • Control Voltage: 230 V AC / 24 V DC • Average Cycle Absorption: 66 A • Wiring Diagram No.: 1080220420

Binding Handling & Loading Fee:
55 € (EURO)

Binding Handling & Loading Fee:
35 € (EURO)

Binding Handling & Loading Fee:
75 € (EURO)


• Type: TruDisk 2002 (FD24) • Equipment No. (Equi.-No.): L4212M0903 • Date of Manufacture: December 2016 • Power Consumption: 11.8 kW / 12.6 kVA • Voltage Range: 380 V (–10 %) … 460 V (+10 %), 3AC + PE • Current Rating: 18 A @ 400 V • Frequency: 50 … 60 Hz • Protection Class: IP 54 • Weight: 550 / 470 kg • Fan Type: 4/2 LLK • Short Circuit Current Rating (SCCR): Icn 13 kA • Internal Reference: 20-10-03-A202 • Compliance: 21 CFR Chapter I, Subchapter J

Binding Handling & Loading Fee:
35 € (EURO)

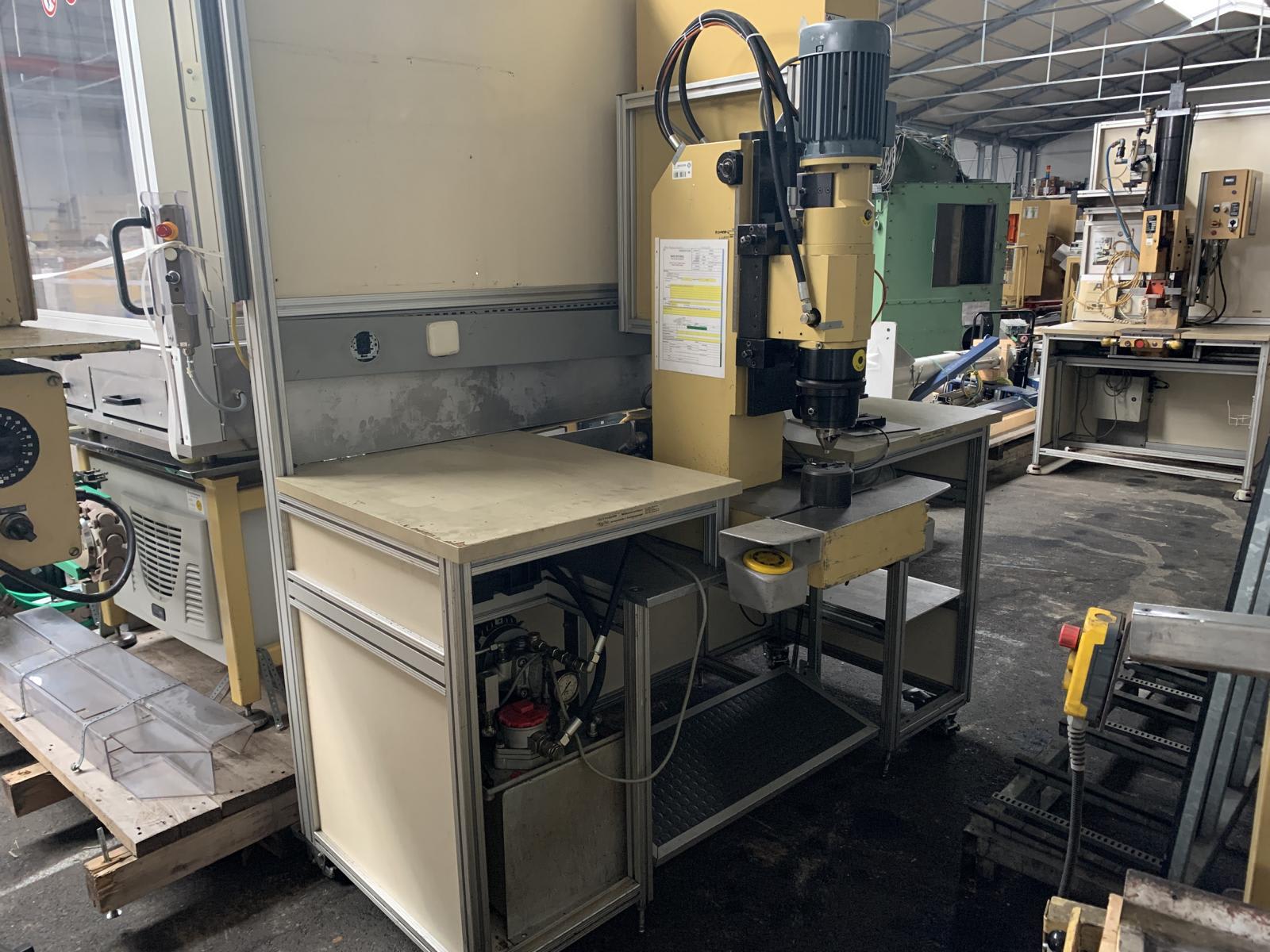

• Manufacturer: D. Friedrich GmbH & Co. KG • Location: Unterer Wasen 6, 73630 Remshalden, Germany • Website: www.fmw-friedrich.de • Product: Nietmaschine (Riveting machine) • Type: NC • Serial Number: B4845 • Year of Manufacture: 2014 • Weight: 350 kg • Max. Pressure: 6 bar • Cycle Rate: 1/min • Voltage (U): 230 V • Frequency (f): 50 Hz • Current (I): 5.9 A • Power (P): 1.6 kW • Country of Manufacture: Germany • CE Marked: Yes

Binding Handling & Loading Fee:
495 € (EURO)


IMPORTANT: The sale and delivery of this machine are strictly limited to customers whose registered office and delivery address are located within the European Union (EU). Delivery to recipients outside the European Union is excluded.

Machine Details – PITTLER General Data • Machine type: Pittler PV SL 2 / 2-2P • Machine No.: LP 038 • Year of manufacture: 2016 • Control: Siemens Sinumerik 840 DSL • Transport weight: approx. 17,000 kg • Total weight: approx. 19,500 kg • Machine height: approx. 3,900 mm Spindle Data • Motor spindle (left/right) • Max. motor power: 67 kW at 100 % duty cycle • Max. speed: 4,000 rpm • Max. torque: 585 Nm at 100 % duty cycle • Spindle flange: Ø 220 mm (DIN 6353, for chuck) • Swing diameter: max. 450 mm Workpiece Clamping • Hydraulic, with pressure and stroke monitoring • Clamping cylinder: OVS 130 (Röhm) • Clamping device: SAV-HSW-420/6 (customer supply) Axis Travels • Cross slide left: X max. 1,385 mm, Z max. 500 mm • Cross slide right: X max. 925 mm, Z max. 480 mm • Feed force X/Z: 8 kN each at 40 % duty cycle • Rapid traverse X: 0–40,000 mm/min • Rapid traverse Z: 0–24,000 mm/min Tool Turret • Manufacturer: SAUTER, size 20 (0.5.435.220) • Tool holders: 8 × VDI 50, SW360, DIN 69880 • Driven tools: yes • Max. speed: 4,000 rpm • Max. torque: 63 Nm Fluid Technology • Pneumatics: inlet pressure 5–12 bar, system pressure 5 bar • Hydraulics: HYDAC Tank volume: approx. 60 l Accumulator: 2 × 3.5 l + 1 × 1.4 l Lubrication & Coolant • Central lubrication: SKF Nogel • Fresh oil tank: approx. 6 l • Waste oil tank: 2 × approx. 10 l • Coolant system: customer-side central system • Conveyor: Mayfran hinge belt conveyor • Coolant volume: approx. 170 l • Motor spindle cooling unit: Hydac, tank approx. 21 l

Binding Handling & Loading Fee:
75 € (EURO)


• Manufacturer: Ruwac • Model: Extraction System (Absauganlage) • Year of Manufacture: Not specified • Voltage: 400 V • Phase: 3~ • Frequency: 50 Hz • Power: 5.3 kW • Current: 11.5 A • Weight: Approx. 25 kg • Serial No.: 9M-9996056 • Inventory No.: 10032882 (Schaeffler internal) • Description: Ruwac Industrial Vacuum System

Binding Handling & Loading Fee:
125 € (EURO)


• Component: CNC Internal Cylindrical Grinding Machine • Manufacturer: Meccanica Nova S.p.A., Italy • Model: Novamatic 2G P 10/90 CNC-D • Serial Number: 1972000826 • Year of Manufacture: 2008 • Total Installed Power: 46 kW • Main Voltage: 400 V, 50 Hz • Control Voltage: 230 V AC, 24 V DC • Average Cycle Absorption: 68 A • Protection Class: IP 64 • Machine Weight: 5,500 kg

Binding Handling & Loading Fee:
55 € (EURO)


All Data without Guarantee (drawn from Manual of the OEM): Release Version: April 2020 Degrees of freedom: 7 Payload: 3 kg Workspace: see page 36 Maximum reach: 855 mm Force/Torque sensing: link-side torque sensors in all 7 axes Expected nominal lifetime: 20,000 h Joint position limits: A1, A3, A5, A7: -166°/166°, A2: -101°/101°, A4: -176°/-4°, A6: -1°/215° Mounting flange: DIN ISO 9409-1-A50 Installation position: upright Weight: ~ 17.8 kg Moving mass: ~ 12.8 kg Protection rating: IP30 Ambient temperature: 15 – 25 °C (typical), 5 – 45 °C (extended) Air humidity: 20 – 80 % non-condensing Power consumption: max. ~ 350 W, typical application ~ 60 W Interfaces: ethernet (TCP/IP) for visual intuitive programming with Desk, input for external enabling device, input for external activation device or safeguard, Control connector, Connector for end effector Controller size (19”): 355 x 483 x 89 mm (D x W x H) Supply voltage: 100 – 240 VAC Mains frequency: 47 – 63 Hz Power consumption: ~ 80 W Active power factor correction (PFC): yes Weight (control): ~ 7 kg Protection rating (control): IP20 Ambient temperature (control): 15 – 25 °C (typical), 5 – 45 °C (extended) Air humidity (control): 20 – 80 % non-condensing Interfaces (control): ethernet (TCP/IP) for internet and/or shop-floor connection, power connector IEC 60320-C14 (V-Lock), Arm connector Joint velocity limits: A1, A2, A3, A4: 150°/s, A5, A6, A7: 180°/s Cartesian velocity limits: up to 2 m/s end effector speed Pose repeatability: <+/- 0.1 mm (ISO 9283) Path deviation: <+/- 1.25 mm Force resolution: <0.05 N Relative force accuracy: 0.8 N Force repeatability: 0.15 N Force noise (RMS): 0.035 N Torque resolution: 0.02 Nm Relative torque accuracy: 0.15 Nm Torque repeatability: 0.05 Nm Torque noise (RMS): 0.005 Nm Minimum controllable force (Fz): 0.05 N Force controller bandwidth (-3 dB): 10 Hz Force range (N) - Nominal case: Fx: -125 – 95, Fy: -100 – 100, Fz: -50 – 150 Force range (N) - Local best case: Fx: -150 – 115, Fy: -275 – 275, Fz: -115 – 155 Torque range (Nm) - Nominal case: Mx: -10 – 10, My: -10 – 10, Mz: -10 – 10 Torque range (Nm) - Local best case: Mx: -70 – 70, My: -16 – 12, Mz: -12 – 12 Guiding force: ~ 2 N Collision detection time: <2 ms Nominal collision reaction time: <50 ms Worst case collision reaction time: <100 ms Adjustable translational stiffness: 0 – 3000 N/m Adjustable rotational stiffness: 0 – 300 Nm/rad Monitored signals: joint position, velocity, torque, cartesian position, velocity, force Safety retrofit option: PLd Cat. 3, Safe torque off (STO), Safe OSSD inputs Fully integrated end effectors: 2-finger gripper, Vacuum gripper Fast mounting: Clamping Adapter Demonstration: Pop-up Box Research interface: 1kHz Franka Control Interface (FCI) Fieldbuses: Modbus/TCP, OPC UA The Robot was used as part of a Cell for Research and Development Purposes, the System itself as a complete working Unit was developed by the Schaeffler special machine construction department, the Robot Arms are manufactured by FRANKA EMIKA Germany.

Binding Handling & Loading Fee:
55 € (EURO)


• Model / Type: QBM-1 • Capacity: 100 kg • Serial Number: 16IE54152302 • Own Weight: 47 kg • Manufacturer: Logitrans A/S, Hillerupvej 35, DK-6760 Ribe, Denmark • CE Marked: Yes

Binding Handling & Loading Fee:
75 € (EURO)

Binding Handling & Loading Fee:
35 € (EURO)


Package Size: 50x80x140cm • Manufacturer: Habor Precise Industries Co., Ltd. • Model: HWK-V2RPTSA5-4-115 • Power: 3PH 400V 50/60Hz, 4100W, 7.5A • Compressor: 3PH 400V 50/60Hz, 2570W, 3.8A • Pump: 3PH 400V 50/60Hz, 1280W, 2.2A • Pump Capacity: 4.6 kg/cm², 20/45 l/min (Theorem) • Temperature Control Range: 10–40 °C • Refrigerant: R410A, 1.4 kg • Weight: 152 kg • Tank Volume: 46 L • Delivery Date: August 2013 • MFG No.: LC226518 • Part No.: P-HWK-V2RPTSA5-115 • Country of Manufacture: Taiwan

Binding Handling & Loading Fee:
55 € (EURO)

Binding Handling & Loading Fee:
55 € (EURO)

Binding Handling & Loading Fee:
495 € (EURO)

Binding Handling & Loading Fee:
35 € (EURO)


• Type: 040007617 • Serial No. (Ser.-Nr.): 20097194-0001 • Year of Manufacture (Baujahr): 2005 • Capacity (Hublast): 1.0 t • Lifting Height (Hubhöhe): 0.72 m • Weight (Gewicht): 160 kg • Standards: EN 60 529 / EN 60 034-5
