Type: HK 15-20
Year of construction: 1990
Machine no. 7688

Wire diameter range: up to 15mm
with a wire strength of 800 N/mm²

Wire section length: 28mm
Ejection length (dipper side): 39mm
Ejection length (die side): 11mm

Ball diameter (press size): 13-21.2 mm

Unit output: 320 1/min
Pressing force: 1,100 KN
Shear force: 100 KN

Standard tool diameter:
Shear bushing: Dia. 50mm
Press die Dia. 90mm
Finished diver: Dia. 90mm

for more detailed Information, please download the Technical Documents as PDF.

Maintenance reports from 1990-2018 and the machine card are also available. The machine is dismantled, stored and immediately available. The sales scope does not include tools or spare parts.

The machine has been producing only approx. 400 hours per year (approx. 9.200 Hours total), due to low need of the produced product. The machine is now being sold because the product that has been produced on this machine has been outsourced. The machine has been maintained continuously until October 2018 and has been taken out of Production in August 2019.

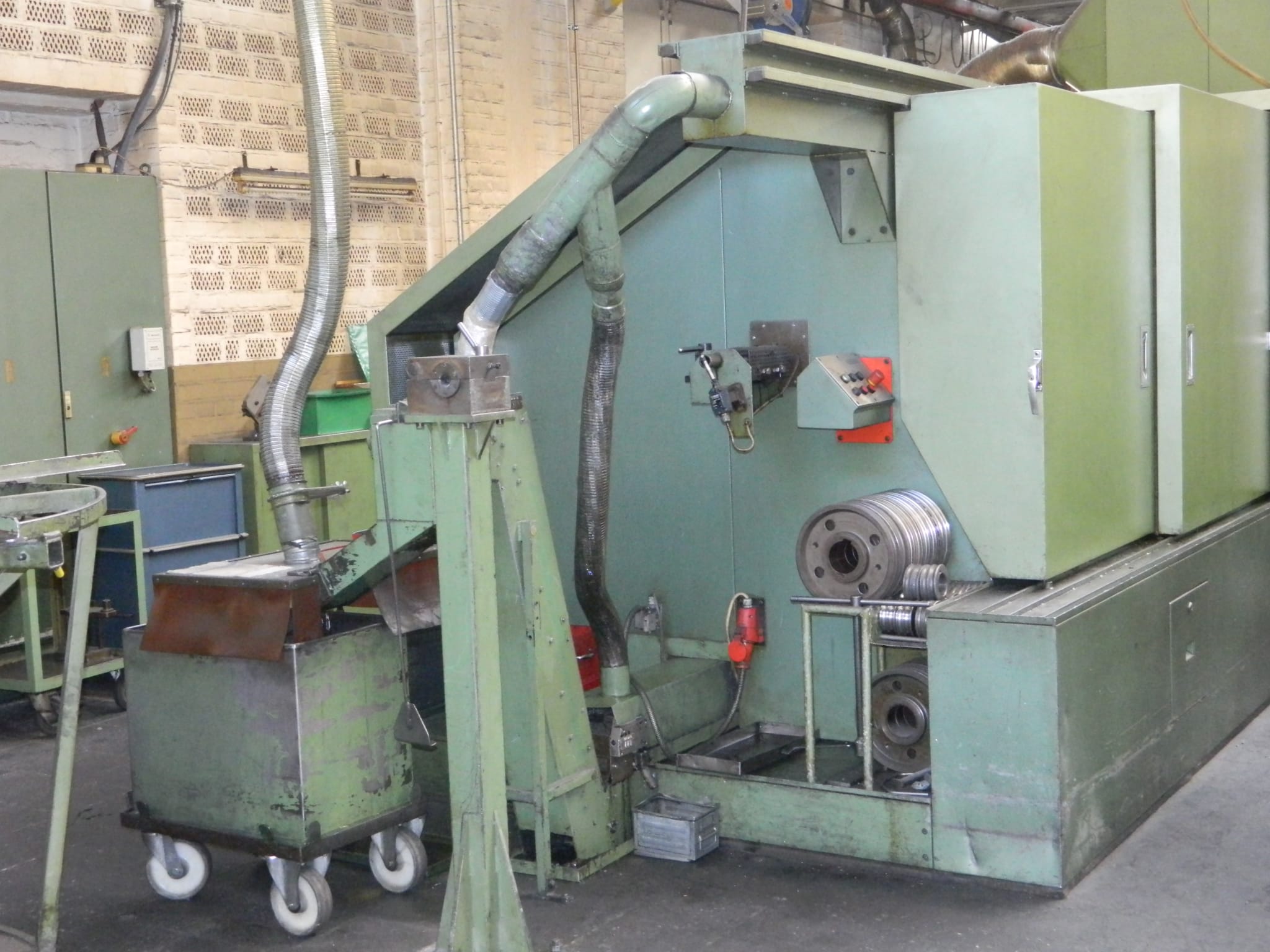

Online Auction | Hilgeland HK 15-20 High performance Ball and Roller Header

High performance Ball and Roller Header Hilgeland HK 15-20

Online Auction | Hilgeland HK 15-20 High performance Ball and Roller Header

High performance Ball and Roller Header Hilgeland HK 15-20
