Online Auction | Machinery formerly used for Ball screws, precision gears and motor spindles and more

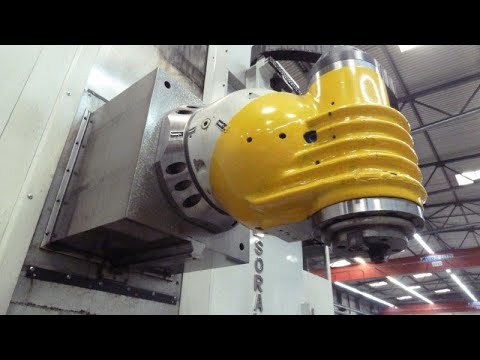

Lot 1970027:Traveling Column Milling Machine SL22000 | SoraLuce
Year: 2004 | S/N: unkown
Tax Rate on Hammer Price: 19%
Tax Rate on Charges: 19%
Sale has ended
Description
| Type: | Traveling Column Milling Machine |
| Make: | SoraLuce |
| Model: | SL22000 |
| Year: | 2004 |
| Serial: | unkown |
Technical Details:
| Description: | Table size: 22000 x 800 mm; x-travel: 20500 mm; y-travel: 1600 mm; z-travel: 1000 mm; Clamping force tools: 15000 N; Total power requirement: 63 kVA; space requirement approx.: 24 x 6 x 4 m; Automatically indexing milling head; Automatic tool clamping: clamping force 15000 N; Indexing accuracy/repeatability: ± 3 sec. ˜ ± 0.002 mm; Pull studs: DIN 69872 Form A; Number of swivel positions: 5° milling head 72 positions per plane; Spindle bearing diameter: 90 mm; sealing air: 0.7 bar; Main drive: Drive type: three-phase motor make Siemens 1PH7; Drive power: 100% ED kW 28; Spindle speed range: Spindle speeds: min-1 20-4000Full power from: min-1 500 Torque: Nm 535; Feeds: Feed range: X, Y, Z axis mm/min 5 - 10000; X-axis: nominal torque Nm 38; standstill torque Nm 50; Y axis nominal torque Nm 23; standstill torque Nm 27; Z axis nominal torque Nm 23; standstill torque Nm 27; Control: infinitely variable via Siemens AC servo motor including digital drive technology; Rapid traverse: X-axis mm/min 25000; Y, Z axis mm/min 15000; Clamping surfaces: number of T-slots on the table surface: 5; Number of T-slots on the front surface: 2; Width of T-slots: mm 22 H12; A reference groove: mm 22 H7; Distance between grooves: mm 130; Max. table load: t / m² 5; Additional devices: Internal pipe brush device for cleaning pipes. Hydraulic attachment system for the entire length of the bed; Processing tower dimensions: 3.60 m high x 4 m wide Including: tool magazine with 30 places; ------------------------------------- PLEASE NOTE: ------------------------------------- Binding to Purchase - Fee for Dismantling and Loading on Truck in EURO (€): 1500€_________________________________________________ Descriptions, data, dimensions and quantities are based on the subjective beliefs of the auctioneer and are created to the best of our knowledge and belief. In principle, they do not represent warranted properties in accordance with Section 434 of the German Civil Code or quality guarantees in the sense of Section 443 of the BGB. All Assets are being sold in order and in the Name Pagus Maschinenhandel. |
