Online Auction | Machinery formerly used for Ball screws, precision gears and motor spindles and more

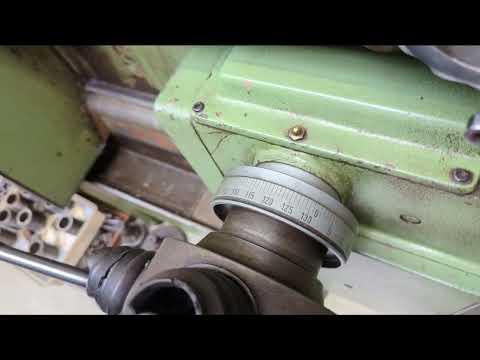

Lot 1970008:Turret Lathe DRT-36M | WMW

Year: 1963 | S/N: unkown

Buyers Premium: 18%

Tax Rate on Hammer Price: 19%

Tax Rate on Buyers Premium: 19%

Tax Rate on Charges: 19%

Sale has ended

Description

Type: Turret Lathe
Make: WMW
Model: DRT-36M
Year:  1963
Serial:  unkown



Technical Details:

Description:
Largest material passage with bar clamping: 36 mm; Largest swing diameter with thread chasing device: 280 mm; Workpiece diameter for chuck work: 115 mm; When using fewer tools: 180 mm; Largest distance between spindle and turret head: 530 mm; Largest travel of the turret slide: 460 mm; Tool hole circle diameter: 180 mm; Number of tool holes: 16; Drilling the tool holes: 20, 30, 40 mm; Feed range longitudinal: 0.035 - 0.8 mm/min; Feed range flat: 0.02 - 0.5 mm; Speed ​​range: 56 - 2800 rpm; 380V, 50Hz; space requirement: approx. 2500 x 1600 x 1200 mm; With eccentric mounts for tools; With collet quick-action chuck; Various collets and lathe tools; With longitudinal feed and turret feed;


-------------------------------------

PLEASE NOTE:

-------------------------------------

Binding to Purchase - Fee for Dismantling and Loading on Truck in EURO (€): 200€

_________________________________________________

Descriptions, data, dimensions and quantities are based on the subjective beliefs of the auctioneer and are created to the best of our knowledge and belief. In principle, they do not represent warranted properties in accordance with Section 434 of the German Civil Code or quality guarantees in the sense of Section 443 of the BGB. All Assets are being sold in order and in the Name Pagus Maschinenhandel.
