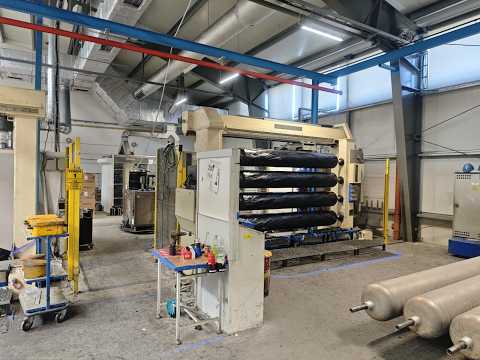

Listing 8020018:Filament Winding Machine EHA BSD FWA 1/4/4 | 2003
Used EHA BSDFWA 1/4/4 filament winding machine for sale, 4-axis composite manufacturing equipment, 4 winding spindles with 4 x 8 roving spools, max. winding length 3000 mm, max. diameter 400 mm, Siemens Sinumerik 840D, industrial auction machine
Tax Rate on Hammer Price: 23%
Tax Rate on Charges: 27%
Description
| Type | Filament Winding Machine |
| Make | EHA BSD |
| Model | FWA 1/4/4 |
| Year of Manufacture | 2003 |
| Serial Number | 356a |
| Condition | Used |
| Quantity | 1 |
Item Description:
Lot consists of:
(1) Filament Winding Machine
Technical Details:
EHA BSDFWA 1/4/4
Machine Data
- Designation: EHA BSDFWA 1/4/4
- Type: Filament winding machine
- Installation dimensions: approx. 11000 × 5000 × 3800 mm
- Total weight: approx. 4000 kg
Main Components
Filament Winding Machine
- Length: approx. 5350 mm
- Width: approx. 1850 mm
- Height: approx. 3200 mm
Impregnation Unit
- Length: 950 mm
- Width: 1000 mm
- Height (with base): 2780 mm
- Weight: 250 kg
Creel
- Length: 2500 mm
- Depth: 1310 mm
- Height: 2480 mm
- Weight: 1500 kg
Control Cabinet
- Length: 1200 mm
- Depth: 600 mm
- Height: 2000 mm
- Weight: 600 kg
Control Panel
- Length: 800 mm
- Depth: 950 mm
- Height: 1300 mm
- Weight: 160 kg
Production Data
- Number of axes: 4
- Number of winding spindles: 4
- Number of roving spools: 4 × 8
- Max. winding length: 3000 mm
- Max. winding diameter: 4 × 400 mm
- Winding angle: 0–90°
- Max. fiber feed speed: 90 m/min
- Max. mandrel weight per spindle: 120 kg
Creel Data
- Max. spool outer diameter: 275 mm
- Spool inner diameter: approx. 76.2 mm
- Spool length: approx. 275 mm
- Max. spool weight: 15 kg
- Brake force: 2–50 N
- Max. withdrawal speed: 90 m/min
Impregnation Data
- Resin volume: approx. 8 L
- Impregnation temperature: max. 60 °C
Axis Data
Spindle Unit X
- Mandrel speed: 0–200 rpm
- Spindle heights: approx. 600 / 1100 / 1600 / 2100 mm
- Clamping length: max. 3200 mm
Carriage Unit Y
- Stroke: 3200 mm
- Speed: 90 m/min
Infeed Axis Z
- Stroke: 200 mm
- Speed: 30 m/min
Band Turning Axis U
- Rotation: ±360°
- Speed: 100 rpm
Electrical Data
- Operating voltage: 3 AC 400 V (+6% / −10%)
- Frequency: 50 Hz ±1%
- Protection class: IP54
- Installation: according to VDE
Auxiliary Voltages
- Power control: 400 V AC
- Siemens Sinumerik 840 D: 24 V DC
- Solenoid valves & indicator lights: 24 V DC
Further Information
| Asset Location | Maynards Europe GmbH Maximilianstr. 4B, 82319 Starnberg, Germany |
| Delivery Conditions | EXW (Incoterms 2020) Sale on an as-is, where-is basis, ex location, with a binding handling and service fee, for dismantling/handling and loading of the goods onto the truck and/or provision only by a specified third-party supplier. |
| Payment Term | Immediately after Invoice Receipt If you receive a surcharge - more information on the Invoice |
| Seller | Maynards Europe GmbH Maynards is selling and issues the Invoice in order and in the name of the mentioned Seller |
