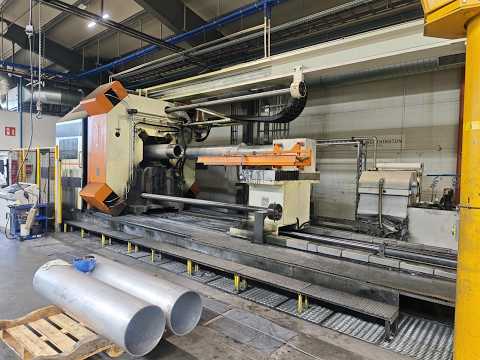

Listing 8020001:Large 4 Roll CNC Flow Forming Machine MJC M26-04 F-700.4000-4 | 2023
Used MJCM26-04 F-700.4000-4 Axis CNC flow forming machine for sale, large 4 roll metalworking machinery for industrial auction and manufacturing equipment buyers. 4-axis CNC forming system, Z-axis stroke 3945 mm, X-axis stroke 285 mm, max Z force 350 kN, max X force 275 kN, tailstock force 50 kN, 300 HP AC vector drive spindle, 50-200 rpm, spindle DIN A-15, tailstock DIN A-8, approx. 13600 x 6000 x 4500 mm, 97500 kg, spindle hours 810, hydraulic hours 172, second hand industrial machine for sale
Tax Rate on Hammer Price: 23%
Tax Rate on Charges: 27%
Description
| Type | Large 4 Roll CNC Flow Forming Machine |
| Make | MJC |
| Model | M26-04 F-700.4000-4 |
| Year of Manufacture | 2023 |
| Serial Number | 22-2261 |
| Condition | Used |
| Quantity | 1 |
| HS Code | 12334567 |
Item Description:
Lot consists of:
(1) Large 4 Roll CNC Flow Forming Machine
Technical Details:
Machine Data
- Number of axes: 4 axes
- Installation dimensions: approx. 13,600 × 6,000 × 4,500 mm
- Machine weight: 215,000 lbs (97,500 kg)
- Spindle operating hours: 810 h
- Hydraulic operating hours: 172 h
Axis Data
Z-Axis
- Stroke: 3,945 mm
- Maximum force: 350 kN
- Maximum speed: 10 mm/s
X-Axis
- Stroke: 285 mm
- Maximum force: 275 kN
- Maximum speed: 5 mm/s
Tailstock Data
- Maximum tailstock force: 50 kN
- Tailstock center mounting according to DIN: A-8
Spindle Data
- Spindle: AC vector drive motor, 300 HP
- Spindle speed range: 50–200 rpm
- Total spindle ratios: 36:1 and 9:1
- Spindle / mandrel according to DIN: A-15
Hydraulic Data
- Hydraulic power unit (Green): 67 HP (57 kW)
- Green Hydraulic Power Unit: -950-
Electrical Data
- CNC current at 380 V / 50 Hz: 323 A
- Spindle current at 380 V / 50 Hz: 380 A
Required Operating Fluids
Hydraulic Oil
- Hydraulic oil in GHP tank: 200 gallons
Continuous Water Supply for 2 Heat Exchangers
- Flow rate: 50 l/min
- Pressure: 3–30 bar
- Maximum temperature: 25 °C
Required Machine Operating Conditions
- Minimum ambient temperature: 10 °C
- Maximum ambient temperature: 49 °C
- Maximum humidity: 80 %
Further Information
| Asset Location | Maynards Europe GmbH Maximilianstr. 4B, 82319 Starnberg, Germany |
| Delivery Conditions | EXW (Incoterms 2020) Sale on an as-is, where-is basis, ex location, with a binding handling and service fee, for dismantling/handling and loading of the goods onto the truck and/or provision only by a specified third-party supplier. |
| Payment Term | Immediately after Invoice Receipt If you receive a surcharge - more information on the Invoice |
| Seller | Maynards Europe GmbH Maynards is selling and issues the Invoice in order and in the name of the mentioned Seller |
